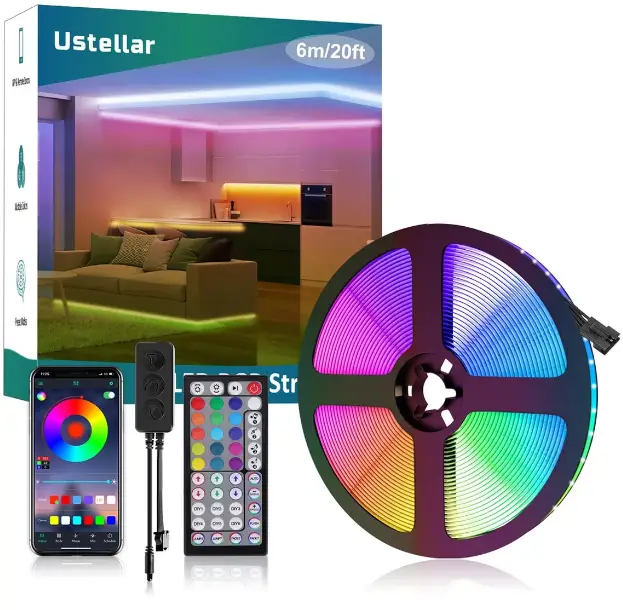

Ustellar UT33360-RGB-EU-NF LED RGB Light Strip
THANK YOU for choosing Novostella. To optimize user experience, please use the product according to the following instructions.
Warning
- Winding lighting is prohibited, as it affects heat dissipation and might cause dangers.
- Please unroll the light strip from the plate before lighting it up.
- Please check if the light strip and the parts are intact before using them.
- Please make sure that the power supply is turned off before installation.
- Please use the attached power adapter only, to ensure that the light works properly.
- Please do not use this light in the open air or under humid environment.
SPECIFICTAION
| P/N | UT33360-RGB-EU-NF I UT33360-RGB-UK-NF |
| Model | UT33360-RGB-EU-NF I UT33360-RGB-UK-NF |
| Wattage | 12W |
| Color | RGB |
| Total Length | 20ft/6m |
| LED Type | SOSO |
| LEO Quantity | 108 LEDs |
| Input Voltage | 100-240V AC |
| Frequency | S0/60Hz |
| Working Voltage | 24V |
| Working Temperature | -2s·c~4o•c |
| Restriction | Indoor Use Only |
| Battery Type | CR2025 (for remote controller) |
| Package Includes | Light Strip x 2,Remote Controller x 1, Power Adapter x 1,LED Signal Receiver x 1 |
| P/N | UT33361-RGB-EU-NF I UT33361-RGB-UK-NF |
| Model | UT33361-RGB-EU-NF I UT33361-RGB-UK-NF |
| Wattage | 24W |
| Color | RGB |
| Total Length | 40ft/ 12m |
| LED Type | SOSO |
| LED Quantity | 210 LEDs |
| Input Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Working Voltage | 24V |
| Working Temperature | -2s·c~4o•c |
| Restriction | Indoor Use Only |
| Battery Type | CR2025 (for remote controller) |
| Package Includes | Light Strip x 2, Remote Controller x 1, Power Adapter x 1,LED Signal Receiver x 1 |
| P/N | UT33362-RGB-EU-NF I UT33362-RGB-UK-NF |
| Model | UT33362-RGB-EU-NF I UT33362-RGB-UK-NF |
| Wattage | 24W |
| Color | RGB |
| Total Length | 65.6ft / 20m |
| LED Type | 5050 |
| LED Quantity | 340 LEDs |
| Input Voltage | 100-2401/ AC |
| Frequency | 50/60Hz |
| Working Voltage | 24V |
| Working Temperature | -2s·c~4o•c |
| Restriction | Indoor Use Only |
| Battery Type | CR2025 (for remote controller) |
| Package Includes | Light Strip x 2, Remote Controller x 1, Power Adapter x 1,LED Signal Receiver x 1 |
Components

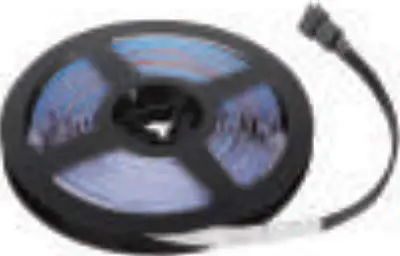

Light Strip
RF Remote Controller
Power Adapter
LED Signal Receiver
Note: Power Adapter Cord – type Z attachment. For type Z attachment: The cable or cord cannot be replaced without breaking or destroying the luminaire.

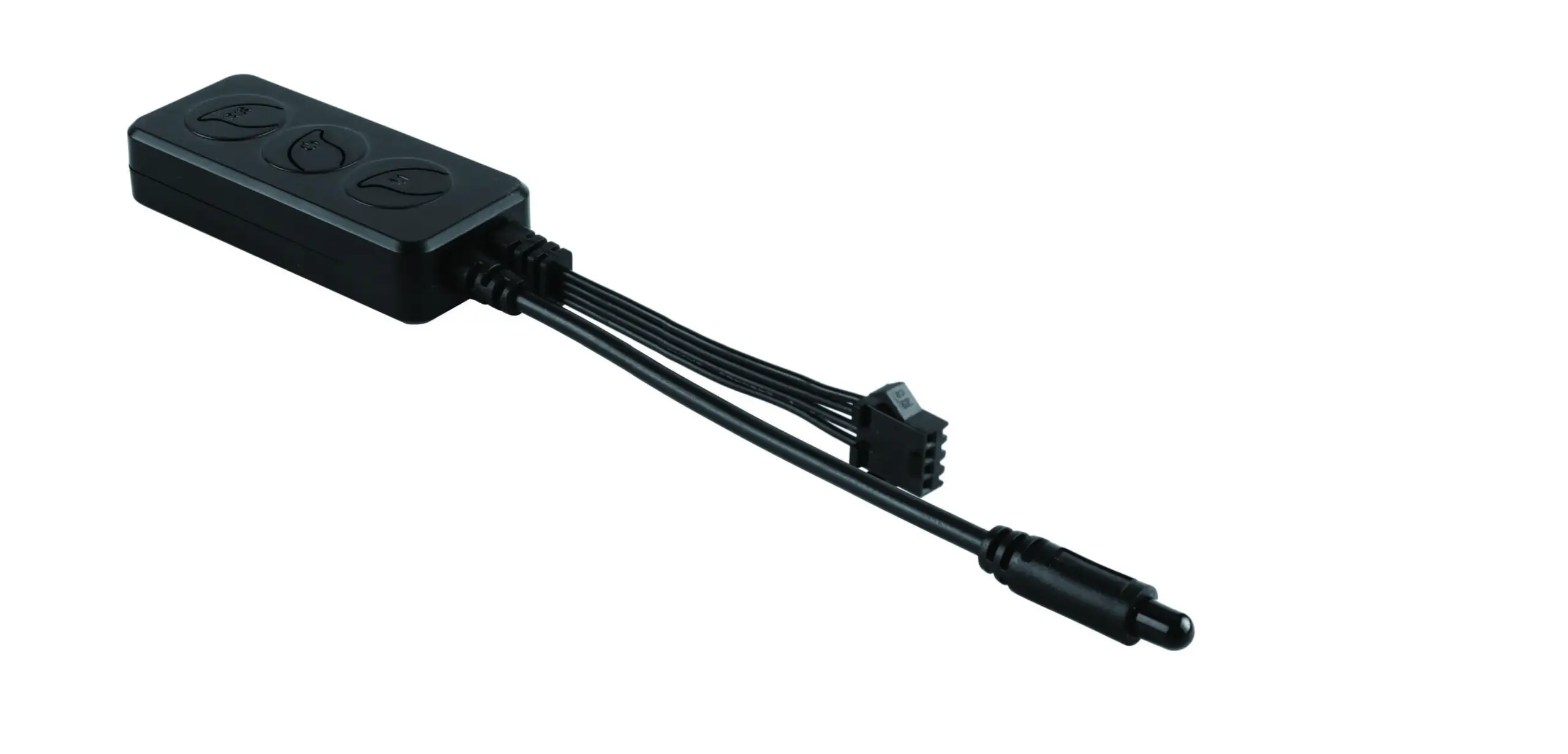

LED Signal Receiver
Access Port for 12/24V DC Power Adapter
4-Pin Access Port for Light Strip

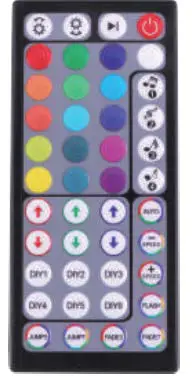

RF Remote Controller
- Brightness
- Singular color
- Diy color
- Pause/Play
- On/Off
- Music Modes
- Speed
- Dynamic Mode
Dynamic Mode
There are 6 preset dynamic modes, and their speed can be adjusted with the “QUICK”or”SLOW” button.
- JUMP3: Flash and loop among 3 colors (Red, Green, Blue).
- JUMP7: Flash and loop among 7 colors (Red, Green, Blue, Yellow, Purpple, Cyan, White).
- FADE3: Fade and loop among 3 colors (Red, Green, Blue).
- FADE7: Fade and loop among 7 colors (Red, Green, Blue, Yellow, Purpple, Cyan, White).
- FLASH: Flash on white color only.
- AUTO: Loop among the above 5 dynamic modes. The FLASH mode (white color only) repeats 20 times, while the rest four modes repeats 4 times in each loop.
How to DIV colors?
This light strip is made of RGB LEDs, which means there are three colors (red/green/blue) on one LED. All lighting colors are made by changing the
ratio of red, green and blue on the LED.
- e.g. Red + Green = Yellow Lighting
- Red + Blue = Purple Lighting
- Green + Blue = Cyan Blue Lighting
Firstly, choose and press one button from DIYl to DIY6 on the RF controller, for instance, the DIYl button. Secondly, press 1′ or ,J., button to increase
or decrease the ratio of red, green and blue on the LED, so as to create different lighting colors. Then the specific DIV color lighting will be saved on the DIYl button (the button you choose on the first step). Next time when you want to use this DIV color lighting, simply press DIYl button
for a quick access.
Installation
- How to cut the LED strip?
Before cutting the LED strip, please keep these in mind.- Once the strip is cut, an extra connector is needed for reconnection, otherwise the rest part being cut can not work. The connector is included in the package. You may contact the seller for the connector details.
- Double confirm the length for installation before making the cut.
- Cut the strip along the marks
- How to install the LED strip?

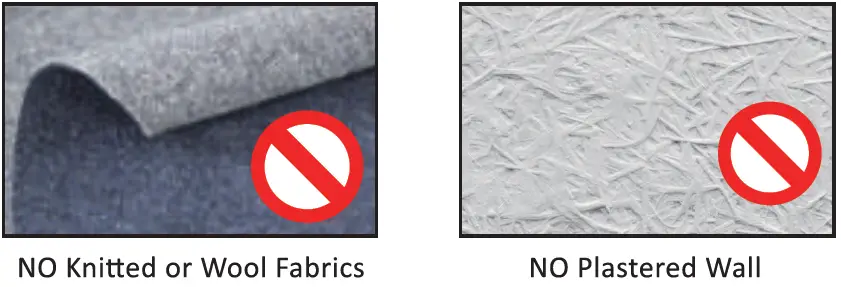

- Choose an even and smooth surface

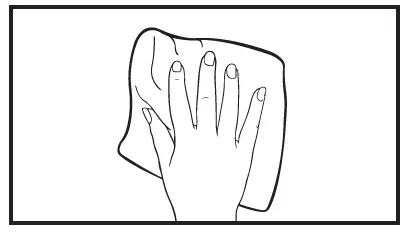

- Sweep the dust off the

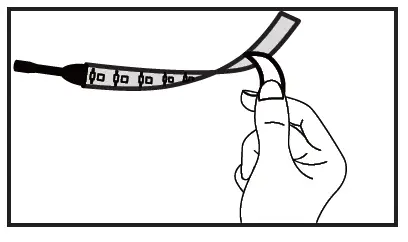

- Tear the back sheet. surface.

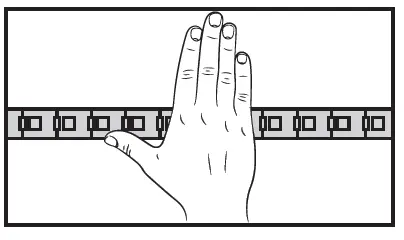

- Pre:11 the strip with force.
- Choose an even and smooth surface

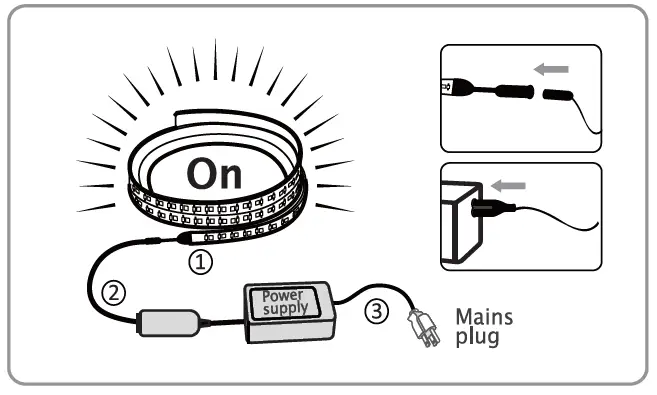

Connect the light strip to controller cable, and then connect
controller cable to power adapter. Plug the adapter into the socket and tum on the light strip by pressing ‘ON’ button on the Rf remote controller.
Note:
- If the strip can’t light up after the installation, please check whether the joints are connected correctly.
- Please make sure to tum off the power supply during routine maintenance.
- To avoid any damage to the strip, please do not use chemical solvent during routine maintenance.
How to control the light strip?

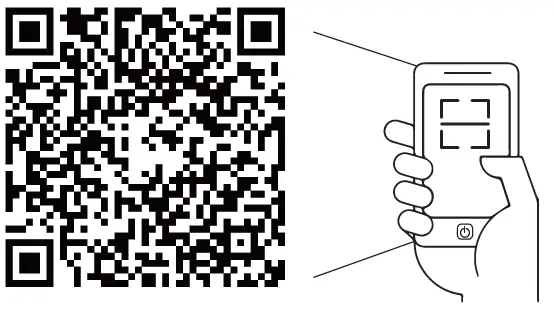

- Download the App Lotus Lantern by scanning the QR code below.
This App is compatible with Android 4.0 and iOS 8.1 or above.
Download APP- Scan the QR code from the label or user manual
The APP is compatible with Android 4.0 and 105 8.1 and higher version.
- Scan the QR code from the label or user manual
- Power on the light.
- Activate the Bluetooth function on your phone and open the App to automatically connect to the light.
- Enjoy the lighting by exploring the functions such as brightness, modes, music sync, timer etc. via the App.
Contact Us
Have some issue? No worries! Please reach us via these channels.
Our customer services team is more than happy to help.
www.ustellar.com [email protected]
Manufacturer. Shenzhen Ustellar Technology Ltd.
(shenzhen shiyou shib.lo keji you xiangong si )
Address: Rm.201, A Bldg., No. A Qianhai 1st Rd., Shengang Cooperation Zone,
Qianhai, Shenzhen, CHINA518000
