Cal-royal Vt49 Vinyl Thresholds Installation Guide

VT49
Vinyl Threshold

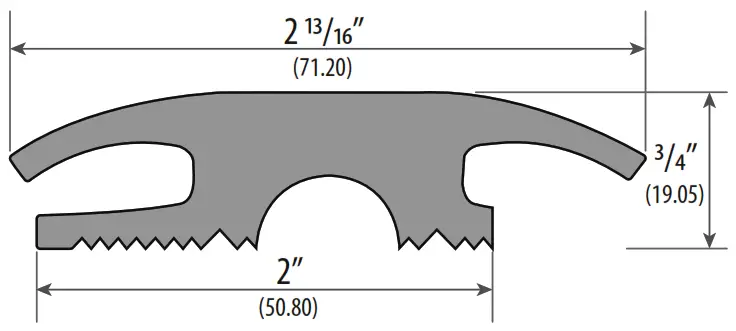

VT49 Vinyl Thresholds

Installation Guidelines:

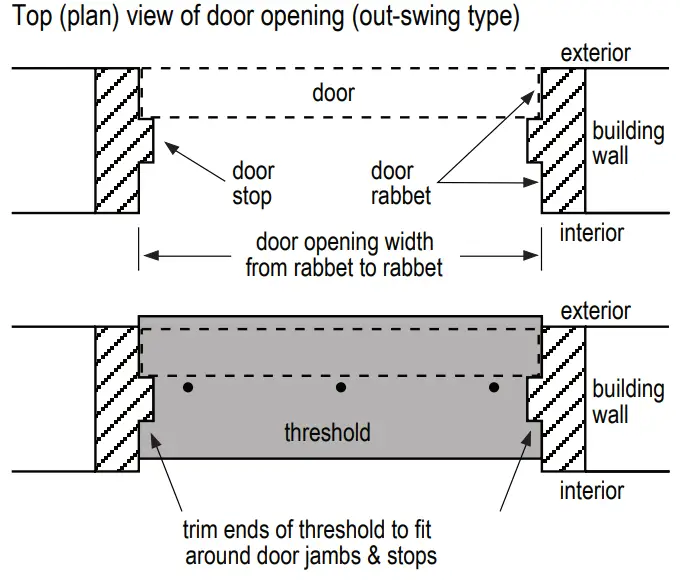

1. Measure the door opening at the sill by measuring the width of both rabbets.
2. Transfer measurement to the threshold.
3. Cut the threshold to length. Notch ends of the threshold to fit around the stop on the door frame as necessary.
4. Trail fit the threshold to verify proper fit. Cut down if necessary.
   Note: If using the threshold with carpet, insert carpet first into the threshold opening before fitting it into place at the sill.
5. Apply glue to concrete or plywood subfloors before setting the vinyl threshold in place.

Applications:

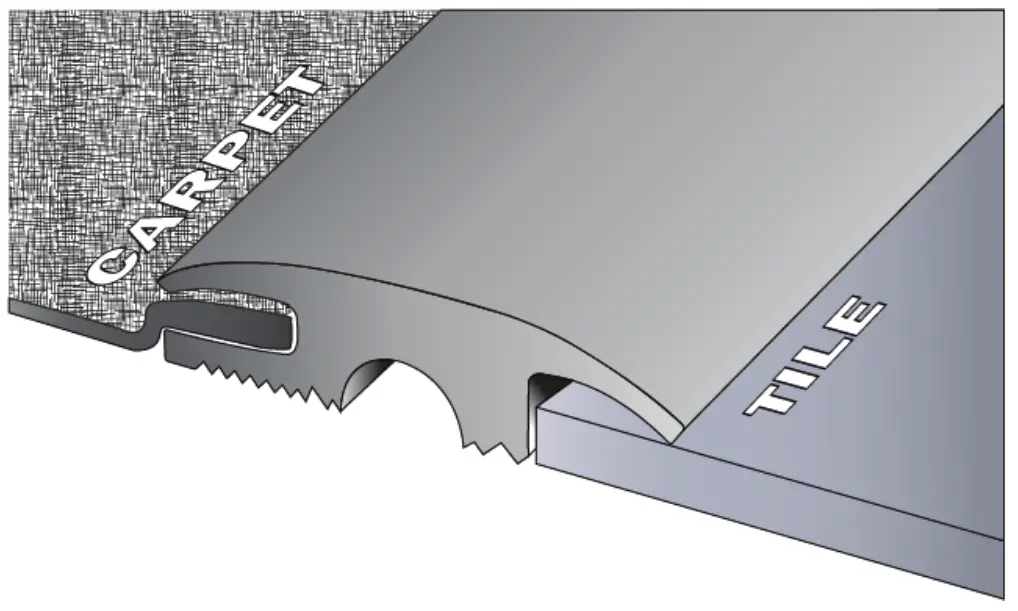

– transition where 3/8” carpet meets 3/8” til

Tools Required:
– Marker
– Measuring tape
– Caulking gun
– Cutting tools ( Miter saw, circular saw, hacksaw

TESTING/RATINGS:

6605 Flotilla Street, City of Commerce, CA 90040 U.S.A.
Website: www.cal-royal.com
Email: [email protected]
Phone: (323) 888-6601 ; (800) 876-9258
Fax: (323) 888-6699 ; (800) 222-3316
