JB480ST
GE ® Free-standing Electric Radiant Smooth Cooktop Range

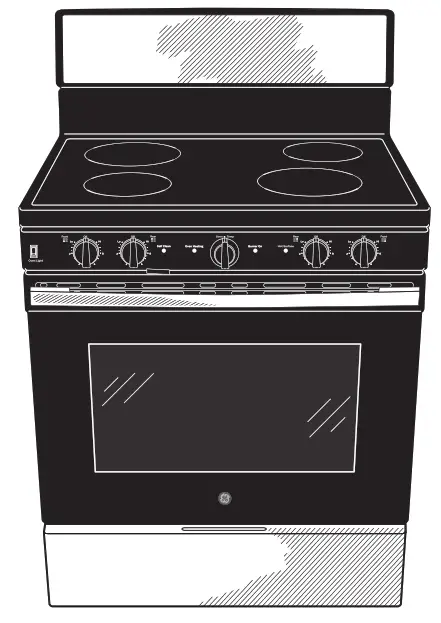

JB480ST Free-standing Electric Radiant Smooth Cooktop Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS
Locally approved flexible service cord or conduit must be used because terminals are not accessible after range installation.
See shaded area in drawing for location of electrical outlet box. Recommended outlet locations allow range to be installed directly against wall.
NOTE: This appliance has been approved for 0″ spacing to adjacent surfaces above the cooktop. However, a 6″ minimum spacing to surfaces less than 15″ above the cooktop and adjacent cabinet is recommended to reduce exposure to steam, grease splatter and heat.
INSTALLATION INFORMATION:
Before installing, consult installation instructions for current dimensional data and additional requirements.
KW RATING | |
| 240V | 11. |
| 208V | 8. |
BREAKER SIZE | |
| 240V | 40 Amost |
| 208V | 40 Amost |
†NOTE: Check local codes for required breaker size.
For answers to your Monogram, GE Café ™ , GE Profile ™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center ®
Service, 800.626.2000.
All GE Appliances ranges are equipped with an Anti-Tip device. The installation of this device is an important, required step in the installation of the range.
FEATURES AND BENEFITS
Front controls – Minimize need to reach
5.0 cu. ft. oven capacity – Cook more dishes at once
Self-clean oven – Cleans the oven cavity without the need for scrubbing
Dual-element Bake – Upper and lower elements produce even heat and great results
Removable full-width storage drawer – Store cookware or kitchen accessories
Model JB480STSS – Stainless steel
