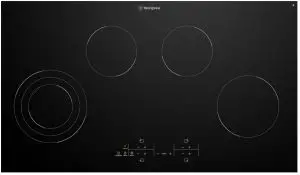

Westinghouse 90cm Electric Cooktop Installation Guide
WHC943BC

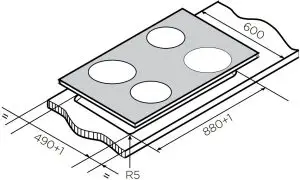

Dimensions

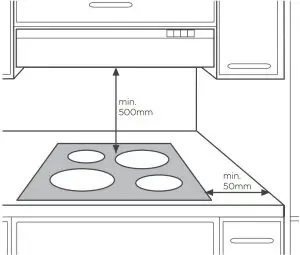

NOTE: The clearance must meet or exceed the minimum recommended for both the rangehood and cooktop. Refer to the rangehood installation manual.
WARNING: Surface temperatures of base exceed 95°C, under bench access must be restricted by use of non-combustible barrier on installation
- Product (below bench) WxDxH (mm): 900 x 520 x 46
- Cut-out WxD (mm): 880 x 490
IMPORTANT
These dimensions are a guide only. All measurements are in millimetres (mm).
For complete installation instructions, refer to the manual provided with product.
© 2020 Electrolux Home Products Pty Ltd. ABN 51 004 762 341. WDIM_Aspire_Apr20
Visit: westinghouse.com.au
