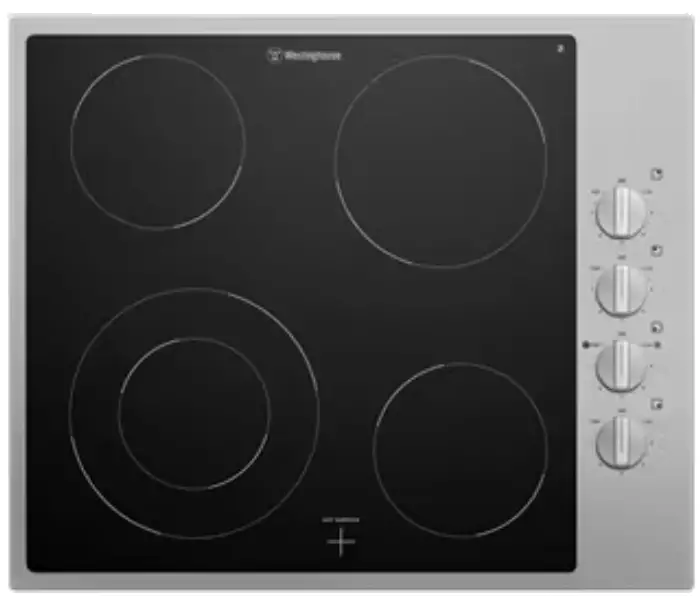

Westinghouse WHC642SC 60cm Electric Cooktops
Dimension and installation

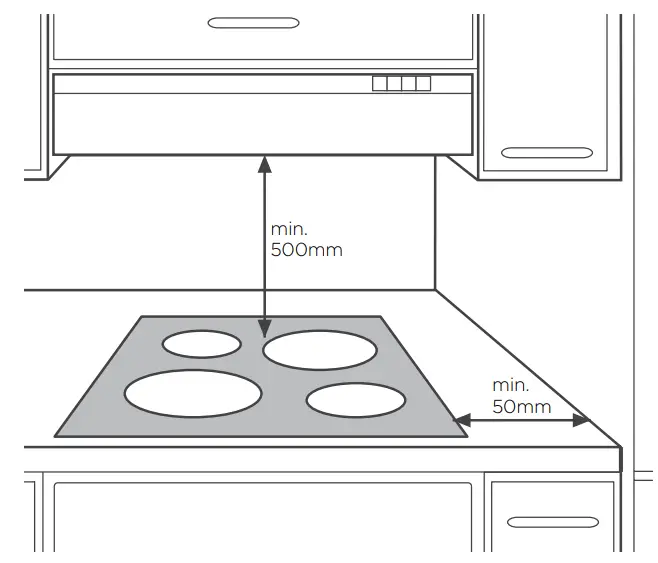

NOTE: The clearance must meet or exceed the minimum recommended for both the rangehood and cooktop. Refer to the rangehood installation manual.
WARNING
Surface temperatures of base exceed 95°C, under bench access must be restricted by use of non-combustible barrier on installation
| Product WxDxH (mm) | 590 x 520 x 51 |

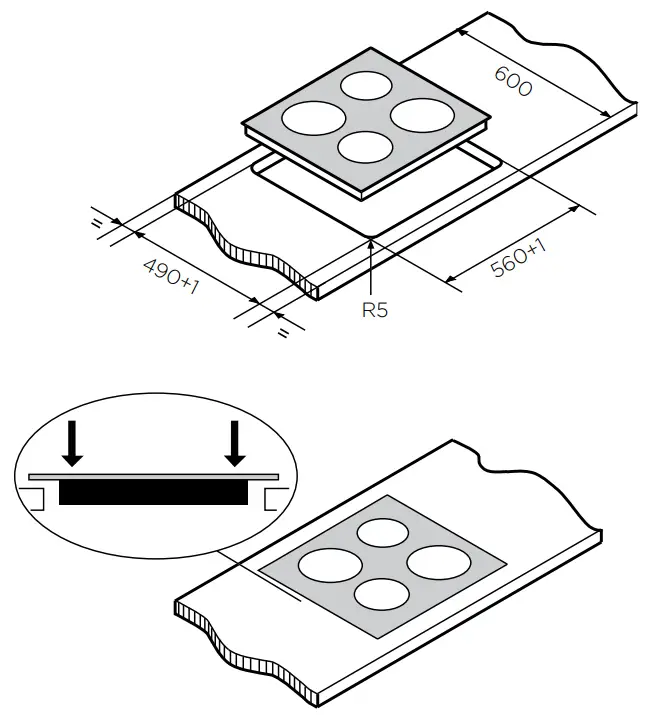

| Cut-out WxD (mm) | 560 x 490 |
IMPORTANT
These dimensions are a guide only. All measurements are in millimetres (mm).
For complete installation instructions, refer to the manual provided with product.
