Simplified Mfg Rex2 4k 30hz. Extender Set User Manual

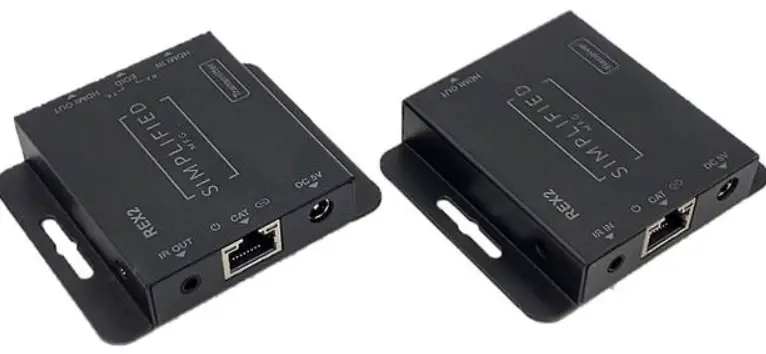

SIMPLIFIED MFG REX2 4K 30Hz. Extender Set

Introduction

The REX2 Extender can extend a 1080p AV signal up to 70m (232ft) and a 4K 30hz. signal up to 40m (131ft). The REX2 is compact and robust making it an excellent 1080p extender with the ability to also support 4K@30Hz. Applications would be 1080p video consoles, STB’s, cameras, and DVRs. Other applications could be 4K 30Hz streamers and Blu-Ray Players.

Features

• Compact Design
•  IR Pass-through from display back to TX
• Supports HDR10/HDR10+/DolbyVision
• Supports up to 4K 230Hz.
  CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30 CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
• Loop out allows cascading or intercepting of signal
• EDID can be attained from RX or Loop out

Package Contents

• 1 × HDMI Transmitter
• 1 × HDMI Receiver
• 1 × IR Blaster Cable
• 1 × IR Receiver Cable
• 2 × 5V/1A DC Power Adapter 1 × User Manual

Specifications

Operation Controls and Functions

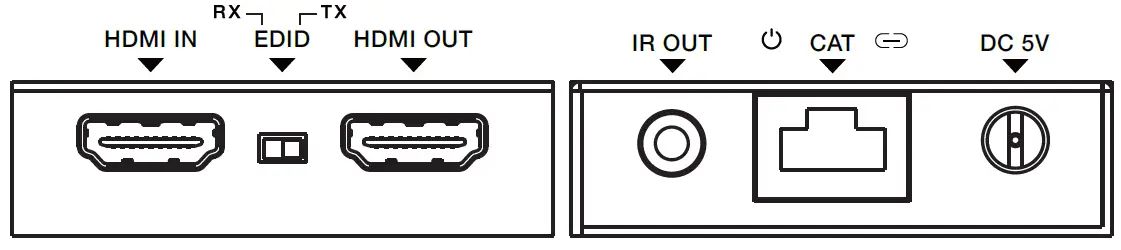

Transmitter Panel

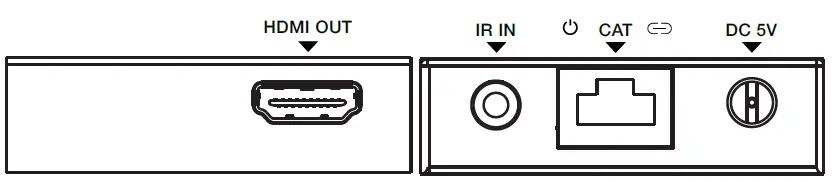

Receiver Panel

IR Pin Definition

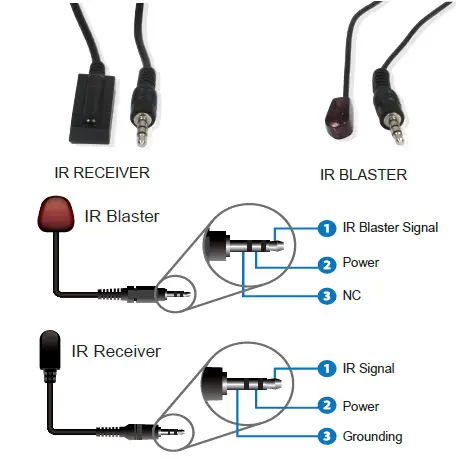

IR Receiver and Blaster pin’s definition is as below:

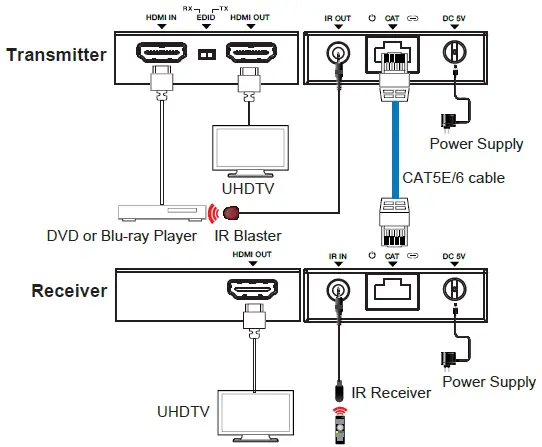

Application Example

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Warranty

Should you feel that this product does not function adequately due to defects in materials or workmanship, we (referred to as “the warrantor”) will, for the length of the period indicated below (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year PARTS and LABOR warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. The decision to repair or replace is made by the warrantor. The purchaser must mail in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferrable to subsequent owners, even during the warranty period. A purchase receipt or other proof of purchase date is required for the limited warranty service.

Contact

Sales and tech support;
P. 833-HDMI-411 (833-436-4411)
E. [email protected]

How to use and trouble shoot Simplified MFG Extenders

At the TX end:
Is everything connected (Cat, HDMI, Power etc)?
Is the HDMI cable in the HDMI input of the TX? We often use a loop out, make sure the input is not in this port.

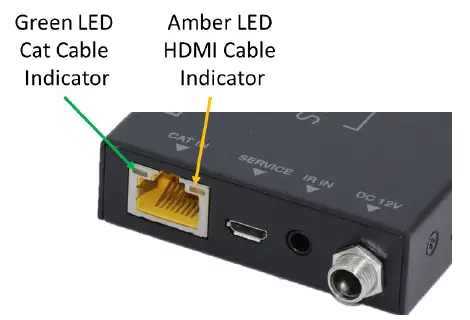

What are the lights where the Cat cable plugs into doing?
Is the Green Lit Solid?
Yes, good! Flashing or off the category cable is poor. This can be the termination (check the manual for wiring termination), poor wire, or interference from being run poorly
Is the Amber Lit Solid?
Yes good! Flashing slowly means no HDCP, off means no signal at HDMI port(s)
At the RX end:
Is the Green Lit Solid?
Yes, good! Flashing or off the category cable is poor. This can be the termination (check the manual for wiring termination), poor wire, or interference from being run poorly
Is the Amber Lit Solid?
Yes good! Flashing slowly means no HDCP, off means no signal at HDMI port(s)

Other Techniques:
Make the circuit simpler. Move the source near the display or the display near the source and see if it works with a short HDMI cable. You can use this to verify the HDMI cables work as well. Add components until the system fails.
Use a known working run of category cable across the floor and see if behavior changes.
It is often the case that the display’s setting can cause odd/poor behavior. Consult the display’s tech resources. Also, it is possible we have seen the issue and may have a tech paper on this.
Not a bad idea to keep the following on your service vehicle:

• Test source like an AppleTV or signal generator
•  Known working HDMI cables
• Known working terminated Category cable
•  SP12S splitter for clocking issues, etc.

The REX2 is a HDMI 2.0a 4K Extender set that supports HDR @24/25/30Hz. This is a more capable version of the REX1. Applications are; 4K cameras/NVR/DVR where HDCP2.2 is not used and as a far more robust version of the REX1 for 1080p applications
(longer distance more throughput) Small size makes it easy to place be-hind displays. 1 Way IR kit is includ-ed and sends IR from the display end to the transmission end.

Features

• HDMI 2.0a
• Supports HDR
•  Supports all HD Audio Formats
•  Small size for easy placement
•  HDMI loop through
•  LED Indicators for Input, Power, & Link
•  50m [4K @ 24/25/30Hz.]
•  3-Year Warranty

Specifications

References

• Simplified MFG Cutting Edge HDMI Solutions
