DELTA HTTP API Software User Manual
Introduction
UNOnext is a multi-function sensors. It provides Temperature (°C/°F), Humidity (rH%), Ambient Light (lux), CO2 (ppm), PM2.5 (μg/m3), PM10 (μg/m3).The advance model optionally provides TVOC (ppb), HCHO (ppb), CO (ppm), and O3 (ppb). This document introduces using UNOweb HTTP API to retrieve the sensor data of the UNOnext based on JSON format. Additionally, UNOweb HTTP API also provides the moving average data of sensor based on Taiwan regulation. The data density is 1 record per 6 minutes when the UNOnext is online.
Note. UNOweb HTTP API only supports the UNOnext which is already set WiFiand connected to UNOweb.
Table 1 Sensor Table
| Sensor Type | Key | Data Unit |
| Temperature | TEMP | °C |
| NTC Temperature (opt.) | NTC | °C |
| Temperature °F | TEMP_F | °F |
| NTC Temperature °F (opt.) | NTC_F | °F |
| Humidity | HUMI | rH% |
| Ambient Light | LUX | lux |
| CO2 | CO2 | ppm |
| PM2.5 | PM2p5 | jLg/m3 |
| PM10 | PM10 | jLg/m3 |
| TVOC (opt.) | TVOC | ppb |
| HCHO (opt.) | HCHO | ppb |
| CO (opt.) | CO | ppm |
| O3 (opt.) | O3 | ppb |
Table 2 Sensor Moving Average Data
| Sensor Type | Key | Data Unit | Rule Description |
| CO2 | CO2_ma | ppm | 8 hours |
| PM2.5 | PM2p5_ma | jLg/m3 | 24 hours |
| PM10 | PM10_ma | jLg/m3 | 24 hours |
| TVOC (opt.) | TVOC_ma | ppb | 1 hours |
| HCHO (opt.) | HCHO_ma | ppb | 1 hours |
| CO (opt.) | CO_ma | ppm | 8 hours |
| O3 (opt.) | O3_ma | ppb | 8 hours |
PS. If value of sensor is “null” presented unmounted or data unavailable.
API Manual
Requirement
- UNOweb account with token API permission.
- An on-line UNOnext’s SN.
- Prepare a HTTP API client. E.g. Postman (https://www.postman.com/), reqBin (https://reqbin.com/)

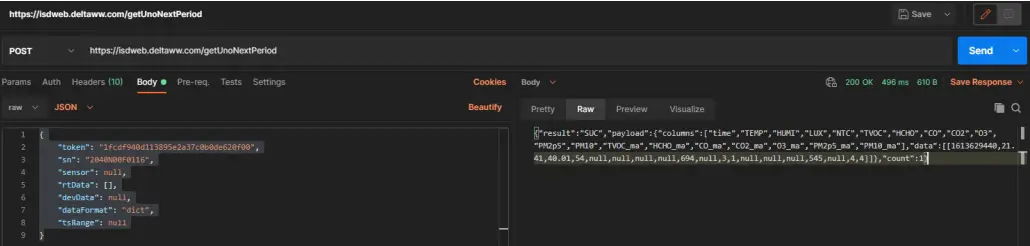

Figure 1 Postman screenshot
API
Current UNOweb provides following HTTP API for UNOnext. https://isdweb.deltaww.com/api/getUnoNextPeriod
Table 3 get Uno Next Period Usage
| API | Protocol | Description |
| getUnoNextPeriod | POST | Get UNOnext data based on moving average data. |
| Authorization: Bearer Token (In HTTP Request Header) | ||
| User token: Each Format | user has a unique token. Length is 32.
Bearer xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx | |
| Bearer <User token> E.g. | ||
| Post Body (JSON Format) | ||
| { “sn”: “2040N00F0116”, “sensor”: null, “rtData”: [], “dataFormat”: “dict”, “tsRange”: null } JSON Key Description | ||
| Key | Description | |
| sn | SN of belonged UNOnext. | |
| sensor | Moving avg. data of sensor string array. null means all sensor. Empty array [] means no interested moving avg. data. | |
| rtData | Real-time data of sensor string array. null means no interested real-time data. Empty array [] means all sensor data. | |
| dataFormat | Accept “dict”,”csv”,”json”. Use “dict” for most case. | |
| tsRange | Epoch time stamp array. [start, end] – [1613633000, 1613633201] null means the last data in 1 hour. Epoch Example: https://www.epochconverter.com/ | |
| Response (application/json) | ||||||||||||
| { “result”: “SUC”, “payload”: { “columns”: [ “time”, “TEMP”, “HUMI”, “LUX”, “NTC”, “TVOC”, “HCHO”, “CO”, “CO2”, “O3”, “PM2p5”, “PM10”, “TEMP_F”, “NTC_F” ], “data”: [ [ 1619425800, 23.2, 67.57, 282, null, 30000, 42, 0, 920, 0, 2, 1, 73.76, null ] ] }, “rawCount”: 1, “count”: 1 } JSON Key Description
|
