DELTA LM-WESA0440A-OR Wifi AP Lable
Introduction
This guideline provides site preparation recommendations, step-by-step procedures for the WIFI AP/ROUTER installation, and power source connection.
Overview
Interface
1 port RJ-45 connector for 10BASE-Te ,100BASE-TX,1000BASE-T
Power Supply
IEEE 802.3at PoE compliant source

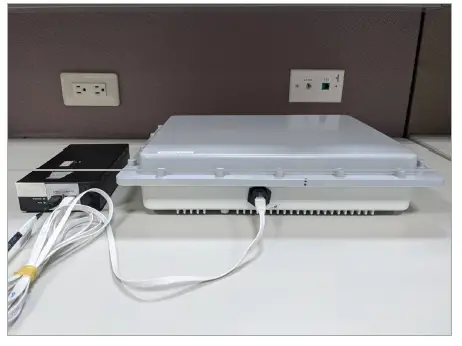

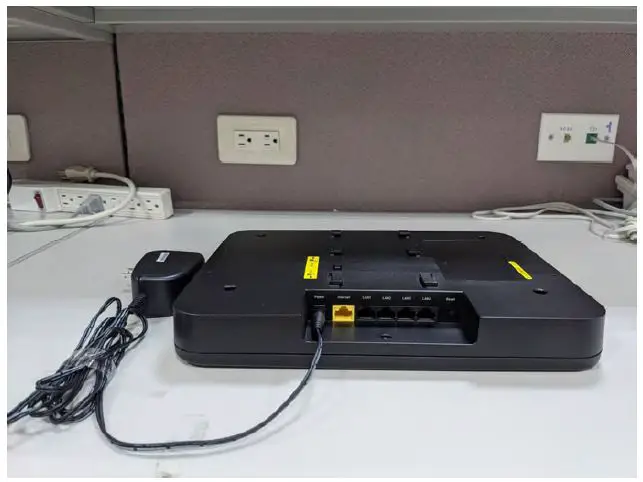

WIFI AP/ROUTER installation
POE Mode
Note : Internet Port : Please connect with PSE
Environmental Specifications
Operating temperature: -20 to 50℃
This product is intended to be supplied by a Listed PoE compliant source, rated 42.5~57V 600mA maximum , and Tma = 50 degree C. If need further assistance with purchasing the power source, please contact to
“XXX (UL File owner or brand owner)” or “agency” for further information.
Regulatory
- FCC
- CE
- IC
- UL/IEC 60950-1
- UL 60950-22
- EN 62368-1
- IP67

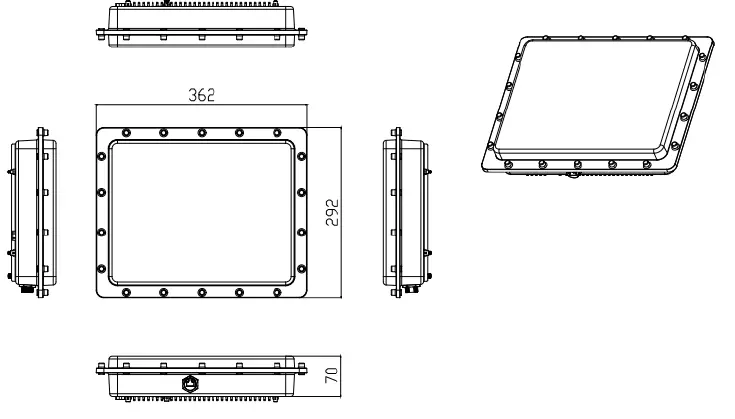

LM-WESA0440A-OR Drawing

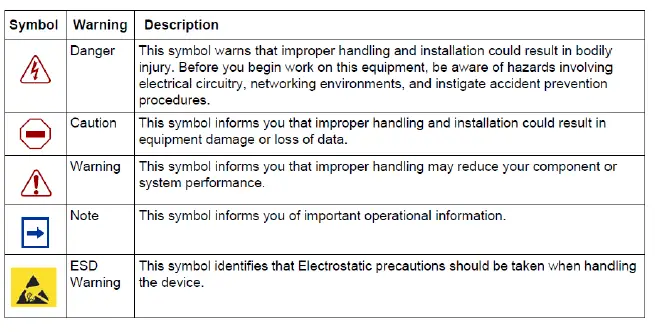

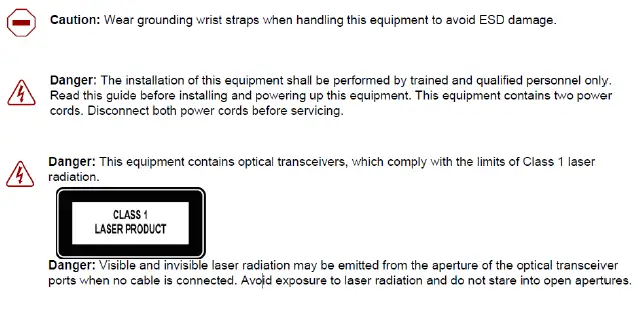

Information symbols and warnings
