Introduction

Thanks for choosing our product. This product is a smart wireless microphone that provides professional-grade recording output. Plug and play, no app required. Multiple uses: It can be used in online live broadcast, video Vlog shooting, program interview, recording, video teaching and other occasions.

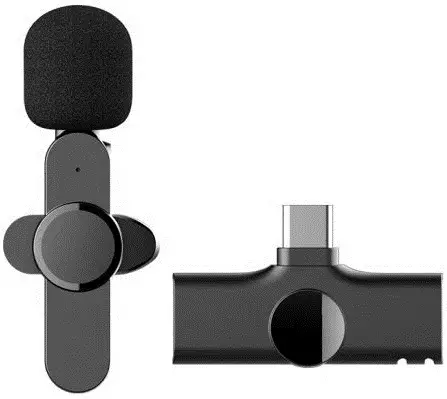

The wireless Microphone consists of two parts, one is Microphone transmitter , the other one is Type-C receiver. (See as below picture)

(Microphone transmitter)

(Type-C receiver)

ID Diagram

1. Windproof net
2. Microphone indicator
3. Microphone Type-C charging port
4. Microphone clip
5. Switch key
6. Microphone reset key
7. Type-C port to connect phone
8. Receiver indicator
9. Reset key of receiver
10. Type-C port of receiver

* The function of above 10 will be specifically explained later.
*****Some Android phones may have incompatibility problems due to system , please consult your dealer for details*****

How to use

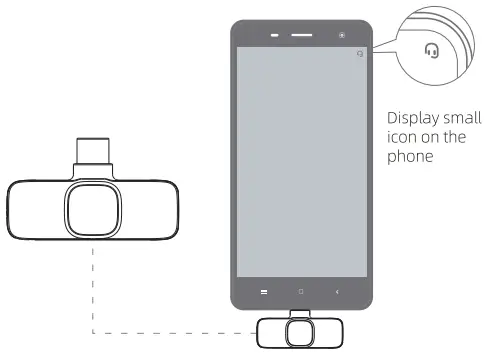

Step 1: Connect the Type-C receiver to phone with Type-C port. The connection is successful if the phone displays a small icon.

Note: oppo /vivo / iqoo / realm brand mobile phones can be used normally only when they go to the settings (search “OTG” – turn on OTG power supply)

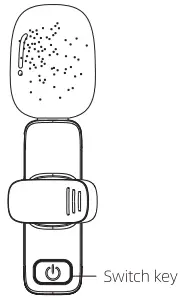

Step 2: Press switch key of microphone, the indicator light turns green, and then power is turned on.

Step 3: The indicator red light of receiver keeps always on, then open the phone camera, live App or other Apps , and then to use the microphone to receive sound.

Special Note:

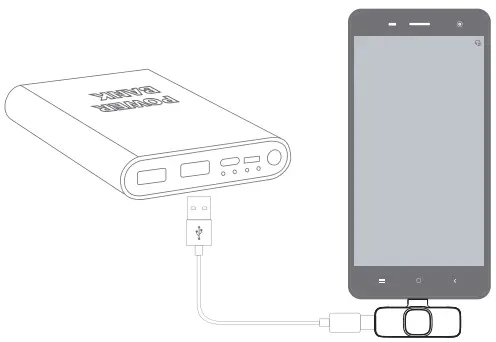

For the use of 10 Type-C port : there is no battery in Type-C receiver, and no need to recharge during live. If the phone is low power during Live, it can be recharged directly through 10  Type-C port.

Note: Some models do not have this function, and the real object shall prevail

About UI

Microphone Transmitter

Receiver

Packing List

Content of packing

1. Microphone transmitter
2. Type-C receiver
3. Type-C charging cable
4. User manual

FCC WARNING

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

The device has been evaluated to meet general RF exposure statement. The device can be used in portable exposure condition without restriction Warning: Changes or modifications to this unit not expressly approved by the part responsible for compliance could void the users authority to operate the equipment.
