Mitchell-Scaffold Platform for Camera / Gimbal Setups (P-MTCL-SF)
Assembly Manual
What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed below.

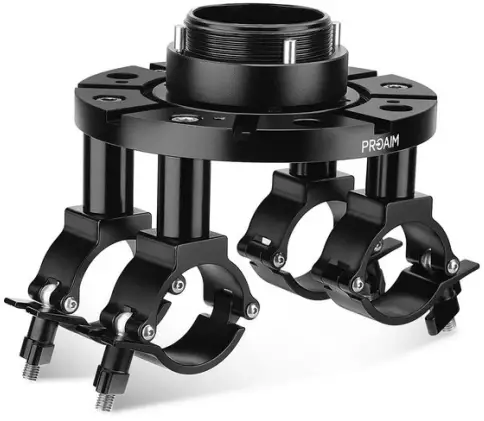

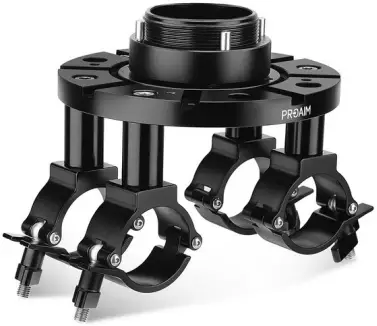

Mitchell-Scaffold Adapter Castle Nut wrench
2 X L-Type Allen Keys (Sizes: 4mm & 6mm)
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmitted by any form or by any means, electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permitted by the applicable copyright statutes or in writing by the Publisher.
Mitchell-Scaffold Adapter Setup
NOTE: It has multiple ¼”-20 thread holes on the bottom of the adapter plate for mounting additional accessories.

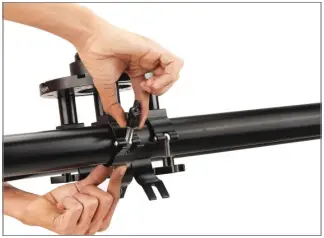

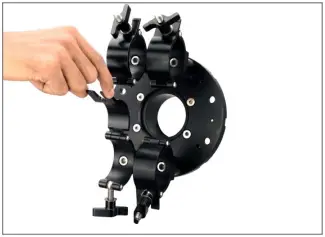

- Loosen all the knobs of the Mitchell-Scaffold Adapter clamps and open the clamps.

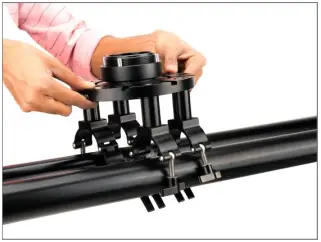

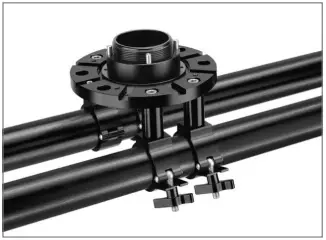

- Mount the Mitchell-Scaffold Adapter on 48mm speed rails (Not Included) and close the clamps.

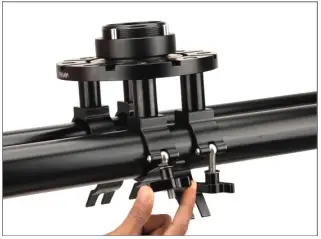

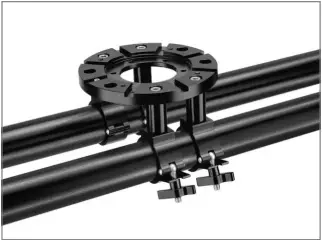

- Properly tighten the knobs of all the clamps.

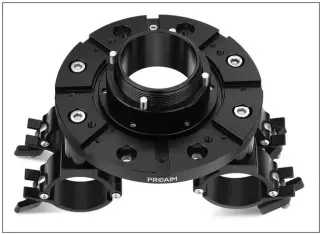

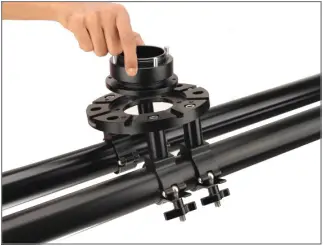

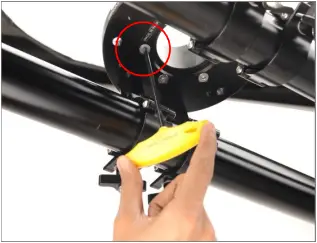

- Remove all the bolts from the bottom side of the Mitchell-Scaffold Adapter with the help of an Allen Key, and remove the castle ring.
NOTE: The top mount is the Male Mitchell mount, although if you prefer a female Mitchell Mount, you can simply remove the castle nut and use it accordingly.
Mounting of Fluid Head

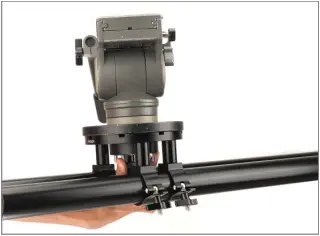

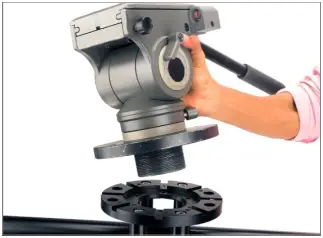

- Remove the castle ring from the Fluid Head (Not Included) and mount the Fluid Head onto a tripod (Not Included).

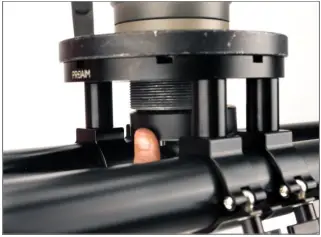

- Attach the castle ring to the fluid head and properly tighten it.

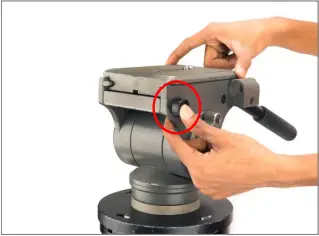

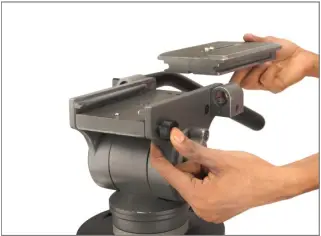

- Remove the camera plate by pressing the push pin on the fluid head.
NOTE: you create a spectacular clutter-free camera setup with Mitchell-based gear such as isolators, gimbals, fluid heads, and so on.
Camera Mounting Setup

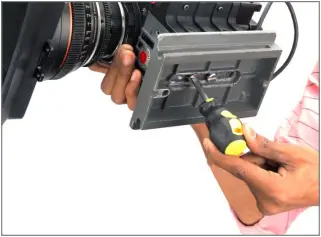

- Attach the camera plate to the Camera (Not Included) and properly tighten it with the help of a screwdriver (Not Included).

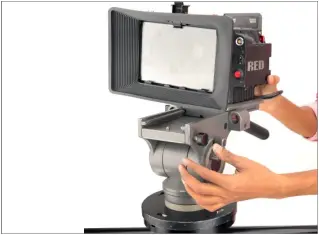

- Slide the camera onto the fluid head. Your camera setup is ready now.
NOTE: The adapter has an impressive payload capacity of up to 100kg/220lb, ensuring a quick, stable & strong connection with easy mounting.

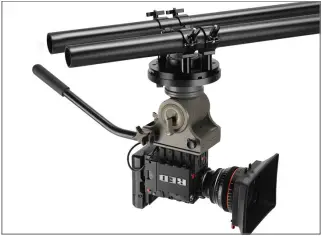

NOTE: It is versatile filming equipment that you can use over-slung, under-slung, offset, and in many different positions, suiting your shooting requirements
Mounting on Tripod

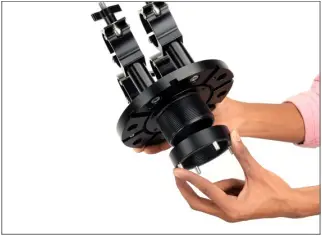

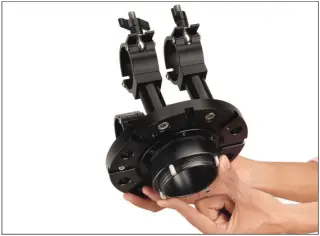

- Remove the castle ring from the Mitchell Scaffold Adapter.

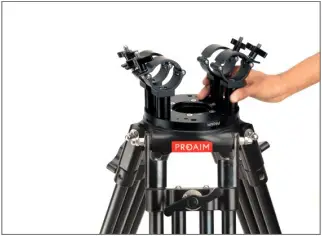

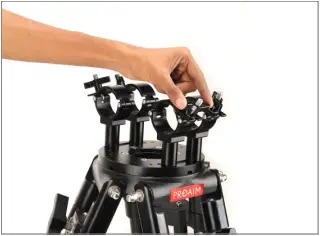

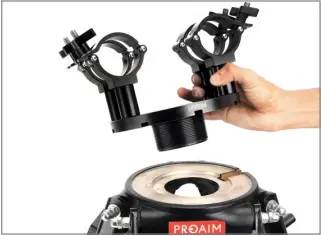

- Mount the Mitchell-Scaffold Adapter on a tripod (Not Included).

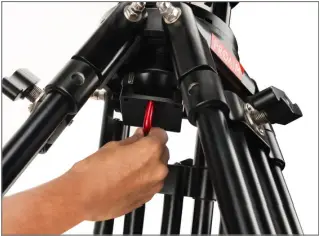

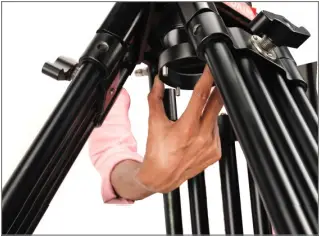

- Now attach the castle ring at the bottom of the Mitchell-Scaffold Adapter and attach the castle nut wrench to the castle ring.
NOTE: The Mitchell castle nut wrench is used for quick and secure Mitchell mount castle nut adjustment.

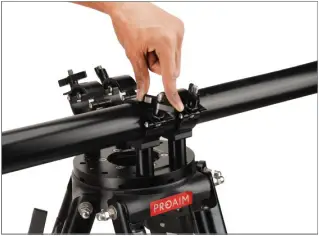

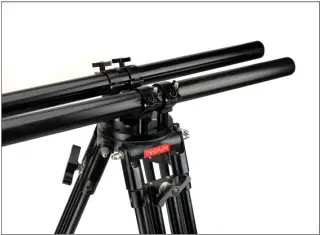

- Open all the clamps of the Mitchell-Scaffold Adapter and insert the 48mm speed rail (Not Included).

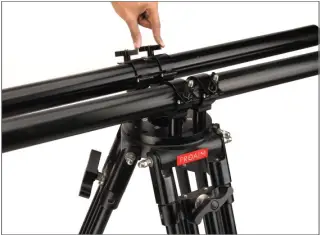

- After inserting the speed rail, tighten all the clamps with the help of the knobs. Follow the same process to insert the second speed rail.
NOTE: Beneath the mount is a scaffolding side of four clamps with an OD of 48mm; also, you can use four or only two clamps suiting your setup needs.

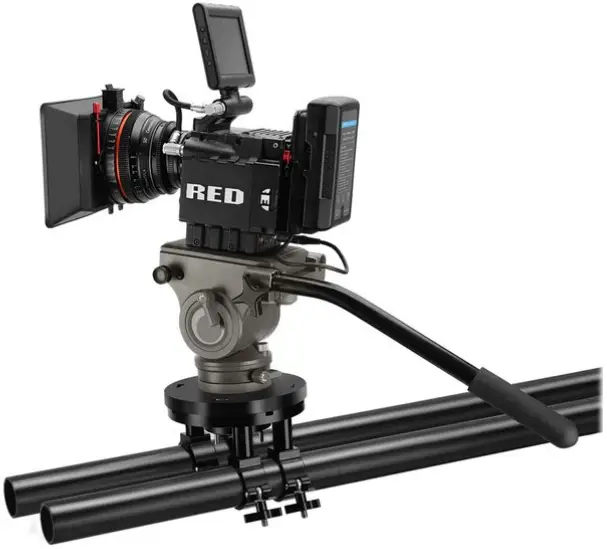

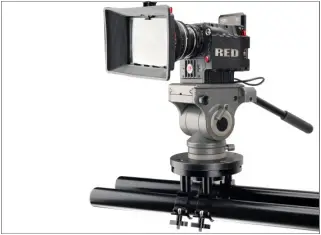

YOUR PROAIM MITCHELL SCAFFOLD PLATFORM FOR CAMERA ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
