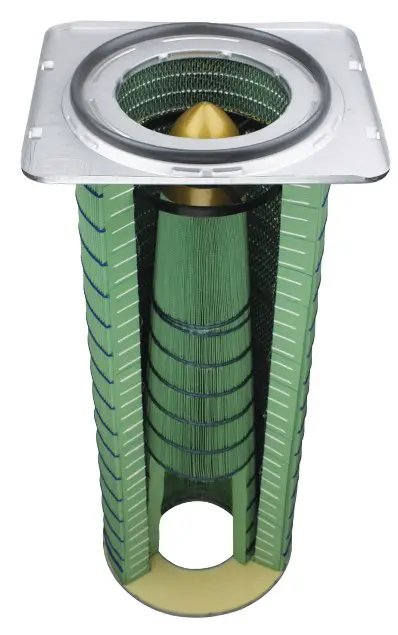

camfil TENKAY Filter Cartridges Owner’s Manual
ADVANTAGES
- Excellent energy performance
- Improved filter life
- Vertically integrated cartridge for better dust release and ease of removal and installation
- High filtration efficiency
Application
Vertical pulse filter for desert/dry/ heavy dust load areas
Comment
Size: Standard 34”, 22” and 27” on request. Additional information:
Also available as CamBrane E12, Goldcone, and eXtreme versions on request.
The Tenkay HemiPleat™ filters for turbomachinery provide enhanced performance and longer service life, thanks to greater media utilization and more effective filtration. The HemiPleat™ separator bead opens up the pleats uniformly, allowing more effective cleaning, low pressure drop and long life.
Specifications
| Type | EN779 | EN1822 | ASHRAE 52.2-2017 I | ISO16890 | Length (mm) | Diameter (mm) | Airflow/pressure drop (m³/h/Pa) | Weight (kg) | Media Type |
| Polytech HE | F7 | MERV 13 | 864 | 324 | 1150/145 | 8,6 | |||
| Tenkay 34″ | F9 | MERV 15 | ePM1 80% | 864 | 324 | 1150/115 | 8,6 | Synthetic | |
| GTC | E10 | MERV 15 | 864 | 324 | 1150/130 | 3.8 |
Energy Consumption, kWh/year: Calculated according to Eurovent Guideline 4/21-2019
Energy class: according to Eurovent RS 4/C/001-2019
*Turbomachinery ISO 29461-1 test standard is available upon customer request
www.camfil.com
As part of our program for continuous improvement, Camfil reserves the right to change specifications without notice.
2023-03-15
