CamCarb CG,CM
HANDLING AND MAINTENANCE

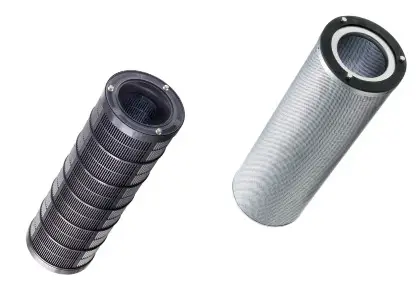

CamCarb CG Molecular Filters
INSTRUCTIONS FOR:
- CamCarb CG
- CamCarb CM
STORAGE INSTRUCTIONS
- Store in a dry and frost-protected place
- Avoid direct sunlight
- Do not store filter above 70OC
- Keep filter in a plastic bag and a box to avoid exposure to humidity and contamination
- Recommended maximum shelf time is 12 months
HANDLING INSTRUCTIONS
- Handle with care
- Keep filter in the box as long as possible before installation to avoid damage
INSTALLATION
- Filters are to be installed in ducted housings e.g. Cam Cube CC, or in Cam Carb mounting frame
- Install the Cam Carb cylinders by placing the pins in the slots of the mounting frame
- Turn the cylinders counterclockwise until stop.
- Repeat until all cylinders are mounted
- Tighten the cylinders by using a socket wrench (24 mm CG / 30 mm CM)
BEFORE FILTER CHANGE
- Camfil recommends protective equipment like overalls, gloves and face masks when changing filters
- Always check local regulations before changing filters
FILTER CHANGE
- Turn the cylinder clockwise, lift the cylinder slightly and pull it straight backward
- For instructions on how to install new filters, see Installation
MAINTENANCE INSTRUCTIONS
- Filters for one time installation only
- Do not reuse, wash or clean filters
- Used filters should be disposed of in accordance with local regulations
