Quick Start Guide
Need help?
See the user manual stored on the recorder.
Online
http://www.jwdigital.com/
| MIC sensitivity | High Medium Low |
| Resolution | 2304×1296 30P 1920×1080 30P 1280×720 30P 848×480 30P |
| Video quality | S.Fine Fine Normal |
| Pre-record | Off On |
| Delay record | Off 5 Seconds 10 Seconds 15 Seconds 30 Seconds 60 Seconds |
| Photo size | 38M、34M、23M、20M、18M、16M、14M、12M、8M、5M、3M、2M |
| Photo quality | S.Fine Fine Normal |
| Photo rate | Off 3 P 5 P 10 P 20 P |
| Auto selftimer | Off 3 Seconds 5 Seconds 10 Seconds 30 Seconds 60 Seconds |
| Language | NTSC PAL |
| TV Mode | NTSC PAL |
| Default settings | |
| LCD brightness | High Medium Low |
| System time |  |
| Auto off | Off 1 Min 2 Min 3 Min 5 Min |
| LCD auto Off | Off 1 Min 3 Min 5 Min |
| Volume | 0-10 |
| In-car Mode | Off On |
| Loop record | Off On |
| In-car record | Off On |
| Duration Off | 5 Min 10 Min 15 Min 20 Min 30 Min |
| Key tone | Off On |
| Indicator light | Off On |
| Infrared switch | Manual Auto |
| Motion detection | Off low Medium High |
| EV | -2.0~+2.0 |
| Sytem information | Total space Available space Remain video Remain sound Battery power Firmware version |

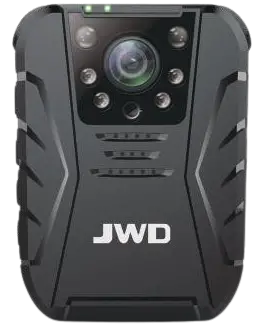

Your reliable audio & video recorder with distinguished recording performance, small but comfortable to wear.
深圳市京华数码科技有限公司
