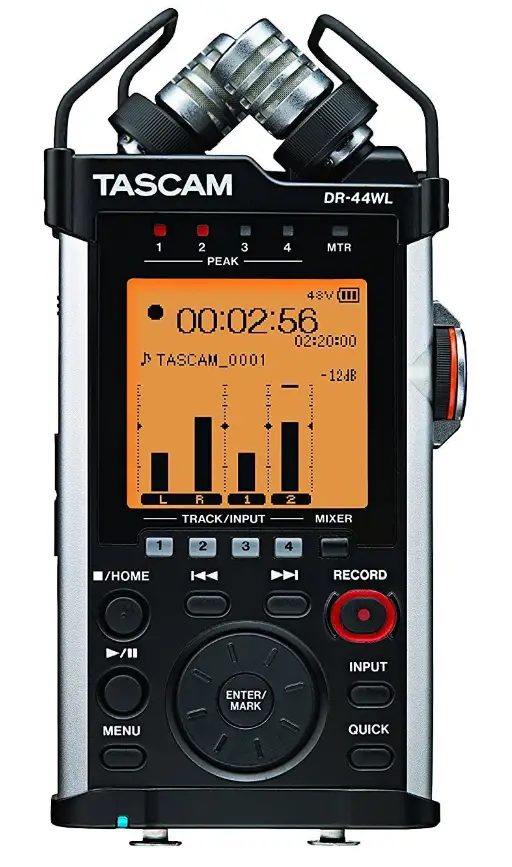

Tascam DR-44WL Handheld Portable Audio Recorder

INTRODUCTION

TASCAM’s top-of-the-line portable audio recorder now has better audio specifications, upgraded microphones, Wi-Fi transport management, and file transfer. In order to provide the best stereo image, the new stereo condenser mics have improved shock mounting and are put in a true XY pattern. For 4-track recording, there are also two XLR inputs, and all four feed an upgraded microphone preamp and AD/DA stage. Wi-Fi is built into the DR-44WL for smartphone control and file transfer. The mechanism for starting and stopping remote recording is managed by a free app for iOS, Android, Mac, and Windows devices. Your device will get live audio streaming, and you can wirelessly transfer files. Instantly post records to the web without shifting the DR-44WL from its ideal position.

The DR-44WL also has a 4-track multitrack mode that enables the recording of arrangements one track at a time with reverb. The recorder has a hot shoe mount for video cameras and a reliable internal clock to prevent drifting out of sync with your camera. The DR-44WL is a capable & user-friendly portable recorder that combines the greatest audio quality with Wi-Fi capabilities, regardless of your application.

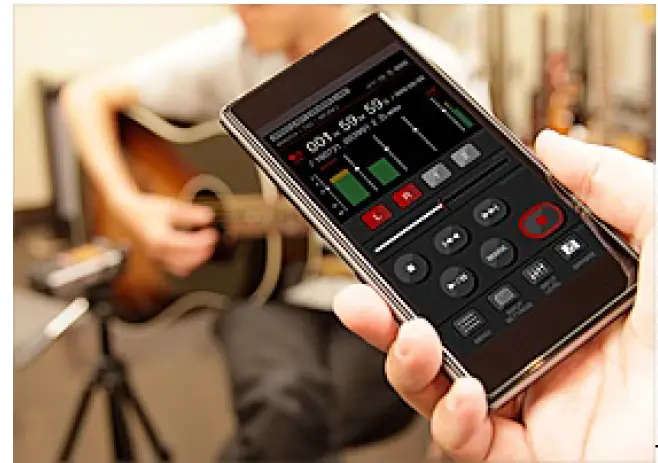

REMOTE WI-FI OPERATION ELIMINATES HANDLING NOISE

TASCAM has once again revolutionized handheld recording! The DR- 44WL creates its own Wi-Fi network, and a free dedicated app can be used for remote operation without touching the unit. Since the Wi-Fi transmission range is about 20 meters, this feature can be used with the recorder in places that are normally out of reach. Not only does the app allow recording to be started and stopped, it can also be used to check and adjust input levels from an iOS or Android device. Everything related to recording can be done by Wi-Fi.
In addition, audio can be checked by Wi-Fi after recording. The audio quality can be checked through headphones connected to a smartphone. With operation capabilities and flexibility that exceeds infrared remotes – and reliability that approaches that of wired remotes – this handheld recorder allows freedom of placement that far surpasses that of previous models.
Starting with firmware version 2.0 it is also possible to connect via an existing router or access point. Advantages are that (1) you can use other web services like e-mail or sharing portals at the same time with your mobile device, and (2) Wi-Fi range thus control range might be larger, depending on the router capabilities. A direct connection, in contrast, is ideal when there is no Wi-Fi available or you don’t have permission to use it.

NOTE: Checking audio via Wi-Fi is intended for use after recording.

• Choose which type of Wi-Fi connection to use: Simple direct connection (no router necessary) or connection via an existing Wi-Fi network (local router or access point)
• Remote control using the free DR CONTROL app (iOS/Android)
• Check recorded audio using wireless playback

BUILT-IN PROFESSIONAL X-Y STEREO MICS ENABLE HIGH-QUALITY AUDIO RECORDING

Two cardioid mic capsules are arranged so that their diaphragms overlap in the same axis. This X-Y configuration provides a true stereo image. The microphone capsules and input circuitry are designed to perform without distortion in environments with high sound pressure levels – such as live concerts and recording close to a sound source.

In addition, a newly-designed shock mount absorbs vibrations effectively – even when mounted on a digital SLR camera.

• Cardioid condenser mics in an X-Y configuration for impeccable stereo recordings
• Designed to handle high sound pressures of up to 132 dB
• Shock mount structure reduces physical noise
• Dual-level recording function helps avoid overloads

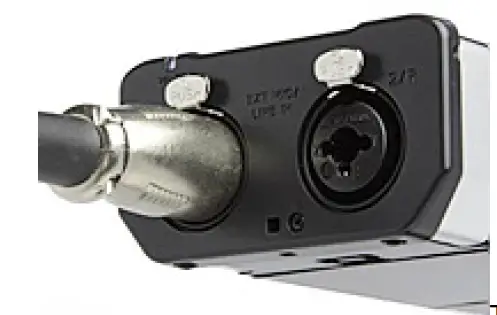

XLR/TRS INPUT JACKS FOR PROFESSIONAL APPLICATIONS

The XLR/TRS external input jacks can be used to record the outputs of a PA console or external mics while recording with the built-in mics – recording four tracks (two stereo tracks) simultaneously. Set the recorder to capture four mono, one stereo and two mono, or two stereo tracks according to your recording needs. Since this unit can also provide +48V phantom power, users can also connect their favorite condenser mics.

Moreover, this unit supports +4dBu input, which is necessary to interface with professional-level equipment

• XLR/TRS inputs that support +4dBu and +48V
• Low noise realized through the use of a PGA and high-performance audio codec
• Four-track recording is easy using the external inputs for mics or other devices

MTR MODE CAN BE USED FOR SERIOUS MUSIC PRODUCTION

The DR-44WL is also a powerful tool for songwriters. By selecting MTR mode, the user can use the DR-44WL as a multitrack recorder to overdub one track at a time. With functionality that approaches that of a dedicated MTR, it is possible to produce studio-quality music files using just one DR-44WL. In addition, the reverb effect can be used to sweeten recordings.

• MTR mode enables music production similar to using a dedicated multitrack recorder
• Reverb gives vocal and instrumental performances a pleasing sense of space

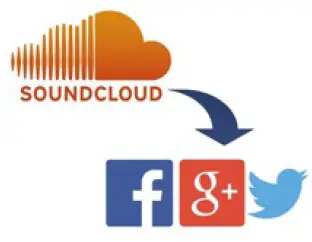

SMARTPHONE CAN BE USED WITH UNIT TO SEND RECORDED FILES

The benefits of Wi-Fi are not limited to recording. Audio files can be transmitted via Wi-Fi to smartphones and computers. Files can also be uploaded to SoundCloud using a dedicated application. SoundCloud is tightly linked with other social networking services. For example, if a recording is shared to Facebook, it will appear on the user’s timeline. By uploading a live recording immediately after performance, audience members could listen to the concert again on their way home.

NOTE: An Internet connection is necessary to upload files to the Internet from a smartphone.

• Dual-format recording function allows simultaneous recording of both WAV and MP3 files
• Share audio files from SoundCloud to other social networking services
• Transfer files to computers wirelessly

MULTIPLE AUTOMATIC FEATURES ALLOW SIMPLIFIED OPERATION

Even though the DR-44WL is a professional recording device, it also has numerous automatic functions that make capturing high-quality recordings easy for anyone. In addition to automatic recording functions, the unit also has functions that simplify file management. Users can create high-quality recordings without complicated operations.

• Automatic level optimization functions (peak reduction and limiter)
• Automatic track incrimination functions (new file creation) can be set according to the application
• Automatic recording function that starts recording when a preset audio input level is detected
• Automatic mark function that adds marks according to set conditions
• Automatic division function that divides files at pre-set marks (V1.10)

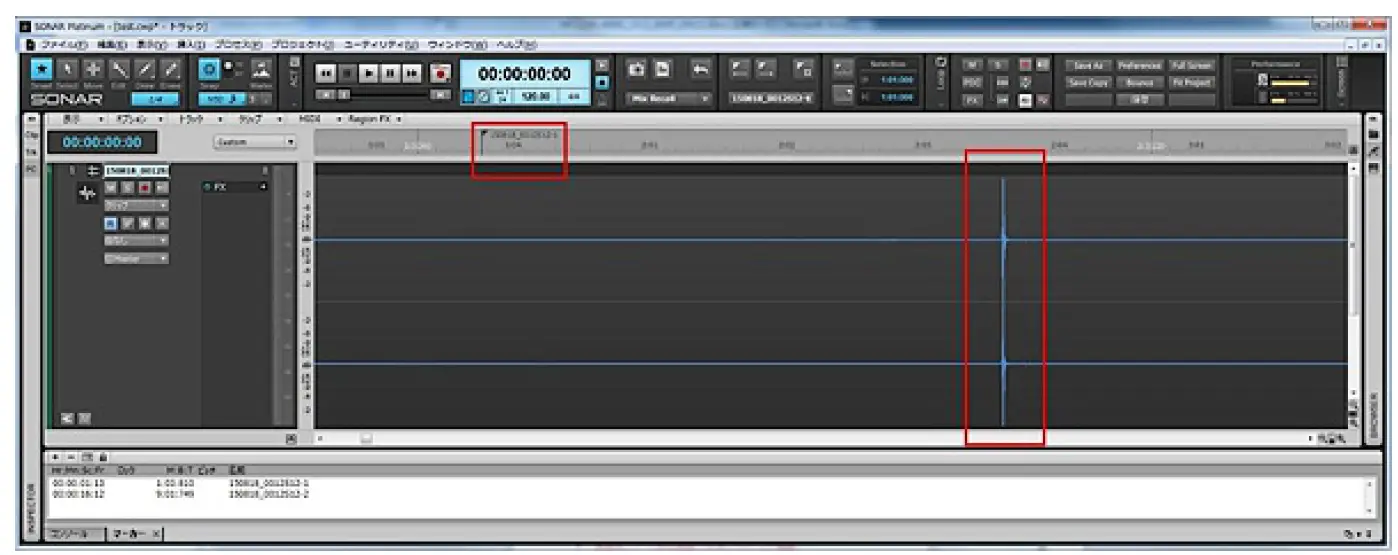

OVER-LEVEL PEAKS CAN BE MARKED AUTOMATICALLY

The Peak Mark function automatically places a mark two seconds before a detected peak (PEAK LED) during recording, which is useful for post-recording confirmation. When there are no problems found after confirmation, the mark can be deleted. In the BWF format (in the same way as with other types of marks) the peak mark can be utilized in corresponding DAWs. To avoid multiple marks for the same overload event, new marks are only set 10 seconds after the previous peak mark.

OTHER CONVENIENT FEATURES

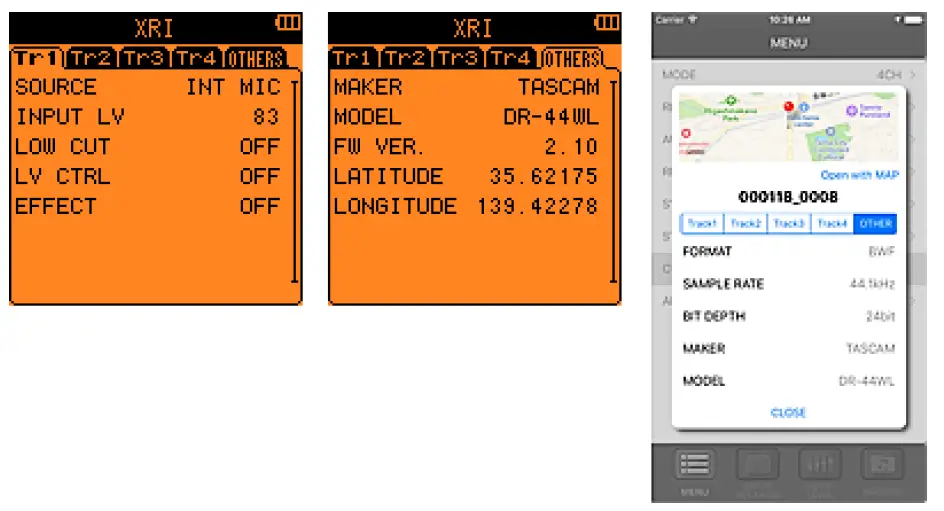

RECORDING SETTINGS AND GPS INFORMATION CAN BE SAVED WITH BWF FILES

The XRI (extended Recording Information) feature, that can be used with BWF format recordings, stores the recording settings after each recording and allows the user to identify the recorder as well as the settings used for a certain recording. In addition, a smartphone’s GPS information can be embedded while connected to the recorder via Wi-Fi and using the DR CONTROL app. Storing GPS data is useful when working in multiple locations, e.g. when making outdoor sound-gathering recordings. XRI information can be displayed on the main unit, on the DR CONTROL app or on other XRI-compatible models and applications.

PROTECTION FOR IMPORTANT FILES

The Protect function prevents important recorded files from being mistakenly deleted by operating the main unit. Protection can be switched on or off for each recording file individually.

LISTEN TO A RECORDING OF A HAMMOND B-3 WITH LESLIE 147

Here’s a recording (link to soundcloud.com) of a Hammond B-3 with Leslie 147 played by the famous Japanese organ player Kiyomi Otaka.

Thanks to the DR-44WL’s sensitive built-in mics, you can hear the character warm sound of the organ with details like movements of the drawbars and the tone-wheel.

FEATURES AT A GLANCE

KEY FEATURES

• SUPPORTED WAV RECORDING FORMATS:1/48/96 kHz, 16/24 bits, WAV/BWF format
• SUPPORTED MP3 RECORDING FORMAT:1/48 kHz, 32–320 Kbit/s MP3
• TWO RECORDING MODES:
• Normal recording mode (up to 4 tracks) for simple recording
• Professional MTR mode for music creation
• Wi-Fi connection supports monitoring, transport control, level control, file transfer and more
• Easy Wi-Fi direct connection with Android/iOS or through an existing router or access point
• Dedicated Wi-Fi file transfer application for Windows/Mac available
• Improved internal clock – ideal for filmmaking

RECORDING HARDWARE

• Unidirectional (cardioid) condenser microphones in X-Y configuration
• Can handle high sound pressure levels up to 132 dB SPL
• Dedicated shock mount system to eliminate handling noise
• XLR/TRS analogue inputs compatible with +4 dBu line level signals
• 48V phantom power for condenser microphones
• Improved microphone preamps for higher-quality audio
• Cirrus Logic AD/DA codec for low-noise, high-performance audio recording and low power consumption
• Recording media: SD/SDHC/SDXC card (up to 128GB SDXC card)

RECORDING FUNCTIONS

• QUICK menu button shows convenient features for various recording situations
• Dual recording with different level settings or in different formats
• Four-position low-cut filter (40/80/120/220 Hz)
• M-S decode function for external M-S microphone
• Peak-reduction function automatically sets the optimal level when peaks are detected in music recordings
• Limiter function for overload protection
• Auto-recording function to automatically start recording based on input level
• Pre-recording function that can record up to 2 seconds prior to actual record start
• Self-timer recording function
• Mark function (manual or automatic by peak or by time)
• Input delay function for adjusting distance/time delay differences between external mic and internal mic
• Punch in/out function in MTR mode
• Bounce function in MTR mode
• Information on the recording settings used and the current GPS position derived from a connected smartphone can be embedded in BWF files

PLAYBACK FUNCTIONS

• Variable Speed Audition (VSA) is ideal for practice and arrangement (50–150% change of speed)
• Key changing function with fine-tuning (±6 halftones)
• I-O loop playback function – ideal for rehearsal
• Resume function retains the last stop position when power is turned back on
• Audio files created on computer can be played back (only in formats compatible with this product)
• Built-in monaural speaker (300 mW)

EDITING FUNCTIONS

• Divide function (manual or automatic by markers)
• Files and empty folders can be deleted
• Track division function creates new files during recording (manual or automatic by time or by level)
• Mixdown function for 4-track recording

OTHER FEATURES

• Reverb effect for acoustic instruments and vocals
• An automatic power-saving function that prevents unnecessary use of battery power Chromatic tuner and metronome for rehearsal)
• File name format can be set to use a user-defined word or date
• Long-time operation of over 16 hours using the internal batteries
• Stereo-mini headphones/line output with 20 mW output power per channel
• 128×128 graphic LCD with backlight
• Screw hole for tripod attachment
• USB 2.0 high-speed file transfer to/from computer
• Included accessories: AC adapter, hot-shoe adapter, soft case, hand grip, windscreen and micro USB cable
• Powered by four AA batteries, included AC adapter or USB bus power

SUPPORTED OPERATING SYSTEMS

WINDOWS

• Windows 10 (May 2020 Update 2004)
• Windows 8.1
• Windows 7

MAC

• macOS Catalina (10.15)
• macOS Mojave (10.14)
• macOS High Sierra (10.13)

SPECIFICATIONS

GENERAL

• RECORDING MEDIA: SD card (64 MB – 2 GB), SDHC card (4–32 GB), SDXC card (64–128 GB)
• RECORDING/PLAYBACK FORMATS: BWF: 44.1k/48k/96k Hz, 16/24 bit, WAV: 44.1k/48k/96k Hz, 16/24 bit, MP3:  44.1k/48k Hz, 32/64/96/128/192/256/320 Kbit/s
• NUMBER OF CHANNELS: 4 channels
• RECORDED FILES, 4-CHANNEL MODE: Mono: Up to 4 files Stereo: Up to 2 files, Stereo (1 file) + mono (up to 2 files)
• RECORDED FILES, MULTITRACK MODE: Mono: Up to 4 files

ANALOGUE AUDIO INPUTS AND OUTPUTS

• EXT MIC/LINE IN JACK (SUPPORTING PHANTOM POWER SUPPLY): Combo type, XLR-3-31 (1: GND, 2: HOT, 3: COLD), 6.3-mm TRS standard jack (Tip: HOT, Ring: COLD, Sleeve: GND)
• WHEN EXT IN SWITCH SET TO MIC OR MIC+PHANTOM
• INPUT IMPEDANCE: 2.2 k Ω or more
• REFERENCE INPUT LEVEL: –17.3 dBu ±2 dB
• MAXIMUM INPUT LEVEL: –1.3 dBu ±2 dB
• WHEN EXT IN SWITCH SET TO LINE
• INPUT IMPEDANCE: 2.2 k Ω or more
• REFERENCE INPUT LEVEL: +4 dBu
• MAXIMUM INPUT LEVEL: +20 dB
• PHONES/LINE OUT JACK: 3.5-mm stereo mini jack
• OUTPUT IMPEDANCE: 12 Ω
• REFERENCE OUTPUT LEVEL: –14 dBV (at 10 k Ω load)
• MAXIMUM OUTPUT LEVEL: +2 dBV (at 10 k Ω load)
• MAXIMUM OUTPUT POWER: 20 m W + 20 m W (at 32 Ω load)
• BUILT-IN SPEAKER: 0.3 W (mono)
• OTHER INPUTS/OUTPUTS
• USB PORT: Micro-B type
• FORMAT: USB 2.0 HIGH SPEED mass storage class

AUDIO PERFORMANCE

• FREQUENCY RESPONSE (EXT IN TO LINE OUT): 20 Hz – 20 k Hz +1/−3 dB (44.1 k Hz, JEITA), 20 Hz – 22 k Hz +1/−3 dB (48 k Hz, JEITA), 20 Hz – 40 k Hz +1/−3 dB (96 k Hz, JEITA)
• DISTORTION (EXT IN TO LINE OUT): 0.05% or less (44.1/48/96 k Hz, JEITA)
• S/N RATIO (EXT IN TO LINE OUT): 92 dB or higher (44.1/48/96 k Hz, JEITA)
  NOTE: Measurements based on JEITA CP-2150

REQUIREMENTS FOR CONNECTED COMPUTERS

• WINDOWS: Pentium 300 MHz or more, 128 MB or more memory, USB port (USB2.0 is recommended)
• MAC: Power PC, iMac, G3, or G4 with 266 MHz or higher, 64MB or more memory, USB port (USB2.0 is recommended)

FAQs

Is this good for ghost hunting?

To the degree that anything is good for recording sounds emanating from your imagination, the wind, the house settling, and the subtle activities of pets, insects, and other small life forms in the nooks and crannies of a home. These days there are also a number of effective neuro-psychiatric compounds which would do an excellent job of eliminating the ghosts from your “attic”, if they bother you. Clozapine and a Tascam go together great, a lot like a restraining order and a scary weird lady who wants to search your house for excessive ectoplasm.

Can you be on real Wi-Fi while connected to this?

“Starting with firmware version 2.0 it is also possible to connect via an existing router or access point. Advantages are that (1) you can use other web services at the same time, and (2) Wi-Fi range might be larger”

http://www.tascam.eu/en/dr-22wl.html

https://www.tascam.eu/en/downloads/DR-22WL

With what kind of external microphones is this compatible? Maybe the rode vampire video mic pro r?

Any pro or semi-pro mic will work with this. Your best bet is a mic with XLR connectors. XLR wiring is great at rejecting outside electrical noise and power hum.

Can you record using the built-in mics and a line in from an external device, such as a soundboard, simultaneously?

YES. It has a 3.5 stereo plug for line-in/ external mics. I have the record out of a DJ mixer going into it and can adjust the input levels or leave it on auto gain.

Can it be directly mounted on a photo tripod or mic stand?

It can be mounted to a standard tripod. In the box there’s a mic style handle that can be screwed in to the device also. I presume you could use it with a mic stand with the handle attached.

Does this come with a case?

Yes. The DR-44WL has a soft case.

Could I connect 1/8” mini (mono)?

3-5mm-Stereo-Jack-Adapter. 1/4″ stereo plug to 3.5 mm jack. This Jack allows you to connect 1/4 Inch stereo plug to a 3.55 mm Jack.

As of July 2015, how does well does the android app work? The iOS app?

The iOS app has received a few minor bugfixes since its initial release and still works fine for me. It is able to monitor live signal (essentially give you a remote look at levels as if you were looking at the DR-44WL screen itself with a slight delay). You can also start and stop recording and change some basic things. You can also copy audio from the unit via Wi-Fi. The only downside is that once you have downloaded the audio to your iOS device the only thing you can do is upload it to SoundCloud. I don’t have any experience with the Android version.

Are preamps good enough to use with a dynamic mic such as an RE50?

I tested the DR-44WL with the Rode Reporter and thought the results were unacceptably noisy. I was happy with how it did on the Shure SM-7B which generally has low output. I think the preamps in the DR-100MKII are a little lower and I’ve heard good things about the press in the DR60DMKII as well. You can find my full review on the DR-44WL and links to samples with a couple of different mics here: http://tinycast.in/2014/11/09/tiny-review-tascam-dr-44wl/

What accessories do the dr-44wl comes with included in the box? Thank you.

Inside the box there is a USB cable and charger, wind blocker, soft case, microphone mount adapter, tripod mount adapter, SD card, and AA batteries.

 I want it for record my schools classes and maybe a little bit of video, is this good for that both things? PS: I don’t know much at all these gadgets.

It is an excellent tool for recording any type of sounds. I bought it because the need to get a better sound for my video. Camera microphones are generally very limited. If you go to record sounds like a class is perfect but I will try first with a free smartphone application before investing $ 100 and see if the quality is satisfactory.

Can I connect this to my android Lenovo phone and record videos? I want to record videos with my phone camera, but with high quality audio

I’m not sure about connecting them directly (I’m guessing not), but you can sync the audio up with the video in editing software.

Can this device stream its audio to a pc or mac? Via usb or Wi-Fi?

No, but there is a line out that you can use. However the line out is only active during the prerecord stage. In other words, you can use this as a pc mic and the audio will not be saved.

Do you recommend another microphone to use this microphone with to have a better sound??

This doesn’t really have the ability to connect a microphone, other than an inexpensive lavalier mic. And the sound won’t be as good.

How far away will it pick up voices?

We have used it to record voices at a church service where the speaker was 15 feet away and it sounded great. The mics work well. My opinion is if the environment is quiet it would be good even farther away.
