TECLA 55

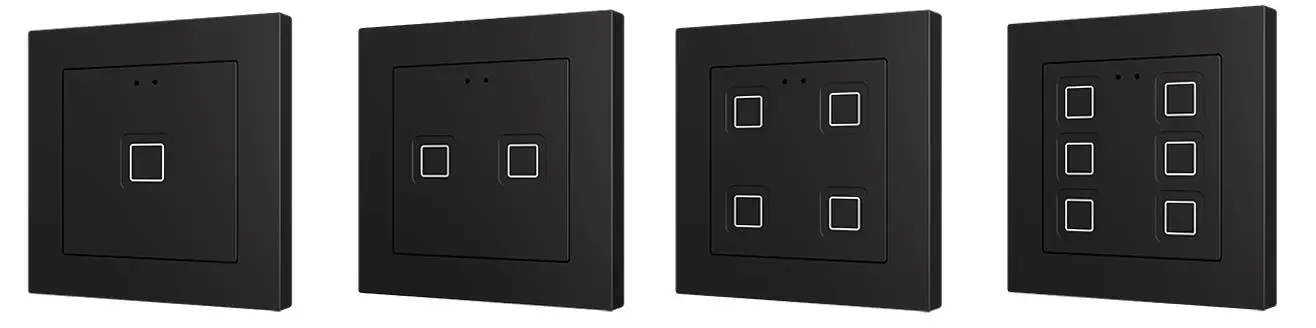

Tecla 55 is a KNX multifunction flush-fitting polycarbonate capacitive touch switche with proximity sensor, luminosity sensor and an elegant design with backlighted customisable icons.
It is designed to be flush-mounted in standard 55×55 frames. There are models with one, two, four or six capacitive touch buttons with LED backlight to confirm the press of the buttons as well as showing states.
Tecla 55 is a fully customizable solution for the control of rooms where user control of air conditioning systems, lighting, blinds, scenes, etc. is required.
The versatility offered by the functionality of buttons is complemented by a built-in analogue/digital input configurable as a temperature probe and the thermostat function.
The most outstanding features of Tecla 55 are:
- Fully customisable backlit icons for every button.
- 1 / 2 / 4 / 6 touch buttons, which can operate as individual or pair controls.
- Horizontally or vertically-oriented configuration (only available for the two-button and six-button models).
- Buzzer for an audible acknowledgment of user actions (with the possibility of disabling it either by parameter or by object).
- Possibility of locking/unlocking the touch panel through binary orders or scenes.
- Welcome Back object (binary or scene) which is sent to the KNX bus when a pulsation is detected after a certain period (configurable) of inactivity.
- Ambient luminosity sensor for brightness automatic adjustment. Proximity sensor for quick start.
- Analogue/digital input configurable as temperature probe.
- Thermostat function.
- Heartbeat or periodical “still-alive” notification.

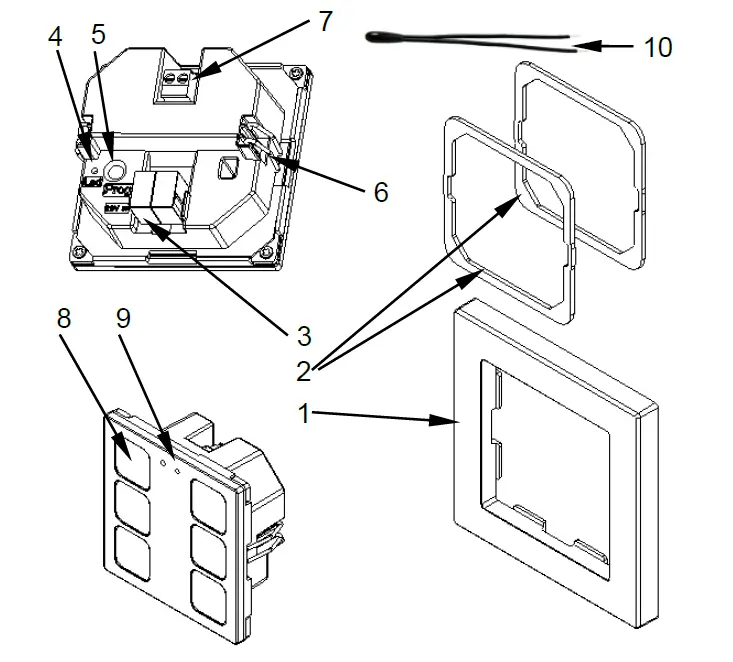

INSTALLATION
- Frame (sold separately).
- Metal levelling plate.
- KNX connector
- Programming LED.
- Programming Button.
- Fixing clips.
- Temperature probe connector.
- Touch area.
- Proximity and Luminosity Sensors.
- Temperature probe (included).
Tecla 55 is connected to the KNX bus through the built-in terminal (3). An external DC power supply is not needed.
A short press on the programming button (5) will make the device enter the programming mode. The programming LED (4) will then light in red. On the contrary, if this button is held while the device gets connected to the bus, the device will enter the safe mode. In such case, the programming LED will blink in red colour.
For detailed information about the technical features of Tecla 55, as well as on security and installation procedures, please refer to the device Datasheet, bundled within the device packaging and also available at www.zennio.com.
START-UP AND POWER LOSS
After download or device reset it is necessary to wait for about 2 minutes without performing any action in order to make it possible a proper calibration of:
- Proximity sensor.
- Luminosity sensor.
- Button presses.
For a correct calibration of the proximity and brightness sensors it is recommended not to remain too close or place anything less than 50cm approximately and do not hit with direct light to the device during this time.
CONFIGURATION
After importing the corresponding database in ETS and adding the device into the topology of the project, the configuration process begins by entering the Parameters tab of the device.
For detailed information about the functionality incorporated in the device and the configuration of the related parameters, please refer to the specific manual “Capacitive Touch Switches” available in the Tecla 55 product section at the Zennio homepage, www.zennio.com (please note that Tecla 55 does not include internal temperature sensor).
ANNEX I. COMMUNICATION OBJECTS
“Functional range” shows the values that, with independence of any other values permitted by the bus according to the object size, may be of any use or have a particular meaning because of the specifications or restrictions from both the KNX standard or the application program itself.
Note: The objects shown in this table are from model Tecla 55 X6. Please note that certain objects will not be available in models with less push buttons.
| Number | Size | I/O | Flags | Data type (DPT) | Functional Range | Name | Function |
| 1 | 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Heartbeat] Object to Send ‘1’ | Sending of ‘1’ Periodically | |
| 2 | 1 Byte | I | C – W – – | DPT_SceneNumber | 0 – 63 | [General] Scene: Receive | 0 – 63 (Run Scene 1-64) |
| 3 | 1 Byte | C – – T – | DPT_SceneControl | 0-63; 128-191 | [General] Scene: Send | 0 – 63/128 – 191 (Run/Save Scene 1-64) | |
| 4 | 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [General] Touch Locking | 0 = Unlock; 1 = Lock |
| 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [General] Touch Locking | 0 = Lock; 1 = Unlock | |
| 5 | 1 Bit | C – – T – | DPT_Switch | 0/1 | [General] Welcome Back Object | Switch Object Sent on Wake Up | |
| 6 | 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [General] Sounds – Disabling Button Sound | 0 = Disable Sound; 1 = Enable Sound |
| 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [General] Sounds – Disabling Button Sound | 0 = Enable Sound; 1 = Disable Sound | |
| 7 | 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [General] Sounds – Doorbell | 1 = Play a Doorbell Sound; 0 = Nothing |
| 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [General] Sounds – Doorbell | 0 = Play a Doorbell Sound; 1 = Nothing | |
| 8 | 1 Bit | I | C – W – – | DPT_Alarm | 0/1 | [General] Sounds – Alarm | 1 = Play Alarm Intermittent Sounds; 0 = Stop Alarm Sounds |
| 1 Bit | I | C – W – – | DPT_Alarm | 0/1 | [General] Sounds – Alarm | 0 = Play Alarm Intermittent Sounds; 1 = Stop Alarm Sounds | |
| 9, 10, 11, 12, 13 | 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [General] Welcome Back Object – Additional Condition | Additional Condition Object x |
| 14 | 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [General] Proximity Sensor | 0 = Disable; 1 = Enable |
| 15 | 1 Bit | I | C – W – – | DPT_Start | 0/1 | [General] External Proximity Detection | 1 = Detection |
| 16 | 1 Bit | C – – T – | DPT_Start | 0/1 | [General] Proximity Detection | Send 1 when Proximity is Detected | |
| 17 | 1 Bit | C – – T – | DPT_Bool | 0/1 | [General] Luminosity (1-Bit) | 0 = Over Threshold; 1 = Under Threshold | |
| 1 Bit | C – – T – | DPT_Bool | 0/1 | [General] Luminosity (1-Bit) | 0 = Under Threshold; 1 = Over Threshold | ||
| 18 | 1 Byte | O | C R – – – | DPT_Scaling | 0% – 100% | [General] Luminosity (Percentage) | 0% … 100% |
| 20 | 1 Bit | I | C – W – – | DPT_DayNight | 0/1 | [General] Backlight Mode | 0 = Night Mode; 1 = Normal Mode |
| 1 Bit | I | C – W – – | DPT_DayNight | 0/1 | [General] Backlight Mode | 0 = Normal Mode; 1 = Night Mode | |
| 23, 29, 35, 41, 47, 53 | 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] Switch | Send Selected Value on Short Press |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] Hold & Release | Send Selected Values on Hold and Release Presses | |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] Two Objects – Short Press | Send Selected Value on Short Press | |
| 1 Bit | C – – T – | DPT_Switch | 0/1 | [Btn][Ix] Light – On/Off | (Short Press) Switch Between On and Off |
| 1 Bit | C – – T – | DPT_Step | 0/1 | [Btn][Ix] Shutter – Stop/Step | (Short Press) 0 = Stop Shutter/Step Up; 1 = Stop Shutter/Step Down | ||
| 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Btn][Ix] Shutter – Stop | (End Pressing) Stop Shutter | ||
|
24, 30, 36, 42, 48, 54 |
4 Bit |
I |
C – W T – |
DPT_Control_Dimming | 0x0 (Stop) 0x1 (Dec. by 100%) … 0x7 (Dec. by 1%) 0x8 (Stop) 0xD (Inc. by 100%) … 0xF (Inc. by 1%) |
[Btn][Ix] Light – Dimming |
(Long Press) Switch Between Dimming Up and Down |
| 25, 31, 37, 43, 49, 55 | 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Ix] Shutter – Move | (Long Press) 0 = Up ; 1 = Down | |
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Ix] Shutter – Move | (Start Pressing) Switch Between Up and Down | ||
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] Two Objects – Long Press | Send Selected Value on Long Press | |
| 26, 32, 38, 44, 50, 56 | 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] LED On/Off | 0 = Off; 1 = On |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Ix] LED On/Off | 0 = On; 1 = Off | |
|
27, 33, 39, 45, 51, 57 | 1 Byte | I | C – W T – | DPT_Scaling | 0% – 100% | [Btn][Ix] Scaling | Send Selected Percentage Value on Short Press |
| 1 Byte | I | C – W T – | DPT_Value_1_Ucount | 0 – 255 | [Btn][Ix] Counter – 1-Byte Unsigned | Send Selected Value on Short Press | |
| 1 Byte | I | C – W T – | DPT_Value_1_Count | -128 – 127 | [Btn][Ix] Counter – 1-Byte Signed | Send Selected Value on Short Press | |
| 2 Bytes | I | C – W T – | DPT_Value_2_Ucount | 0 – 65535 | [Btn][Ix] Counter – 2-Byte Unsigned | Send Selected Value on Short Press | |
| 2 Bytes | I | C – W T – | DPT_Value_2_Count | -32768 – 32767 | [Btn][Ix] Counter – 2-Byte Signed | Send Selected Value on Short Press | |
| 2 Bytes | I | C – W T – | 9.xxx | -671088.64 – 670433.28 | [Btn][Ix] Float | Send Selected Value on Short Press | |
| 1 Byte | I | C – W T – | DPT_Value_1_Ucount | 0 – 255 | [Btn][Ix] Two Objects – Short Press (1- Byte) | Send Selected 1-Byte Value on Short Press | |
| 1 Byte | I | C – W T – | DPT_Scaling | 0% – 100% | [Btn][Ix] Shutter – Position | 0 – 100 % | |
| 1 Byte | I | C – W T – | DPT_Scaling | 0% – 100% | [Btn][Ix] Light – Dimming (Status) | 0 – 100 % | |
| 1 Byte | I | C – W T – | DPT_Room_State | 0 – 255 | [Btn][Ix] Room State | 0 = Normal; 1 = Make-up Room; 2 = Do not Disturb | |
| 28, 34, 40, 46, 52, 58 | 1 Byte | I | C – W T – | DPT_Value_1_Ucount | 0 – 255 | [Btn][Ix] Two Objects – Long Press (1-Byte) | Send Selected 1-Byte Value on Long Press |
|
83, 89, 95 | 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Switch | Left = 0; Right = 1 |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Short Press | Left = 1; Right = 0 | |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Short Press | Left = 0; Right = 1 | |
| 1 Bit | C – – T – | DPT_Switch | 0/1 | [Btn][Px] Light – On/Off | (Short Press) Left = Off; Right = On | ||
| 1 Bit | C – – T – | DPT_Step | 0/1 | [Btn][Px] Shutter – Stop/Step | (Short Press) Left = Stop/Step Down; Right = Stop/Step Up | ||
| 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Btn][Px] Shutter – Stop | (End Pressing) Left = Stop-Down; Right = Stop-Up | ||
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Switch | Left = 1; Right = 0 | |
| 1 Bit | C – – T – | DPT_Switch | 0/1 | [Btn][Px] Light – On/Off | (Short Press) Left = On; Right = Off | ||
| 1 Bit | C – – T – | DPT_Step | 0/1 | [Btn][Px] Shutter – Stop/Step | (Short Press) Left = Stop/Step Up; Right = Stop/Step Down |
| 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Btn][Px] Shutter – Stop | (End Pressing) Left = Stop-Up; Right = Stop-Down | ||
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Switch | Lower = 0; Upper = 1 | |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Switch | Lower = 1; Upper = 0 | |
| 1 Bit | C – – T – | DPT_Switch | 0/1 | [Btn][Px] Light – On/Off | (Short Press) Lower = Off; Upper = On | ||
| 1 Bit | C – – T – | DPT_Switch | 0/1 | [Btn][Px] Light – On/Off | (Short Press) Lower = On; Upper = Off | ||
| 1 Bit | C – – T – | DPT_Step | 0/1 | [Btn][Px] Shutter – Stop/Step | (Short Press) Lower = Stop/Step Down; Upper = Stop/Step Up | ||
| 1 Bit | C – – T – | DPT_Step | 0/1 | [Btn][Px] Shutter – Stop/Step | (Short Press) Lower = Stop/Step Up; Upper = Stop/Step Down | ||
| 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Btn][Px] Shutter – Stop | (End Pressing) Lower = Stop-Down; Upper = Stop-Up | ||
| 1 Bit | C – – T – | DPT_Trigger | 0/1 | [Btn][Px] Shutter – Stop | (End Pressing) Lower = Stop-Up; Upper = Stop-Down | ||
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Short Press | Lower = 0; Upper = 1 | |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Short Press | Lower = 1; Upper = 0 | |
|
84, 90, 96 |
4 Bit |
I |
C – W T – |
DPT_Control_Dimming | 0x0 (Stop) 0x1 (Dec. by 100%) … 0x7 (Dec. by 1%) 0x8 (Stop) 0xD (Inc. by 100%) … 0xF (Inc. by 1%) |
[Btn][Px] Light – Dimming |
(Long Press) Left = Darker; Right = Brighter |
|
4 Bit |
I |
C – W T – |
DPT_Control_Dimming | 0x0 (Stop) 0x1 (Dec. by 100%) … 0x7 (Dec. by 1%) 0x8 (Stop) 0xD (Inc. by 100%) … 0xF (Inc. by 1%) |
[Btn][Px] Light – Dimming |
(Long Press) Left = Brighter; Right = Darker | |
|
4 Bit |
I |
C – W T – |
DPT_Control_Dimming | 0x0 (Stop) 0x1 (Dec. by 100%) … 0x7 (Dec. by 1%) 0x8 (Stop) 0xD (Inc. by 100%) … 0xF (Inc. by 1%) |
[Btn][Px] Light – Dimming |
(Long Press) Lower = Darker; Upper = Brighter | |
|
4 Bit |
I |
C – W T – |
DPT_Control_Dimming | 0x0 (Stop) 0x1 (Dec. by 100%) … 0x7 (Dec. by 1%) 0x8 (Stop) 0xD (Inc. by 100%) |
[Btn][Px] Light – Dimming |
(Long Press) Lower = Brighter; Upper = Darker |
| … 0xF (Inc. by 1%) | |||||||
|
85, 91, 97 | 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Long Press | Left = 0; Right = 1 |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Long Press | Left = 1; Right = 0 | |
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Long Press) Left = Down; Right = Up | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Start Pressing) Left = Down; Right = Up | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Long Press) Left = Up; Right = Down | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Start Pressing) Left = Up; Right = Down | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Long Press) Lower = Down; Upper = Up | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Long Press) Lower = Up; Upper = Down | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Start Pressing) Lower = Down; Upper = Up | ||
| 1 Bit | C – – T – | DPT_UpDown | 0/1 | [Btn][Px] Shutter – Move | (Start Pressing) Lower = Up; Upper = Down | ||
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Long Press | Lower = 0; Upper = 1 | |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] Two Objects – Long Press | Lower = 1; Upper = 0 | |
| 86, 92, 98 | 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] LED On/Off | 0 = On; 1 = Off |
| 1 Bit | I | C – W T – | DPT_Switch | 0/1 | [Btn][Px] LED On/Off | 0 = Off; 1 = On | |
| 87, 93, 99 | 1 Byte | I | C – W T – | DPT_Scaling | 0% – 100% | [Btn][Px] Light – Dimming (Status) | 0 – 100 % |
| 113 | 1 Byte | I | C – W – – | DPT_SceneControl | 0-63; 128-191 | [Thermostat] Scene Input | Scene Value |
| 114, 115 | 2 Bytes | I | C – W – – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Temperature Source x | External Sensor Temperature |
| 116 | 2 Bytes | O | C R – T – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Effective Temperature | Effective Control Temperature |
| 117 | 1 Byte | I | C – W – – | DPT_HVACMode | 1=Comfort 2=Standby 3=Economy 4=Building Protection | [Tx] Special Mode | 1-Byte HVAC Mode |
| 118 | 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [Tx] Special Mode: Comfort | 0 = Nothing; 1 = Trigger |
| 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [Tx] Special Mode: Comfort | 0 = Off; 1 = On | |
| 119 | 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [Tx] Special Mode: Standby | 0 = Nothing; 1 = Trigger |
| 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [Tx] Special Mode: Standby | 0 = Off; 1 = On | |
| 120 | 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [Tx] Special Mode: Economy | 0 = Nothing; 1 = Trigger |
| 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [Tx] Special Mode: Economy | 0 = Off; 1 = On | |
| 121 | 1 Bit | I | C – W – – | DPT_Ack | 0/1 | [Tx] Special Mode: Protection | 0 = Nothing; 1 = Trigger |
| 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [Tx] Special Mode: Protection | 0 = Off; 1 = On | |
| 122 | 1 Bit | I | C – W – – | DPT_Window_Door | 0/1 | [Tx] Window Status (Input) | 0 = Closed; 1 = Open |
| 123 | 1 Bit | I | C – W – – | DPT_Trigger | 0/1 | [Tx] Comfort Prolongation | 0 = Nothing; 1 = Timed Comfort |
| 124 | 1 Byte | O | C R – T – | DPT_HVACMode | 1=Comfort 2=Standby 3=Economy 4=Building Protection | [Tx] Special Mode Status | 1-Byte HVAC Mode |
| 125 | 2 Bytes | I | C – W – – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Setpoint | Thermostat Setpoint Input |
| 2 Bytes | I | C – W – – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Basic Setpoint | Reference Setpoint |
| 126 | 1 Bit | I | C – W – – | DPT_Step | 0/1 | [Tx] Setpoint Step | 0 = Decrease Setpoint; 1 = Increase Setpoint |
| 127 | 2 Bytes | I | C – W – – | DPT_Value_Tempd | -671088.64º – 670433.28º | [Tx] Setpoint Offset | Float Offset Value |
| 128 | 2 Bytes | O | C R – T – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Setpoint Status | Current Setpoint |
| 129 | 2 Bytes | O | C R – T – | DPT_Value_Temp | -273.00º – 670433.28º | [Tx] Basic Setpoint Status | Current Basic Setpoint |
| 130 | 2 Bytes | O | C R – T – | DPT_Value_Tempd | -671088.64º – 670433.28º | [Tx] Setpoint Offset Status | Current Setpoint Offset |
| 131 | 1 Bit | I | C – W – – | DPT_Reset | 0/1 | [Tx] Setpoint Reset | Reset Setpoint to Default |
| 1 Bit | I | C – W – – | DPT_Reset | 0/1 | [Tx] Offset Reset | Reset Offset | |
| 132 | 1 Bit | I | C – W – – | DPT_Heat_Cool | 0/1 | [Tx] Mode | 0 = Cool; 1 = Heat |
| 133 | 1 Bit | O | C R – T – | DPT_Heat_Cool | 0/1 | [Tx] Mode Status | 0 = Cool; 1 = Heat |
| 134 | 1 Bit | I | C – W – – | DPT_Switch | 0/1 | [Tx] On/Off | 0 = Off; 1 = On |
| 135 | 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] On/Off Status | 0 = Off; 1 = On |
| 136 | 1 Bit | I/O | C R W – – | DPT_Switch | 0/1 | [Tx] Main System (Cool) | 0 = System 1; 1 = System 2 |
| 137 | 1 Bit | I/O | C R W – – | DPT_Switch | 0/1 | [Tx] Main System (Heat) | 0 = System 1; 1 = System 2 |
| 138 | 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [Tx] Enable/Disable Secondary System (Cool) | 0 = Disable; 1 = Enable |
| 139 | 1 Bit | I | C – W – – | DPT_Enable | 0/1 | [Tx] Enable/Disable Secondary System (Heat) | 0 = Disable; 1 = Enable |
| 140, 146 | 1 Byte | O | C R – T – | DPT_Scaling | 0% – 100% | [Tx] [Sx] Control Variable (Cool) | PI Control (Continuous) |
| 141, 147 | 1 Byte | O | C R – T – | DPT_Scaling | 0% – 100% | [Tx] [Sx] Control Variable (Heat) | PI Control (Continuous) |
| 1 Byte | O | C R – T – | DPT_Scaling | 0% – 100% | [Tx] [Sx] Control Variable | PI Control (Continuous) | |
| 142, 148 | 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable (Cool) | 2-Point Control |
| 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable (Cool) | PI Control (PWM) | |
| 143, 149 | 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable (Heat) | 2-Point Control |
| 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable (Heat) | PI Control (PWM) | |
| 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable | 2-Point Control | |
| 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] Control Variable | PI Control (PWM) | |
| 144, 150 | 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] PI State (Cool) | 0 = PI Signal 0%; 1 = PI Signal Greater than 0% |
| 145, 151 | 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] PI State (Heat) | 0 = PI Signal 0%; 1 = PI Signal Greater than 0% |
| 1 Bit | O | C R – T – | DPT_Switch | 0/1 | [Tx] [Sx] PI State | 0 = PI Signal 0%; 1 = PI Signal Greater than 0% | |
| 152 | 2 Bytes | O | C R – T – | DPT_Value_Temp | -273.00º – 670433.28º | [Ix] Current Temperature | Temperature Sensor Value |
| 153 | 1 Bit | O | C R – T – | DPT_Alarm | 0/1 | [Ix] Overcooling | 0 = No Alarm; 1 = Alarm |
| 154 | 1 Bit | O | C R – T – | DPT_Alarm | 0/1 | [Ix] Overheating | 0 = No Alarm; 1 = Alarm |
| 155 | 1 Bit | O | C R – T – | DPT_Alarm | 0/1 | [Ix] Probe Error | 0 = No Alarm; 1 = Alarm |
https://www.zennio.com
Technical Support: https://support.zennio.com
Join and send us your inquiries
about Zennio devices:
https://support.zennio.com
Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo (Spain).
Tel. +34 925 232 002.
www.zennio.com
[email protected]
Home En | Zennio
Home En | Zennio
