AcuRite 24” 75022M Illuminated LED Large Outdoor Decorative Clock
Introduction

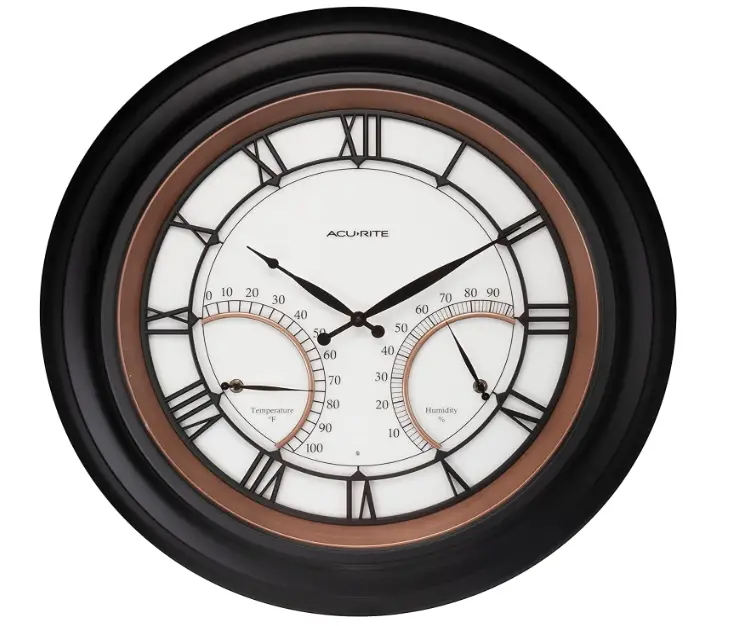

The 24″ Illuminated Outdoor Clock with Thermometer and Humidity Sensor from AcuRite offers both aesthetic appeal and usefulness, day or night. It has an embedded light sensor that turns on a cosy, ambient backlight when it becomes dark outside. This works well as a utilitarian addition to any patio or garden thanks to its sturdy all-weather construction. It is ideal for indoor décor thanks to its chic, modern style. Additionally, it has a dependable quartz crystal movement, precise humidity and temperature sensors, and legible Roman numerals. The humidity sensor provides measurements between 1% and 99% relative humidity, while the thermometer registers temperatures between 0 and 100 degrees Fahrenheit. An instruction manual and an integrated hang hole are both included with this clock for simple wall hanging.
The clock needs one (1) AA alkaline or lithium battery, while the backlight needs four (4) D alkaline batteries (not included). Lithium batteries are advised for use in below -4°F/-20°C conditions. Limited guarantee of one year.
Clock Setup

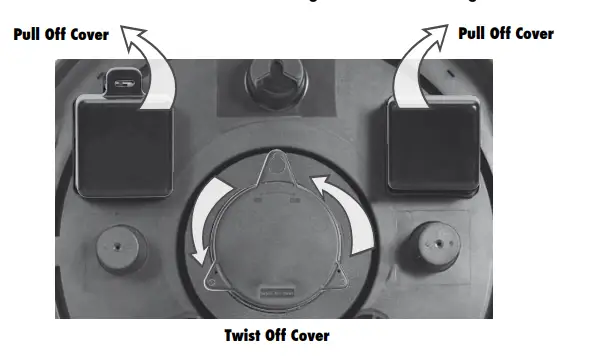

Remove the Weather-Resistant
Covers Access the battery compartments by pulling or twisting off the weatherresistant covers. Be careful not to damage the covers during removal.

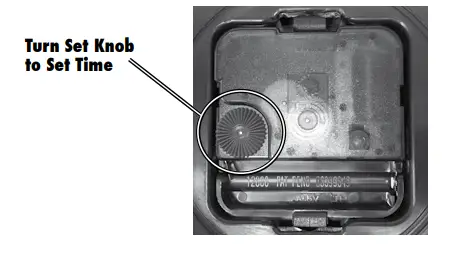

Set the Time
Turn the set knob on the back of the clock in either direction.

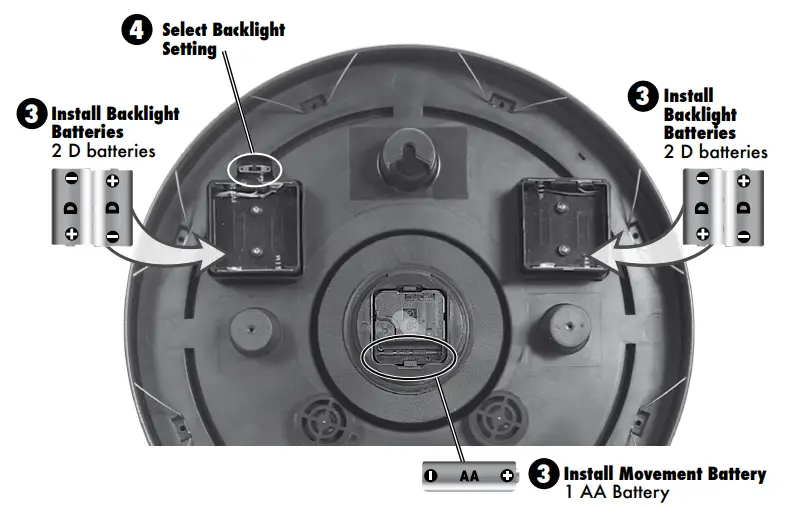

Install or Replace Batteries
AcuRite recommends high quality alkaline or lithium* batteries for the best product performance. Heavy duty or rechargeable batteries are not recommended. *The clock movement requires a lithium battery in low temperature conditions. Cold temperatures can cause alkaline batteries to function improperly. Use a lithium battery in the clock movement for temperatures below -4°F / -20°C. Insert 1 x AA alkaline or lithium battery into the clock movement’s battery compartment. Insert 2 x D alkaline batteries into each backlight battery compartment. Follow the polarity (+/-) diagrams in each battery compartment. Replace the weather-resistant covers.
Backlight Settings
Set the switch above the left backlight battery compartment to the desired backlight mode
- T: 4 Hour Timer – Clock illuminates when dark, for period of 4 hours. *
- A: Always On – Clock remains illuminated when dark.
- O: LED Off – Illumination disabled.
*Timer resets once clock is exposed to light.
PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.
BATTERY SAFETY
Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to 4 Select Backlight Setting D D D D 3 Install Backlight Batteries 2 D batteries 3 Install Backlight Batteries 2 D batteries 3 Install Movement Battery 1 AA Battery be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

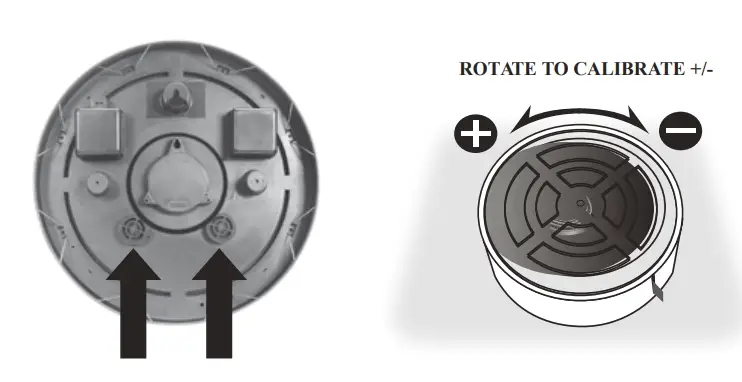

Thermometer & Hygrometer Calibration
The thermometer and hygrometer instruments have been calibrated at the factory and should not need adjustment. However, as with all instruments that are placed in a new location, you should always allow a period of at least 3 hours for stabilization before determining whether it is reading accurately. Should you determine that an adjustment of the thermometer or hygrometer is needed, this can be achieved by gently rotating the back of the thermometer or hygrometer movement on the back of the unit, as illustrated, slowly in either direction until the correct reading is shown on the dial.
Placement for Maximum Accuracy
Accuracy AcuRite products are sensitive to surrounding environmental conditions. Proper placement of both the display unit and the sensor are critical to the accuracy and performance of this product.
DO NOT HANG IN DIRECT SUNLIGHT
For the most accurate temperature readings choose a location that will not be exposed to direct sunlight or other direct heat sources.
LOCATE AWAY FROM HEAT SOURCES
Position clock away from heaters, air conditioners, chimneys, exhaust vents, asphalt and concrete (surfaces that radiate heat).
LOCATE AWAY FROM HUMIDITY SOURCES
Avoid installing the clock near pools, spas, or other bodies of water. Water sources may impact humidity accuracy.

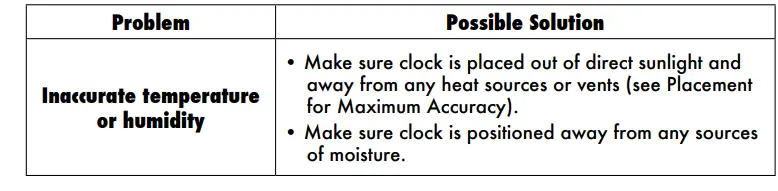

Troubleshooting
Care & Maintenance
Clock Care
- A soft cloth may be used to clean the clock, as needed.
- Do not use corrosive cleaners or chemicals on the clock.
- Always store the clock without a batteries when not in use.

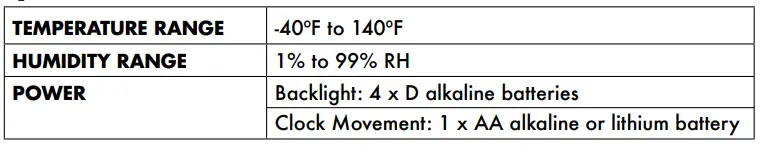

Specifications
Customer Support
AcuRite customer support is committed to providing you with best-inclass service. For assistance, please have the model number of this product available and contact us in any of the following ways
- (877) 221-1252
Visit us at www.AcuRite.com
- Installation Videos
- Register your Product
- Instruction Manuals
- Support User Forum
- Replacement Parts
- Submit Feedback & Ideas
Limited 1 Year Warranty
AcuRite is a wholly owned subsidiary of Chaney Instrument Company. For purchases of AcuRite products, AcuRite provides the benefits and services set forth herein. For purchases of Chaney products, Chaney provides the benefits and services set forth herein.
We warrant that all products we manufacture under this warranty are of good material and workmanship and, when properly installed and operated, will be free of defects for a period of one year from the date of purchase.
Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by us, and at our sole option, be repaired or replaced by us. Transportation costs and charges for returned goods shall be paid for by the purchaser. We hereby disclaim all responsibility for such transportation costs and charges. This warranty will not be breached, and we will give no credit for products which have received normal wear and tear not affecting the functionality of the product, been damaged (including by acts of nature), tampered, abused, improperly installed, or repaired or altered by others than our authorized representatives.
Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). If we determine that repair or replacement is not feasible, we may, at our option, refund the amount of the original purchase price
THE ABOVE-DESCRIBED WARRANTY IS THE SOLE WARRANTY FOR THE PRODUCTS AND IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. ALL OTHER WARRANTIES OTHER THAN THE EXPRESS WARRANTY SET FORTH HEREIN ARE HEREBY EXPRESSLY DISCLAIMED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTY OF MERCHANTABILITY AND THE IMPLIED WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
We expressly disclaim all liability for special, consequential, or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
We further disclaim liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of our products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to bind us to any other obligation or liability in connection with the sale of our products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this warranty unless done in writing and signed by a duly authorized agent of ours. In no case shall our liability for any claim relating to our products, your purchase or your use thereof, exceed the original purchase price paid for the product.
Applicability of Policy
This Return, Refund, and Warranty Policy applies only to purchases made in the United States and Canada. For purchases made in a country other than the United States or Canada, please consult the policies applicable to the country in which you made your purchase.
Additionally, this Policy applies only to the original purchaser of our products. We do cannot and do not offer any return, refund, or warranty services if you buy products used or from resale sites such as eBay or Craigslist.
Governing Law
This Return, Refund, and Warranty Policy is governed by the laws of the United States and the State of Wisconsin. Any dispute relating to this Policy shall be brought exclusively in the federal or State courts having jurisdiction in Walworth County, Wisconsin; and purchaser consents to jurisdiction within the State of Wisconsin.
FAQs
it is powered by four D batteries
This clock is not an Atomic clock. The time will need to be adjusted manually.
It was black. However, I sent two of them back because they quit telling time. It was a beautiful clock. I thought that maybe the first clock had a bad movement, but the replacement clock had the same issue. Brand new batteries didn’t fix either of them. I don’t recommend.
I purchased this clock for outdoor use by our pool. I got it late spring and I have not replaced the batteries yet. Runs great, looks great and is holding up well in the weather.
You may hear a soft ticking noise from the movement of the clock mechanism. Otherwise, this clock does not make any other sounds.
I understand your concern. As a buyer of MANY large outside clocks only to be disappointed – the hands always end up pointing at 6:30, this clock is still working.
Mounting screws are not included with this clock.
No, the white face plat will discolor and turn brown in direct sunlight. The sun is very powerful you know?
Yes!
This clock will weigh about 12 pounds.
The clock doesn’t come with batteries, you have to buy some. There are 2 places for batteries., the first you need C batteries for the back light and the other place is for the clock itself. I think those wetr AA.
This clock is weather-resistant but not waterproof. We recommend mounting the clock out of direct sunlight and rainfall for the greatest accuracy and life expectancy.
The light should stay on either for 4 hours with the appropriate setting or come on when dark when it is on the “always on” setting. To make sure that it isn’t in a place that may be getting to much artificial light I would bring the clock inside a dark room and see if it stays on for more then a few seconds.
We have had ours for about a year now and no trouble with the temperature and humidity dials not working.
I used mine indoors and it was beautiful. However, it stopped working within days of hanging it up. I switched batteries and tried again. It would work for a day or two, then stop. I returned and ordered another of the same clock. The same thing happened. I returned that one as well. I’m thinking these clocks have bad movements in them. I don’t know how else to explain it.
