GM Door Switch Isolation Instructions
Gm van door switch needs to be isolated to insure that fac-tory door switches are dead when the vehicle is off. Factory door switches will only work with a remote or when key is in and turned to on position

Installation Instruction

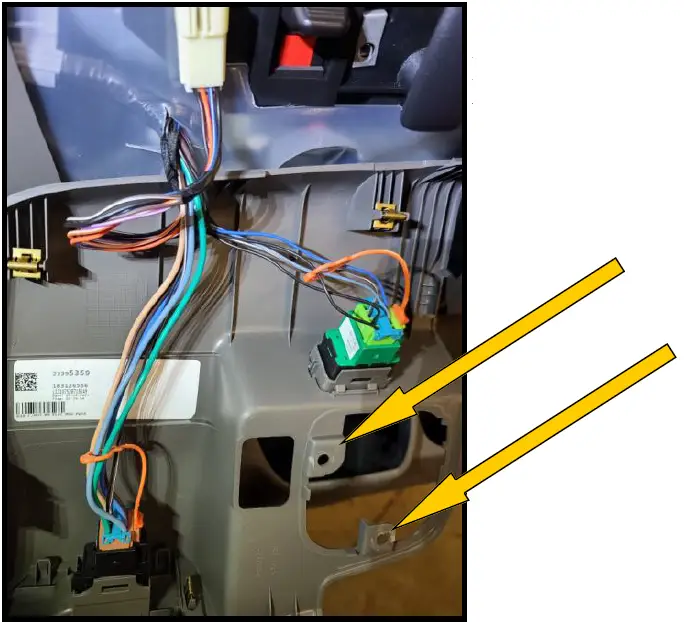

1. Remove GM Door Panel with 7-millimeter socket

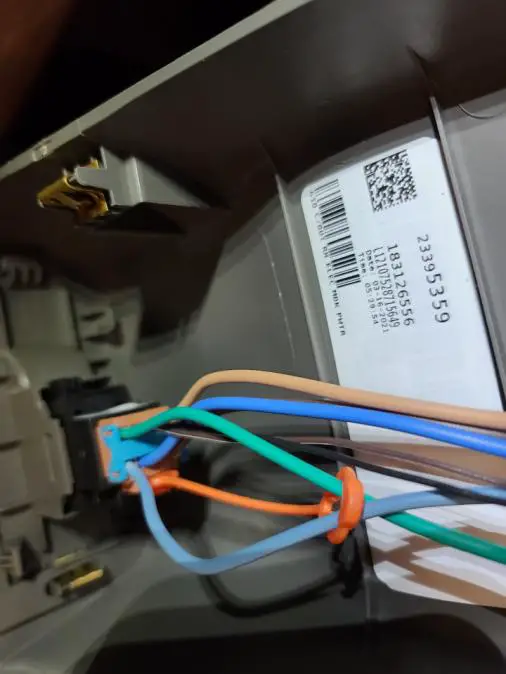

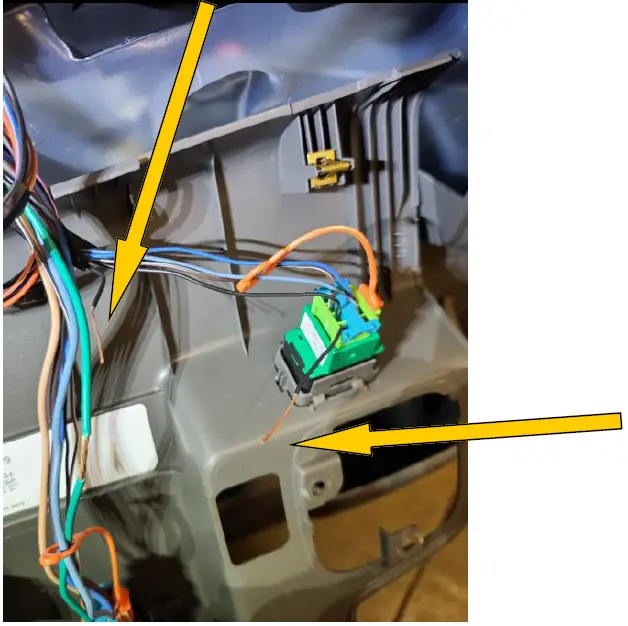

2. Green Wire is Ignition off window switch
3. Trim Green wire

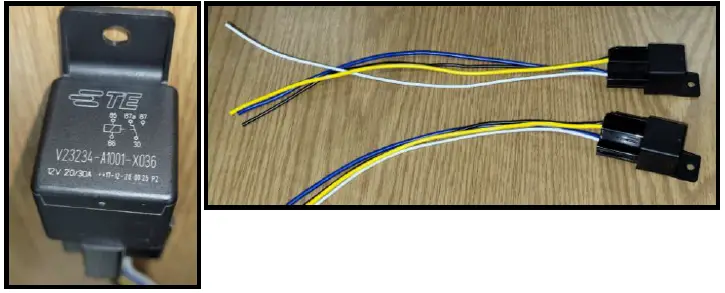

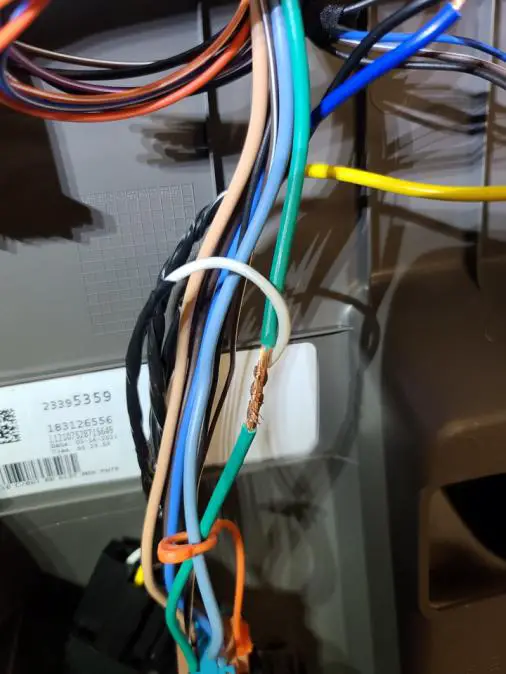

4. Solder White (off) wire from the relay to Green wire on win-dow switch ( ignition).

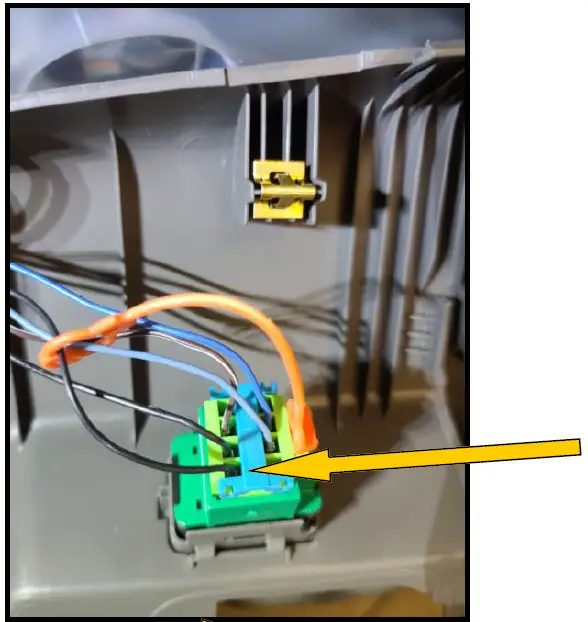

5. Ground off lock switch wire. The lower ground wire from the factory lock switch
6. Cut (lower) Black ground wire in half and strip both ends

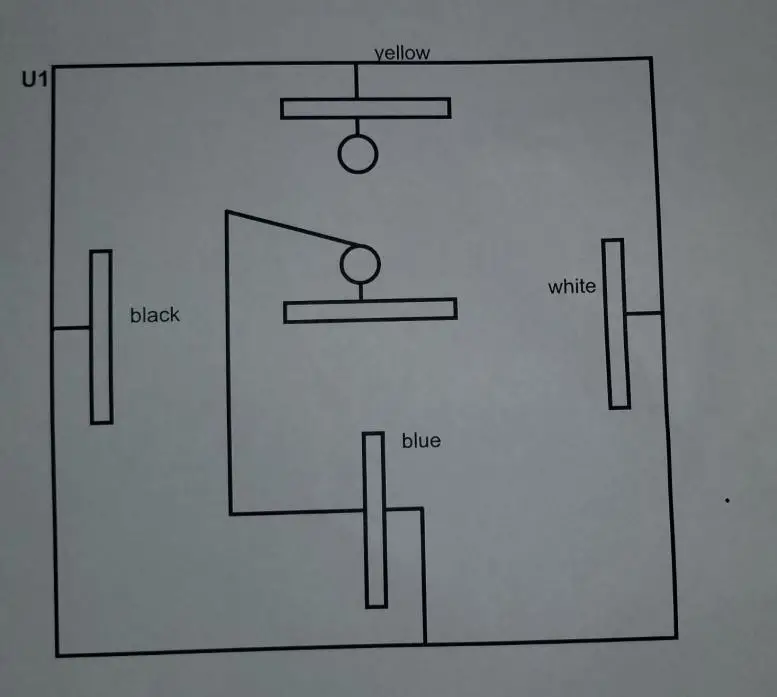

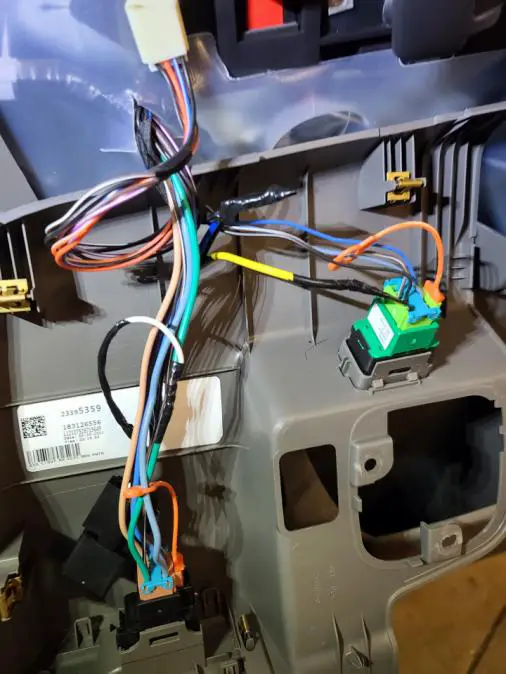

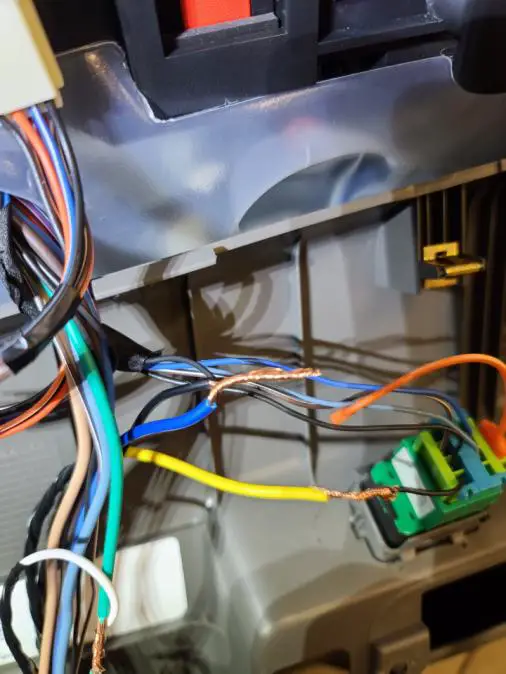

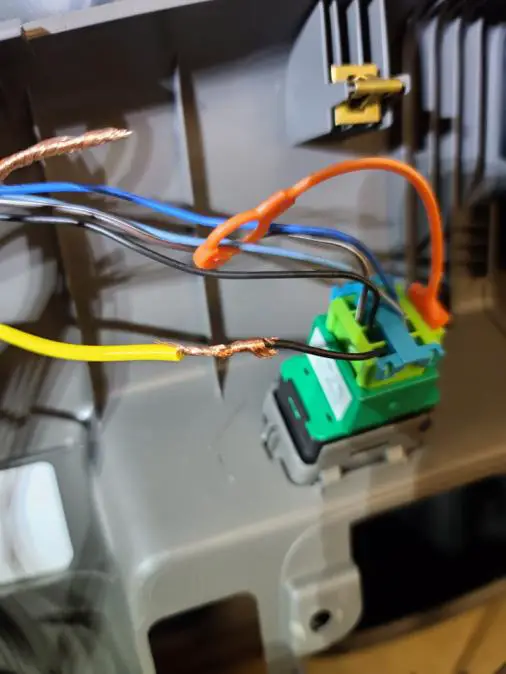

7. Yellow relay wire to Black on the switch side
8. Black and Blue from relay towards the vehicle

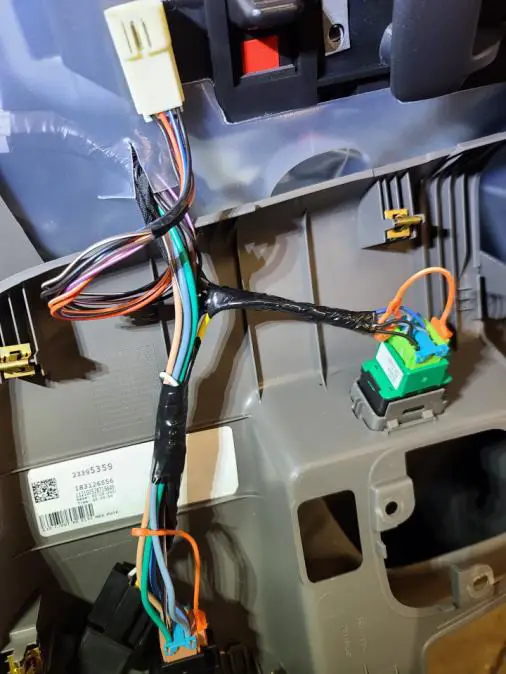

9. Solder and tape all connections
10. Position relay under window switch and tape in place
