Testing Process

• Total Lumen Measurements
  • Lumens are measured using a Viso Systems Lab Spion. As a goniophotometer, the Viso calculates the field lumens of the fixture by taking multiple measurements across the light beam.
  • Many lumens figures provided for entertainment lighting fixtures are only 2π sphere values, some even emphasize the LED engine lumens. All Elation product photometric data is the actual light output from the fixture lens, never a theoretical value based on calculation or using the source lumens as the fixtures output. We advise to always compare total fixture lumens acquired with identical measurement systems when comparing lighting fixtures.
• Test Lab Equipment and Process
  • Elation operates an optical testing laboratory at its Los Angeles, CA headquarters to provide accurate photometric data for its lighting products. The testing lab is both light and climate- controlled and contains a variety of precise lighting measurement systems. Fixtures are analyzed with the sophisticated Viso Systems Lab Spion equipment, which measures all light and color parameters by panning the light beam at a precise speed and from different angles through a calibrated, laser aligned light and color sensor. Test data is collected and summarized by the Viso Light Inspector software. This type of measurement system is referred to as a Goniophotometer.
  • The Viso software calculates all relevant types of measurements, from beam angles, candela to center light intensity at a variety of distances to the latest color quality measurements like TM30 or CQS as well as accurate color temperature. This wealth of data is then processed by an Elation specific template which is included in the photometric test report for various fixture conditions such as zoom angles and color correction filters.
  • The Viso software also creates IES (Illuminating Engineering Society) files for each test report. IES is an industry standard file format created for the easy electronic transfer of photometric test data, which is widely used by lighting manufacturers for photometric data distribution.
  • Additionally, fixtures are periodically rechecked for accuracy using various hand-held light meters including one or more of the devices listed below. This is done to ensure the test data contained in this report is as accurate as possible.

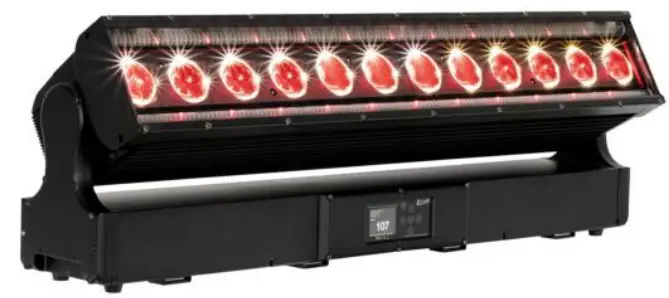

PROTEUS RAYZOR Blade L (Zoom In)

• Total Lumen Output: 7193 lm
• Voltage: 117 V, Current: 8.24 A
• Power: 967 W
• Efficacy: 7 Lumen/Watt
• Measurement Date: 9/22/2022

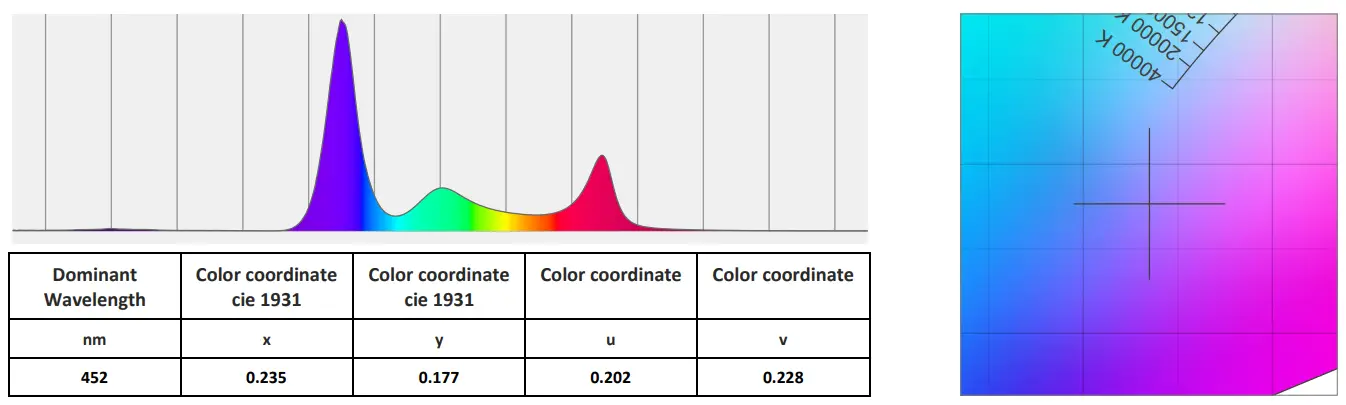

Spectral distribution

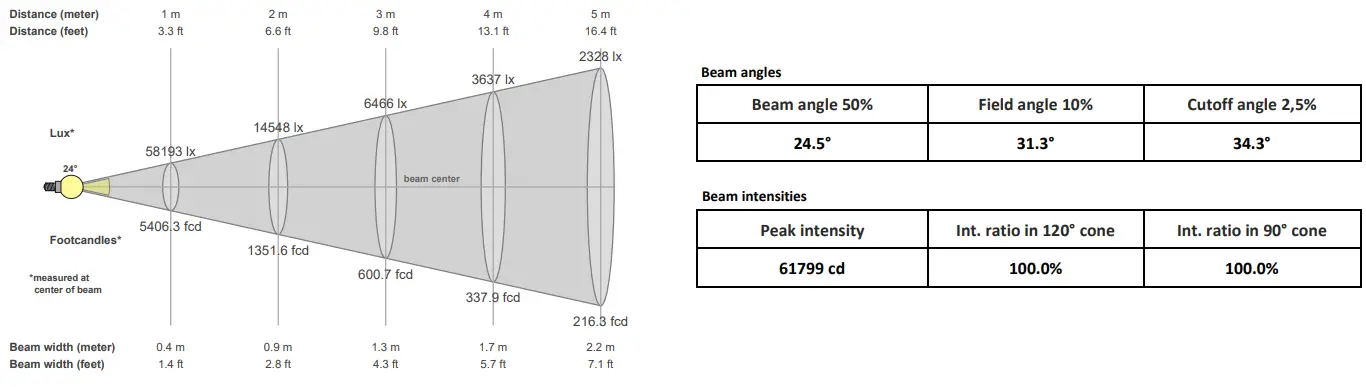

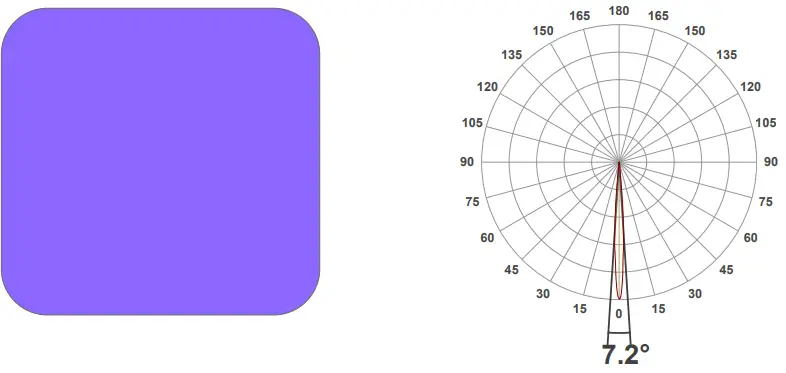

Beam details

Beam Intensities from 1-20m

PROTEUS RAYZOR Blade L (Zoom 50%)

• Total Lumen Output: 9047 lm
• Voltage: 117 V, Current: 8.23 A
• Power: 960 W
• Efficacy: 9 Lumen/Watt
• Measurement Date: 9/23/2022

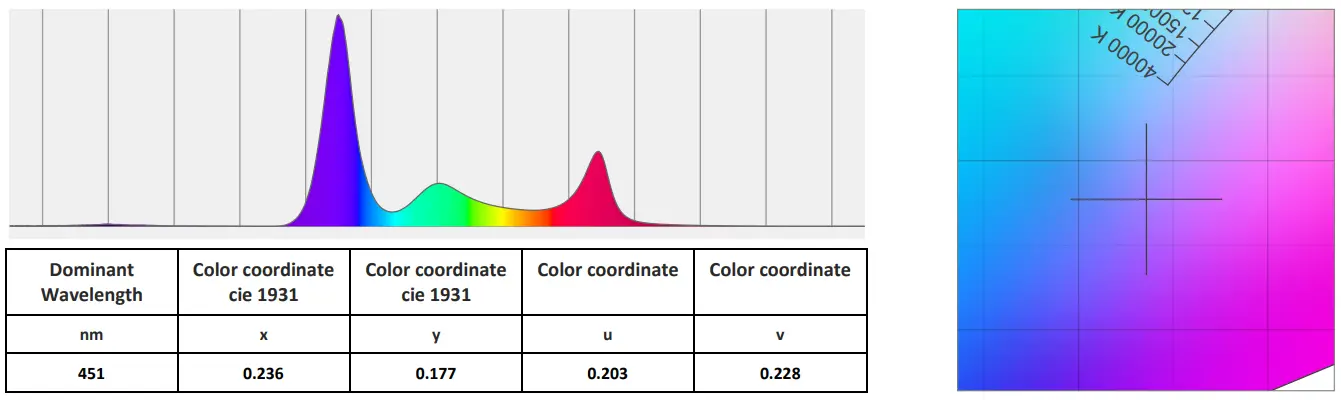

Spectral distribution

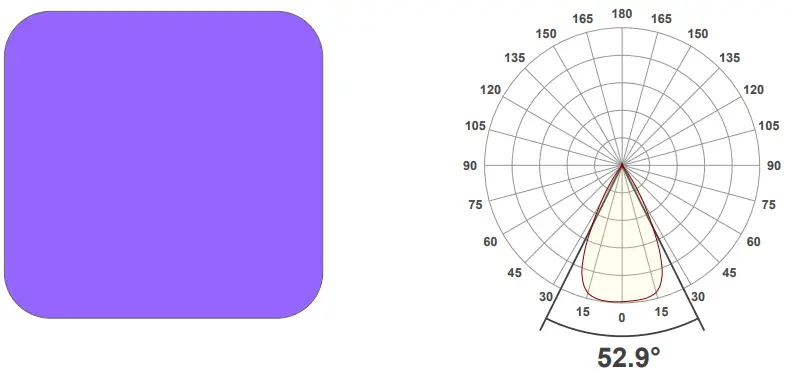

Beam details

Beam Intensities from 1-20m

PROTEUS RAYZOR Blade L (Zoom Out)

• Total Lumen Output: 11505 lm
• Voltage: 116 V, Current: 8.24 A
• Power: 958 W
• Efficacy: 12 Lumen/Watt
• Measurement Date: 9/23/2022



Spectral distribution

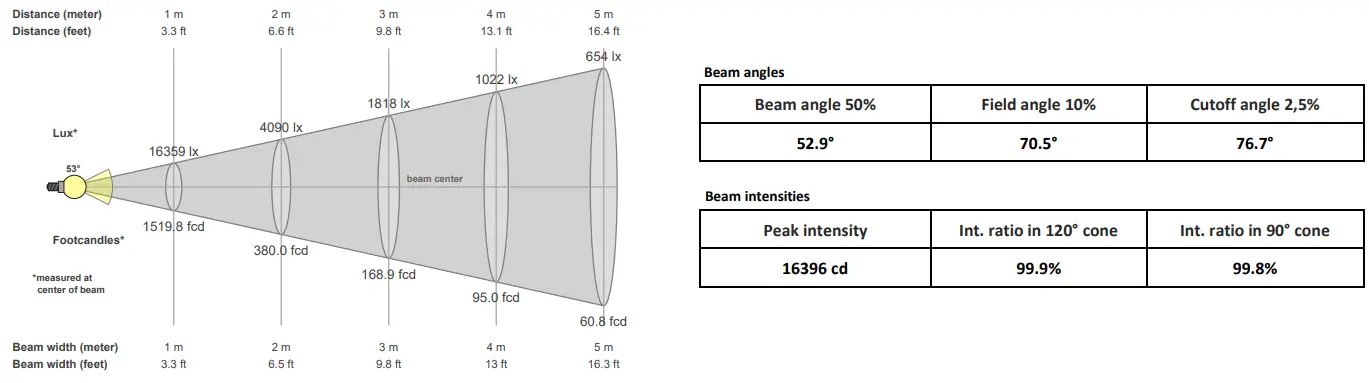

Beam details

Beam Intensities from 1-20m

PROTEUS RAYZOR Blade L (High CRI)

Photometric Report

Total Lumen Output*

• Integrating Sphere CRI Zoom 50
• VISO Lab Spion 7516 lm

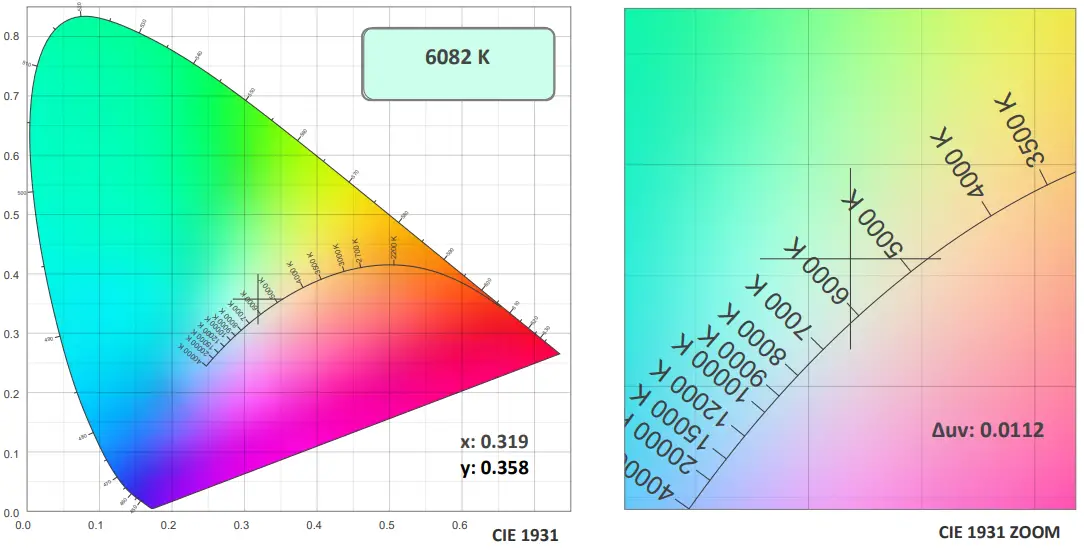

• Color Temperature: 6082 K
• CRI: 79.6
• TLCI: 79
• TM30: 82.5
• CQS: 86.9
• Voltage: 116 V, Current: 4.78 A
• Power: 556.1 W
• Efficacy: 14 Lumen/Watt
• Measurement Date: 9/23/2022

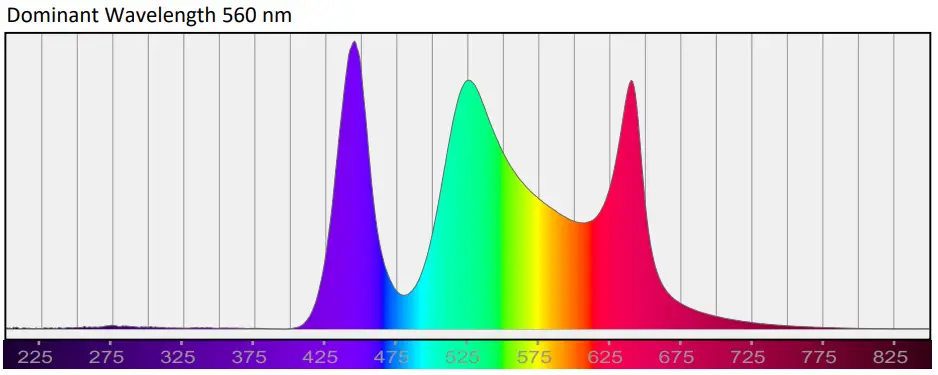

Spectral Distribution

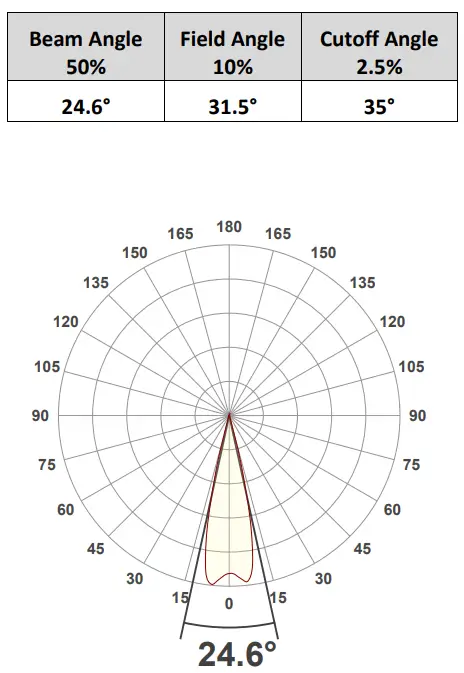

Beam Details

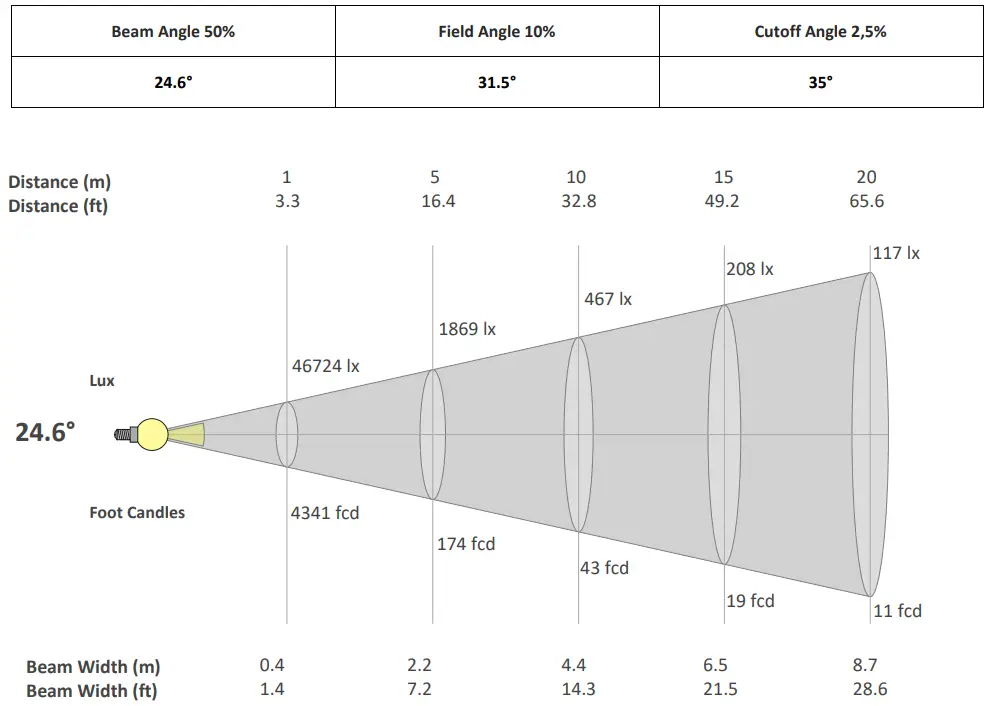

Beam Intensities from 1-20

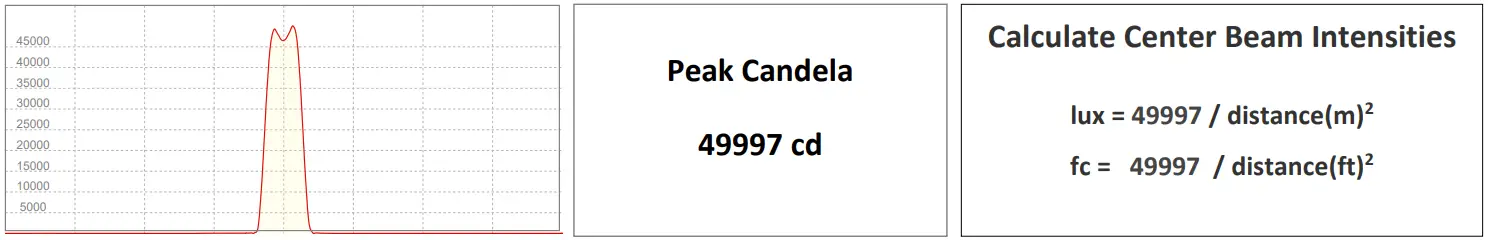

Linear Distribution

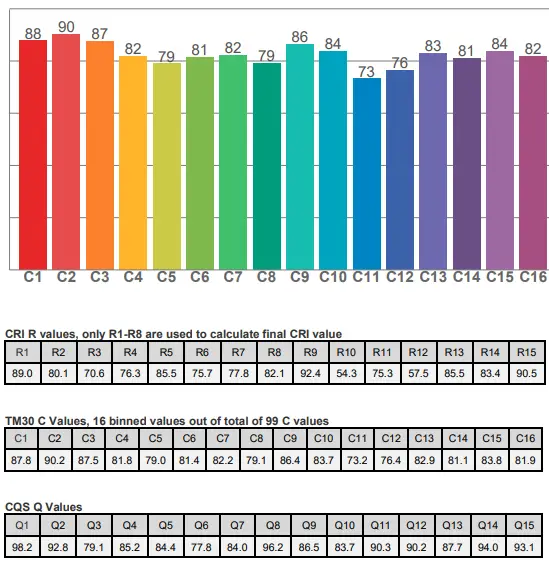

Color Details

TM30: 82.5

CRI: 79.6 (R1-R8)

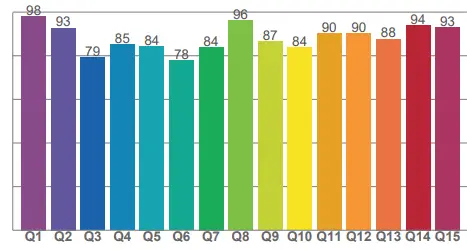

CQS: 86.9

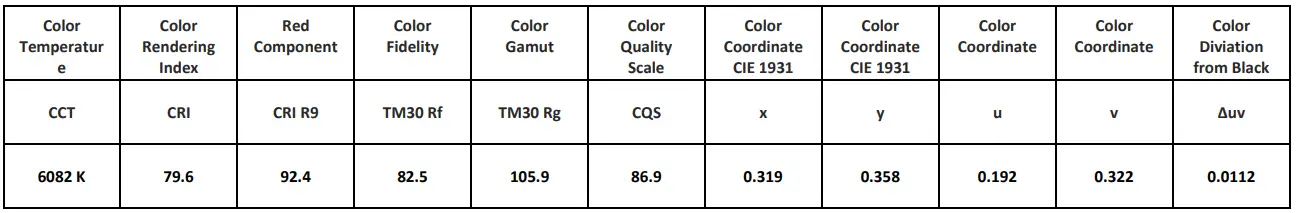

Color Parameters

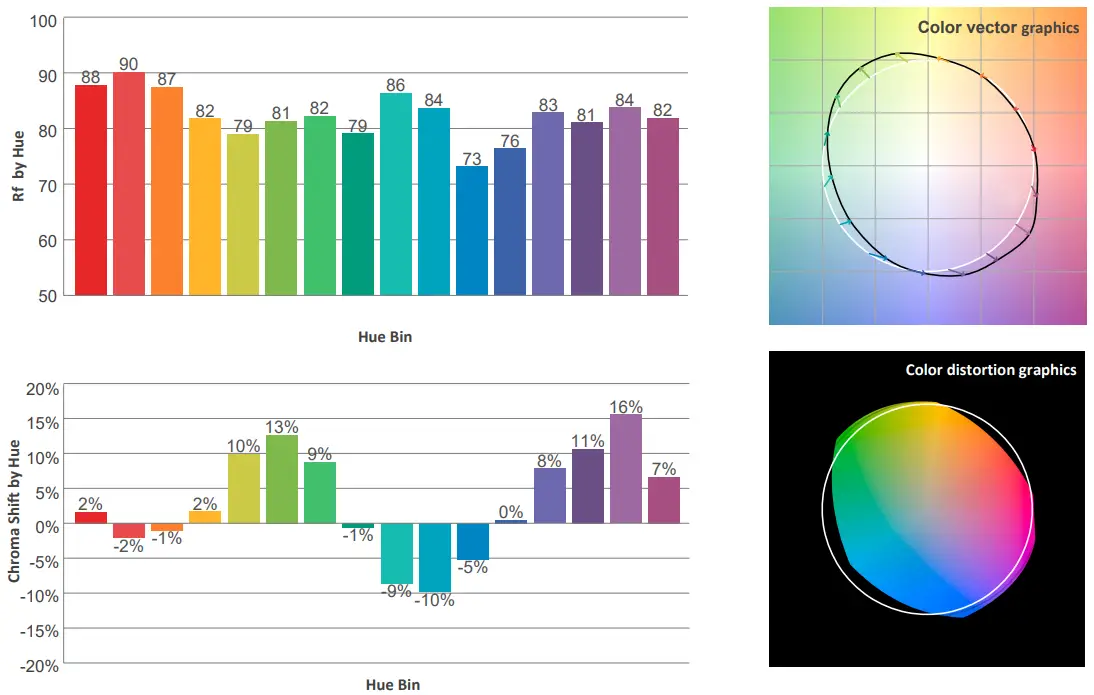

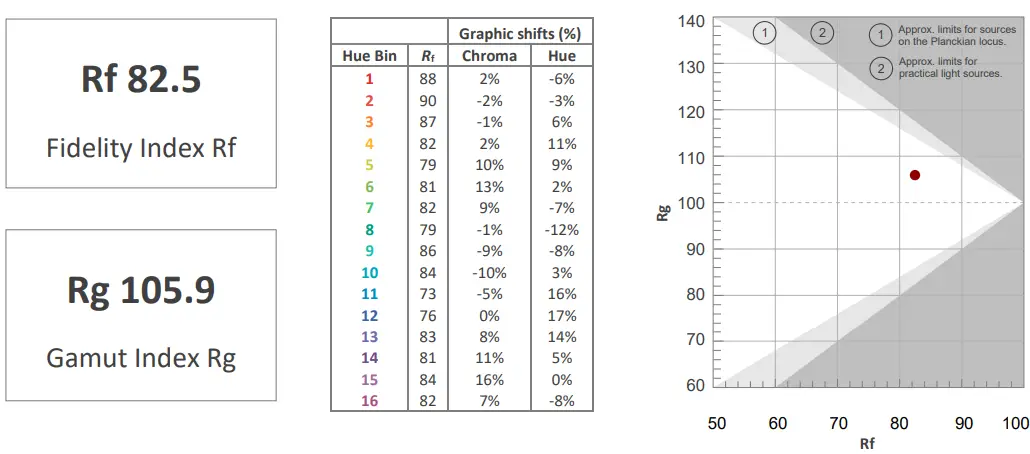

TM30 Details

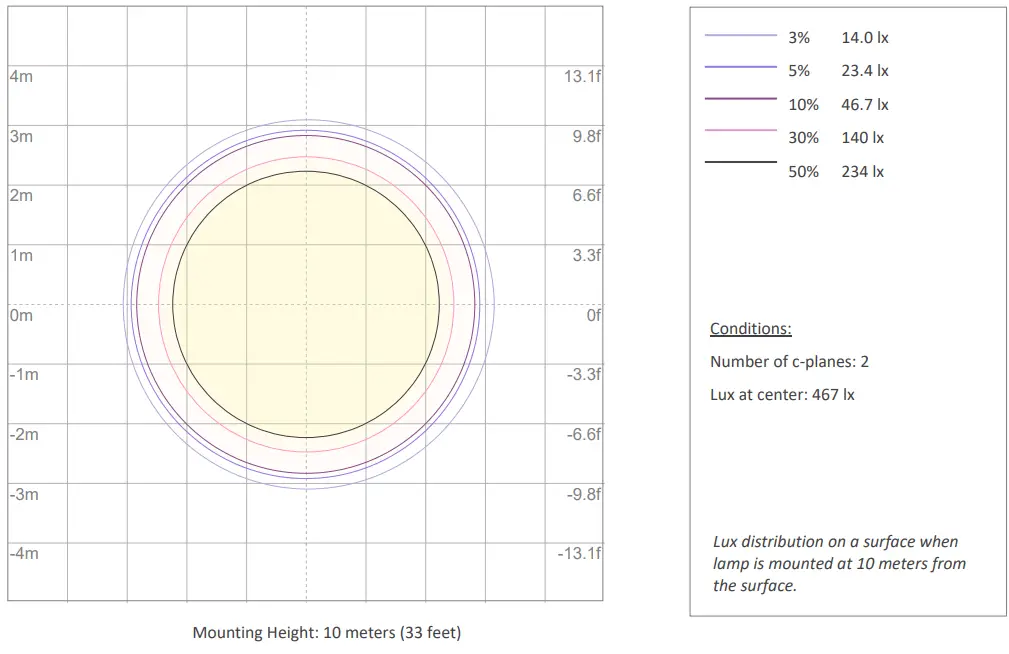

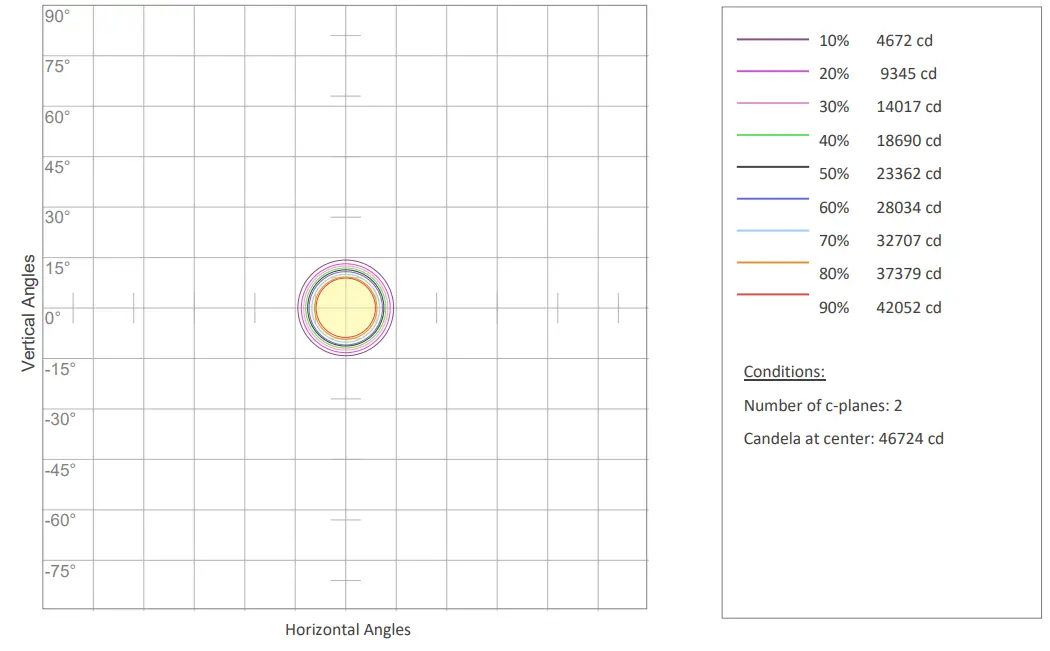

ISO Diagrams
