Viridian ARC04-12 Connector
Enclousure Instructions

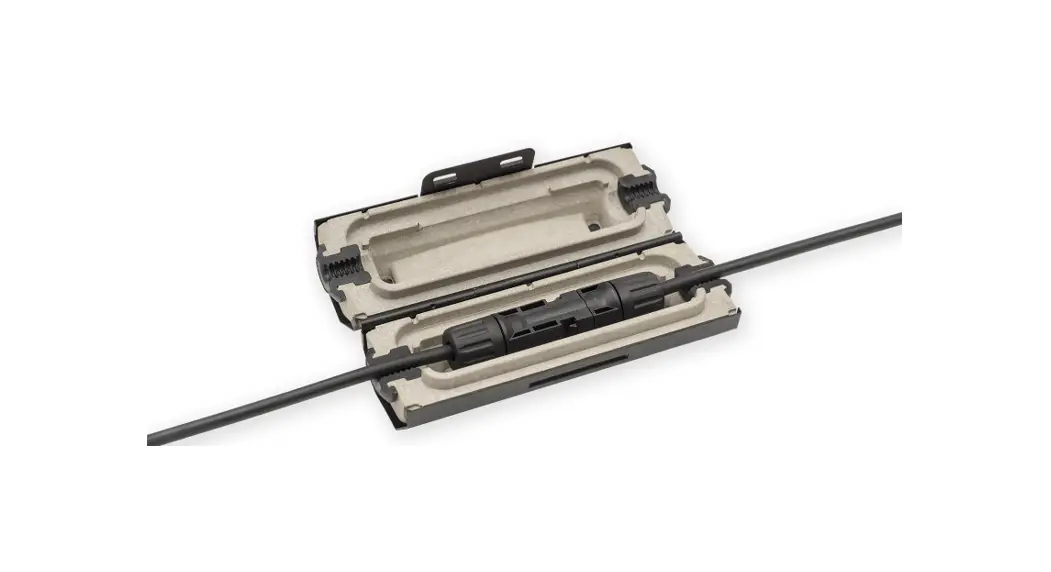

Viridian ARC04-12 Connector Enclousure

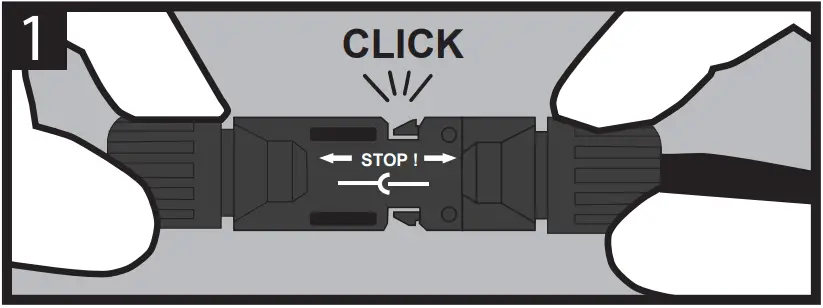

- Join the DC connector following the manufacturer’s instructions Observe local regulations on mixing connectors.

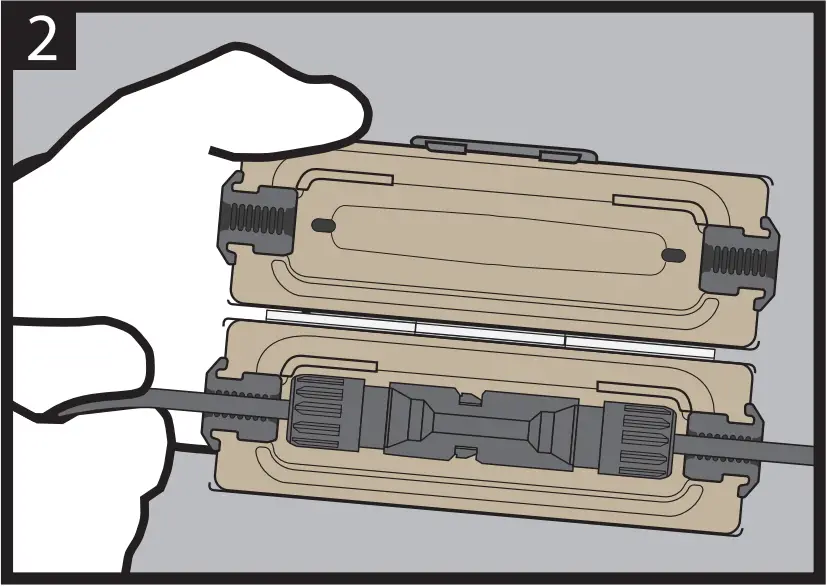

- Place the DC connector inside the ArcBox with the cables in the split grommet

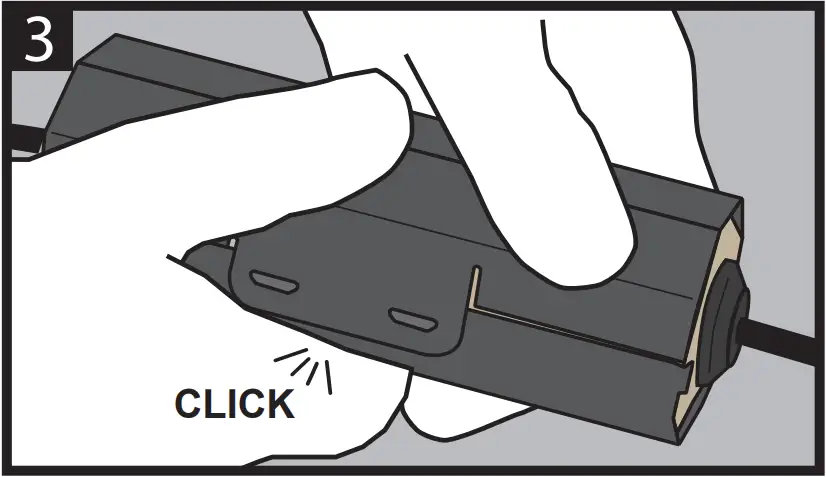

- Close the ArcBox and ensure the catch has clicked into place

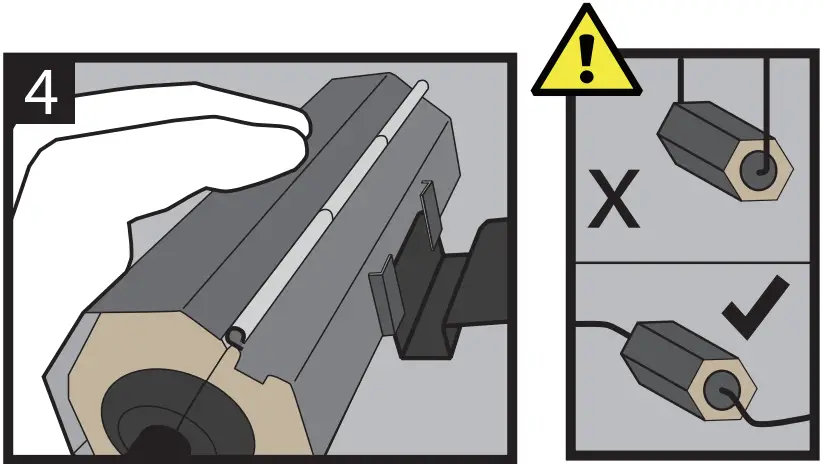

- Mount the ArcBox on a suitable hanging point.
Do not suspend the ArcBox on the cables.
 |  |
 |  |
Viridian Solar Ltd.
68 Stirling Way, Papworth
Cambridge. UK
CB23 3GY
www.viridiansolar.com
Roof Integrated Solar by Viridian Solar
