Ensto Ca95sb2 Cable Mechanical Connector Instructions

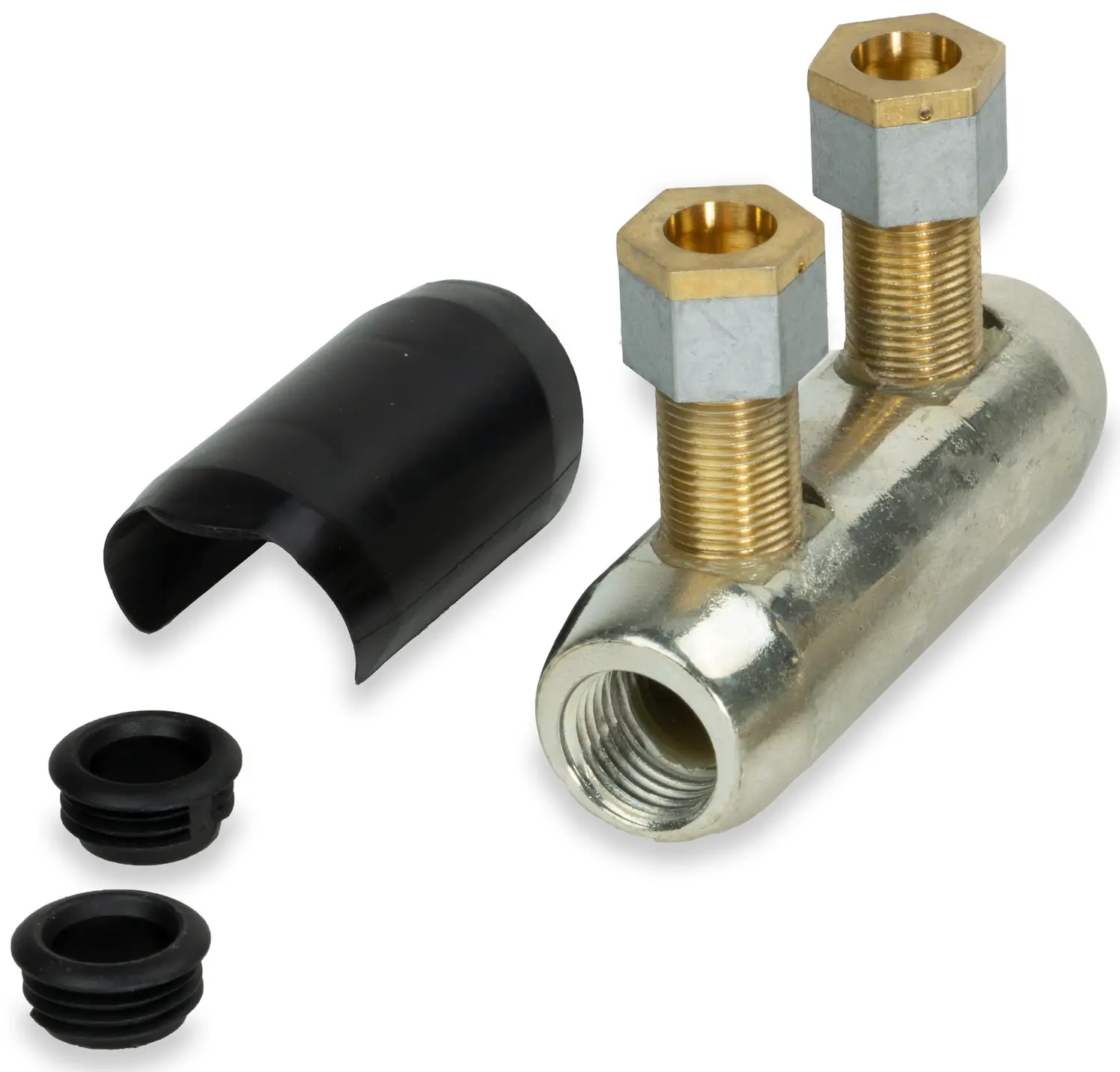

ENSTO CA95SB2 Cable Mechanical Connector Instructions

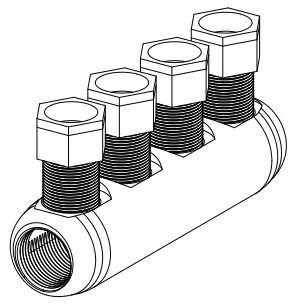

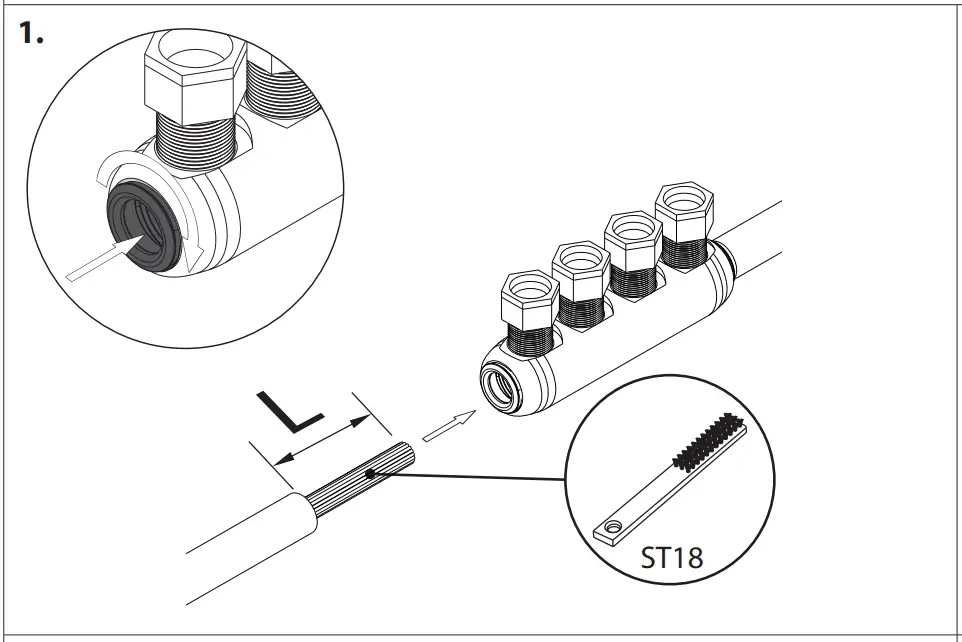

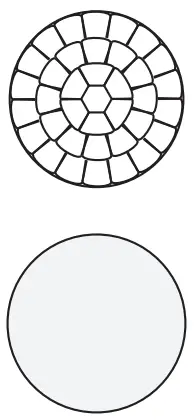

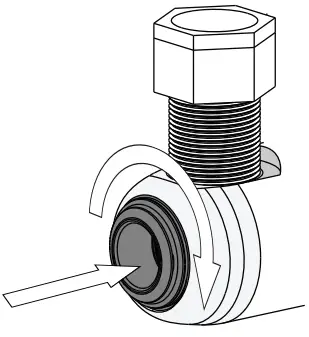

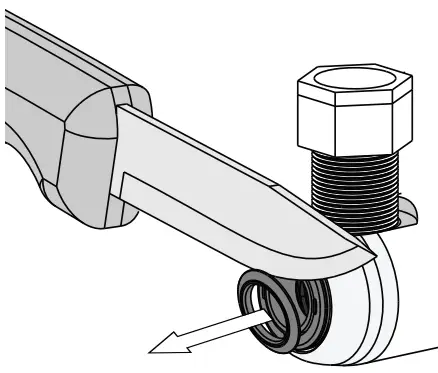

Inductions

	Min	mm2	mm2	mm2	Min	mm2	mm2	Min

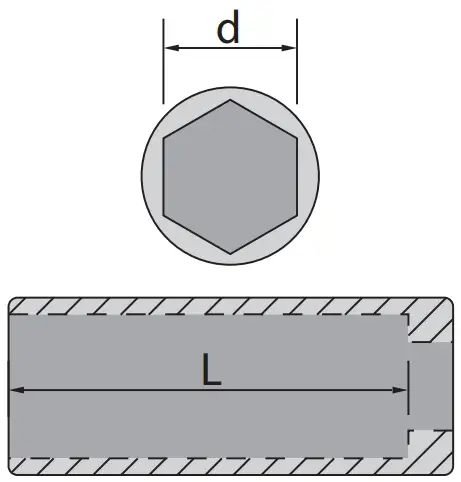

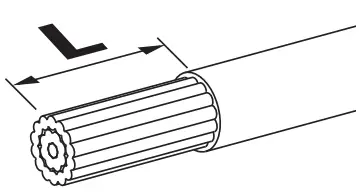

CA95SB2	3.6-12	10-95	90° 10-70 120° 10-50	90° 10-70 120° 10-50	35	10 – 50	–	d=15 / L= >26
CA150SB4	5.6-15	25-150	90° 25-120	90° 25-150	50	25 – 70	–	d=15 / L= >26
			120°25-95	120°25-120
CA240SB4	7.7-19.2	50-240	90° 50-150	90° 50-185	60	50-95	120-150	d=21 / L= >26
			120°50-120	120°50-150
CA300SB4	11.0 – 21.6	95-300	90° 95-185	90° 95-185	60	95-150	–	d=21 / L= >26
			120°95-150	120°95-150
CA400SB4	15.3 – 24.6	185-400	90° 185-240	90° 185-240	85	185-240	–	d=26 / L= >32
			120° 185-240	120°185-240
CA630SB6	19.7 – 32.5	300-630	120° 300	120° 300	100	300-400	–	d=26 / L= >32

LEGAL NOTICE

• The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of installation of electrical equipment such provisions shall be fulfilled by the said person.
• Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
• WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.

Support

ENSTO FINLAND OY ENSIO MIETTISEN KATU 2,
P.O.BOX 77 06101 PORVOO, FINLAND
TEL. +358 204 76 21
[email protected]
WWW.ENSTO.COM
