8 Ports Industrial 802.3bt PoE Switch
User’s Manual V3
POE-SW508G
Important Safeguards & Warning
Attention: Please read the following safeguards and warnings carefully before using the product in order to avoid demages and losses.
Note: Do not expose the device to soot,high humidity or dust.Doing so may cause fire or electric shock. Do not install the device in direct sunlight as it may cause overheating and failure. Installation of the units should be via the compatible rack mount or securely on a flat surface. Do not place the device on carpet to or around the unit, Doing so may cause overheating.failure or fire. Do not place stack or place objects on the unit This unit contains o user serviceable parts,Servicing should only be performed by approved technicians.
Warning: Do not use a power supply other than the provided manufacture power supply.Failure to do so may cause unit failure and or demage.
Special Announcements: This manual is reference only. All the designs and software here are subject to change without prior written notice

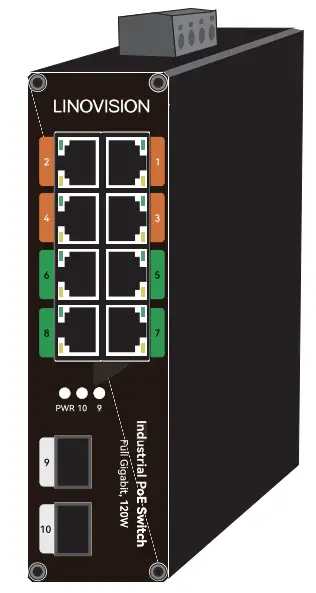

Product Overview
Features:
Introduction: This is the latest industrial Ethernet(PoE) Switch that can operate under WIDE-TEMPERATURE environment ranging from -40 up to 80 degrees C and is equipped with fiber slots which can be extended from 2 kilometers (via multi-mode fiber) up to above 100 kilometers (via single-mode fiber), respectively. In other words, the industrial switch provides more flexibility for Transportation, Manufacturing, Security and Surveillance with distance extension without any limitation and is a suitable model either for long or short distance network deployment. This Industrial unmanaged Ethenet switch is based on the 1E061643-21:2000 standard, integrated with surge protection fa’ both network signal and power together. It is adapted to the lightning surge protection for surveillance IP camera by reacting overvoltage, operating over-voltage and static electricity discharge etc. This Industrial switch is designed with a compact case that allows either DIN rail or panel mounting for the efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation.
Common features:
- High performance Store and Forward architecture
- DIN rail and wall mount design
- Confirm to IEEE802.3i , IEEE802.3u, IEEE802.ab, IEEF Sn7 7 and IEEE802.3X standards
- support IEEE802.3af and IEEE802.3at standards
- Contact Discharge 8KV DC; Air Dischargel5KV DC
- -40 to 85 degrees C wide operating temperature
- IP40 industrial metal case protection

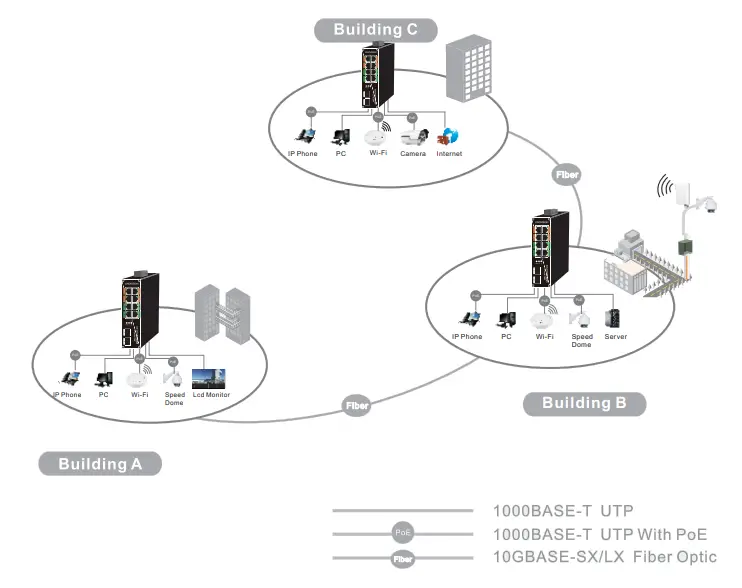

Typical Application: The typical application of the device is show as below
Switch installation :
Insert Din rail Into the slots, Steel Spring, Din Rail

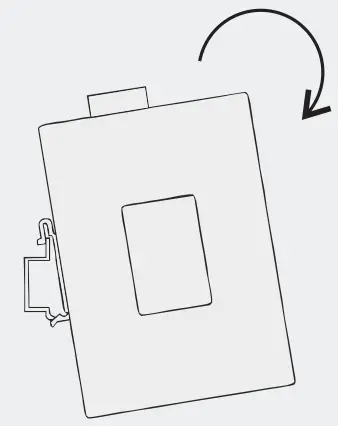

- Following the left side picture to install the Din rail kits

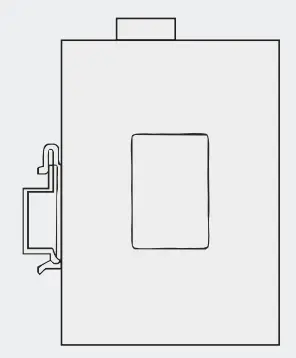

- Finished installtion as above

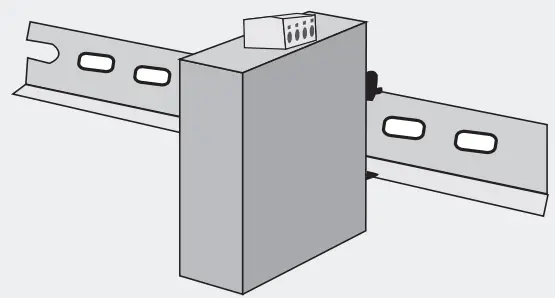

Insert Din rail Into the slots, Steel Spring, Din Rail
Appendix Technical specification
| Model | 8-10/100/1000M+2 Gigabit SFP Unmanaged Industrial 80.23bt PoE Switch |
| Hardware Specifications | |
| Connector | 8-10/100/1000Base-T RJ45 2-1.25G Base-X SFP |
| PoE Port | 4-10/100/1000Mbps PoE+ port, 4-10/100/1000Mbps PoE++ porl |
| LED indicators | Power Indicator: PWR(green).Network Indicator: Link(green) SFP Indicator: Link(green) |
| Switch Architecture | Store and Forward |
| Backplane bandwidth | 32Gbps |
| Packet forwarding rate | 16.82Mpps |
| MAC address | 8k |
| Power requirement | DC 48-56V |
| ESD Protection | 6KV ESD |
| Dimension(WxDxH) | 48mm x 110mm x 150mm(1.89in*4.33in*5.91in) |
| Weight | 1.25Kg |
| Power over Ethernet (PoE) Specifications | |
| Network standard | IEEE802.3i 10 BASE-T ; IEEE802.3u 100 BASE-TX IEEE802.3ab/z 1000 BASE-TX ; IEEE802.3x Flow Contro |
| PoE Standard | IEEE 802.3af , IEEE 802.3at , IEEE802.3bt |
| PoE Supply Type | 1/2/4/5(+), 3/6/7/8(-){Port1-Port4} 1/2(+), 3/6(-) End-span |
| PoE Power Output | Max. 15.4 watts (IEEE 802.3af), Max. 30 watts (IEEE 802.3at) 60 watts (IEEE 802.3bt) |
| PoE Power budget | Max. 360W |
| Environment | |
| Environment specification | Operating temperature: -40t-85t , operating humidity: 5%-95% Storage temperature: -40t-85t , storge humidity:5%-95% |
| Safety | FCC Part15 Class A,CE.RoHs |
