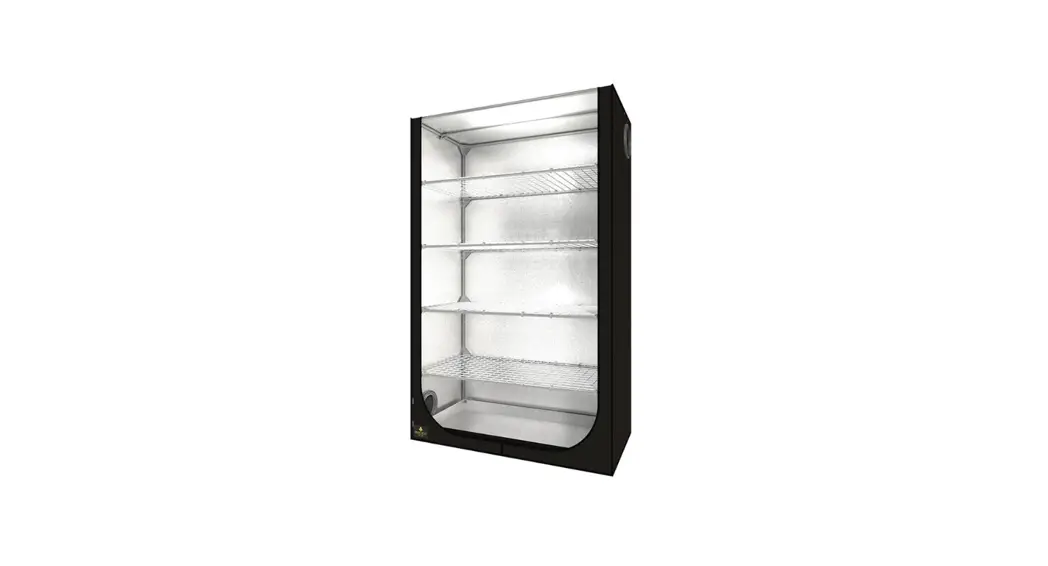

Secret Jardin R4.00 Dark Room Propagator Instruction Manual

ASSEMBLY INSTRUCTIONS

DARK PROPAGATOR R4.00

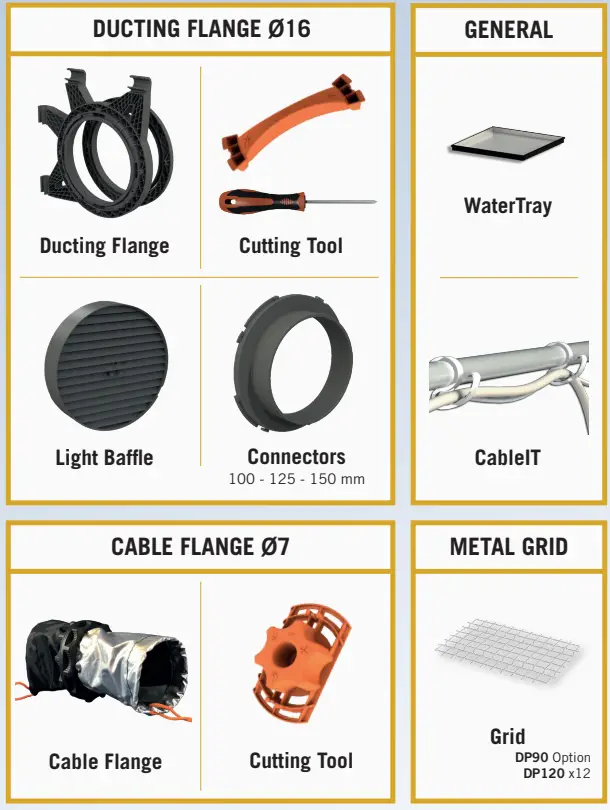

PRE-EQUIPPED DARK PROPAGATOR ACCESSORIES

PRE-EQUIPPED DARK PROPAGATOR 60

PRE-EQUIPPED DARK PROPAGATOR 90

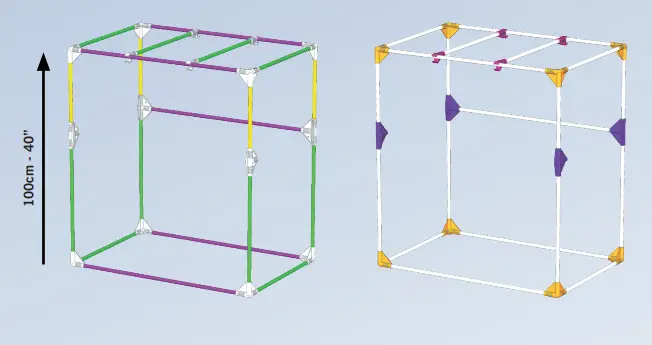

CONFIGURATION 1 : 1x FLOOR (100CM – 40’’)

CONFIGURATION 3 : 2x FLOORS (GRIDS SOLD ON OPTION)

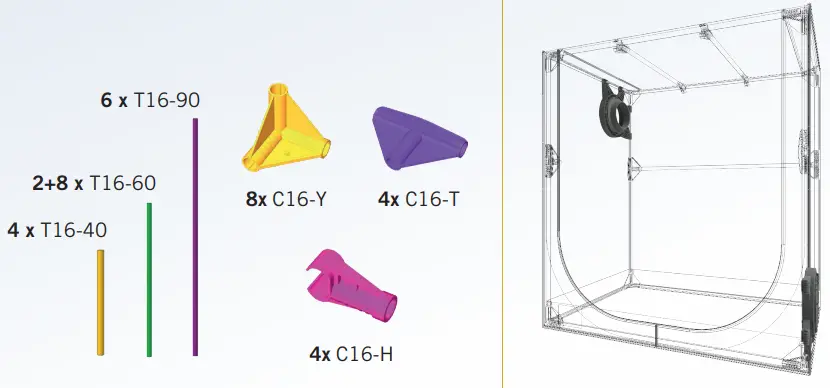

PRE-EQUIPPED DARK PROPAGATOR 90

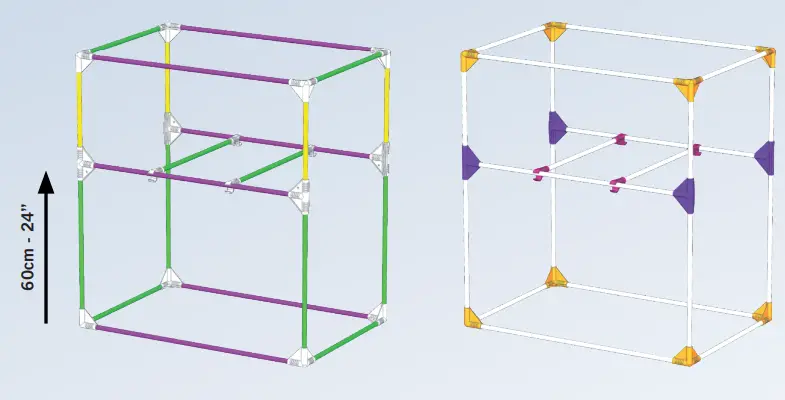

CONFIGURATION 2 : 1X FLOOR (60CM – 24’’)

http://l.ead.me/bayAYh

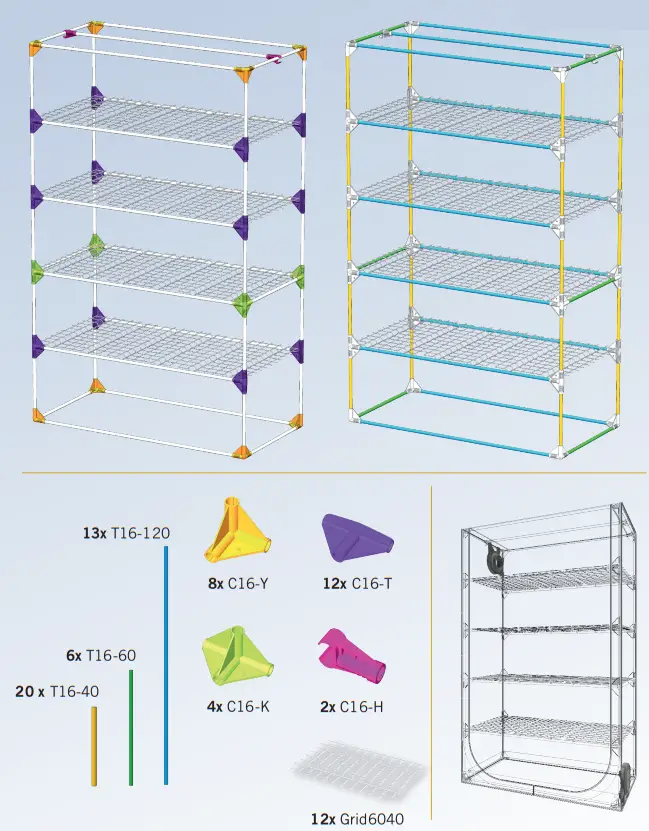

PRE-EQUIPPED DARK PROPAGATOR 120

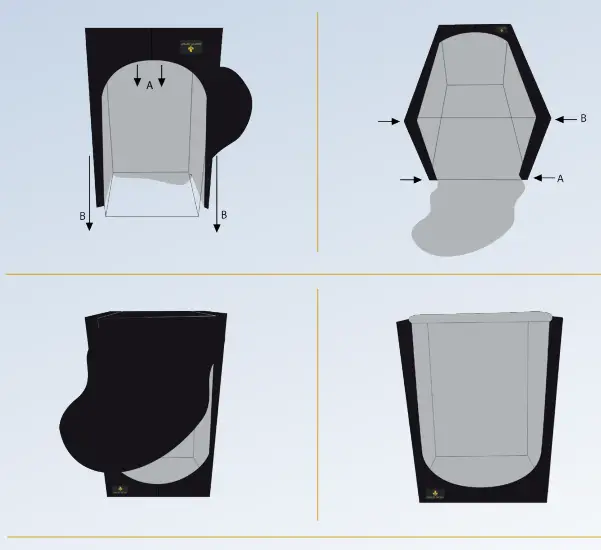

PRE-EQUIPPED DARK PROPAGATOR ASSEMBLY

DUCTING & CABLE FLANGES

http://l.ead.me/baxzjK	http://l.ead.me/baxOGU

WARNING

This product contains heat-sensitive materials that can ignite if misused (tent canvas, PocketIT, StrapIT, Cable flange, socks…)
Make sure that all electrical products used with the tent are properly secured, so that they cannot fall out if the tent is shaken.
Ensure that any heat source is far away enough from heat sensitive materials included in this tent, and that your tent is properly ventilated. Lighting system should be installed at least 10cm (4in) from heat sensitive materials.

FIRE & VENTILATION PRECAUTIONS

Make sure that all products used with this tent comply with  the standards in force in your country. If you find that the productis damaged, do not use it.
Do not leave your tent unsupervised in the presence of young children
When possible, electrical products should be installed 60cm high minimum (24in) from the floor. Ensure that all electrical products used inside the tent do not come in contact with a water source.
We advise you to use LED lighting systems. If you need to use a discharge lamp like HPS, MH, CMH, CFL… take great care not to ignite the tent.
Lighting system must include a thermal safety system (thermal fuse or thermal switch).
PocketIT : Do not hang the PocketIT close to your lighting and ventilation system (wind generated by a fan may cause the PocketIT to touch a lighting system).
StrapIT : Do not use the StrapIT to hang lighting system or other high temperature system.

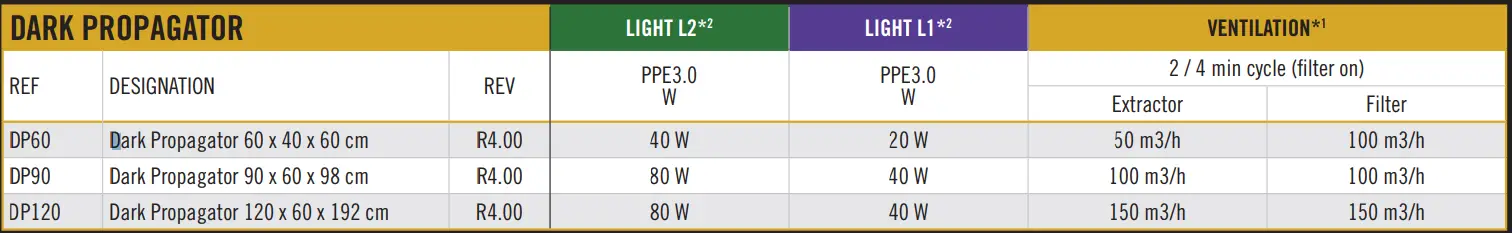

ADVISED CONFIGURATION – METRIC

*1 When using extractor without a filter, extraction needs are reduced by 40%. All extraction advised for 15°C to 25°C.
*2 Advised lighting per shelf

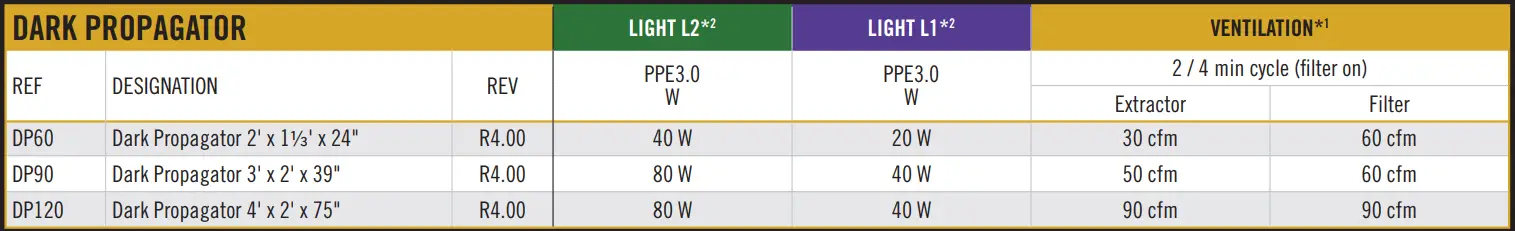

ADVISED CONFIGURATION – IMPERIAL

*1 When using extractor without a filter, extraction needs are reduced by 40%. All extraction advised for 60°F to 77°F
*2 Advised lighting per shelf
