Klus Giza-ll-zmg Profile Pendant Light Instruction Manual

KLUS GIZA-LL-ZMG Profile Pendant Light Instruction Manual

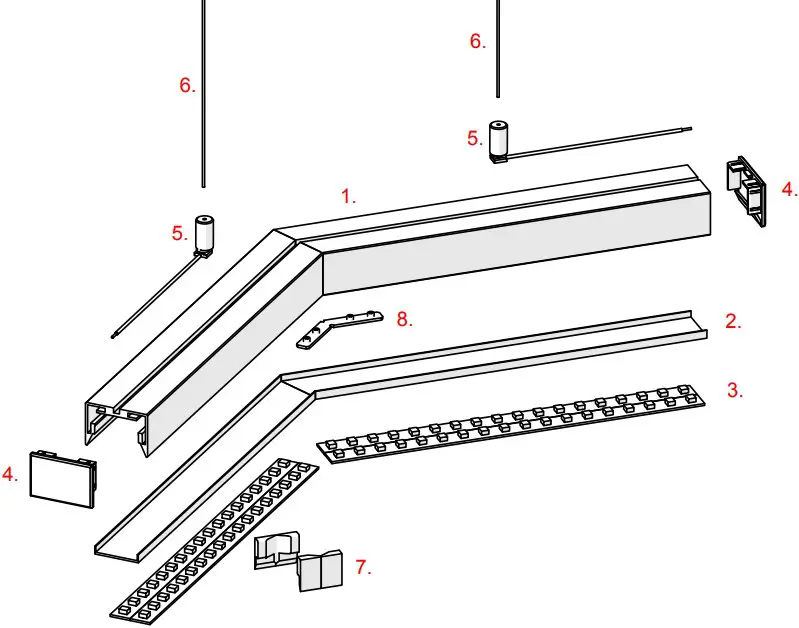

Product Descriptions

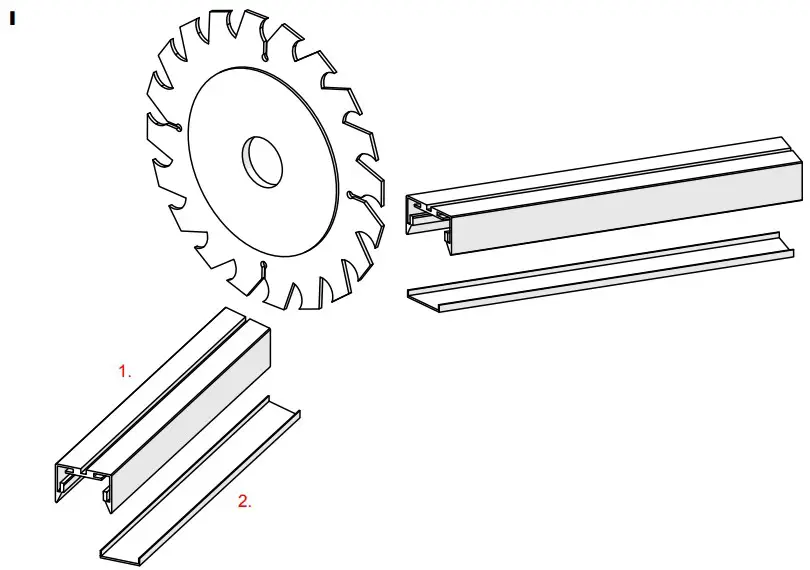

1. GIZA-LL-ZMG Profile (Ref. C4501)
2. Cover*

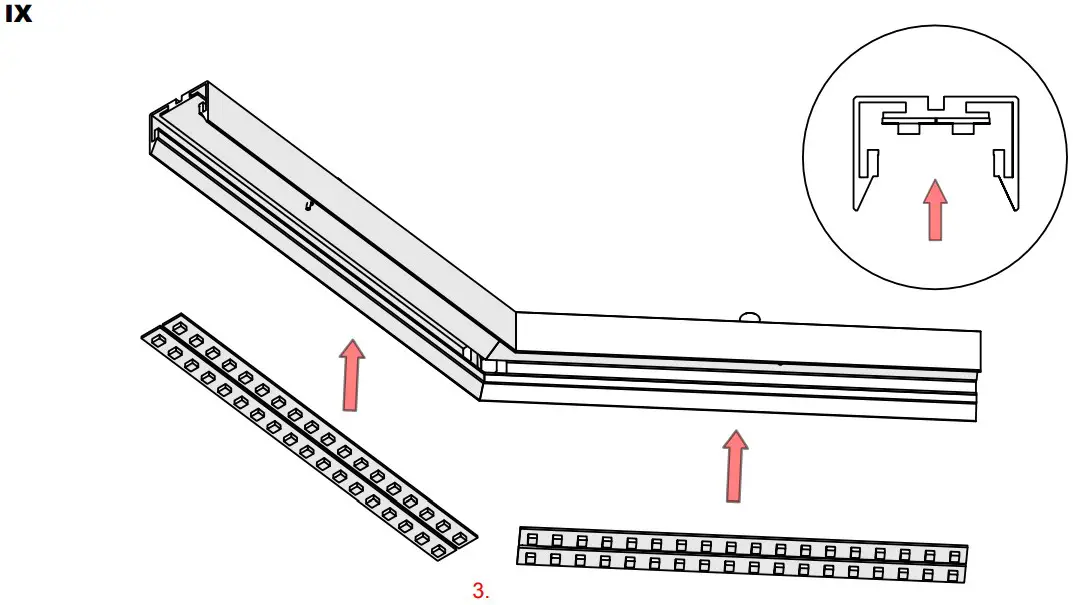

3. LED tape*

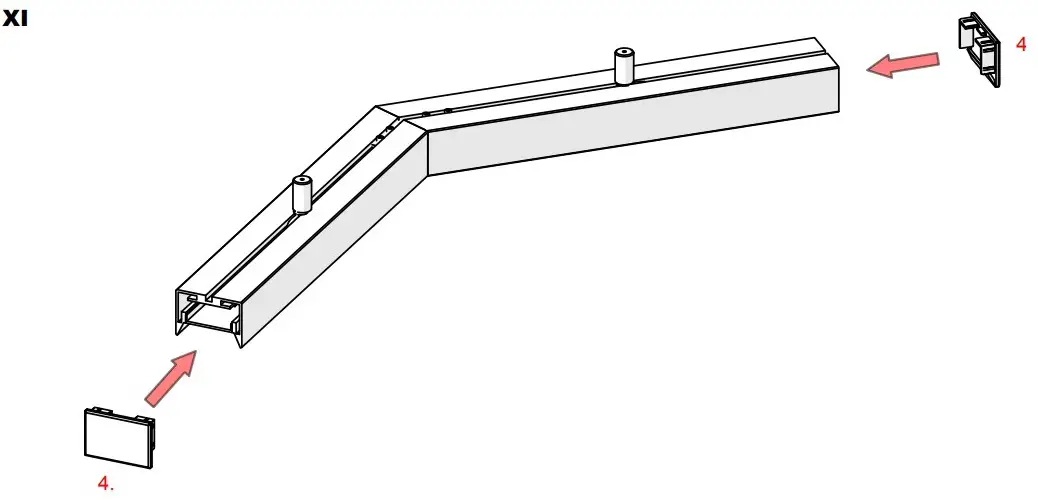

4. GIZA-LL-ZMG End cap (Ref. 24467)

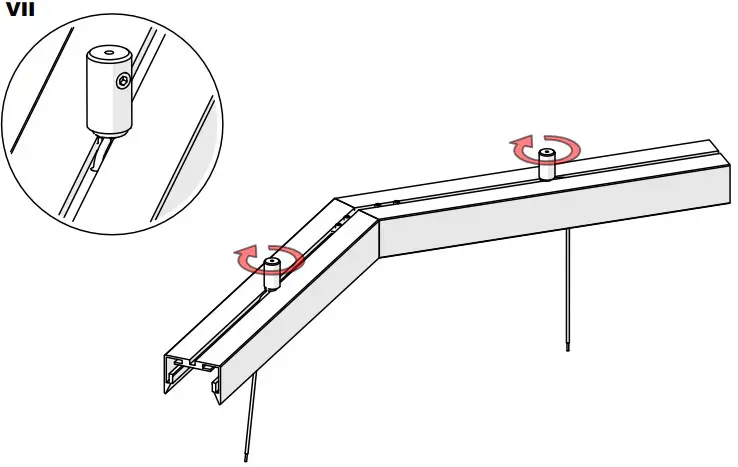

5. Fastener*

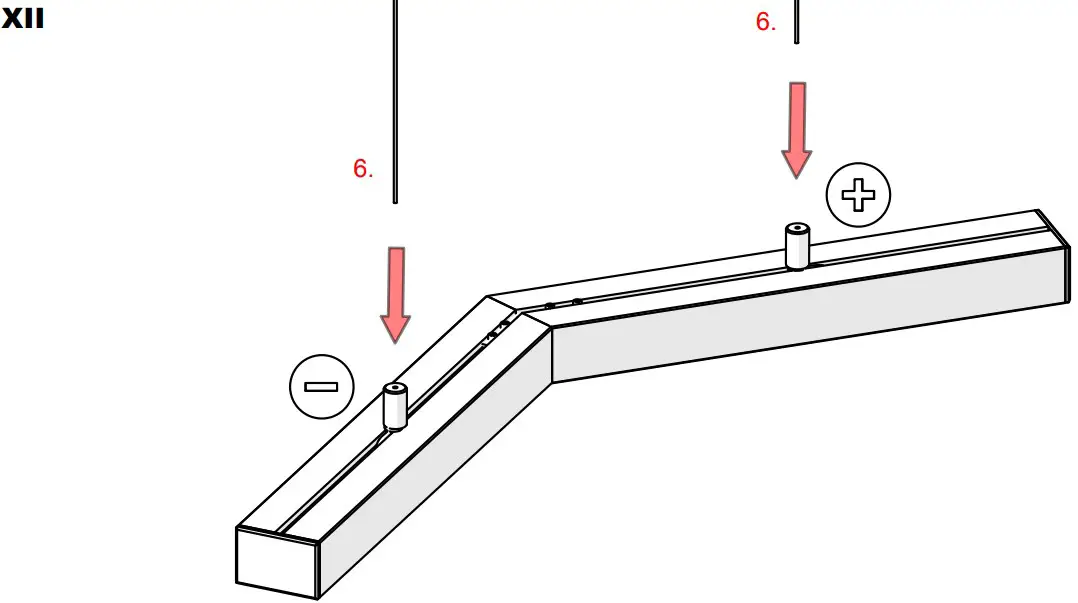

6. Steel cable*

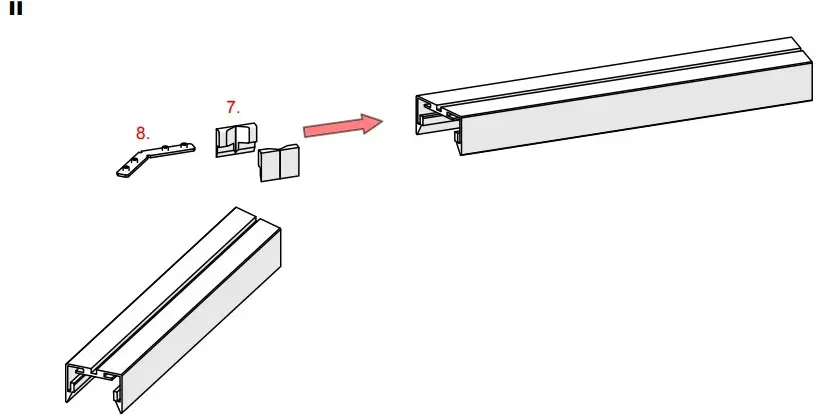

7. Blocker 4-14 (Ref. C40707C02)
8. Connecto

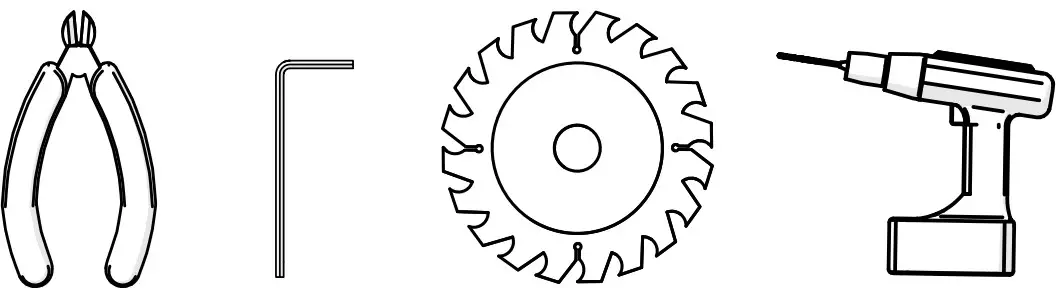

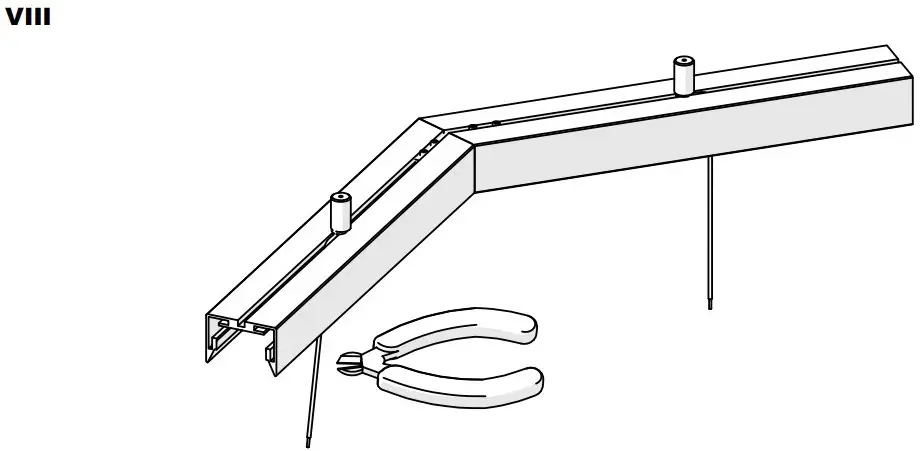

Tools

*The full range of accessories and electronics is available at www.KlusDesign.eu

NOTE! ! All LED tapes must be connected to a 12 V or 24 V power supply.

IMPORTANT: Not all possible mounting procedures are presented here. More mounting procedures and related accessories can be found at www.KlusDesign.eu. Drawings in these instructions are simplified and only approximate the actual shapes.

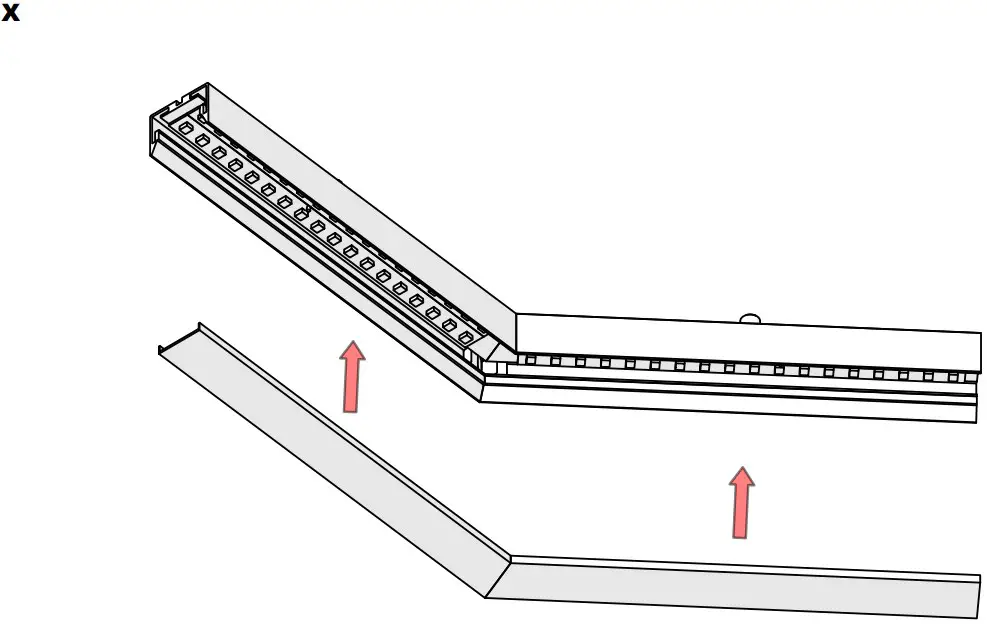

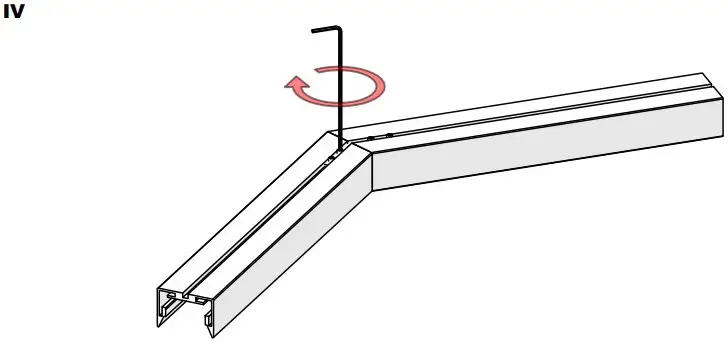

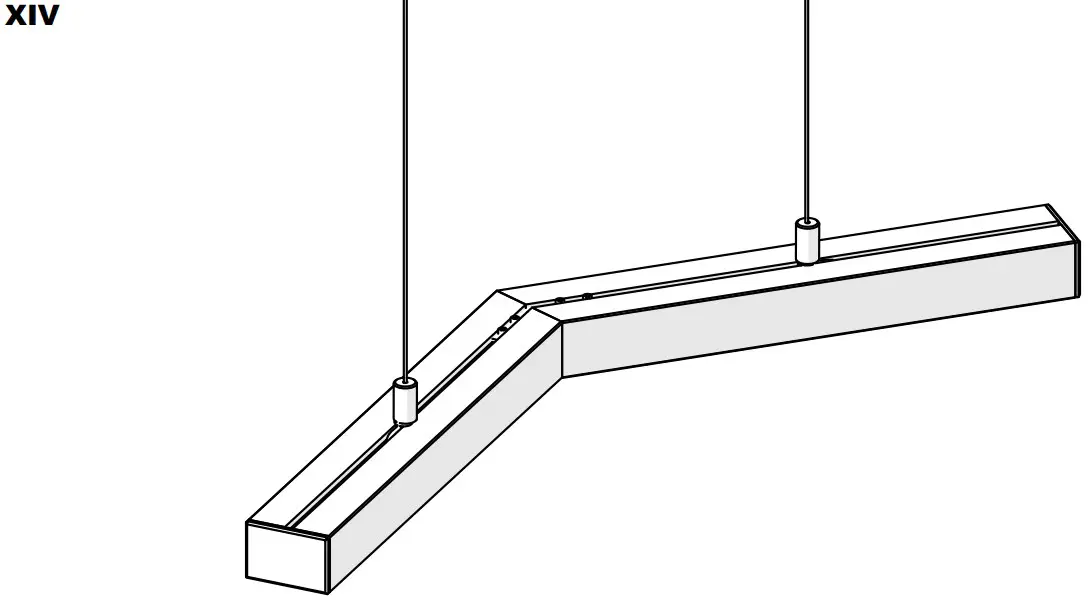

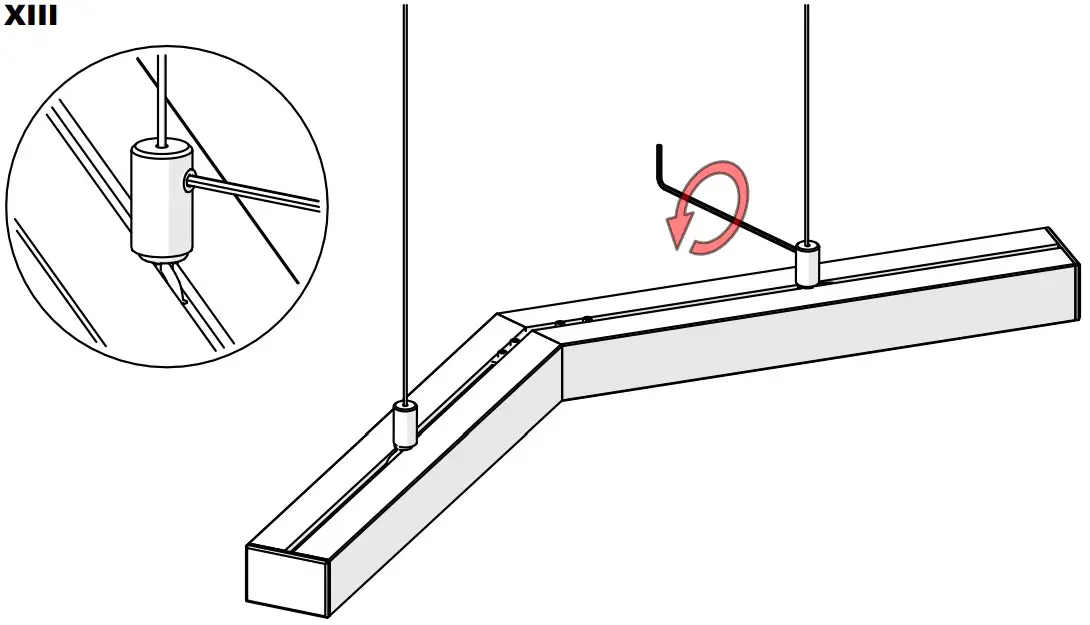

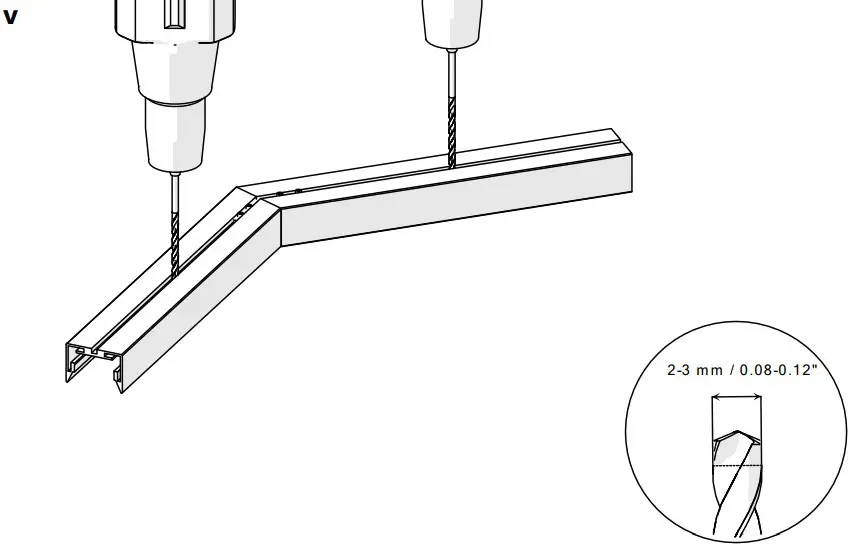

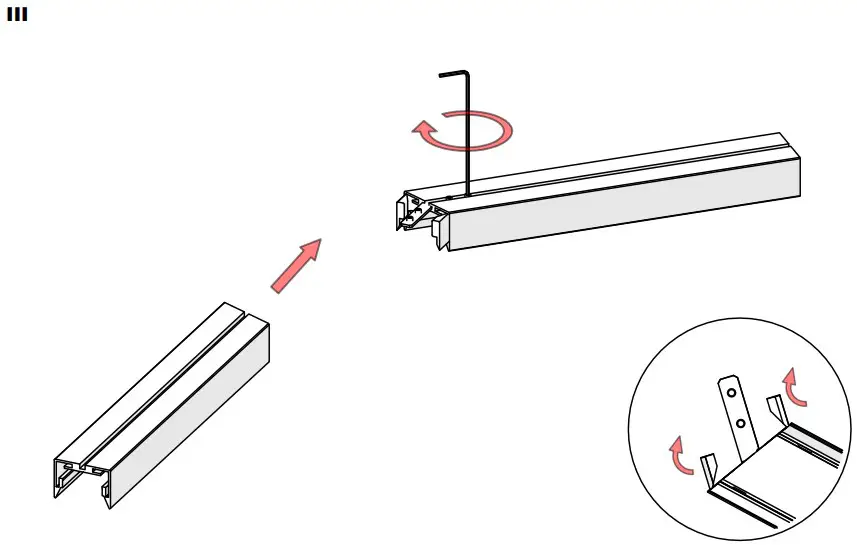

Installation Instructions
