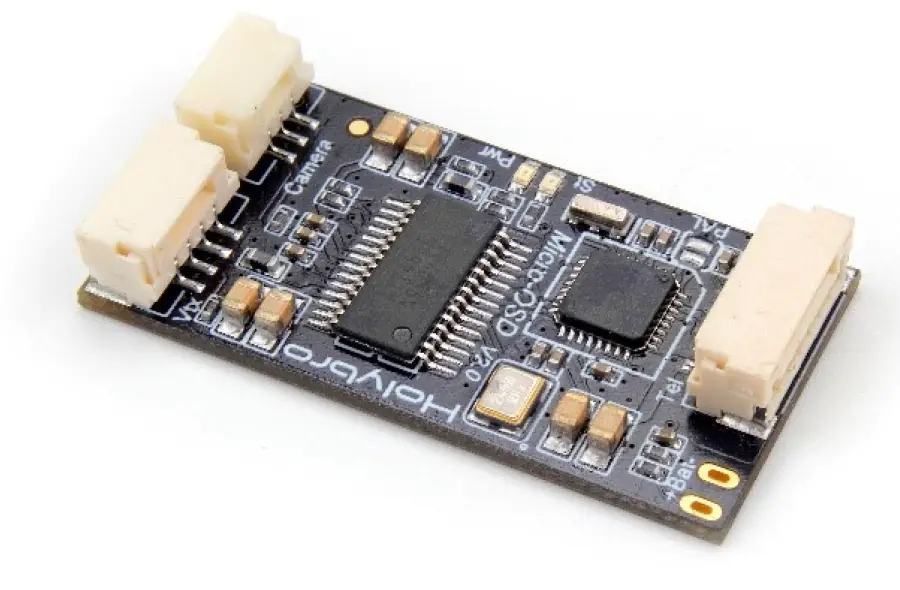

Holybro 13013 Micro OSD v2
Holybro 13013 Micro OSD v2
Specifications
- ATmega328P with Arduino bootloader
- AT7456 monochrome on-screen display
- Standard 6-pin ISP header
- Solder jumper for PAL video option
- Exposed test points for HSYNC and LOS
- Dimensions: 17.5*35mm
- Weight: 3g
- Note: BAT+ is direcrly connected with VTx and Camera (Pay attention to the max with stand voltage of your equipment)
Included
- Micro OSD * 1
- GH 6P cable * 1
- GH 4P cable * 1
- GH 3P cable * 1

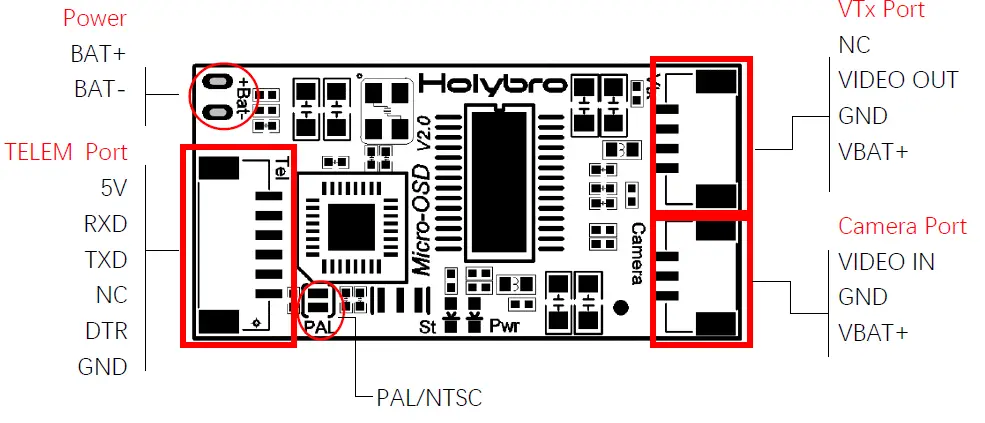

PINMAP

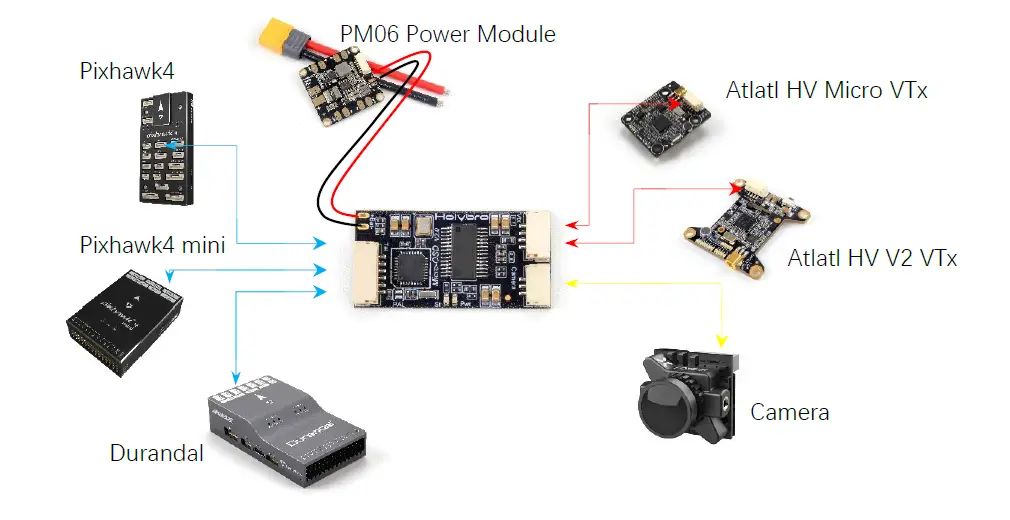

Connection
