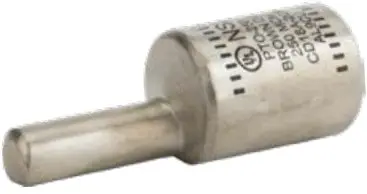

NSI PT-2 Pin Terminal Instruction Manual
Select proper lug or splice connector for the size of cable being installed, making sure that the size matches the description in the table below.
- Carefully strip the insulation from the conductor without nicking the strands to a length so that the stripped conductor can be completely inserted into and fill up the barrel of the lug or splice.
- Wire brush the stripped portion of the conductor to remove any oxide films.
- The stripped portion of the conductor must be clean and inserted completely into the connector barrel.
- Install crimps per the appropriate tables below.

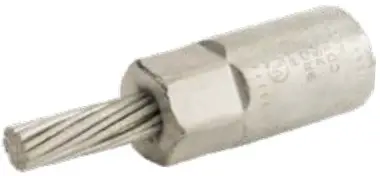

NSI PT SERIES PIN TERMINAL DIE CHART
- PT
- PTS
- PTO
NSI CATALOG # | COLOR CODE | T&B 12, 14, 15 TON | BURNDY Y35, 46, 39 | PT SERIES STRIP LENGTH (INCHES) | ||
| DIE INDEX | CRIMPS | DIE INDEX | # OF CRIMPS | |||
| PT-6 | ORANGE | 50 | 2 | U-BG (243) | 3 | 1-1/8 |
| PT-4 | ORANGE | 50 | 2 | U-BG (243) | 3 | 1-1/8 |
| PT-2 | ORANGE | 50 | 2 | U-BG (243) | 3 | 1-1/8 |
| PT-1 | ORANGE | 50 | 2 | U-BG (243) | 3 | 1-1/8 |
| PT-1/0 | RED | 76 | 2 | 324 | 2 | 1-3/16 |
| PT-2/0 | RED | 76 | 2 | 324 | 2 | 1-3/16 |
| PT-3/0 | RED | 76 | 2 | 324 | 2 | 1-3/16 |
| PT-4/0 | RED | 76 | 2 | 324 | 2 | 1-3/16 |
| PT-250 | BROWN | 87H | 2 | 299 | 2 | 1-5/16 |
| PT-300 | BROWN | 87H | 2 | 299 | 2 | 1-5/16 |
| PT-350 | BROWN | 87H | 2 | 299 | 2 | 1-5/16 |
| PT-400 | PINK | 106H | 2 | 300 | 2 | 1-3/8 |
| PT-500 | PINK | 106H | 2 | 300 | 2 | 1-3/8 |
| PT-600 | YELLOW | 115H | 3 | 936 | 3 | 1-7/8 |
| PT-750 | YELLOW | 115H | 3 | 936 | 3 | 1-7/8 |
QR Code

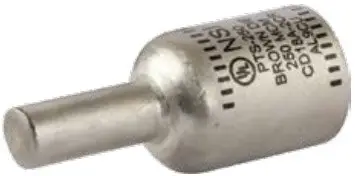

NSI PTS SERIES PIN TERMINAL DIE CHART
| NSI CATALOG # | COLOR CODE | NSI DIE # | UL LISTED TOOLS | PTS SERIES STRIP LENGTH (INCHES) | # OF CRIMPS |
| PTS-6 | TAN | CD9 | NSI: N1240GREENLEE:EK1240L | 1-1/16 | 1 |
| PTS-4 | TAN | CD9 | 1-1/8 | 1 | |
| PTS-2 | TAN | CD9 | 1-1/8 | 1 | |
| PTS-1 | TAN | CD9 | 1-1/8 | 1 | |
| PTS-1/0 | TAN | CD9 | 1-1/8 | 1 | |
| PTS-2/0 | WHITE | CD15A | 1-1/4 | 2 | |
| PTS-3/0 | WHITE | CD15A | 1-1/4 | 2 | |
| PTS-4/0 | WHITE | CD15A | 1-1/4 | 2 | |
| PTS-250 | BROWN | CD18A | 1-1/4 | 2 | |
| PTS-300 | BROWN | CD18A | 1-3/16 | 2 | |
| PTS-350 | BROWN | CD18A | 1-3/16 | 2 | |
| PTS-400 | PINK | CD20 | 1-3/16 | 2 | |
| PTS-500 | PINK | CD20 | 1-1/4 | 2 | |
| PTS-600 | YELLOW | CD23 | 1-7/8 | 2 |

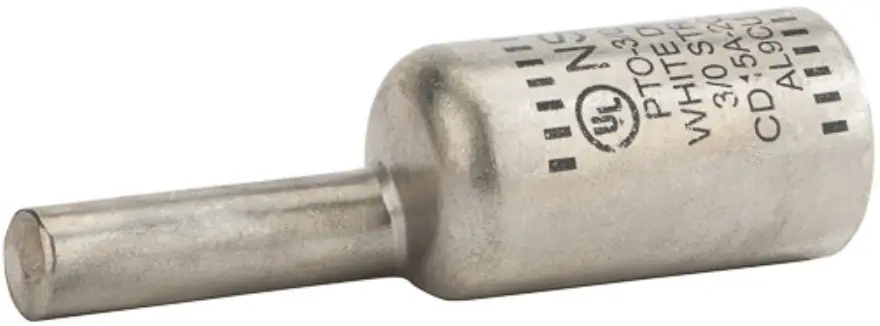

NSI PTO SERIES PIN TERMINAL DIE CHART
| NSI CATALOG # | COLOR CODE | NSI DIE # | UL LISTED TOOLS | PTO SERIES STRIP LENGTH (INCHES) | # OF CRIMPS |
| PTO-2/0 | WHITE | CD15A | NSI: N1240GREENLEE:EK1240L | 1-1/4 | 2 |
| PTO-3/0 | WHITE | CD15A | 1-1/4 | 2 | |
| PTO-4/0 | WHITE | CD15A | 1-1/4 | 2 | |
| PTO-250 | BROWN | CD18A | 1-1/4 | 2 | |
| PTO-300 | BROWN | CD18A | 1-1/4 | 2 | |
| PTO-350 | BROWN | CD18A | 1-3/8 | 2 | |
| PTO-400 | PINK | CD20 | 1-3/8 | 2 | |
| PTO-500 | PINK | CD20 | 1-3/8 | 2 | |
| PTO-600 | YELLOW | CD23 | 1-7/8 | 2 | |
| PTO-750 | YELLOW | CD23 | 1-7/8 | 2 |
