Keyence Dx-a600 Dx Series Handheld Terminal Instruction Manual

96M17041
Handheld Terminal
DX Series
Instruction Manual

Be sure to read this instruction manual carefully prior to operating this product. After reading, keep this manual in a safe place so that you can refer to it at any time.
In this instruction manual, DX Series means the DX-A600/A600GE/A400/A400GE/W600.

Symbols

The following symbols alert you to important messages. Be sure to read these messages carefully.

DANGER	Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING	Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
CAUTION	Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.
NOTICE	Indicates a situation that, if not avoided, could result in product damage as well as property damage.

Important
Indicates cautions and limitations that must be followed during operation.
Point
Indicates additional information on proper operation.
Reference
Indicates tips for better understanding of useful information.

• IEEE 802.11a/b/g/n/ac: These wireless LAN standards are set by the IEEE (Institute of Electrical and Electronics Engineers) 802 LAN/MAN Standards Committee responsible for formulating LAN technology standards.
• The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by KEYENCE is under license. Other trademarks and brand names are the property of their respective owners.
• microSD, microSDHC, and microSDXC are trademarks of the SD Association.
• Android™ is a trademark of Google LLC.
• Windows is a trademark or registered trademark of Microsoft Corporation in the United States and other countries.
• ARM is a trademark or registered trademark of ARM Limited.
• Intel is a trademark or registered trademark of Intel Corporation.
• FeliCa is a registered trademark of Sony Corporation.
• Other company names and product names described in this manual are registered trademarks or trademarks of each company.
• It is prohibited to use or copy all or any part of this manual without prior approval.
• The information contained in this manual is subject to change without notice.
• Software information

This product incorporates the software files developed independently by or for Keyence Corporation, software files owned and licensed by a third party, and software files subject to certain open source license agreements.
For information about such open-source software files, please refer to the information displayed on the following screen.
DX-A600/A400: From the app list screen, Settings → About phone → Regulatory information
DX-W600: From the Start menu (All apps), DX setup tool → About phone → Legal information Such open-source software files are provided on an “AS IS” basis to the maximum extent permitted by applicable law.
You may obtain a copy of the source code corresponding to the binaries for GPL/LGPL-licensed files by sending a request to Keyence customer service at “[email protected].”
There will be a charge to cover the costs of providing the source code.

Safety Precautions on Laser Product

The DX Series uses a visible semiconductor laser as a light source.
Follow the instructions mentioned in this manual. Otherwise, injury to the human body (eyes and skin) may result.

WARNING

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

• Do not disassemble this product. Laser emission from this product is not automatically stopped when it is disassembled.

Class 1 Laser Product

• Do not stare into the direct or specularly reflected beam.

The DX Series is classified as below in accordance with IEC 60825-1.

* The laser classification for FDA (CDRH) is implemented based on IEC 60825-1 in accordance with the requirements of Laser Notice No. 56.

The degree of risk of this product is shown below.

• Risk group 1
  * LED product is classified as shown below according to IEC 62471.

Follow the instructions mentioned in this manual. Otherwise, injury to the human body (eyes and skin) may result.

CAUTION
Possibly hazardous optical radiation emitted from this product. Do not stare at the operating lamp. May be harmful to the eyes.

Safety Precautions

• General cautions

DANGER	• Do not use this product for the purpose of protecting a human body or a part of a human body. • This product is not intended for use as an explosion-proof product. Do not use this product in a hazardous location and/or potentially explosive atmosphere. • Do not use this product in an application that may cause death, serious injury, or serious property damage due to a failure with this product occurring, such as nuclear power plants, on aircraft, trains, ships, or vehicles, used within medical equipment, playground equipment, roller coasters, and other rides, etc.
WARNING	• If the product is used in a manner not specified by the manufacturer, the protection provided by the product may be impaired.
CAUTION	• Be sure to check that this product performs properly before starting the work or operation. • We recommend that you take substantial safety measures to avoid any damage in the event of a problem occurring. • Do not use this product in a manner not specified herein. Doing so may result in fire, electric shock, or malfunction.
NOTICE	• Do not modify this product or use it in any way other than described in the specifications. Otherwise, the functions and performance cannot be guaranteed. • Microscopic spots (black/bright spots), uneven brightness, or crosstalk (a phenomenon where non-existent lines or patterns are displayed) may occur on the LCD panel depending on the conditions. • If the same display remains on the screen for a long time, an afterimage may occur due to the characteristics of LCD.

• Handling of DX Series

WARNING

• Using batteries other than those specified by KEYENCE may cause fire or explosion. Be sure to use the specified battery.

NOTICE

• Use or store this product within the temperature range described in “Specifications” (page 3). Do not leave the product inside a closed car or in a place exposed to direct sunlight. Doing so may damage the unit or change its reading performance. • Use within the humidity range described in “Specifications” (page 3). Do not use the product at locations where condensation occurs due to the rapid temperature change. Doing so may damage the unit. • This is a precision instrument. Dropping this product or subjecting it to shock may cause damage. Be careful when carrying or using this unit. • Do not place the DX Series in a location with high humidity or a dusty area. Doing so may damage the unit. • Do not insert a sharp object such as a needle into the buzzer hole on the back side of the DX Series. The tarpaulin may be damaged.

• Handling of main battery (DX-BP6/BP3) and communication unit with built-in main battery (DX-BS6/BS3/BQ6/BQ3)

WARNING

Observe the following precautions during use. Failure to do so may result in heat generation, smoke generation, fire, explosion, battery leakage, gas leakage, etc. of the main battery pack.

• Only use the specified battery.
• Do not charge, use, or store the main battery at locations of high temperature above the specified range—such as near fire, in a heated car, and under the scorching sun—or at locations of low temperature below the specified range.
• Do not put it on fire or subject it to heat. If there is battery leakage or abnormal smell, immediately take it away from the fire.
• Do not drop the main battery or subject it to strong pressure (such as by crushing, bending, deforming, making holes in, cutting, or throwing it).

Precautions on Regulations and Standards

• Precautions on wireless LAN

WARNING
Remove the main battery of the DX Series near locations were using wireless devices is banned at medical institutions or near electric devices for medical purposes. Carry and use the product away from an implanted cardiac pacemaker.

Important

• Communication may be impossible at locations near metallic objects, locations surrounded by metallic walls, where there is a lot of metallic powder, and in similar usage environments. Be sure to check whether the communication is possible prior to installation.
• If this product is used near devices with the same frequency band, radio wave interference may occur and the communication speed may become slow or communication may become impossible. [Japan]
• Never disassemble or modify this device. Doing so is prohibited by the Radio Act. This device is specified radio equipment according to the Radio Act. Follow the criteria defined within this act to obtain construction design certification.
• This device may be used outdoors when communicating with registered stations in the 5.2 GHz band.

Electromagnetic display of technical standards compliance mark
This terminal complies with technical standards based on the Radio Act and Telecommunications Business Act of Japan. The mark indicating this compliance ( )
can be viewed as indicated below.
DX-A600/A400: From the app list screen, Settings → About phone → Standard information
DX-W600: From the Start menu (All apps), DX setup tool → About phone → Standard information

CE and UKCA Markings
KEYENCE Corporation has confirmed, on the basis of the following specifications, that this product complies with the essential requirements of the applicable EU Directive(s) and UK regulations. Be sure to consider the following specifications when using this product in the Member States of the European Union and in the United Kingdom.

• RE Directive (CE) and Radio Equipment Regulations (UKCA)
• RoHS Directive
• The full text of the EU declaration of conformity is available at the following internet address: http://www.keyence.com/cedoc
• The frequency band of operation: Maximum radio-frequency power

DX-W600
WLAN
2400 to 2483.5 MHz: 20 dBm (100 mW)
5200 to 5690 MHz: 23 dBm (199.5 mW)
Bluetooth
2400 to 2483.5 MHz: 9 dBm (7.9 mW)
NFC:
13.56 MHz: 17 dBuA/m
DX-A600GE
WLAN
2400 to 2483.5 MHz: 20 dBm (100 mW)
5120 to 5350 MHz: 23 dBm (199.5 mW)
Bluetooth
2400 to 2483.5 MHz: 13 dBm (20 mW)
NFC:
13.56 MHz: -10 dBuA/m
WWAN
WCDMA
Band 1: 20.5 dBm (112.2 mW)
Band 8: 24.5 dBm (281.8 mW)
LTE
Band 1: 20 dBm (100 mW)
Band 3: 21 dBm (125.9 mW)
Band 7: 20 dBm (100 mW)
Band 8: 24 dBm (251.2 mW)
Band 38: 24 dBm (251.2 mW)
DX-A400GE
WLAN
2400 to 2483.5 MHz: 17 dBm (50.1 mW)
5120 to 5350 MHz: 22 dBm (158.5 mW)
Bluetooth
2400 to 2483.5 MHz: 10 dBm (10 mW)
NFC:
13.56 MHz: -12 dBuA/m
WWAN
WCDMA
Band 1: 22.5 dBm (177.8 mW)
Band 8: 24 dBm (251.2 mW)
LTE
Band 1: 22.5dBm (177.8 mW)
Band 3: 24 dBm (251.2 mW)
Band 7: 18.5 dBm (70.8 mW)
Band 8: 24 dBm (251.2 mW)
Band 38: 20.5 dBm (112.2 mW)

Remarks: These specifications do not give any guarantee that the end-product with this product incorporated complies with the essential requirements of the RE Directive and Radio Equipment Regulations. The manufacturer of the end-product is solely responsible for the compliance of the end-product itself according to this directive and these UK regulations.
The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

UL certification

The DX Series complies with the following UL/CSA standards and has obtained the UL certifications.

Be sure to consider the following specifications when using this product as a UL-certified product.

CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

FCC Regulations

• This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions; (1) This device may not cause a harmful interface, and (2) this
  device must accept any interference received, including interference that may cause undesired operation.
• Application regulation
  FCC Part 15 Subpart B Class A
  FCC Part 15 Subpart C
  FCC Part 15 Subpart E
• 5150-5350MHz band is restricted to indoor operations only.
• Regulatory information page is located at: [settings] →[About phone] →[Regulatory]

CAUTION

• This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
  These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense.
• Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
• The product complies with the US portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such a function is available.
• This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
• This equipment should be installed and operated at least 10 mm away from your body.

ISED Regulations
This device complies with the following regulations specified by the ISED.

• Applicable regulation
  CAN ICES-003 (A) / NMB-003 (A)
  RSS-247
  RSS-102
• The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
• Operations in the 5250-5350 MHz band are restricted to indoor usage only.
• 5600-5650 MHz band is not allowed in Canada.

CAUTION

• This device complies with Industry Canada’s license-exempt RSS.
  Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
• The product complies with the Canada portable RF exposure limit set forth for an uncontrolled environment and is safe for intended operation as described in this manual. Further RF exposure reduction can be achieved if the product can be kept as far as possible from the user body or set the device to lower output power if such a function is available.
• This equipment should be installed and operated at least 10 mm away from your body.

Precautions for Proper Use

Handling of packing

NOTICE

• If units such as the DX-BS6 are not properly attached, the enclosure rating of the DX Series cannot be guaranteed. When using this product in environments where water or dust is present, check if these units are properly attached.
• Dropping the DX Series or subjecting it to extreme shock may lead to the loss of water-proofing. Take adequate care when handling this product.

Unit Installation

As an example, the installation of the DX-BS6 is explained below.

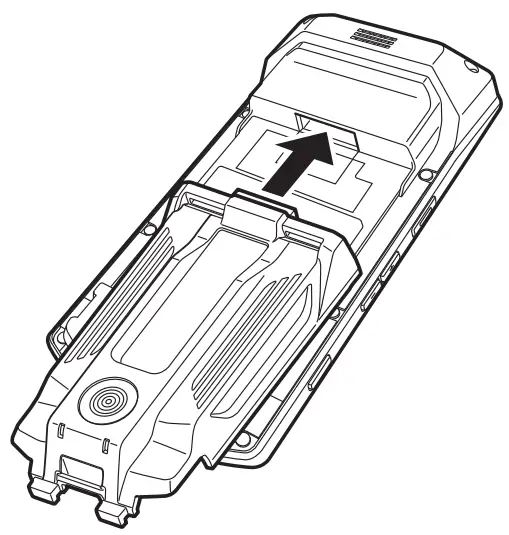

1. Insert the tip of the unit into the back of the main unit.

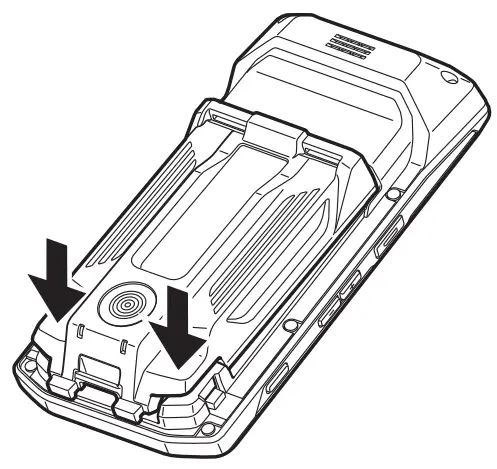

2. Attach the unit to the main unit by using two fingers to push the two parts of the unit indicated with arrows until they click.

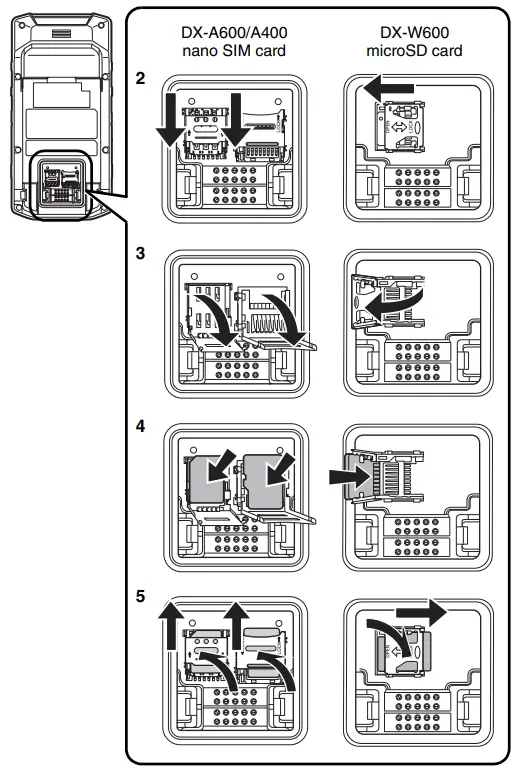

microSD / nano SIM card installation
The DX-A600/A400 has a MicroSD slot and a nano-SIM slot. The DX-W600 has a MicroSD slot.

1. Turn off the main unit and remove the main battery.
2. Slide the desired slot cover in the direction of the arrow to unlock it, allowing the card to be inserted.
3. Open the slot cover.
4. For the DX-A600/ A400, orient the card with its terminals at the bottom, and then place it in the slot.
   For the DX-W600, insert the card into the slot cover so the terminals are at the bottom when the slot cover is closed, as shown in the figure.
5. Close the slot cover and lock it by sliding it in the direction of the arrow.

NOTICE
Even when not using a microSD or nano-SIM card, be sure to close and lock the slot cover(s).
The slot cover(s) may be damaged if unlocked.

Cleaning

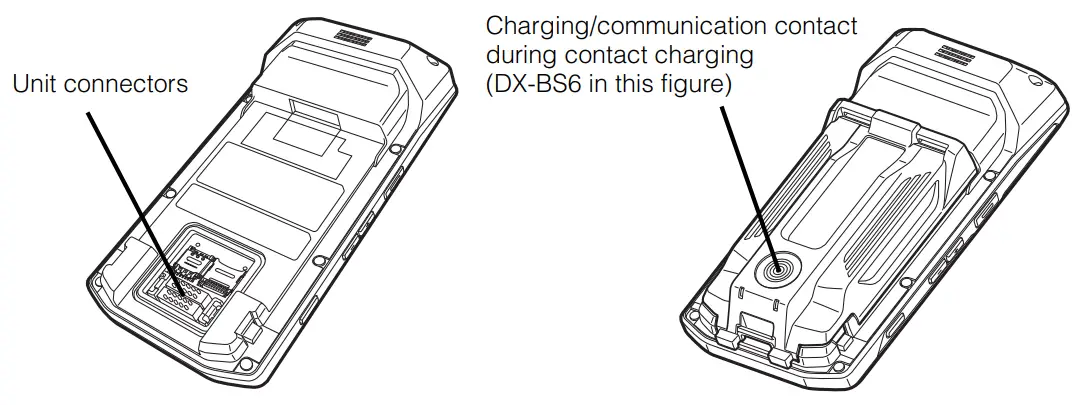

Clean the following parts with compressed air periodically.
If removing dirt is difficult, use a dry cotton swab to clean the unit connectors and charging/communication contact.
(Use absolute ethanol if dirt is stuck on them.)
When using an expansion unit, also clean its charging/communication contact.

NOTICE
If dirt or dust is attached, contact failure may occur on the unit connectors or charging/communication contact. This may cause charging function deterioration and instantaneous interruption.
Make sure that textile waste is not attached to the unit connectors or charging/communication contact when cleaning.

Checking the Package

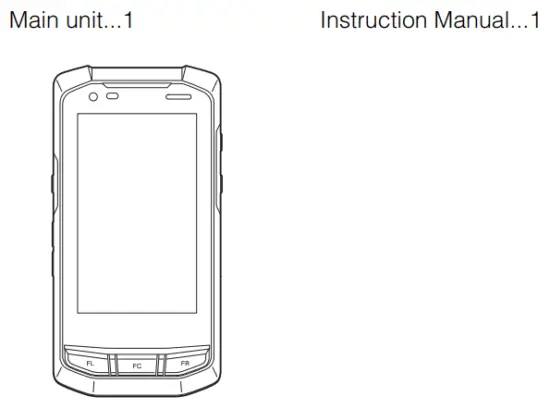

When opening the package, check that the following items are all included.
In the event of missing, defective, or damaged items, contact your nearest KEYENCE sales office.

• DX-A600/A600GE/A400/A400GE/W600

Specifications

1. Outdoor use of 5.2/5.3 GHz band wireless LAN is prohibited. This does not include communication with access points/relay stations of 5.2 GHz band high-output data
   communication systems.
2. The usable frequency band varies depending on the region.
3. When the main battery is not attached or has no remaining charge.
4. Due to the added load in sub-zero environments, the continuous usage time may be reduced significantly. Be sure to test the device before use in these environments.

1. The DX-BC6 can only be used when an expansion unit is installed. The DX-BC6 interface and charging confirmation LED are on this unit.
2. It is not recommended to use the DX-W600 with the DX-BS3/BQ3.
3. OTG conversion cable required with USB Host mode specifications.

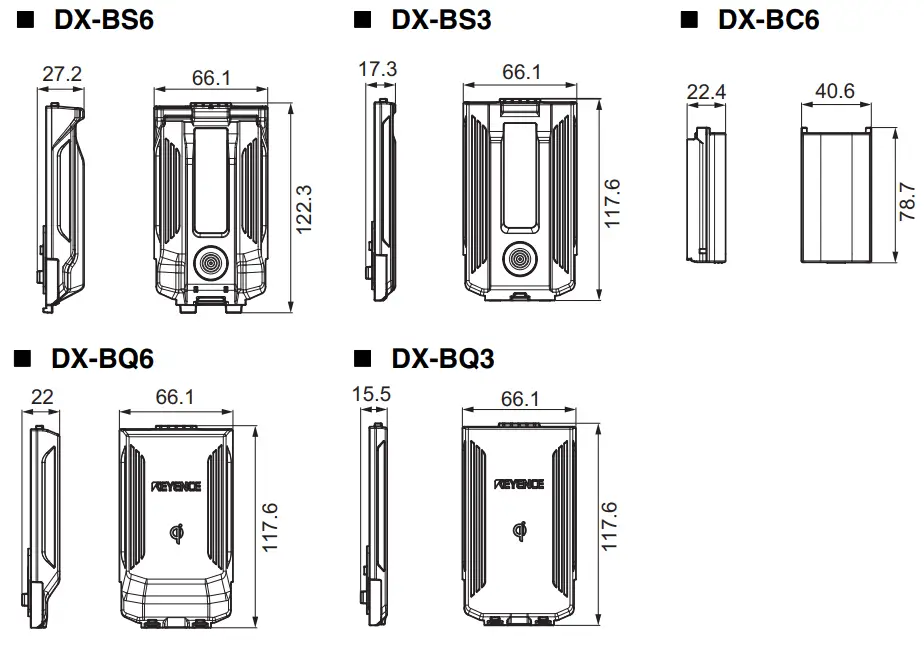

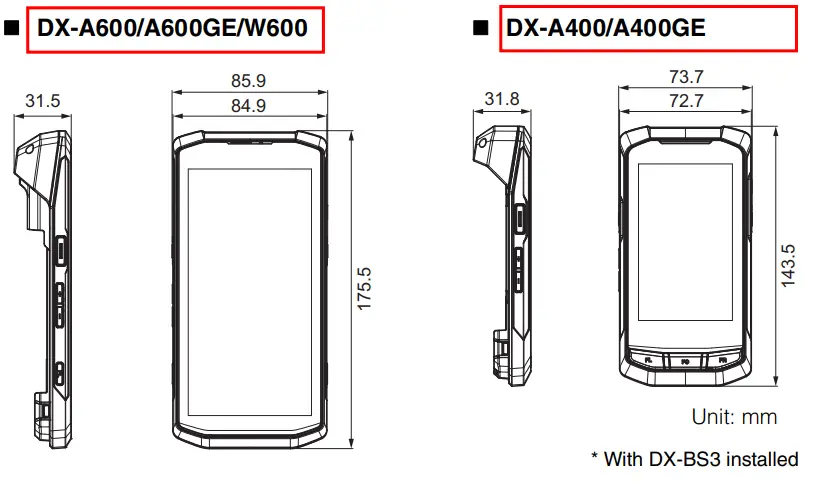

Outline Dimensional Drawings

WARRANTIES AND DISCLAIMERS

1. KEYENCE warrants the Products to be free of defects in materials and workmanship for a period of one (1) year from the date of shipment. If any models or samples were shown to the Buyer, such models or samples were used merely to illustrate the general type and quality of the Products and not to represent that the Products would necessarily conform to said models or samples. Any Products found to be defective must be shipped to KEYENCE with all shipping costs paid by the Buyer or offered to KEYENCE for inspection and examination.
   Upon examination by KEYENCE, KEYENCE, at its sole option, will refund the purchase price of, or repair or replace at no charge any Products found to be defective. This warranty does not apply to any defects resulting from any action of the Buyer, including but not limited to improper installation, improper interfacing, improper repair, unauthorized modification, misapplication, and mishandling, such as exposure to excessive current, heat, coldness, moisture, vibration or outdoors air. Components that wear are not warranted.
2. KEYENCE is pleased to offer suggestions on the use of its various Products. They are only suggestions, and it is Buyer’s responsibility to ascertain the fitness of the Products for the Buyer’s intended use. KEYENCE will not be responsible for any damages that may result from the use of the Products.
3. The Products and any samples (“Products/Samples”) supplied to the Buyer are not to be used internally in humans, for human transportation, as safety devices or fail-safe systems, unless their written specifications state otherwise. Should any Products/Samples be used in such a manner or misused in any way, KEYENCE assumes no responsibility, and additionally Buyer will indemnify KEYENCE and hold KEYENCE harmless from any liability or damage whatsoever arising out of any misuse of the Products/Samples.
4.  OTHER THAN AS STATED HEREIN, THE PRODUCTS/SAMPLES ARE PROVIDED WITH NO OTHER WARRANTIES WHATSOEVER. ALL EXPRESS, IMPLIED, AND STATUTORY WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF PROPRIETARY RIGHTS, ARE EXPRESSLY DISCLAIMED.
   IN NO EVENT SHALL KEYENCE AND ITS AFFILIATED ENTITIES BE LIABLE TO ANY PERSON OR ENTITY FOR ANY DIRECT, INDIRECT,  INCIDENTAL, PUNITIVE, SPECIAL, OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES RESULTING FROM LOSS OF USE, BUSINESS INTERRUPTION, LOSS OF INFORMATION, LOSS OR INACCURACY OF DATA, LOSS OF PROFITS, LOSS OF SAVINGS, THE COST OF PROCUREMENT OF SUBSTITUTED GOODS, SERVICES OR TECHNOLOGIES, OR FOR ANY MATTER ARISING OUT OF OR IN CONNECTION WITH THE USE OR INABILITY TO USE THE PRODUCTS, EVEN IF KEYENCE OR ONE OF ITS AFFILIATED ENTITIES WAS ADVISED OF A POSSIBLE
   THIRD PARTY’S CLAIM FOR DAMAGES OR ANY OTHER CLAIM AGAINST BUYER. In some jurisdictions, some of the foregoing warranty disclaimers or damage limitations may not apply.

BUYER’S TRANSFER OBLIGATIONS:
If the Products/Samples purchased by the Buyer are to be resold or delivered to a third party, the Buyer must provide such a third party with a copy of this document, all specifications, manuals, catalogs, leaflets, and written information provided to the Buyer pertaining to the Products/Samples.

KEYENCE CORPORATION
1-3-14, Higashi-Nakajima, Higashi-Yodogawa-ku,
Osaka, 533-8555, Japan
PHONE: +81-6-6379-2211
www.keyence.com/glb

Specifications are subject to change without notice.
A6WW1-MAN-2090
Copyright (c) 2021 KEYENCE CORPORATION. All rights reserved.
17041GB 2121-1
96M170411
Printed in Japan
