Valberg 973783 Electric Heater Instructions (+ PDF)

Thank you for choosing this VALBERG product.
VALBERG products are chosen, tested, and recommended by ELECTRO DEPOT, so you can be sure you are getting a top-quality, easy-to-use product that won’t let you down.
We’re confident your new device will be a pleasure to use every day!
Welcome to ELECTRO DEPOT.

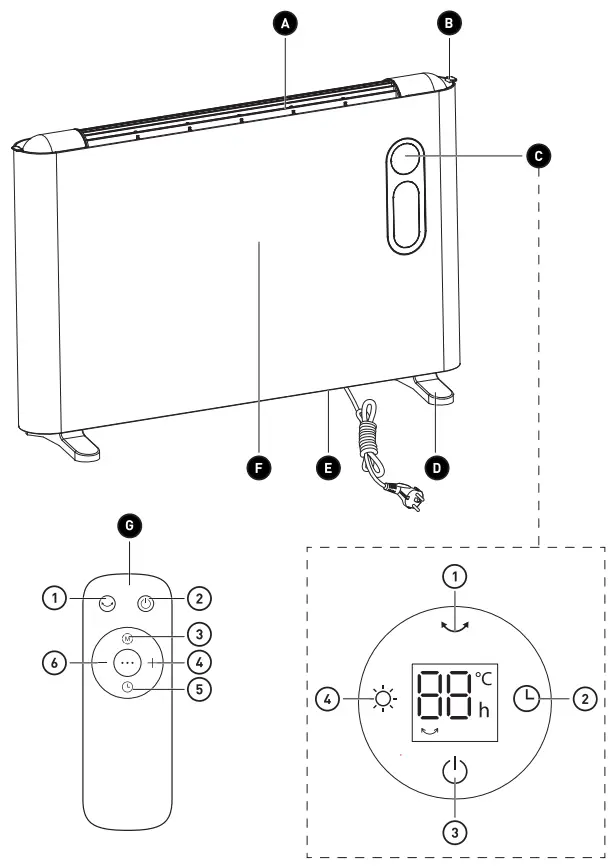

A Product overview

Parts

	Air outlet vent
	Handles (x 2)
	Control panel with infrared receiver sensor
①	Oscillation button
②	Timer button
③	Power button
④	Mode button
	Support feet (x 2)
	Air inlet (on the bottom)
	Tip-over sensor (inside the unit)
	Remote control unit (batteries are not included)
①	Oscillation button
②	Power button
③	Mode button
④	Increase temperature/timer button ᐩ
⑤	Timer button
⑤	Decrease temperature/timer button –

Unpack and remove all labels from the unit. Please check that all the product’s parts are included and intact. If the unit is damaged or faulty, do not use it and take it to your retailer or after-sales service centre.
Keep all packaging out of the reach of children. There is a risk of accidents if children play with packaging materials.

Intended use

This product is for domestic use only. It has not been designed for industrial or professional use.
Any other use may damage the product or cause injury.

Specifications

Model:	973783
Main unit
Operating voltage:	220-240 V~, 50 Hz
Maximum power:	Low heating (01): 1100 W High heating (02): 2000 W
Standby power:	0,6 W
Power cord length:	160 cm
Weight:	8.0 kg
Pre-heating time:	45 seconds
Protection class:	Class I, IPX4
Remote control unit
Batteries:	2 x 1.5 V batteries (not included)

This product complies with the requirements imposed by directives 2014/35 / EC (repealing the Directive 73/23 / EEC as amended by Directive 93/68 / EEC) and 2014/30 / EC (repealing the Directive 89/336 / EEC).

Information requirements for electric local space heaters			P
Model identifier(s): NDK20-22P
Item	Symbol	Value	Unit
Heat output
Nominal heat output	Pnom	2.0	kW
Minimum heat output (indicative)	Pmin	1.0	kW
Maximum continuous heat output	Pmax, c	2.0	kW
Auxiliary electricity consumption
At nominal heat output	elmax	0	kW
At minimum heat output	elmin	0	kW
In standby mode	elSB	0.00026	kW
Type of heat input, for electric storage local space heaters only (select one)
Manual heat charge control, with integrated thermostat			No
Manual heat charge control with room and/or outdoor temperature feedback			No
Electronic heat charge control with room and/or outdoor temperature feedback			No
Fan-assisted heat output			No
Type of heat output/room temperature control (select one)
Single-stage heat output and no room temperature control			No
Two or more manual stages with no room temperature control			No
Room temperature control with a mechanical thermostat			No
With electronic room temperature control			Yes
Electronic room temperature control plus day timer			No
Electronic room temperature control plus week timer			No
Other control options (multiple selections possible)
Room temperature control, with presence detection			No
Room temperature control, with open-window detection			No
With distant control option			No
With adaptive start control			No

With working time limitation	Yes
With black bulb sensor	No
Contact details:	ELECTRO DEPOT 1 route de Vendeville 59155 FACHES-THUMESNIL- FRANCE
Note: For electric local space heaters, the measured seasonal space heating energy efficiency = cannot be less than the declared nominal heat output value of the unit.
The seasonal space heating energy efficiency of all local space heaters, except commercial local space heaters, s (%)	37

B Product usage

Assembly

Turn the heater upside down and place it on a protected surface to avoid scratching it.
Remove the 2 screws from the underside of the heater.
Align the buckles on the support feet with the mounting holes and push the feet sideways until they are aligned with the screw holes in the heater.
Insert the screws through the holes of the support feet and tighten them until they are securely fastened in place.
After completing the installation, turn the heater upright.

Before using the product

WARNING!

Correctly connect the unit and do not leave it within the reach of unsupervised children.
It is normal for heaters to emit an odour and smoke when they are turned on for the first time or have not been used for a certain period of time. This will disappear after a short while.
The heater must always be placed in an upright position on a horizontal surface.
If the heater tips over, turn it upright immediately.

Check that the power cord is intact.
The power supply used by this heater is 220-240V~. Make sure the rated current of the power socket meets the requirements and has a safety grounding device, or else the socket should be replaced.
Place the heater on a stable, heat-resistant and non-combustible horizontal surface that is at least 30 cm (sides and rear) and 50 cm (front) clear of objects such as walls, furniture and curtains.
Never place the heater below electrical sockets.
The heater is suitable for use in a 10-15 m² space, such as a living room or office.
Do not use the heater in a bathroom, or near to a swimming pool or other body of water.
The heater must never become wet. Do not use the heater in wet or humid conditions.
Make sure the air inlets are unobstructed. Do not cover the heater’s air inlet or outlet vents/grilles.

Operation

Power on the heater
Press the power button on the control panel or on the remote control unit to power on the heater.

Power off the heater

Press the power button on the control panel or on the remote control unit to power off the heater.
Unplug the power plug and put it away after it has cooled down.

Notes:

After pressing the power button to power off the heater, the heater continues to blow air for 30 seconds, and the display panel shows 30 29 28 … 0 countdown. When the countdown is over, the heater enters Standby mode.
When you use the product for the first time or need to re-plug the power, check whether the plug and socket fit well.
Checking method: Insert the power plug into the socket and power on the heater. After about half an hour, power it off and unplug it. Check whether the pins of the plug are hot to your hands. If the pins are hot (over 50°C), you must replace the socket to avoid overheating of the socket due to poor contact. This may burn the plug and even cause a fire.

Main unit control panel

Button icon	Button name	LED status	Usage
	Power button	Lights up after powered on.	Press to power on or enter Standby mode. Press to toggle between On mode and Standby mode.
	Mode button	Constantly on when the power is on.	When in On mode, press to toggle between 01 (low heating) and 02 (high heating). With high heating mode, the heater reaches your set temperature faster than with low heating mode. When in On mode, press and hold for 3 seconds to enter the temperature setting mode, then press again to set the temperature. Each press changes the temperature value in the sequence of 18°C 22°C 26°C 30°C 35°C.
	Power button	Lights up after powered on.	Press to power on or enter Standby mode. Press to toggle between On mode and Standby mode
	Mode button	Constantly on when the power is on.	When in On mode, press to toggle between 01 (low heating) and 02 (high heating). With high heating mode, the heater reaches your set temperature faster than with low heating mode. When in On mode, press and hold for 3 seconds to enter the temperature setting mode, then press again to set the temperature. Each press changes the temperature value in the sequence of 18°C 22°C 26°C 30°C 35°C.

Notes: If you press the power button

when in On mode, the heater will continue
to blow air for 30 seconds, and the display panel will show 30→29→28→…→0
countdown. When the countdown is over, the heater will enter Standby mode.

Control panel display

Display	Status
	Displays when the oscillating function is turned on.
	Shows the set temperature, timer setting, and heating level.

Screen-off function

Notes: By default, the panel display automatically turns off after 60 seconds ofno operation.

Button combination	Usage
	Screen-off function The Screen-off function is activated by default. Press and hold and together for 3 seconds to activate or deactivate the Screen-off function. When in Screen-off mode, press any button (except ) to wake up the control panel display. If there is no operation for 60 seconds, the display returns to Screen-off mode.

Tip-over sensor
The heater has a safety sensor that will enter Standby mode automatically when it tips over.
If the heater tips over, place the heater in upright position and press to turn it back on.

Control panel display error code reference

Panel display	Description of abnormal state
E1	Displayed when the temperature sensor is in open circuit.
E2	Displayed when the temperature sensor is in short circuit.
FF	High temperature alarm fault code displayed when the ambient temperature exceeds 50°C.

Remote control unit
The remote control unit can be used within 5 metres (with no obstructions) of the heater.
Aim the remote control unit at the control panel of the main unit.

Button icon	Button name	Usage
	Power button	Press to power on or enter Standby mode. Press to toggle between On mode and Standby mode.
	Oscillation button	When in On mode, press to start or stop oscillating.
	Mode button	When in On mode, press to toggle between 01 (low heating) and 02 (high heating). With high heating mode, the heater reaches your set temperature faster than with low heating mode.
	Timer button	When in On mode, press to enter timer setting mode, then press or to set or change the timer for scheduled standby time. When in Standby mode, press to enter timer setting mode, then press or to set or change the timer for scheduled On time. If the scheduled standby or scheduled on timer is set successfully, you can reset the timer by pressing this button, and when the displayed timer blinks, press the button to reset the timer to 0 hour.
+	Increase temperature/ timer button	Press to increase the temperature setting. When in timer setting mode, each press increases the timer in one-hour intervals from 0 hour to 24 hours.
–	Decrease temperature/timer button	Press to decrease the temperature setting When in timer setting mode, each press decreases the timer in one-hour intervals from 24 hours to 0 hour.

on the remote control unit and on the heater’s control panel are mode buttons.
This is a universal remote control, and the functions of are not applicable to this product.
The remote control unit only supports single-key operation. Therefore, you can only turn on or off the screen-off function using the heater’s control panel.

C Cleaning and maintenance

Cleaning and maintenance

WARNING!

Before cleaning the product, always turn off and unplug the heater and allow it to cool down sufficiently.
Do not use flammable or abrasive detergents such as benzene or white spirit to clean the heater.
Never immerse the heater, power cable or plug in water.

Do not rinse the product directly with water. Clean the exterior with a damp, soft cloth containing a little neutral detergent, and then wipe it dry. Do not use solvents such as gasoline.
Thoroughly dry the product before using it again.
Avoid bumping or scratching the product in order to avoid damaging to the surface coating and rusting.
After cleaning and maintenance, wait until the product is sufficiently dry before powering on or storing it.

Storage

If you do not plan on using the product for a long period of time, we recommend that you remove the feet and store it in its original packaging in a cool, dry place, away from direct sunlight, excessive dust and dirt.
Always unplug the unit from the mains before storing it. Wait until the product has cooled down before storing it.
Store the product in a fresh, dry and dust-free place, out of the reach of children and pets.

WARRANTY CONDITIONS

This product is guaranteed against faults caused by defects in manufacturing or the materials used for a period of two years, starting from the date of purchase.* This warranty does not cover defects or damage caused by failure to install the device correctly, incorrect use of the product, or excessive wear and tear. *proof of purchase required.
