FURRION Air Distribution Box With Manual Control
FACT11MA-PS FACT11MA-BL
Features
- Compatible with all size of rooftop units
- Maximize air flow louver to two outlets
- Compatible with both ducted and non-ducted RVs
- Detachable filters for easy cleaning
- Stylish and slim design
- Available in black and white options

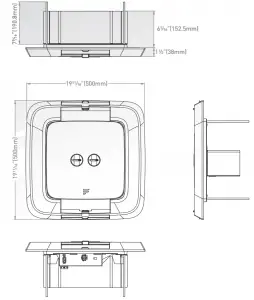

Air Distribution Box

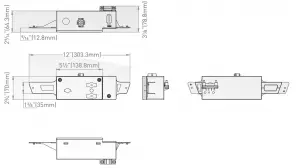

Single Zone Controller
Specifications
| Air Distribution Box | |
| Mechanical Control | 8 positions |
| Two Way Air Outlet | √ |
| Indoor Sound Pressure Level | 60dB |
| Controller | |
| Input Power | AC 115V |
| Frequency | 60Hz |
| Compressor & Condenser Fan | AC 115V/20A |
| 3 Evaporator Fan Motor Relay | AC 115V/5A |
| Temperature Range | 18°C to 30°C/86°F to 86°F |
Packaging Information
| Air Distribution Box | |
| Packaging Type | Master Carton Box |
| Quantity Per Box (pcs) | 1 |
| Individual Packaging Dimensions (W x H x D) | 207⁄16” x 201⁄2” x 53⁄8” (530 x 520 x 135mm) |
| Individual Packaging Gross Weight (lbs/kg) | 8.6 / 3.9 |
| Individual Packaging Net Weight (lbs/kg) | 6.7 / 3 |
| Single Zone Controller | |
| Packaging Type | Master Carton Box |
| Quantity Per Box (pcs) | 1 |
| Individual Packaging Dimensions (W x H x D) | 25” x 127⁄16” x 137⁄16” (635 x 315 x 340mm) |
| Individual Packaging Gross Weight (kg/lbs) | 15 / 33.1 |
| Individual Packaging Net Weight (kg/lbs | 14 / 30.9 |
Container Load Information
| Air Distribution Box | |
| 20′ Container Load (pcs) | 836 |
| 40′ Container Load (pcs) | 1704 |
| 40’HQ Container Load (pcs) | 1955 |
| Single Zone Controller | |
| 40’HQ Container Load (pcs) | 37240 |
* Note: “√”=Equipped
USA Innovation Center & Institute of Technology: 52567 Independence Ct. Elkhart, IN 46514
Customer Service & Technical Support:
Email: [email protected]
Tel : (888) 354 5792
Web: www.furrion.com
