PEDROLLO Top Multi-Tech Multi-Stage Automatic Submersible Pumps
PERFORMANCE RANGE
- Flow rate up to 120 l/min (7.2 m³/h)
- Head up to 52 m
- Restart pressure: 1.5 bar
APPLICATION LIMITS
- 5 m maximum immersion depth
- Maximum height between pump and point of use 10 m
- Maximum liquid temperature +40 °C
- Suction down to 35 mm above ground level
- Continuous service S1

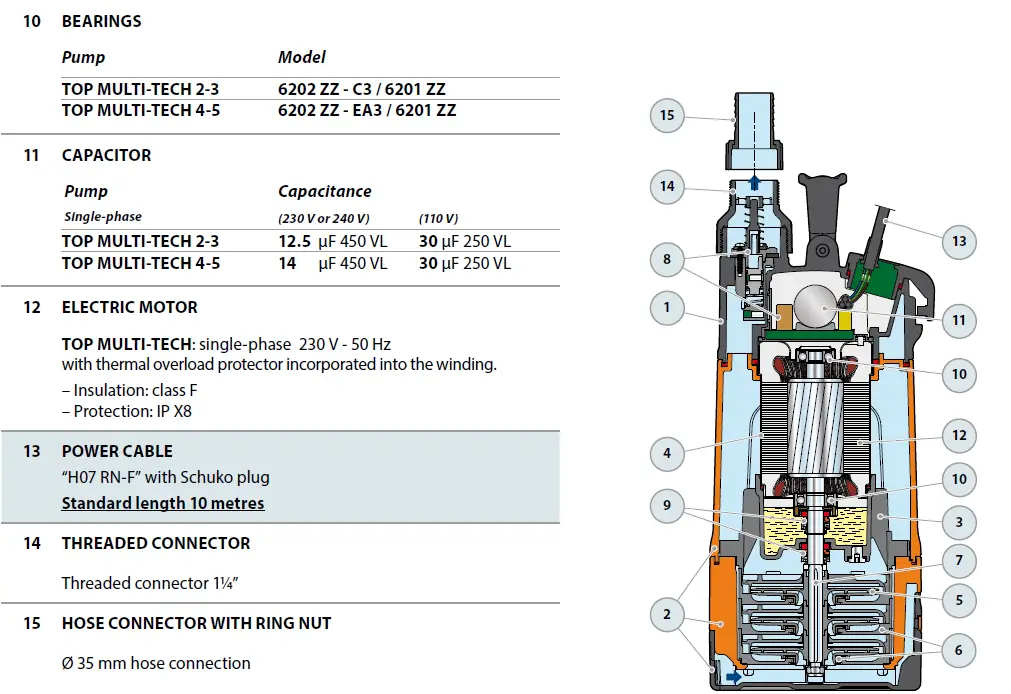

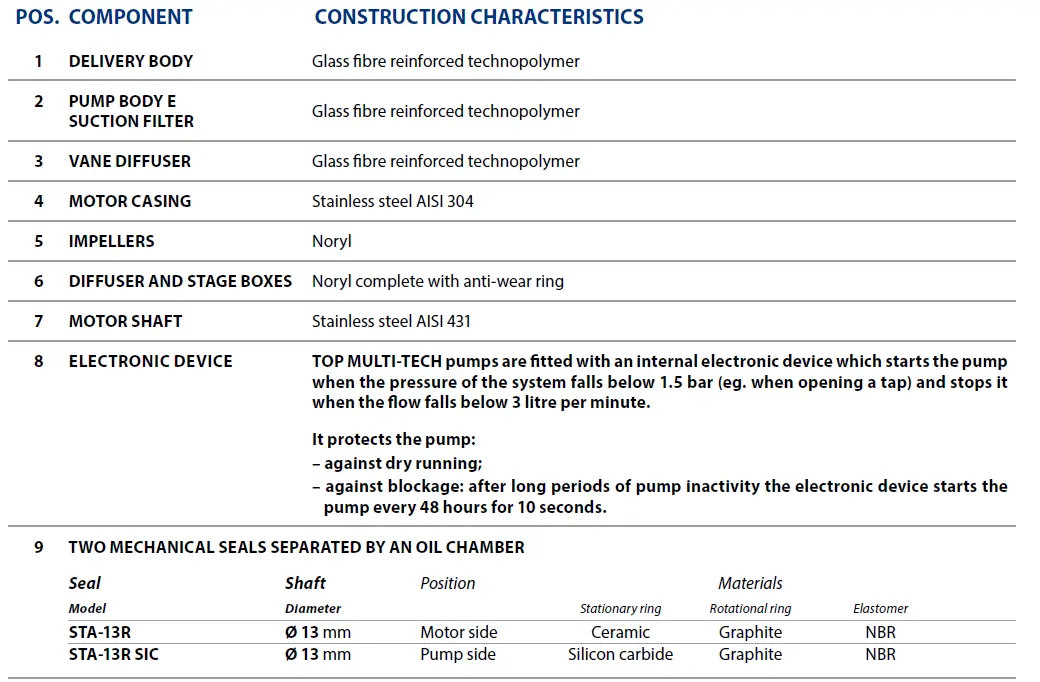

CONSTRUCTION AND SAFETY STANDARDS
Complete with:
- 10 m long power cable
- internal electronic device for pump starting (when tap opened) and stopping (when tap closed)
- threaded connector 1¼” (delivery)
- hose connector Ø 35 mm
EN 60335-1
IEC 60335-1
CEI 61-150
EN 60034-1
IEC 60034-1
CEI 2-3
CERTIFICATIONS
Company with management system certified DNV ISO 9001: QUALITY
INSTALLATION AND USE
TOP-MULTI-TECH pumps are recommended for pumping clean water and liquids that are not chemically aggressive for the materials from which the pump is made.
Because of their high efficiency and reliability they are suitable for use in applications such as domestic water supply from reservoirs, tanks or relatively deep wells, for drawing rain water from cisterns to water gardens or for use in irrigation systems, etc.
An internal electronic device starts or stops the pump automatically when the tap is opened or closed.
PATENTS – TRADE MARKS – MODELS
- Patent n. EP2990653
- TOP MULTI® Registered Trade Mark n. 0001334477
OPTIONS AVAILABLE ON REQUEST
- Other voltages or 60 Hz frequency

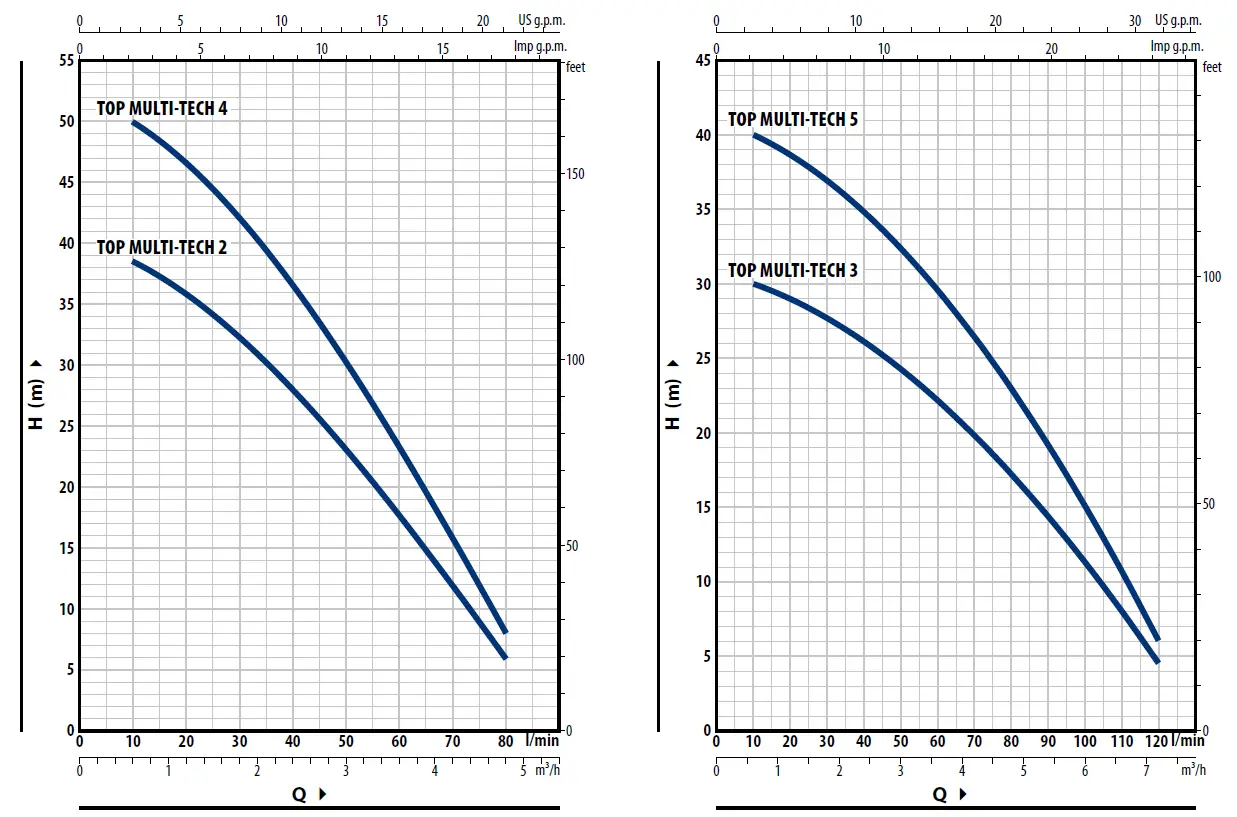

CHARACTERISTIC CURVES AND PERFORMANCE DATA
50 Hz n= 2900 min -1
TOP MULTI-TECH 2 – 4
| MODEL Single-phase | POWER (P2) | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.5 | 4.8 | |
| kW | HP | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 75 | 80 | ||
| TOP MULTI-TECH 2 | 0.55 | 0.75 | H metres | 40 | 38.5 | 36 | 32.5 | 28 | 23.1 | 17.7 | 12 | 9 | 6 | |
| TOP MULTI-TECH 4 | 0.75 | 1 | 52 | 50 | 46.5 | 42 | 36.5 | 30.5 | 23.3 | 15.8 | 11.9 | 8 | ||
TOP MULTI-TECH 3 – 5
| MODEL Single-phase | POWER (P2) | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.2 | 4.5 | 4.8 | 5.4 | 6 | 6.6 | 7.2 | |
| kW | HP | l/min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 75 | 80 | 90 | 100 | 110 | 120 | ||
| TOP MULTI-TECH 3 | 0.55 | 0.75 | H metres | 30.5 | 30 | 29 | 27.5 | 26 | 24.3 | 22.2 | 19.8 | 18.5 | 17.2 | 14.4 | 11.3 | 8 | 4.5 | |
| TOP MULTI-TECH 5 | 0.75 | 1 | 41 | 40 | 38.5 | 37 | 35 | 32.5 | 29.5 | 26.5 | 24.7 | 22.9 | 19.2 | 15.1 | 10.7 | 6 | ||
TOP MULTI-TECH

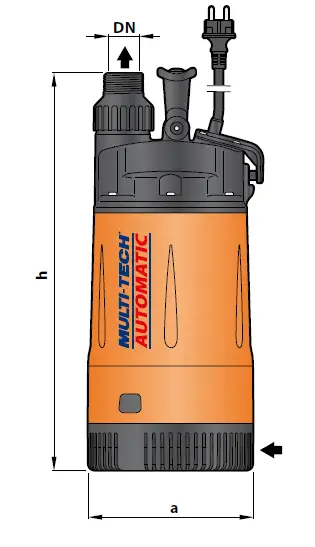

DIMENSIONS AND WEIGHT
| MODEL
Single-phase | PORT
DN | N. STAGES | DIMENSIONS mm | kg | |
| a | h | ||||
| TOP MULTI-TECH 2 | 1¼” | 3 |
178 | 428 | 9.3 |
| TOP MULTI-TECH 3 | |||||
| TOP MULTI-TECH 4 | 4 | 463 | 10.0 | ||
| TOP MULTI-TECH 5 | |||||
ABSORPTION
| MODEL Single-phase | VOLTAGE | ||
| 230 V | 240 V | 110 V | |
| TOP MULTI-TECH 2 | 3.4 A | 3.3 A | 6.6 A |
| TOP MULTI-TECH 3 | 3.6 A | 3.5 A | 7.2 A |
| TOP MULTI-TECH 4 | 3.9 A | 3.7 A 8.0 A | |
| TOP MULTI-TECH 5 | 3.9 A | 3.7 A 8.0 A | |
PALLETIZATION
| MODEL Single-phase | GROUPAGE n. pumps | CONTAINER n. pumps |
| TOP MULTI-TECH 2 | 60 | 80 |
| TOP MULTI-TECH 3 | 60 | 80 |
| TOP MULTI-TECH 4 | 60 | 80 |
| TOP MULTI-TECH 5 | 60 | 80 |

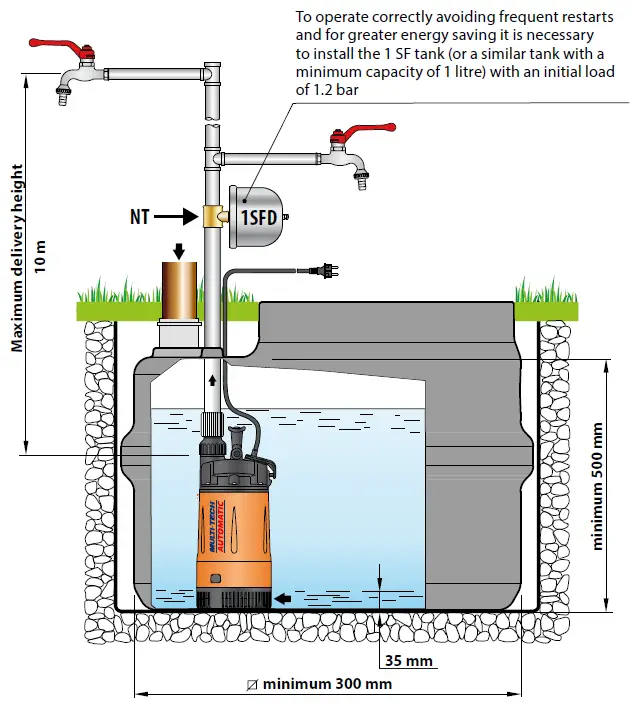

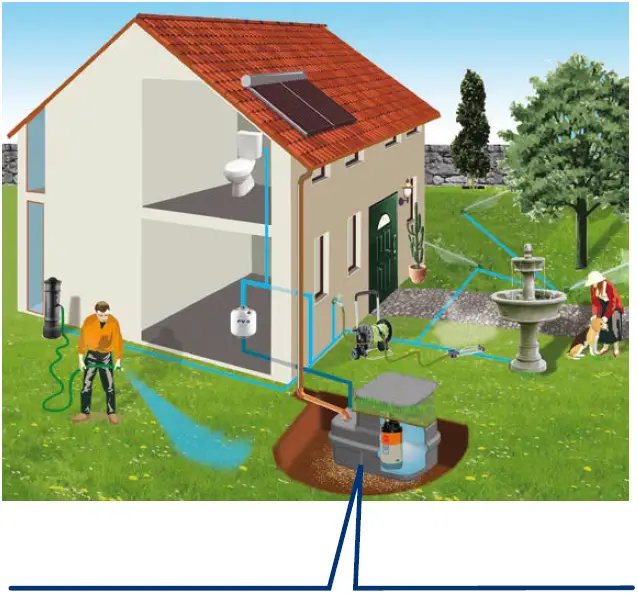

Typical installation

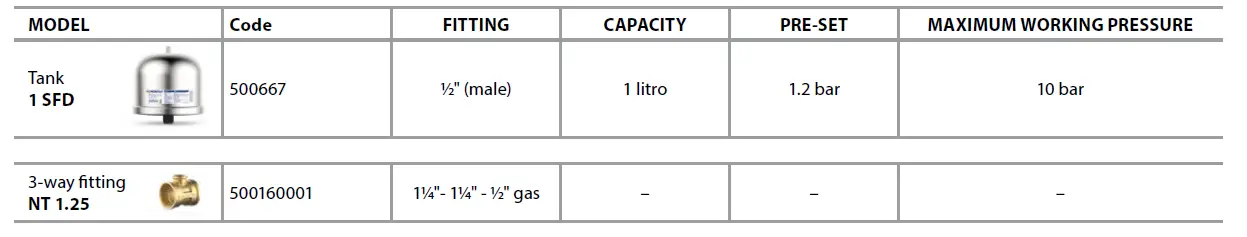

ACCESSORIES (CAN BE ORDERED SEPARATELY)
