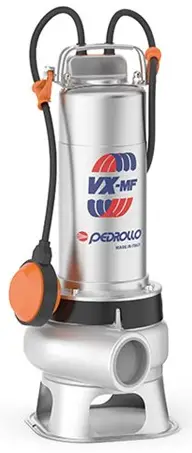

pedrollo VX-MF VORTEX Submersible Pump
PERFORMANCE RANGE
- Flow rate up to 750 l/min (45 m³/h)
- Head up to 15.5 m
APPLICATION LIMITS
- 5 m maximum immersion depth
- Maximum liquid temperature +40 °C
- Passage of solids:
- up to Ø 40 mm for VX /35-MF
- up to Ø 50 mm for VX /50-MF
- Minimum immersion depth for continuous service:
- 290 mm for VX 8-MF and VX 10-MF
- 330 mm for VX 15-MF
- 360 mm for VX 20-MF
CONSTRUCTION AND SAFETY STANDARDS
- 10 m long power cable
- Float switch for single-phase versions
EN 60335-1 EN 60034-1
IEC 60335-1 IEC 60034-1
CEI 61-150 CEI 2-3
CERTIFICATIONS
Company with management system certified DNV ISO 9001: QUALITY
INSTALLATION AND USE
VX-MF submersible pumps in stainless steel are recommended for draining sewage water in domestic, civil and industrial applications, in every case where there are solid bodies in suspension, for example water mixed with mud, groundwater, surface water. They are suitable for draining flooded areas such as cellars, underground car parks, car washes, for emptying cesspools and for sewage disposal.
These pumps distinguish themselves for their reliability, which can be best appreciated under automatic operating conditions in fixed installations.
PATENTS – TRADEMARKS – MODELS
- Patent n. EP2313658
- Patent n. IT0001428923
OPTIONS AVAILABLE ON REQUEST
- Single-phase pumps without float switch
- Other voltages or 60 Hz frequency

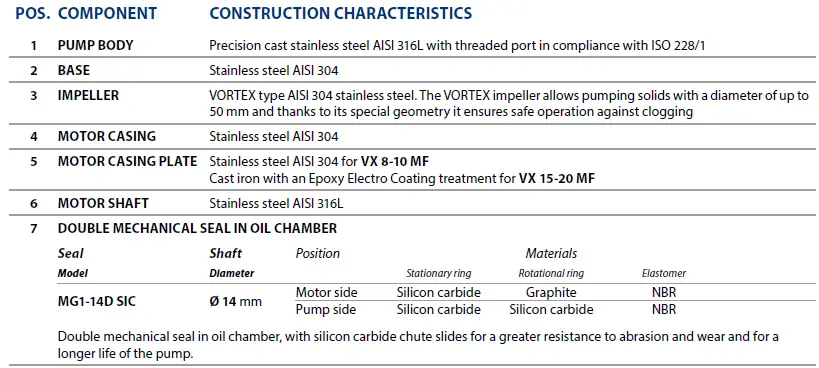

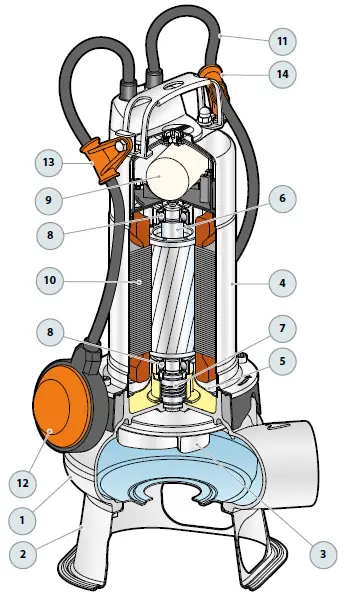

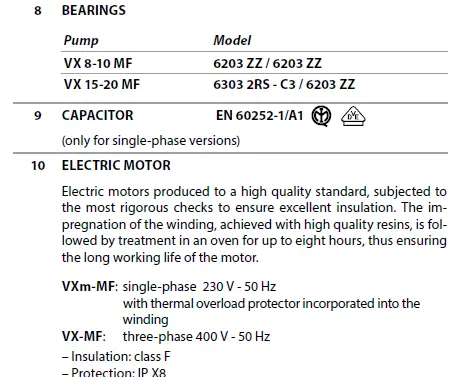

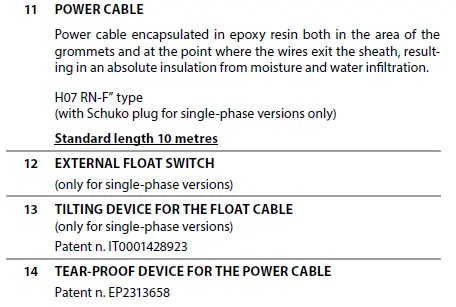

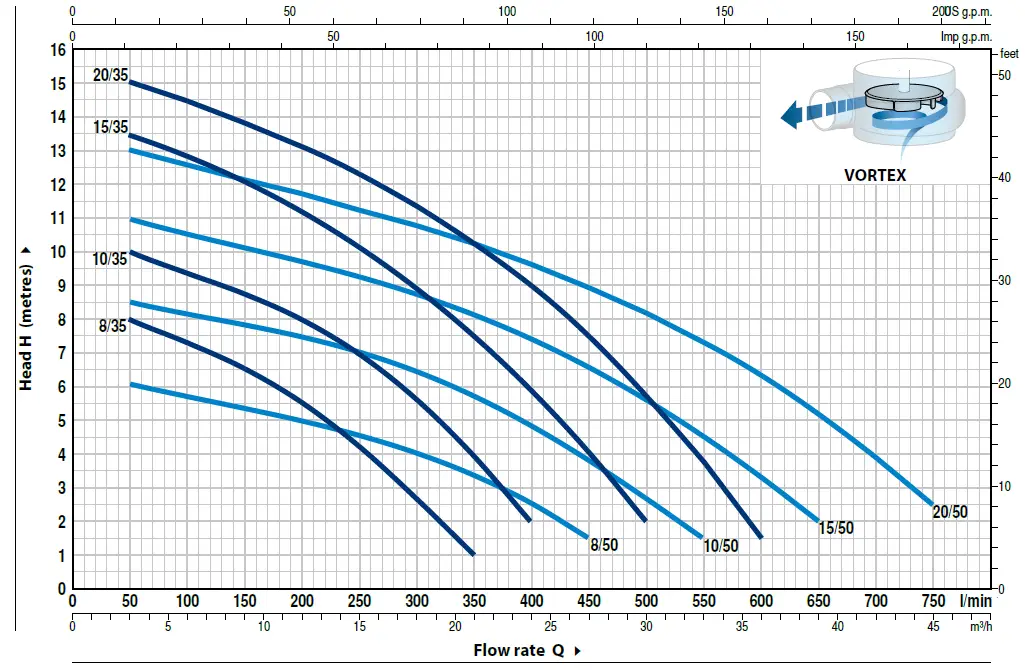

CHARACTERISTIC CURVES AND PERFORMANCE DATA
50 Hz n= 2900 min-1
| MODEL | POWER (P2) | Q | m³/h | 0 | 3 | 6 | 12 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | 39 | 45 | ||
| Single-phase | Three-phase | kW | HP | l/min | 0 | 50 | 100 | 200 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | 650 | 750 | |
| VXm 8/35 -MF | VX 8/35 -MF | 0.55 | 0.75 |
H metres | 9 | 8 | 7.5 | 5.5 | 2.7 | 1 | ||||||||
| VXm 10/35 -MF | VX 10/35 -MF | 0.75 | 1 | 11 | 10 | 9.5 | 8 | 5.7 | 4 | 2 | ||||||||
| VXm 15/35 -MF | VX 15/35 -MF | 1.1 | 1.5 | 14 | 13.5 | 12.8 | 11.2 | 9 | 7.7 | 6 | 4 | 2 | ||||||
| VXm 20/35 -MF | VX 20/35 -MF | 1.5 | 2 | 15.5 | 15 | 14.5 | 13 | 11.5 | 10.3 | 9 | 7.5 | 5.8 | 3.8 | 1.5 | ||||
| VXm 8/50 -MF | VX 8/50 -MF | 0.55 | 0.75 | 6.5 | 6 | 5.8 | 5 | 4 | 3.3 | 2.5 | 1.5 | |||||||
| VXm 10/50 -MF | VX 10/50 -MF | 0.75 | 1 | 9 | 8.5 | 8.2 | 7.5 | 6.5 | 5.8 | 5 | 3.8 | 2.5 | 1.5 | |||||
| VXm 15/50 -MF | VX 15/50 -MF | 1.1 | 1.5 | 11.5 | 11 | 10.5 | 9.8 | 8.7 | 8 | 7.5 | 6.5 | 5.5 | 4.5 | 3.5 | 2 | |||
| VXm 20/50 -MF | VX 20/50 -MF | 1.5 | 2 | 13.5 | 13 | 12.5 | 11.5 | 10.7 | 10 | 9.5 | 9 | 8 | 7.5 | 6.5 | 5 | 2.5 | ||
Q = Flow rate H = Total manometric head Tolerance of characteristic curves in compliance with EN ISO 9906 Grade 3B.
VORTEX

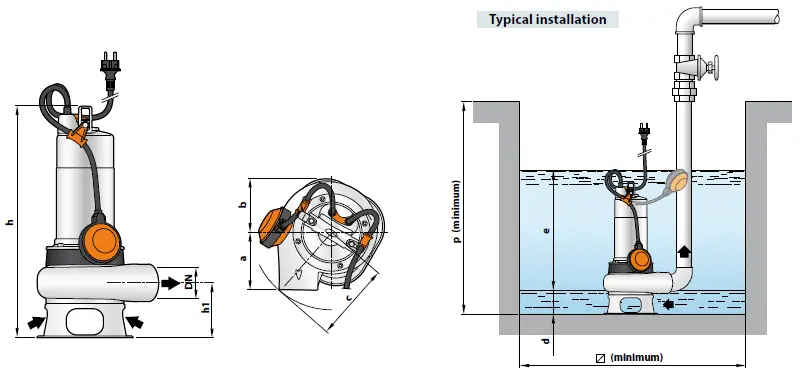

DIMENSIONS AND WEIGHT
| MODEL | PORT DN | Passage of solids | DIMENSIONS mm | kg | ||||||||||
| Single-phase | Three-phase | a | b | c | h | h1 | d | e | p | 1~ | 3~ | |||
| VXm 8/35 -MF | VX 8/35 -MF | 1½” | Ø 40 mm | 107 | 97 | 148 | 424 | 105 | 55 | regolabile |
500 |
500 | 13.0 | 11.8 |
| VXm 10/35 -MF | VX 10/35 -MF | 439 | 14.4 | 13.2 | ||||||||||
| VXm 15/35 -MF | VX 15/35 -MF | 472 | 17.2 | 15.6 | ||||||||||
| VXm 20/35-MF | VX 20/35-MF | 502 | 19.4 | 17.2 | ||||||||||
| VXm 8/50 -MF | VX 8/50 -MF | 2″ | Ø 50 mm | 112 | 97 | 149 | 435 | 107 | 60 | 13.2 | 12.1 | |||
| VXm 10/50 -MF | VX 10/50 -MF | 450 | 14.7 | 13.5 | ||||||||||
| VXm 15/50 -MF | VX 15/50 -MF | 483 | 17.5 | 16.0 | ||||||||||
| VXm 20/50 -MF | VX 20/50-MF | 513 | 19.8 | 17.5 | ||||||||||
ABSORPTION
| MODEL Single-phase | VOLTAGE | |
| 230 V | 240 V | |
| VXm 8/35 -MF | 4.3 A | 4.2 A |
| VXm 10/35 -MF | 5.5 A | 5.4 A |
| VXm 15/35 -MF | 7.0 A | 6.9 A |
| VXm 20/35-MF | 9.6 A | 9.4 A |
| VXm 8/50 -MF | 4.1 A | 4.0 A |
| VXm 10/50 -MF | 5.5 A | 5.4 A |
| VXm 15/50 -MF | 7.0 A | 6.9 A |
| VXm 20/50 -MF | 9.6 A | 9.4 A |
| MODEL Three-phase | VOLTAGE | |||
| 230 V | 400 V | 240 V | 415 V | |
| VX 8/35 -MF | 2.8 A | 2.7 A | 1.6 A | 1.6 A |
| VX 10/35 -MF | 3.8 A | 3.6 A | 2.2 A | 2.1 A |
| VX 15/35 -MF | 4.7 A | 4.5 A | 2.7 A | 2.6 A |
| VX 20/35-MF | 6.4 A | 6.1 A | 3.7 A | 3.5 A |
| VX 8/50 -MF | 2.8 A | 2.7 A | 1.6 A | 1.6 A |
| VX 10/50 -MF | 3.8 A | 3.6 A | 2.2 A | 2.1 A |
| VX 15/50 -MF | 4.7 A | 4.5 A | 2.7 A | 2.6 A |
| VX 20/50-MF | 6.4 A | 6.1 A | 3.7 A | 3.5 A |
| TIPO Single-phase | CAPACITANCE (230 V or 240 V) |
| VXm 8/35 -MF | 20 μF 450 VL |
| VXm 10/35 -MF | 25 μF 450 VL |
| VXm 15/35 -MF | 35 μF 450 VL |
| VXm 20/35-MF | 35 μF 450 VL |
| VXm 8/50 -MF | 20 μF 450 VL |
| VXm 10/50 -MF | 25 μF 450 VL |
| VXm 15/50 -MF | 35 μF 450 VL |
| VXm 20/50 -MF | 35 μF 450 VL |
PALLETIZATION
| MODEL | GROUPAGE n. pumps | CONTAINER n. pumps | |
| Single-phase | Three-phase | ||
| VXm 8/35 -MF | VX 8/35 -MF | 45 | 60 |
| VXm 10/35 -MF | VX 10/35 -MF | 45 | 60 |
| VXm 15/35 -MF | VX 15/35 -MF | 30 | 45 |
| VXm 20/35-MF | VX 20/35 -MF | 30 | 45 |
| VXm 8/50 -MF | VX 8/50 -MF | 45 | 60 |
| VXm 10/50 -MF | VX 10/50 -MF | 45 | 60 |
| VXm 15/50 -MF | VX 15/50 -MF | 30 | 60 |
| VXm 20/50 -MF | VX 20/50 -MF | 30 | 45 |

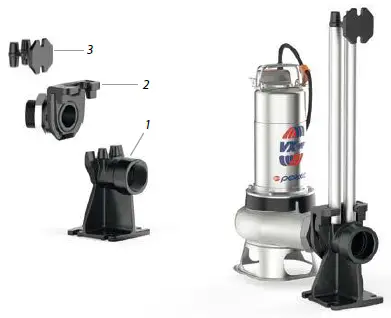

SEWAGE LIFTING SYSTEM VX-MF – BC-MF
HORIZONTAL DELIVERY VERSION WITH ¾” GUIDE TUBES
| For VX /35-MF | Cod. ASSPVX35ST | DN 2″ |
| For VX /50-MF, BC /50-MF | Cod. ASSPVX50ST | DN 2″ |
Kit consisting of:
- footing connection
- slide guide with ring nut and seal
- support for the guide tubes
| For VX /35-MF | Cod. ASSPVX35STV | DN 2½” |
| For VX /50-MF, BC /50-MF | Cod. ASSPVX50STV | DN 2½” |
Kit consisting of:
- footing connection complete with counterflange
- slide guide with ring nut and seal
- support for the guide tubes
ACCESSORIES CAN BE ORDERED
SLIDE GUIDE (also to be ordered separately)
| For VX /35-MF | Cod. ASSFL005 |
| For VX /50-MF , BC /50-MF | Cod. ASSFL006 |
Complete with ring nut and seal
INTERMEDIATE SUPPORT (on request)
For guide tubes Ø ¾” Cod. 859SV340INTFA
In order to ensure stability, insert the intermediate support every 2 metres
GUIDE TUBES (AISI 304 stainless steel)
Guide tube Ø ¾” Cod. 54SARTG005
Maximum length of the tube plank: 6 metres

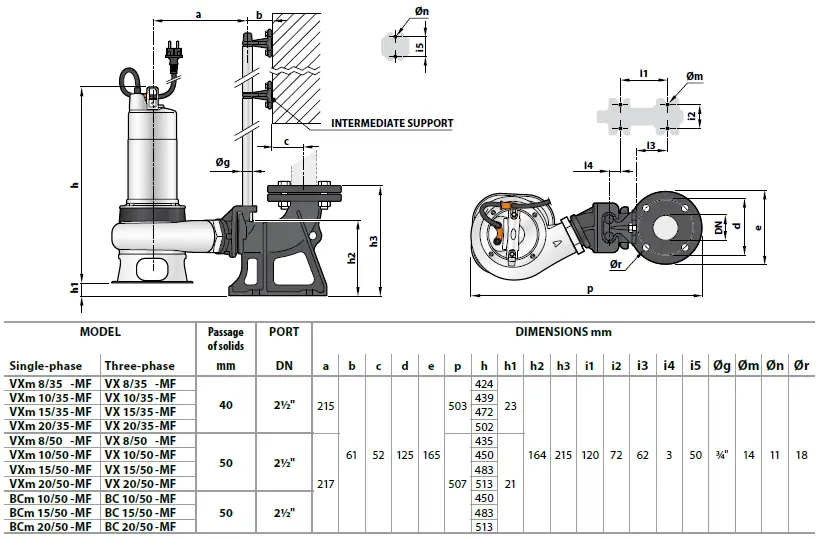

DIMENSIONS (Horizontal delivery version)
DIMENSIONS (Vertical delivery version)
