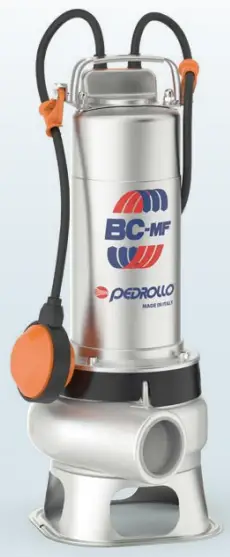

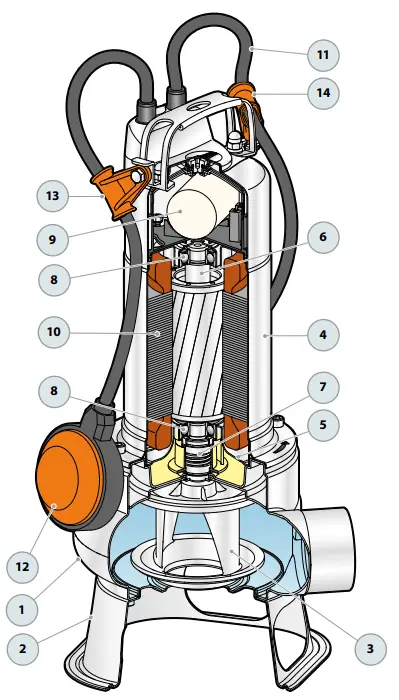

pedrollo BC-MF DOUBLE-CHANNEL Submersible Pumps
PERFORMANCE RANGE
- Flow rate up to 850 l/min (51 m3/h)
- Head up to 17 m
APPLICATION LIMITS
- 5 m maximum immersion depth
- Maximum liquid temperature +40 °C
- Passage of suspended solids up to Ø 50 mm
- Minimum immersion depth for continuous service:
- 290 mm foe BC 10/50-MF
- 330 mm foe BC 15/50-MF
- 360 mm foe BC 20/50-MF
CONSTRUCTION AND SAFETY STANDARDS
- 10 m long power cable
- Float switch for single-phase versions
EN 60335-1 EN 60034-1
IEC 60335-1 IEC 60034-1
CEI 61-150 CEI 2-3
CERTIFICATIONS
Company with management system certified DNV ISO 9001: QUALITY
INSTALLATION AND USE
BC-MF submersible pumps are recommended for draining dirty and sewage water in domestic, civil and industrial applications.
They come equipped with a DOUBLE-CHANNEL impeller and are capable of pumping liquids containing short fibred suspended solids up to Ø 50 mm. They are ideal for pumping sewage, waste water, surface water and water mixed with mud in locations such as blocks of flats and detached house.
These pumps distinguish themselves for their reliability, which can be best appreciated under automatic operating conditions in fixed installations.
PATENTS – TRADEMARKS – MODELS
- Patent n. EP2313658
- Patent n. IT0001428923
OPTIONS AVAILABLE ON REQUEST
- Single-phase pumps without float switch
- Other voltages or 60 Hz frequency

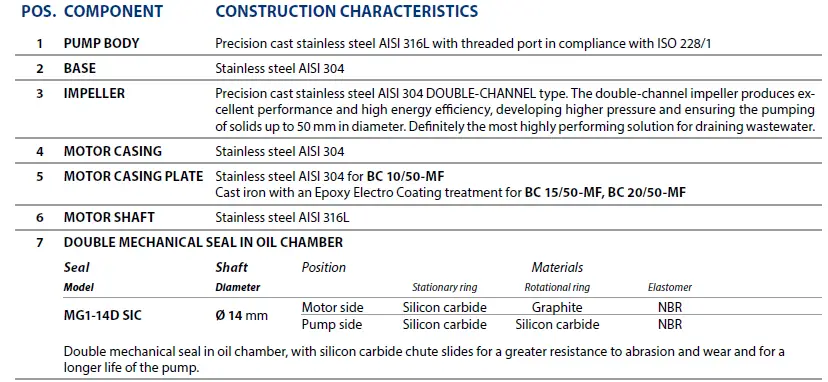

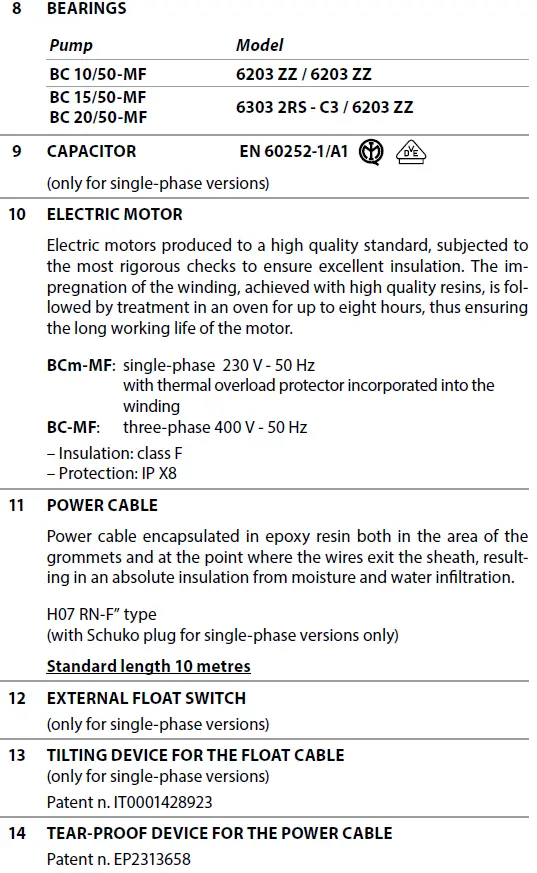

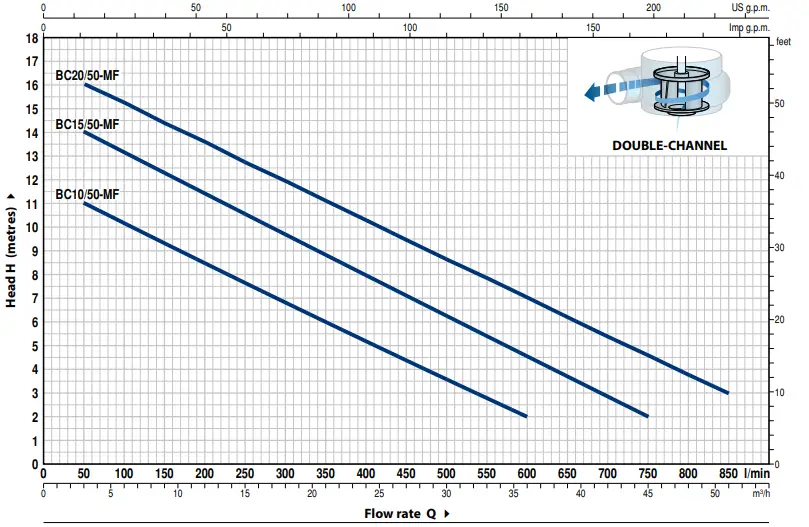

CHARACTERISTIC CURVES AND PERFORMANCE DATA
50 Hz n= 2900 min -1
| MODEL | POWER (P2) | Q | m³/h | 0 | 3 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 45 | 51 | ||
| Single-phase | Three-phase | kW | HP | l/min | 0 | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 750 | 850 | |
| BCm 10/50-MF | BC 10/50-MF | 0.75 | 1 |
H metres | 12 | 11 | 10 | 8.5 | 7 | 5 | 3.6 | 2 | ||||
| BCm 15/50-MF | BC 15/50-MF | 1.1 | 1.5 | 15 | 14 | 13 | 11.5 | 9.7 | 8 | 6.3 | 4.6 | 2.9 | 2 | |||
| BCm 20/50-MF | BC 20/50-MF | 1.5 | 2 | 17 | 16 | 15.3 | 13.5 | 12 | 10.3 | 8.6 | 7.0 | 5.3 | 4.5 | 3 | ||
DOUBLE-CHANNEL

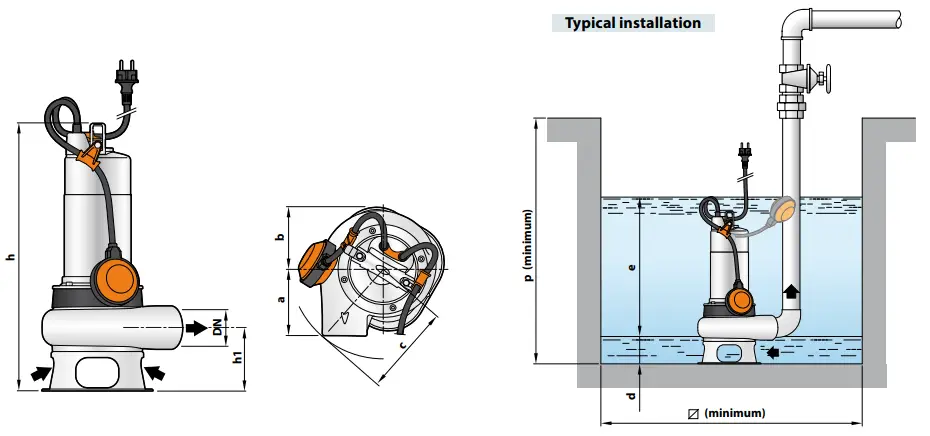

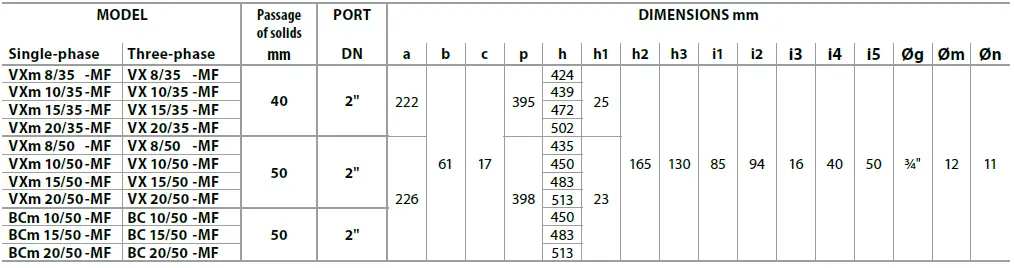

DIMENSIONS AND WEIGHT
| MODEL | PORT DN | Passage of solids | DIMENSIONS mm | kg | ||||||||||
| Single-phase | Three-phase | a | b | c | h | h1 | d | e | p | 1~ | 3~ | |||
| BCm 10/50-MF | BC 10/50-MF |
2″ |
Ø 50 mm |
102 |
95 |
145 | 450 |
107 |
60 | variable |
500 |
500 | 15.2 | 14.0 |
| BCm 15/50-MF | BC 15/50-MF | 483 | 17.8 | 16.2 | ||||||||||
| BCm 20/50-MF | BC 20/50-MF | 513 | 20.0 | 17.8 | ||||||||||
| MODEL Single-phase | VOLTAGE | |
| 230 V | 240 V | |
| BCm 10/50-MF | 5.5 A | 5.4 A |
| BCm 15/50-MF | 8.0 A | 7.8 A |
| BCm 20/50-MF | 10.0 A | 9.8 A |
| MODEL Three-phase | VOLTAGE | |||
| 230 V | 400 V | 240 V | 415 V | |
| BC 10/50-MF | 3.8 A | 3.6 A | 2.2 A | 2.1 A |
| BC 15/50-MF | 5.3 A | 5.1 A | 3.1 A | 2.9 A |
| BC 20/50-MF | 6.7 A | 6.5 A | 3.9 A | 3.7 A |
| MODEL Single-phase | CAPACITANCE (230 V or 240 V) |
| BCm 10/50-MF | 25 μF 450 VL |
| BCm 15/50-MF | 35 μF 450 VL |
| BCm 20/50-MF | 35 μF 450 VL |
| MODEL | GROUPAGE n. pumps | CONTAINER n. pumps | |
| Monofase | Three-phase | ||
| BCm 10/50-MF | BC 10/50-MF | 45 | 60 |
| BCm 15/50-MF | BC 15/50-MF | 30 | 45 |
| BCm 20/50-MF | BC 20/50-MF | 30 | 45 |

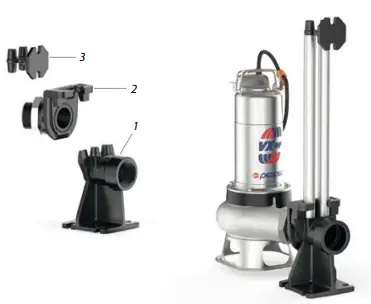

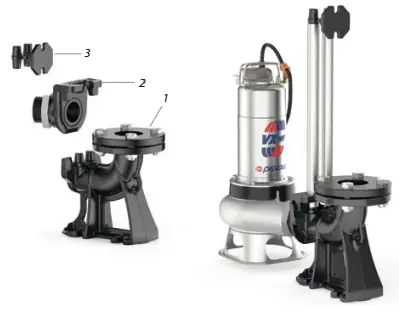

SEWAGE LIFTING SYSTEM VX-MF – BC-MF
HORIZONTAL DELIVERY VERSION WITH ¾” GUIDE TUBES
| For VX /35-MF | Cod. ASSPVX35ST | DN 2″ |
| For VX /50-MF , BC /50-MF | Cod. ASSPVX50ST | DN 2″ |
Kit consisting of:
- footing connection
- slide guide with ring nut and seal
- support for the guide tubes
| For VX /35-MF | Cod. ASSPVX35STV | DN 2½” |
| For VX /50-MF, BC /50-MF | Cod. ASSPVX50STV | DN 2½” |
Kit consisting of:
- footing connection complete with counter flange
- slide guide with ring nut and seal
- support for the guide tubes
ACCESSORIES CAN BE ORDERED
SLIDE GUIDE (also to be ordered separately)
| For VX /35-MF | Cod. ASSFL005 |
| For VX /50-MF , BC /50-MF | Cod. ASSFL006 |
Complete with ring nut and seal
INTERMEDIATE SUPPORT (on request)
For guide tubes Ø ¾” Cod. 859SV340INTFA
In order to ensure stability, insert the intermediate support every 2 metres
GUIDE TUBES (AISI 304 stainless steel)
Guide tube Ø ¾” Cod. 54SARTG005
Maximum length of the tube plank: 6 metres

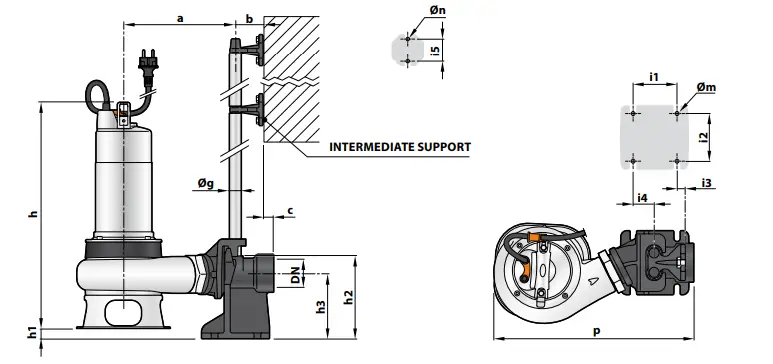

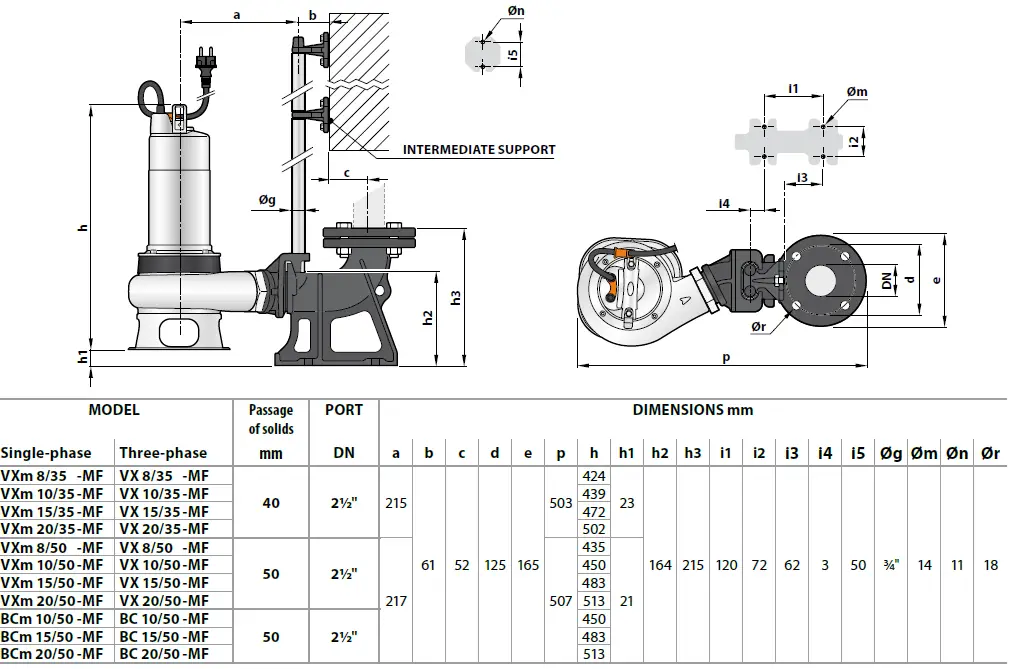

DIMENSIONS (Horizontal delivery version)
DIMENSIONS (Vertical delivery version)
