Quick Start
GUIDE

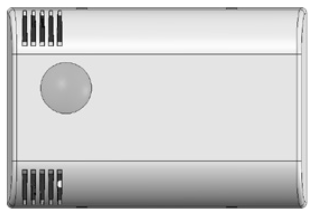

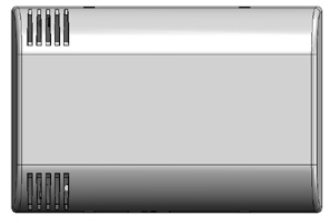

50-70-168 LoRaWAN Indoor Air Quality Measurement
 |  |  |
| Vaqa’O 50-70-168 | Vaqa’O + 50-70-074 | Indoor THR 50-70-162 50-70-191 |
| Move’O 50-70-220 | Indoor T°C 50-70-167 |

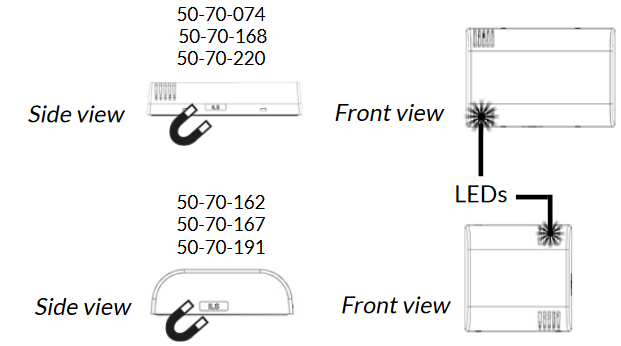

Start
Provision the device on your LoRaWAN® network with the keys available on a secure platform.

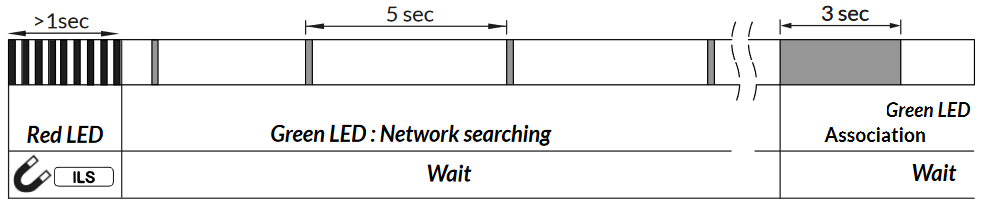

ON

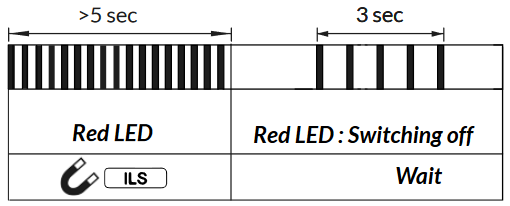

OFF
Video: ON – OFF
https://youtu.be/SiErE0zy4Q0
Installation Setting up

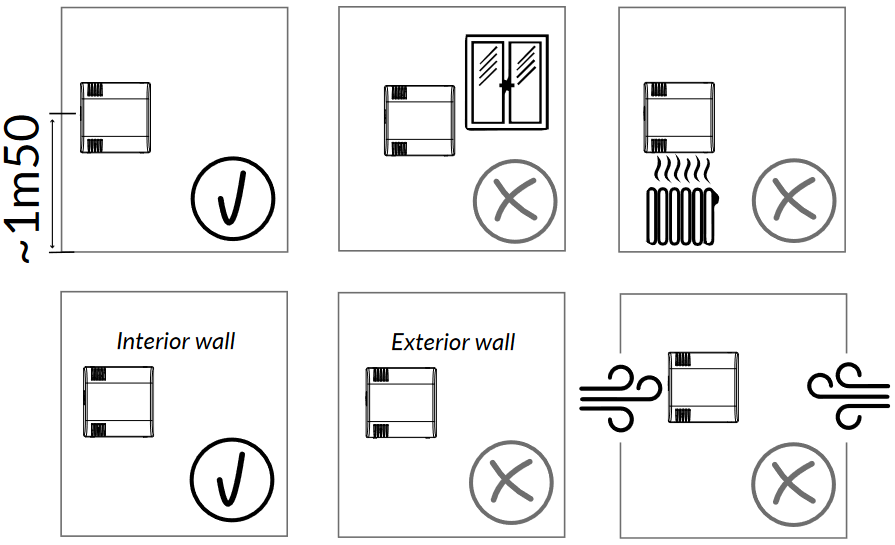

The installation must be done on a wall at 1.5m from the ground and not in contact with the outside. The collector should be placed away from windows, heat input (sun, radiator, ventilation, air intake).
The cover of the base must be removed with a flathead screwdriver.

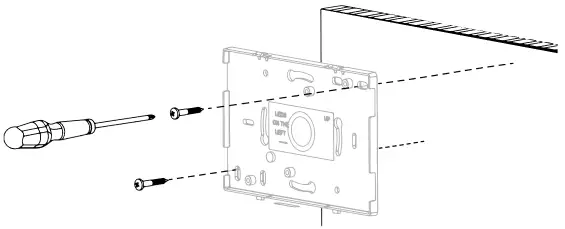

Place the dowels and screw the base to the wall, in the direction indicated.

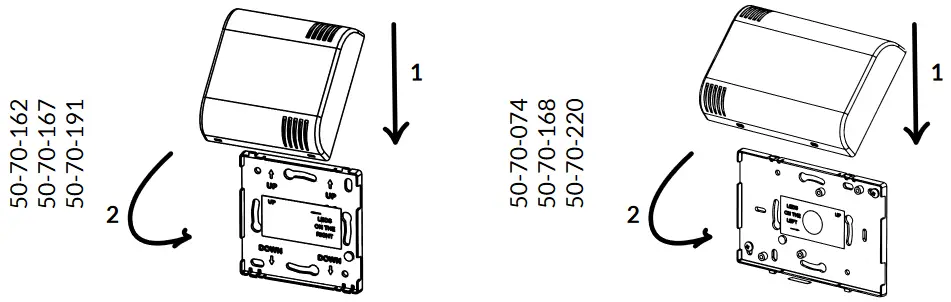

Installation of the cover :

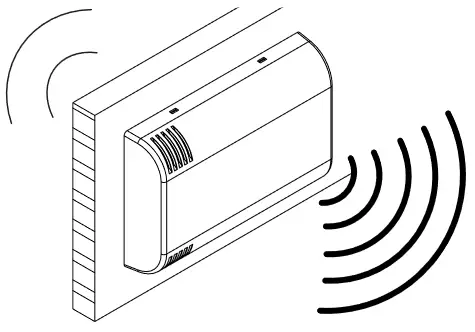

Radio propagation
Check the radio coverage with the Netw’O.
For the sensor communicates correctly, the number of obstacles should be limited to avoid excessive radio attenuation.
Characteritics
| Reference | 50-70-168 | 50-70-074 | 50-70-162 50-70-191 | 50-70-167 | 50-70-220 |
| Class | A | A | A | A | A |
| Power Level | +14 dBm | +14 dBm | +14 dBm | +14 dBm | +14 dBm |
| Measures: T°C Humidity CO2 coy Atmospheric pressure Light Motion detection | X x X x | X X X X X X x | X X X | X | X X X |
| Antenna | Interne Internal | Interne Internal | Interne Internal | Interne Internal | Interne Internal |
| Casing materials | ABS UL94 VO | ABS UL94 VO | ABS UL94 VO | ABS UL94 VO | ABS UL94 VO |
| IP rating | IP30 | IP30 | IP30 | IP30 | IP30 |
 |  |
| SITE SUPPORT https://support.watteco.com/ | CERTIFICATIONS https://support.watteco.com/ |
Watteco represented by JC LE BLEIS, declares that the radio equipment type 50-70-168 / 50-70-074 / 50-70-162 / 50-70-167 / 50-70-220 / 50-70-191 is in conformity with Directive 2014/53/EU (RED) and UKCA. The full text of the EU and UKCA Declaration of Conformity is available at the following web address: https://www.watteco.com/assistance/download-center/
