Sonbest Qm7590l Lora Wireless Air Quality Sensor User Manual

QM7590L
User Manual
File Version: V22.1.14

QM7590L using the standard RS485 bus MODBUS-RTU protocol, easy access to PLC, DCS, and other instruments or systems for monitoring carbon ioxide, temperature, humidity, illuminance, noise state quantities. The internal use of high-precision sensing core and related devices to ensure high reliability and excellent long-term stability can be customized RS232, RS485, CAN,4-20mA, DC0~5V\10V, ZIGBEE, Lora, WIFI, GPRS and other output methods.

Technical Parameters

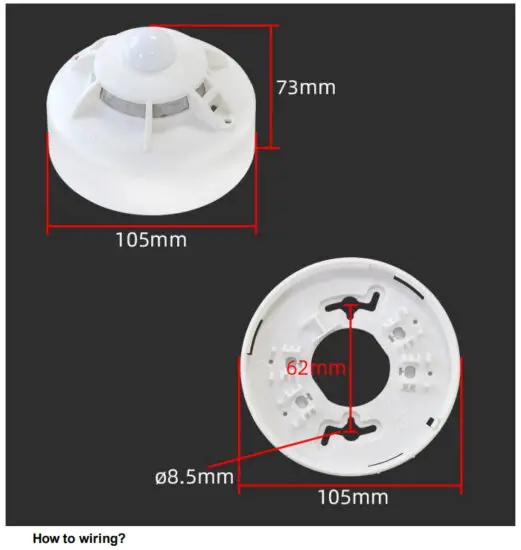

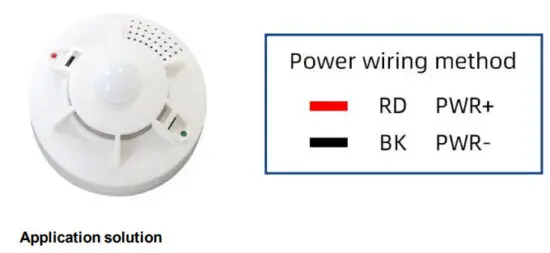

Product Size

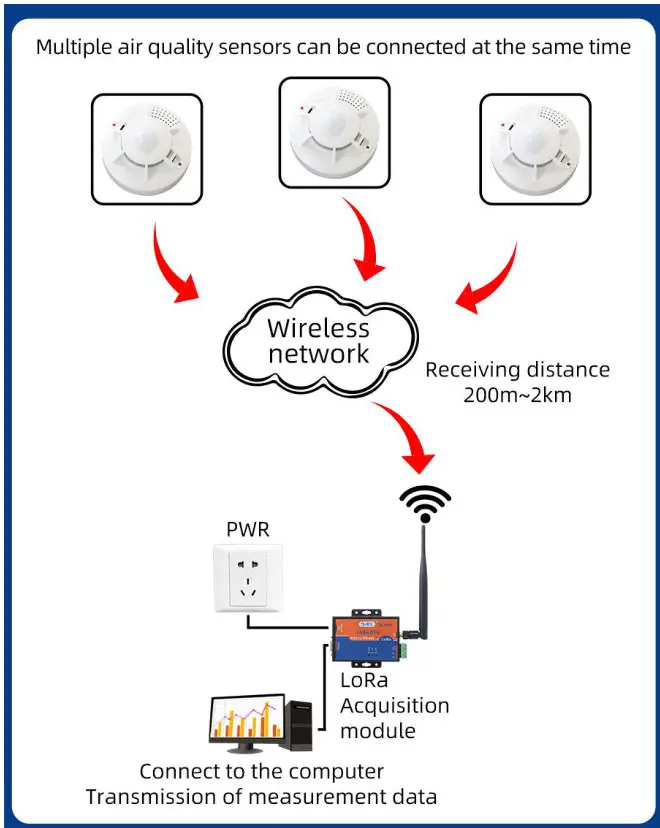

Communication Protocol

The product uses RS485 MODBUS-RTU standard protocol format, all operation or reply commandsare hexadecimal data. The default device address is 1 when the device is shipped, and the default baud rate is 9600, 8, n, 1

1. Read Data (Function id 0x03)
   Inquiry frame (hexadecimal), sending example: Query 1# device 1 data, the host computer sends thecommand:01 03 00 00 00 05 85 C9.

   Device ID	Function id	Start Address	Data Length	CRC16
   01	03	00 00	00 05	85 C9

   For the correct query frame, the device will respond with data:01 03 0A 00 7D 00 00 00 00 00 00 00 00 19 E4 , the response format is parsed as follows:

   Device ID	Function id	Data Length	Data 1	Data 2	Data 3	Data 4	Data 5	CheckCode
   01	03	0A	00 79	00 7A	00 7B	00 7C	00 7D	19 E4

   Data Description: The data in the command is hexadecimal. Take data 1 as an example. 00 79 isconverted to a decimal value of 121. If the data magnification is 100, the actual value is 121/100=1.21. Others and so on.

2. Data Address Table


   Address	Start Address	Description	Data type	Value range
   40001	00 00	carbon dioxide	Read Only	0~65535
   40002	00 01	temperature	Read Only	0~65535
   40003	00 02	humidity	Read Only	0~65535
   40106	00 69	protocol	read/write	1~10

3. read and modify device address
   (1). Read or query device address
   If you don’t know the current device address and there is only one device on the bus, you can use the command FA 03 00 64 00 02 90 5F Query device address.

   Device ID	Function id	Start Address	Data Length	CRC16
   FA	03	00 64	00 02	90 5F

   FA is 250 for the general address. When you don’t know the address, you can use 250 to get the real device address, 00 64 is the device model register.
   For the correct query command, the device will respond, for example the response data is: 01 03 02 07 12 3A 79, the format of which is as shown in the following table:

   Device ID	Function id	Start Address	Model Code	CRC16
   01	03	02	55 3C 00 01	3A 79

   Response should be in the data, the first byte 01 indicates that the real addre ss of the current device is, 55 3C converted to decimal 20182 indicates that the current device main model is 21820, the last two bytes 00 01 Indicates that the device has a status quantity.
   (2). Change device address
   For example, if the current device address is 1, we want to change to 02, the command is:01 06 00 66 00 02 E8 14 .

   Device ID	Function id	Start Address	Destination	CRC16
   01	06	00 66	00 02	E8 14

   After the change is successful, the device will return information: 02 06 00 66 00 02 E8 27 , i ts format is parsed as shown in the following table:

   Device ID	Function id	Start Address	Destination	CRC16
   01	06	00 66	00 02	E8 27

   Response should be in the data, after the modification is successful, the first byte is the new deviceaddress. After the general device address is changed, it will take effect immediately. At this time, the user needs to change the query command of the software at the same time.

4. Read and Modify Baud Rate
   (1). Read baud rate
   The device default factory baud rate is 9600. If you need to change it, you can change it according to the following table and the corresponding communication protocol. For example, read the current device’s baud rate ID, the command is:01 03 00 67 00 01 35 D5 , its format is parsed as follows.

   Device ID	Function id	Start Address	Data Length	CRC16
   01	03	00 67	00 01	35 D5

   Read the baud rate encoding of the current device. Baud rate encoding: 1 is 2400; 2 is 4800; 3 is 9600; 4 is 19200; 5 is 38400; 6 is 115200.
   For the correct query command, the device will respond, for example the response data is: 01 03 02 00 03 F8 45, the format of which is as shown in the following table:

   Device ID	Function id	Data Length	Rate ID	CRC16
   01	03	02	00 03	F8 45

   coded according to baud rate, 03 is 9600, ie the current device has a baud rate of 9600.
   (2). Change the baud rate
   For example, changing the baud rate from 9600 to 38400, ie changing the code from 3 to 5, the command is: 01 06 00 67 00 05 F8 1601 03 00 66 00 01 64 15 .

   Device ID	Function id	Start Address	Target Baud Rate	CRC16
   01	03	00 66	00 01	64 15

   Change the baud rate from 9600 to 38400, changing the code from 3 to 5. The new baud rate will take effect immediately, at which point the device will lose its response and the baud rate of the device should be queried accordingly. Modified.

5. Read Correction Value
   (1). Read Correction Value
   When there is an error between the data and the reference standard, we can reduce the display error by adjusting the correction value. The correction difference can be modified to be plus or minus 1000, that is, the value range is 0-1000 or 64535 -65535. For example, when the display value is too small, we can correct it by adding 100. The command is: 01 03 00 6B 00 01 F5 D6 . In the command 100 is hex 0x64 If you need to reduce, you can set a negative value, such as -100, corresponding to the hexadecimal value of FF 9C, which is calculated as 100-65535=65435, and then converted to hexadecimal to 0x FF 9C. The correction value starts from 00 6B. We take the first parameter as an example. The correction val ue is read and modified in the same way for multiple parameters.

   Device ID	Function id	Start Address	Data Length	CRC16
   01	03	00 6B	00 01	F5 D6

   For the correct query command, the device will respond, for example the response data is: 01 03 02 00 64 B9 AF, the format of which is as shown in the following table:

   Device ID	Function id	Data Length	Data value	CRC16
   01	03	02	00 64	B9 AF

   In the response data, the first byte 01 indicates the real address of the current device, and 00 6B is the first state quantity correction value register. If the device has multiple parameters, other parameters operate in this way. The same, the general temperature, humidity have this parameter, the light generally does not have this item.
   (2). Change correction value
   For example, the current state quantity is too small, we want to add 1 to its true value, and the current value plus 100 correction operation command is:01 06 00 6B 00 64 F9 FD.

   Device ID	Function id	Start Address	Destination	CRC16
   01	06	00 6B	00 64	F9 FD

   After the operation is successful, the device will return information: 01 06 00 6B 00 64 F9 FD, the parameters take effect immediately after successful change.

Disclaimer

This document provides all information about the product, does not gra nt any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and useof this product, including the suitability for the specific use of the product, the marketability or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
