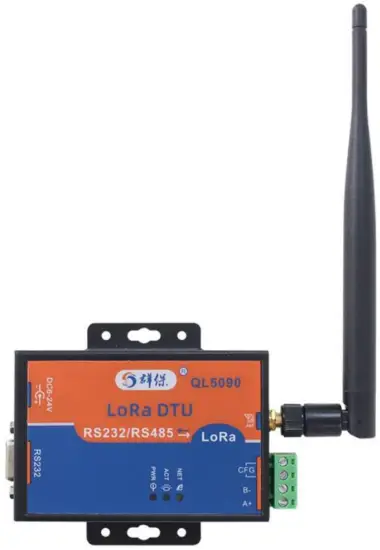

QUNBAO QL5090 LoRA Wireless Data Module
Technical Parameters
| Technical parameter | Parameter value |
| Brand | TRANBALL |
| Wireless signal | LORA |
| Radio frequency | 410~439MHz |
| Rate level | 0~5 |
| Transmit power | 5~20dBm |
| Communication Interface | USB |
| Default baud rate | 9600 8 n 1 |
| Power | DC5V 1A |
| Running temperature | -40~80°C |
| Working humidity | 5%RH~90%RHX |

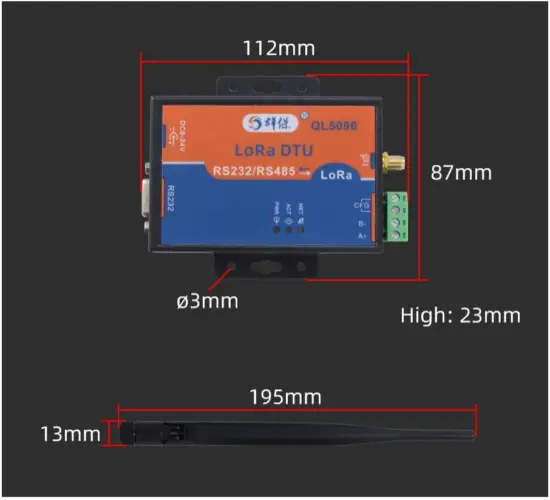

Product Size

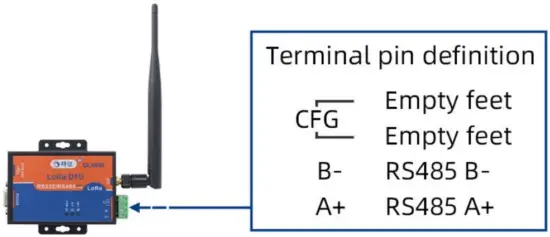

How to wiring?

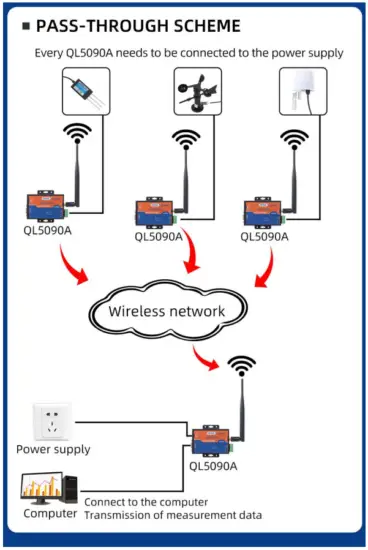

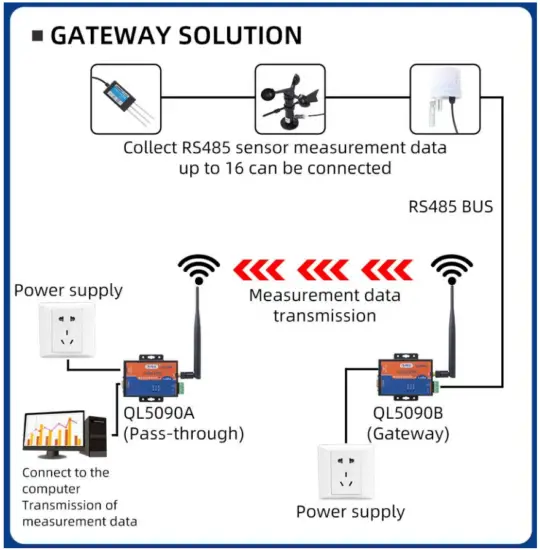

Application solution
How to use?
Disclaimer
This document provides all information about the product, does not grant any license to intellectual property, does not express or imply, and prohibits any other means of granting any intellectual property rights, such as the statement of sales terms and conditions of this product, other issues. No liability is assumed. Furthermore, our company makes no warranties, express or implied, regarding the sale and use of this product, including the suitability for the specific use of the product, the marketability or the infringement liability for any patent, copyright or other intellectual property rights, etc. Product specifications and product descriptions may be modified at any time without notice.
