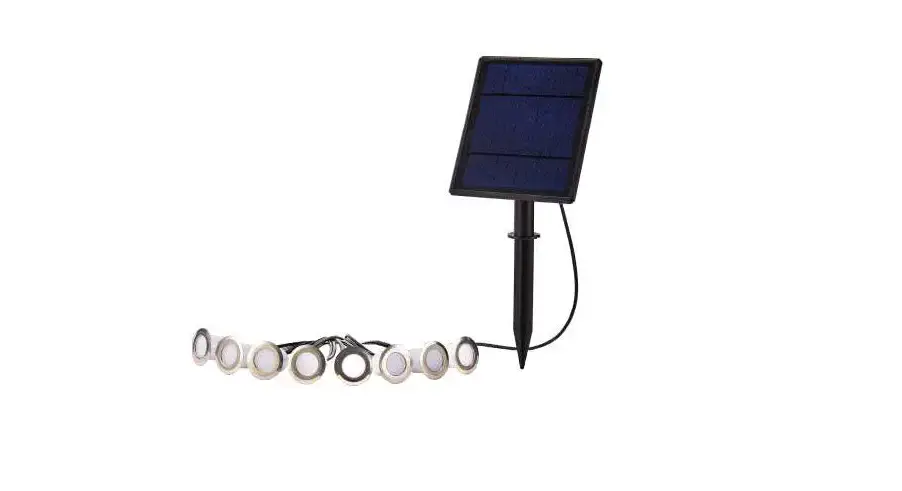

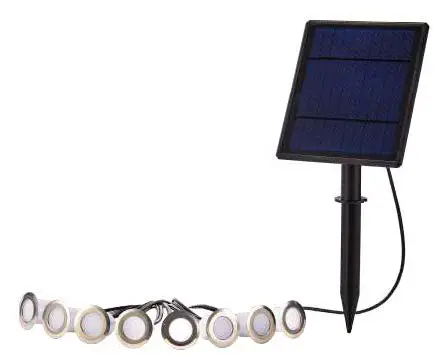

tuya DC-68 Solar Underground Light Owner’s Manual

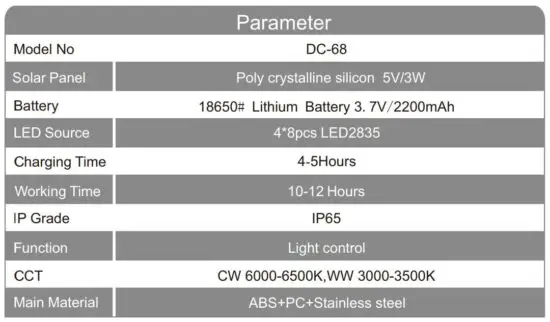

Product parameters
Notice
- When the lamp is not working or the working time is short, please place the lamp in a location where the sun is shining directly to charge for 2 days. Don’t turn on the lamp during the process. If it still doesn’t work or working time is short, please contact the factory.
- The product has light sensor, please use it where there is no light.
- Rainy weather will affect the charging of lamp, the working time will be reduced.
- Don’t install the lamp in a place that is easily immersed in water.
- Don’t install the lamp in eaves, tree bottoms and other environments where there is no direct sunlight.
- The lamp has built-in battery, don’t throw away directly.
Check Remarks before use
- Place lamp under sunshine for 4-6h after you get goods and turn on, because it only reserve part energy in battery.
- The less time to charge under sunshine, the less time to work at night,Working time depends on surrounding,geography latitude,seasons etc.
- There is the difference of working time and brightness extent for different light, please note.
- Please clean the panel and in case of poor charging effect if it happen to have obstacle in panel in using.
Dimensions

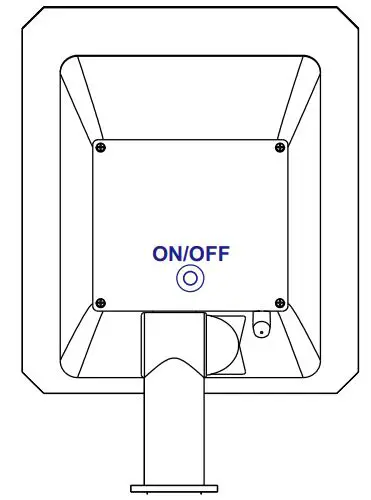

Product Manual
- CW&WW model:Press switch first, turn on in 100% bright, press switch second time,half bright,Press switch for 3 seconds, close.
- RGB model: Press switch first, RGB change gradually, press second time,fix green, Press third time,fix red light, press forth time,fix blue light.
- Smart model:Press switch to open light, then operate the device through mobile phone app. (Please check operation details in 《Smart APP Operation manual》 )

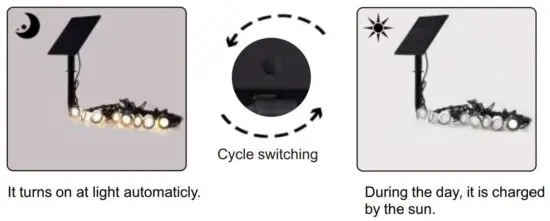

Light control

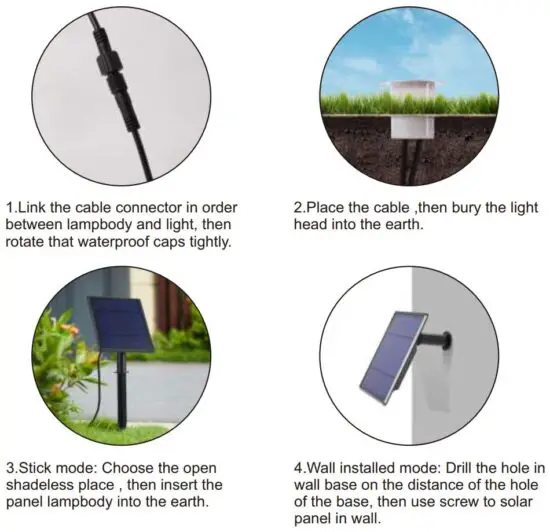

Installment step
