T8 LED Tube Osram SubstiTUBE
Instruction Manual

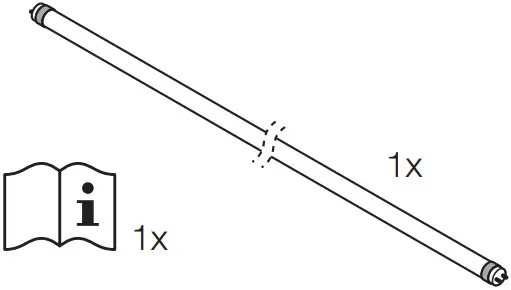

Universal T8 LED Tube Osram SubstiTUBE
 |  |  |
| PDF ECG compatibility list | TUBE FINDER Web-app | Installation Guide |
| https://www.ledvance.com/professional/services/led-lamps-compatibility/ecg-compatibility/index.jsp | http://ledvance.com/tubefinder | https://www.ledvance.com/professional/services/downloads/index.jsp |
It is mandatory to operate OSRAM LED Tubes only with compatible ECGs listed at TUBE FINDER Web app www.ledvance.com/tubefinder or
https://www.ledvance.com/professional/services/led-lamps-compatibility/ecg-compatibility/index.jsp
File name: Ballast Compatibility list SubstiTUBE Universal T8, T5 HF and T8 HF GenX LEDVANCE does not accept any responsibility, warranty or liability when using ECGs not mentioned, marked as non-compatible ECGs or when using successor /different Reference No. models of tested ballasts.
The instruction contains important information and notes regarding the installation and operation of the SubstiTUBE® HF. SubstiTUBE® T8 HF LED tube is suitable as replacement for T8 fluorescent lamps with G13 bi-pin bases. HF tubes can be fitted as a replacement into luminaires operating on electronic control gear (HF). The operating temperature range of SubstiTUBE T8 HF LED tube is restricted. In case of doubt regarding suitability of the application. Please find and measure Tc point and max Tc temperature marked on the product. In case of multi-lamp luminaire application measure Tc max temperature of all installed lamps. Please use a flexible thermosensor (e.g. “Type K”). Please find additional temperature relevant information at product datasheet. It is not allowed to connected SubstiTUBE T8 HF LED tube on direct mains (220-240V) or electro magnetic control gear (CCG).
- It is mandatory to operate OSRAM LED Tubes only with compatible ECGs listed at TUBE FINDER Web app www.ledvance.com/tubefinder or https://www.ledvance.com/professional/services/led-lamps-compatibility/ecg-compatibility/index.jsp
File name: Ballast Compatibility list SubstiTUBE Universal T8, T5 HF and T8 HF GenX.
LEDVANCE does not accept any responsibility, warranty or liability when using ECGs not mentioned, marked as non-compatible ECGs or when using successor/different Reference No. models of tested ballasts.
ECG is compatible: Go to Installations on HF (ECG) compatible ballast - The temperature range of SubstiTUBE T8 HF is more restricted. In case of doubt regarding the suitability of the application the manufacturer of this lamp should be consulted.
- SubstiTUBE® T8 HF LED tube emits light only with a limited beam angle, not like a fluorescent tube with 360° output. Due to the characteristic light distribution of the SubstiTUBE® T8 HF LED tube, the resulting luminaire light characteristic is likely to change.
- The SubstiTUBE® T8 HF LED tube is designed for general lighting application (excluding for example explosive atmosphere).
| SubstiTUBE® T8 HF | HF |  |  |  |  | |
| Meaning | Compatible with HF | High Frequency = Electronic Control Gear (ECG) | Lamp not suitable for emergency operation | Lamps to be used in dry conditions or in a luminaire that provides protection | Dimming not allowed | Lamp suitable for high frequency operation |
| Replacement of T8 FL | Storage temperature (Ts) | Ambient temperature (Ta) free air | |
| LEDTUBE T8 HF PRO 1200 14W 8xx | 36 W: 1.2 m | -20° … 80°C | -20° … 45°C |
| LEDTUBE T8 HF PRO 1500 20W 8xx | 58 W: 1.5 m | -20° … 80°C | -20° … 45°C |
| LEDTUBE T8 HF PRO 600 7.5W 8xx | 18 W: 0.6 m | -20° … 80°C | -20° … 45°C |
| LEDTUBE T8 HF PRO UO 1200 15W 8xx | 36 W: 1.2 m | -20° … 80°C | -20° … 45°C |
| LEDTUBE T8 HF PRO UO 1500 23W 8xx | 58 W: 1.5 m | -20° … 80°C | -20° … 45°C |
| LEDTUBE T8 HF VAL 600 8W 8xx | 18 W: 0.6 m | -20° … 80°C | -20° … 45°C |
(8xx = 830, 840, 865)
Installations on HF (ECG) compatible ballast. Please check the latest update of the compatibility list
https://www.ledvance.com/professional/services/led-lampscompatibility/ecg-compatibility/index.jsp
File name: Ballast Compatibility list SubstiTUBE Universal T8, T5 HF and T8 HF GenX or check compatibilty with TUBE FINDER Web-app www.ledvance.com/tubefinder

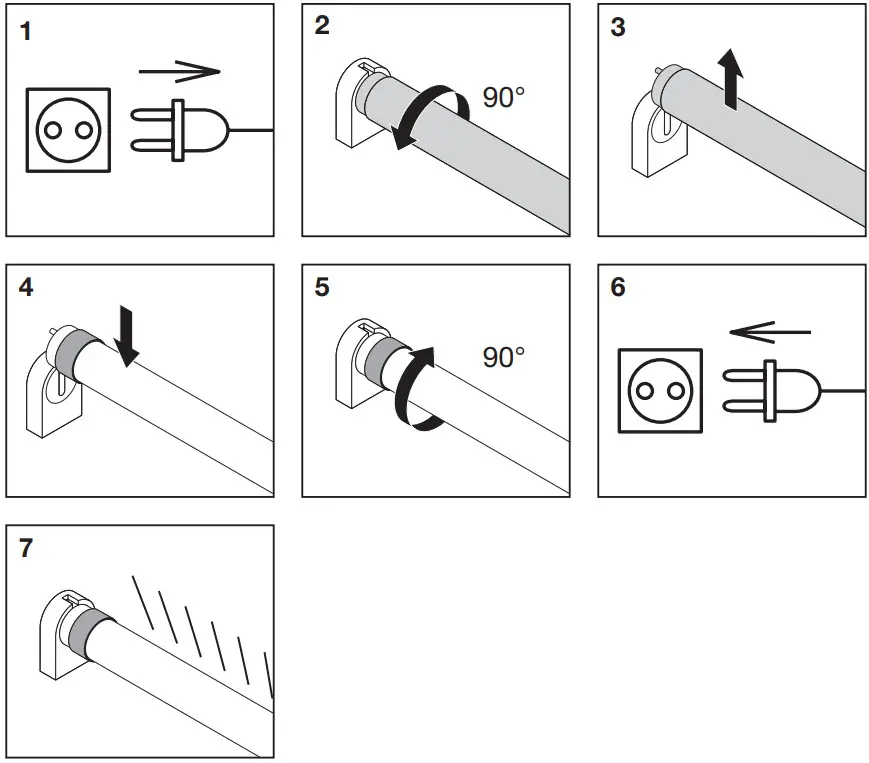

Instructions on HF (ECG) compatible ballast
