Westgate T8-ezx Led Tube Light Instruction Manual

Installation Instructions
T8 LED TUBE LIGHT

T8-EZX LED Tube Light

• Read and understand the detailed installation instructions before installing the LED T8 Tube Light.
• LED T8 Tube Lights are designed to work with Electronic/Magnetic Ballasts (check the ballast compatibility list) or AC direct wire. Work with single-end (either side) and double-end power input—the risk of fire or electric shock. Read and understand all installation instructions before installing LED T8 Tube Lights. Use in dry or damp locations only. Do not use where directly exposed to water or weather. Non-submergible (not water-tight).
• Disable all power to the fixture before inspection, installation, or removal. Failure to do so will create a hazardous and fatal working environment.
• Do not make or alter any open holes in an enclosure of wiring or electrical components during installation.
• Do not open-no user-serviceable parts inside.

WARNING

• Note: if the tube is installed as type B, the luminaire, once modified as a retrofit fixture, will no longer operate fluorescent lamps. Not suitable for Use with Dimmer.

IMPORTANT SAFETY INSTRUCTIONS:

1. Risk of fire or electric shock. LED Retrofit kit installation requires knowledge of luminaire’s electrical systems. If not qualified, DO NOT attempt installation. Contact a qualified electrician.
2. Risk of fire or electric shock. Install this kit only in the luminaires that have the construction features and dimensions shown in the photographs and drawings and where the input rating of the retrofit kit does not exceed the input rating of the luminaire.
3. DO NOT make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
4. To prevent wiring damage or Abrasion, DO NOT Expose Wiring to edges of Sheet Metal or other Sharp Objects.
5. Installers should not disconnect existing wires from lamp holder terminals to make new connections at lamp holder terminals. Instead, the installer should cut the existing lamp holder leads away from the lamp holder and make new electrical connections to the lead wires by employing suitable connectors.
6. For a linear tubular LED Lamp conversion, there shall be text or a diagram showing how the supply connections were made to the lamp holders so the correct links will be made to the lamp where the lamp is installed or replaced.
7. This retrofit kit is accepted as a component of a luminaire where the suitability of the combination shall be determined by authorities having JURISDICTION.

INSTALLATION

Type A

1. Switch-off power to the luminaire.
2. Remove Diffuser ( if provided).
3. Remove the existing Fluorescent lamps from the luminaire.
4. Install the LED Tube Lamp.
5. Install Diffuser (if removed in step2)
6. Switch on power to the luminaire.
7. Before installation, check Specifications for the most Current Ballast Compatibility List. If not Compatible, insert LED Tubes according to Type B Installation Instructions.

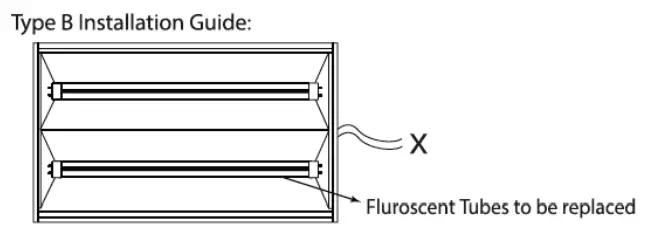

Type B

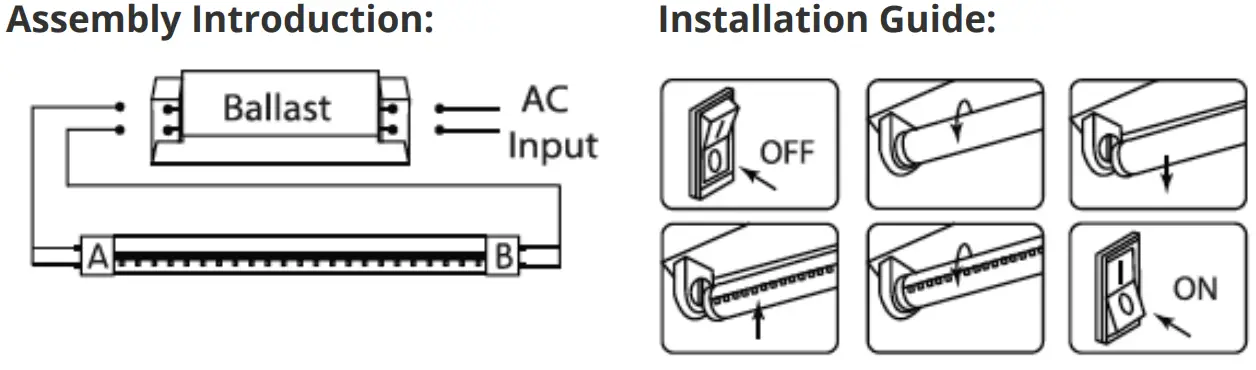

Assembly Introduction:

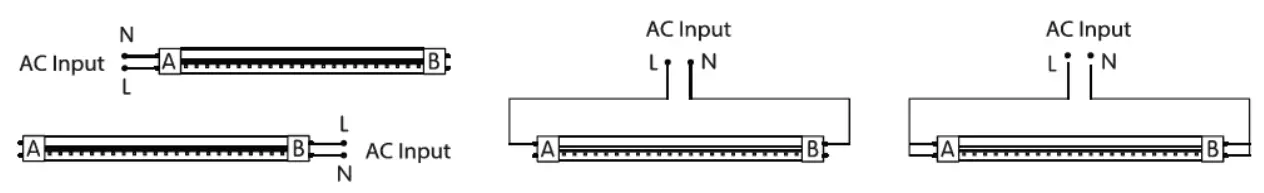

Note: The Tube can work with either single-end Power input or double-end input

1. Switch-off power to the luminaire. Disconnect power to luminaire or circuit (if possible). Ensure all power is OFF by using a voltmeter or other approved method to confirm.

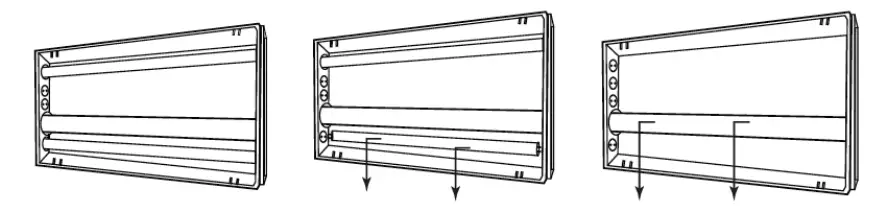

2. Remove existing tube lamp(s)
   a. Remove troffer lens, if present.
   b. Remove existing fluorescent tube by rotating one-quarter turn and sliding lamp(s)
   c. Remove ballast cover. (Cover may be secured with screw or tabs).

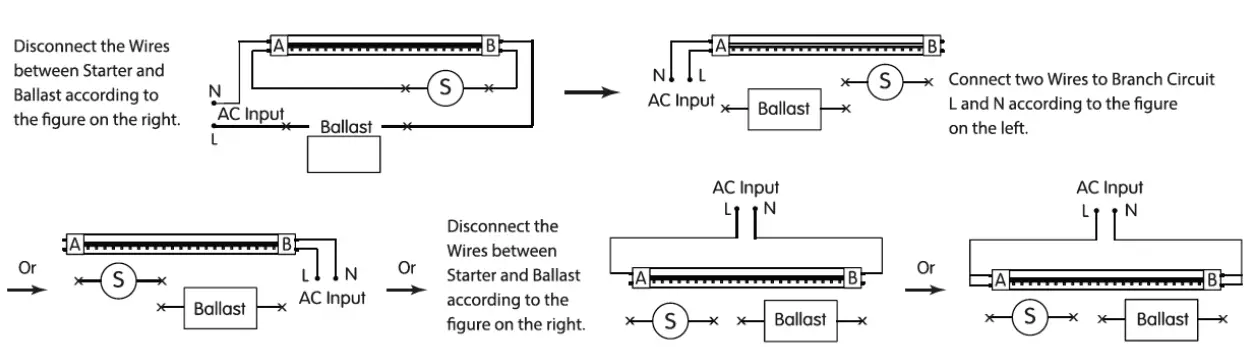

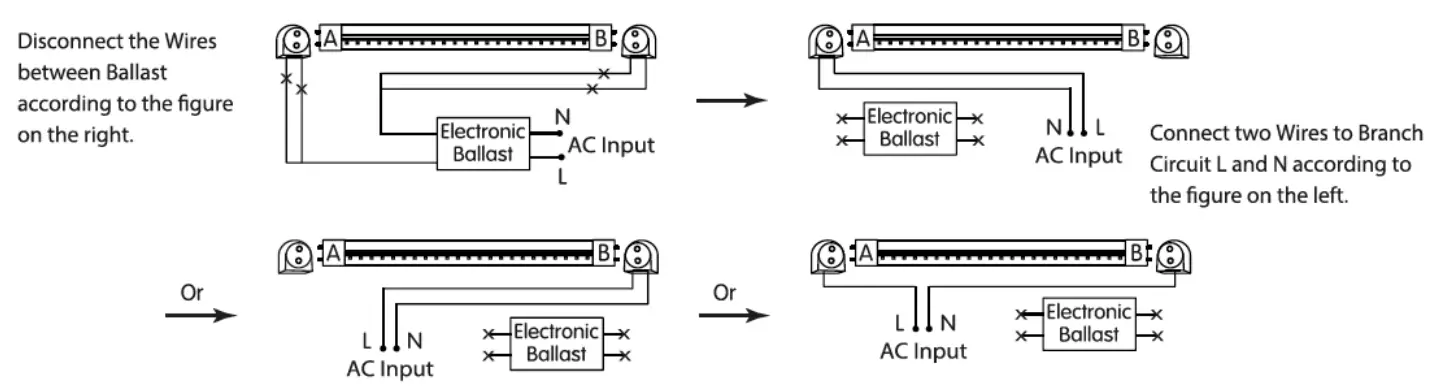

3. a. Retrofit luminaire-retrofit luminaire with inductive ballast
   b. Retrofit luminaire-retrofit luminaire with inductive ballast

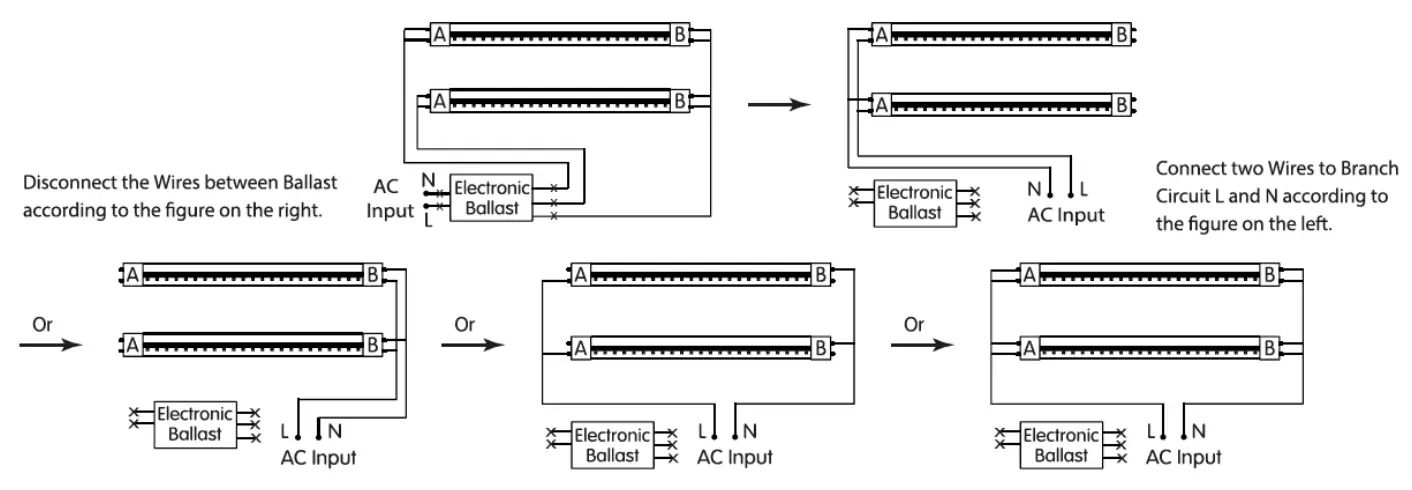

   c. Retrofit luminaire-retrofit luminaire with two lamps and one electronic ballast

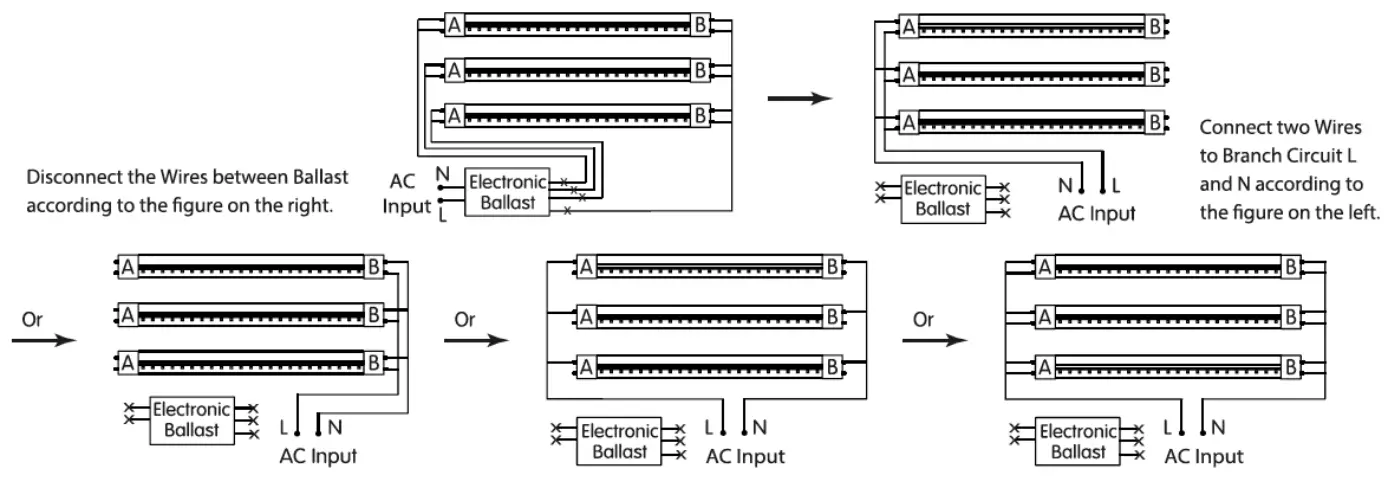

   d. Retrofit luminaire-retrofit luminaire with three lamps and one electronic ballast

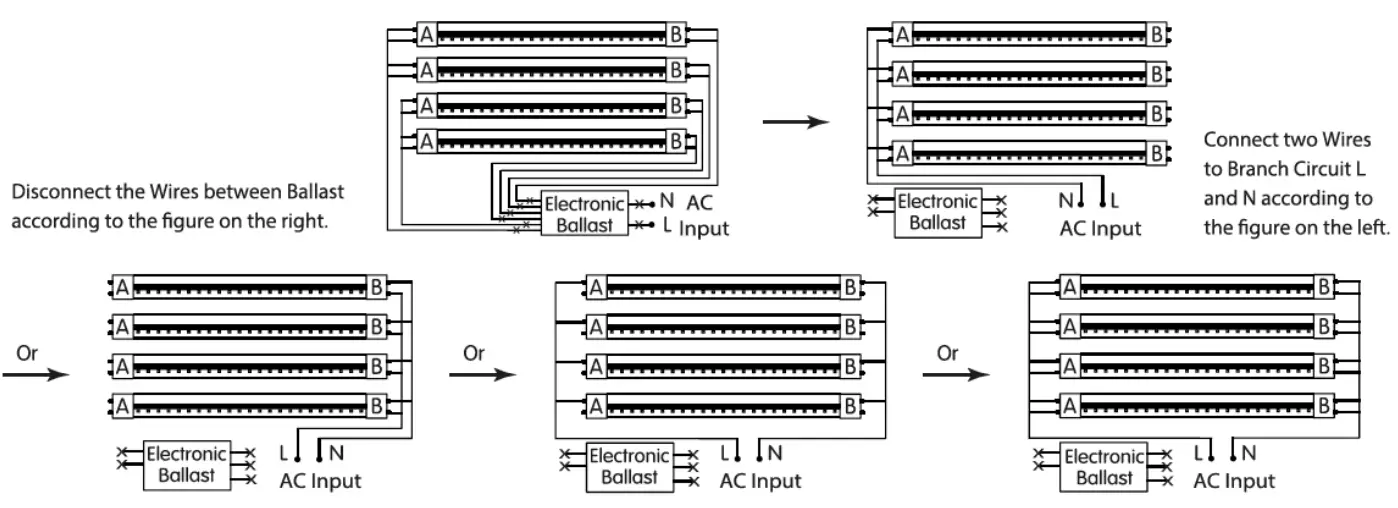

   e. Retrofit luminaire-retrofit luminaire with four lamps and one electronic ballast

4. Insert LED tubes
   a. Ensure both the ends of the LED tube are aligned with the socket, then insert the LED lamp in the usual way by sliding pins into sockets and rotating a quarter turn until the LED tube locks in the place.
   b. LED lamps are now fully installed.
   c. replace troffer lens if present.
   d. After the modification is completed, attach the replacement marking and cautionary label to a visible place on the luminaire and keep it visible after installation.
5. Restore the power of the luminaire restore power to the circuit/luminaire and a test light. If necessary, adjust the position of the LED tube, and enjoy your new Led tube.

Phone: (877) 805-2252 | Fax: (877) 805-2252
www.westgatemfg.com
