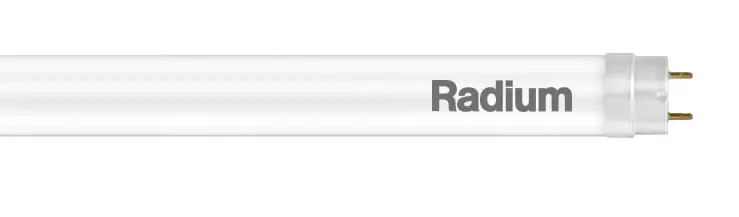

Radium LED T8 Neo Tube Light
INSTALLATION INSTRUCTIONS
| Replacement of conventional T8 fluorescent tube on CCG | Maximum case temperature (Tc) | Ambient temperature (Ta) | Permitted operating current [mA] | Rated operation current [mA] | Rated Wattage [W] | Operation Voltage [V] | |
| LED T8 NEO 18 | 0.6 m = 18 W | 70°C | -20° … 50°C | 200-550mA | 350mA | 6.9W | 18.5…20.5V |
| LED T8 NEO 36 | 1.2 m = 36 W | 500-1000mA | 700mA | 13.9W | 19…21V | ||
| LED T8 NEO 58 | 1.5 m = 58 W | 1000-1500mA | 1200mA | 24.3W | 19.5…21.5V |

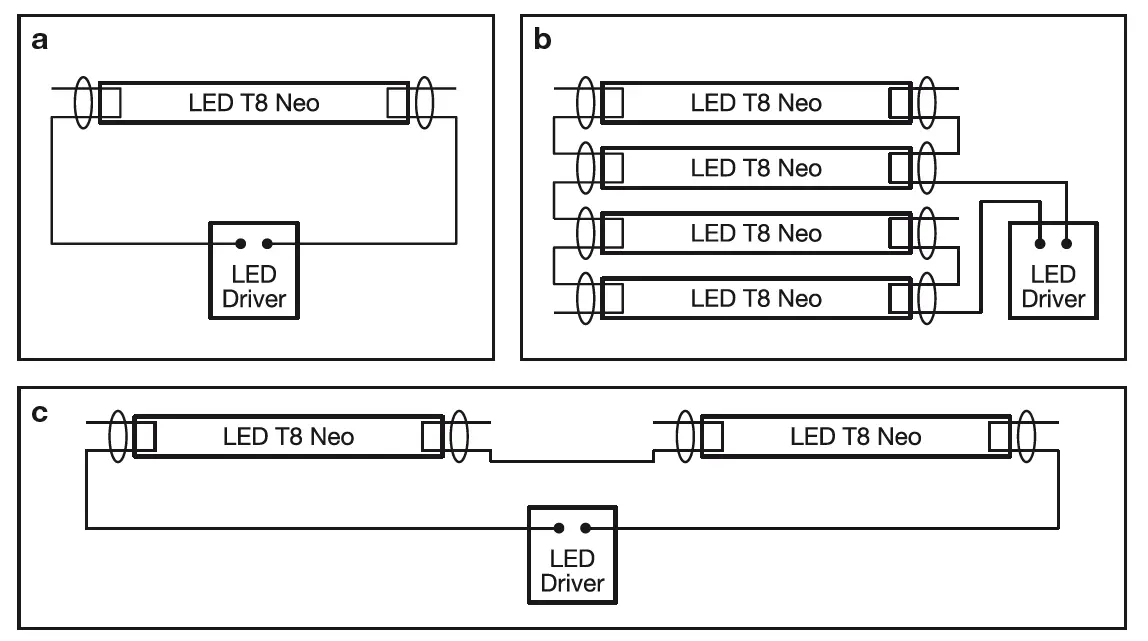

| Recommended LED driver for single tubes (a) | Recommended LED driver for two tubes (c) | Recommended LED driver for four tubes (b) | |
| LED T8 NEO 18 | OTDA4030 | OTDA4030 / OTNA4033 | OTDA4031 / OTNA4034 |
| LED T8 NEO 36 | OTDA4031 | OTDA4031 / OTNA4034 | OTDA4032 / OTNA4035 |
| LED T8 NEO 58 | OTDA4032 | OTDA4032 / OTNA4035 | – |

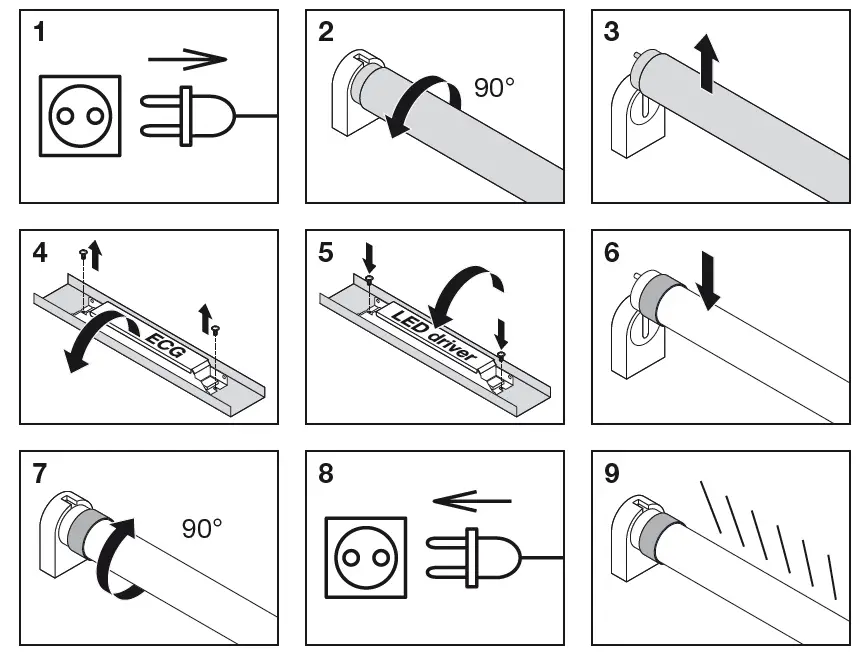

This lamp is designed for general lighting service. The LED T8 Neo is suitable as a replacement for T8 fluorescent lamps with G13 bi-pin bases. It is not allowed to connect LED T8 Neo on direct mains (220-240V) or electro-magnetic control gear (CCG), or electric control gear (ECG). ECG or CCG needs to be replaced by a suitable constant current LED- Driver by a qualified electrician. Replacing the driver represents a modification to the luminaire. This lamp may not be suitable for use in all applications where a traditional fluorescent lamp has been used. The temperature range of this lamp is more restricted. In cases of doubt regarding the suitability of the application, the manufacturer of this lamp should be consulted.
Lamp to be used in dry conditions or in a luminaire that provides protection
