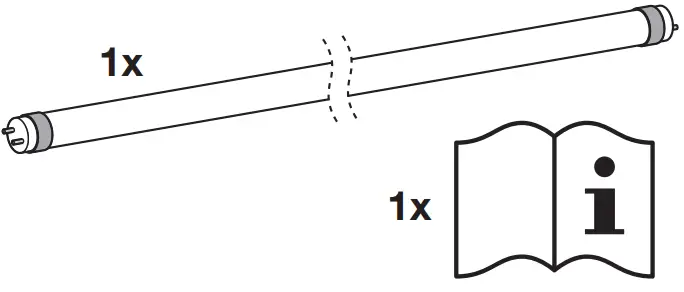

SubstiTUBE T5 HF LED Tube

ECG Compatibility
It is mandatory to operate OSRAM LED Tubes only with compatible ECGs listed at

https://www.ledvance.com/professional/services/led-lamps-compatibility/ecg-compatibility/index.jsp

Please find LED TUBES: COMPATIBILITY WITH ECGS
File name: Ballast compatibility list SubstiTUBE Universal T8, T5 HF, and T8 HF GenX
LEDVANCE does not accept any responsibility, warranty, or liability when using ECGs not mentioned, marked as non-compatible ECGs or when using successor/different Reference No. models of tested ballasts.

SubstiTUBE ® T5 HF LED tube is suitable as a replacement for T5 fluorescent lamps with G5 bi-pin bases. ST5 HF tubes can be fitted as a replacement into luminaires operating on electronic control gear (HF).

The operating temperature range of the SubstiTUBE ® T5 HF LED tube is restricted. In case of doubt regarding the suitability of the application please measure Tc max temperature on the product. In the case of the multi-lamp luminaire, the application measure the Tc max temperature of all installed lamps. Please use a flexible thermosensor (e.g. “Type K”)
SubstiTUBE ® T5 HF LED tube operated above Tc max can lead to premature aging and failure of devices.
SubstiTUBE ® T5 HF LED tube emits light only with a limited beam angle, not like a fluorescent tube with 360° output.
The SubstiTUBE ® T5 HF LED tube is designed for general lighting applications (excluding for example explosive atmosphere).

	SubstiTUBE® T5 HF
Meaning	Compatible with HF	Not suitable to use on 220-240V AC	The lamp is not suitable for emergency operation	Lamps to be used in dry conditions or in a luminaire that provides protection	Dimming not allowed	Lamp suitable for high-frequency operation

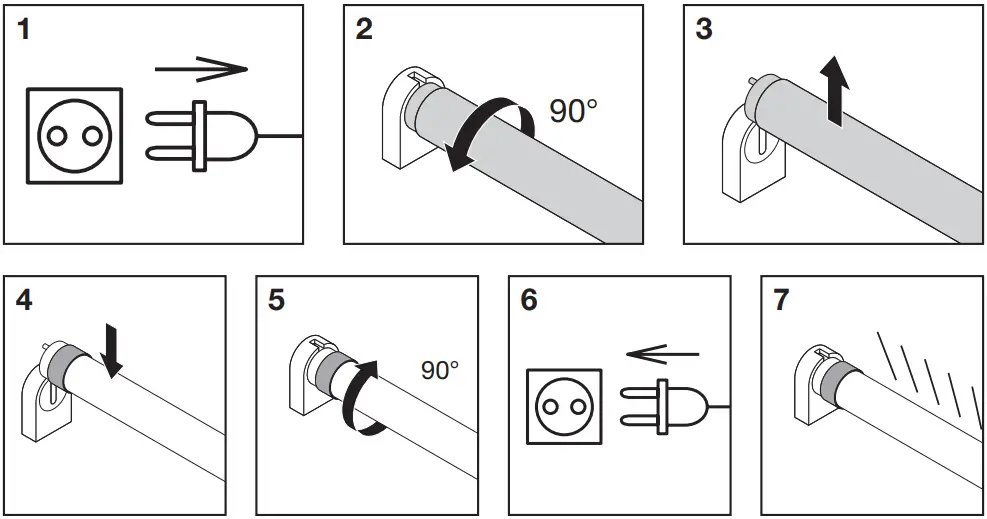

Instructions on HF (ECG) compatible ballast

	Replacement of T5 FL*	Storage temperature (Ts)**	Ambient temperature (Ta) of lamp***
LED TUBE T5 HF HO80 1449 37W 8XX	80W: 1449mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HO54 1149 26W 8XX	54W: 1149mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HO49 1449 26W 8XX	49W: 1449mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HE35 1449 18W 8XX	35W: 1449mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HE28 1149 17W 8XX	28W: 1149mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HE21 849 10W 8XX	21W: 849mm	-20°C … 80°C	-20°C … 45°C
LED TUBE T5 HF HE14 549 7W 8XX	14W: 549mm	-20°C … 80°C	-20°C … 45°C

(8XX = 830, 840, 865)

Replacement of T5 FL
Storage temperature
Ambient temperature

Installations on HF (ECG) compatible ballast. Please check the latest update of the compatibility list
https://www.ledvance.com/professional/services/led-lamps-compatibility/ecg-compatibility/index.jsp
File name: Ballast compatibility list SubstiTUBE Universal T8, T5 HF, and T8 HF GenX.

https://www.ledvance.com/professional/services/downloads/index.jsp

LEDVANCE GmbH
Steinerne Furt 62
86167 Augsburg, Germany
www.ledvance.com
GB LEDVANCE Ltd, Aquila House
Delta Crescent, Westbrook, Warrington
WA5 7NR, United Kingdom
