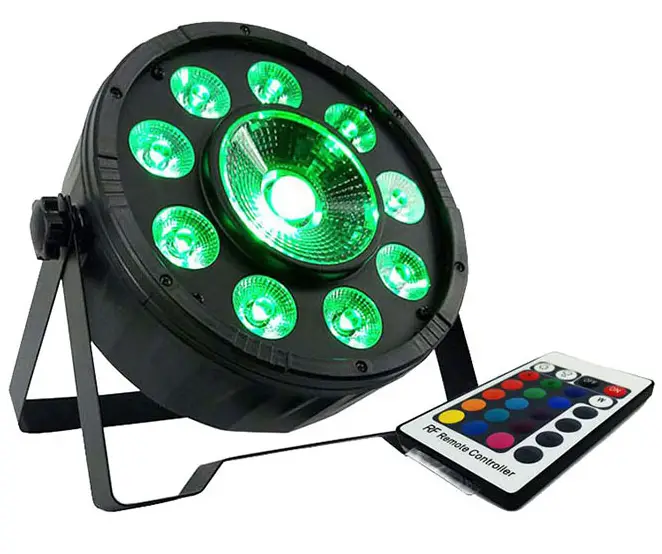

SHEHDS SHE-RCFP9130C LED PAR 9х10W+1x30W
USER MANUAL
Please carefully read the product description before use
Maintenance
- Please keep the light in dryness and avoid use in wet places.
- Using intermittently can be extended the life.
- Attention to clean the fan and lens usually in order to get the ventilating effects and lighting effects better.
- Please do not wipe the crust using organic menstruum avoid to damaging the product.
Statement
Hie product has well capability and intact packing when leaving the factory. All the users should comply with the above warning item and manual, any misuse cause the damages is not included in our guarantee. and also can’t be responsible for any malfunction & problem owing to ignoring the manual Please forgive that we will not be noticed for technical change
Attention Item
- For guarantee the life of the product. please don’t put it in a wet place and not use it in a place over 40 degrees.
- Please don’t lay the product in an un-fixable or shakable place.
- Ask for a professional to maintain the product in order to avoid the danger of getting an electric shock.
- Power supply should not be changed over +&-10% while the light is used, it will be decreased the life of the lamp if the power is too high, but it will be influenced the luminosity if the power is too low.
- After power off.if it needs to be used again. please cool down for over 20 minuter.
- Please look around the manual to ensure the product can be used normally.
DMX Channel Summary-7 Channels Mode
| Channel | Value | Function |
| 1 | Total dimming | R, G> B’ W Total dimming, linear dimming, dark to light |
| 2 | R dimming | R Dimming, linear dimming, from dark to light |
| 3 | G dimming | G Dimming, linear dimming, from dark to light |
| 4 | B dimming | B Dimming, linear dimming, from dark to light |
| 5 | W dimming | W Dimming, linear dimming, from dark to light |
| 6 | Function selection | 0—50: Strobe and linear dimming; 51—100: Jump; 101—150: Gradient; 151—200: Pulse variable, 201—255: Voice |
| 7 | Function speed | Corresponding to the speed of the sixth channel function, from slow to fast |
Display Control Instruction
| No | Display | Function |
| 1 | D001 | Address code, (512 – 001) B, C key value addition and subtraction address code value |
| 2 | iron | Infrared. (OFF – B) ON, C key selector switch |
| 3 | P000 | Colorful jump, (255 – 00) B, C key to modify the jump speed |
| 4 | L000 | Colorful gradient, (255 – 00) B, C key repair speed gradient |
| 5 | E000 | Colorful pulse change, (00 – 255) B, C key to modify the pulse speed |
| 6 | Soud | Colorful voice changes |
| 7 | R000 | Red color selection. (255 – 000) C, B key to modify the brightness |
| 8 | G000 | Green color selection, (255 – 000) C, B key to modify the brightness |
| 9 | B000 | Blue color selection, (255 – 000) C, B key to modify the brightness |
| 10 | W000 | | White color selection, (255 – 000) C, B key to modify the ‘ brightness |
| 11 | F000 | Strobe. (000 – 255) B. C key to modify the flicker frequency |

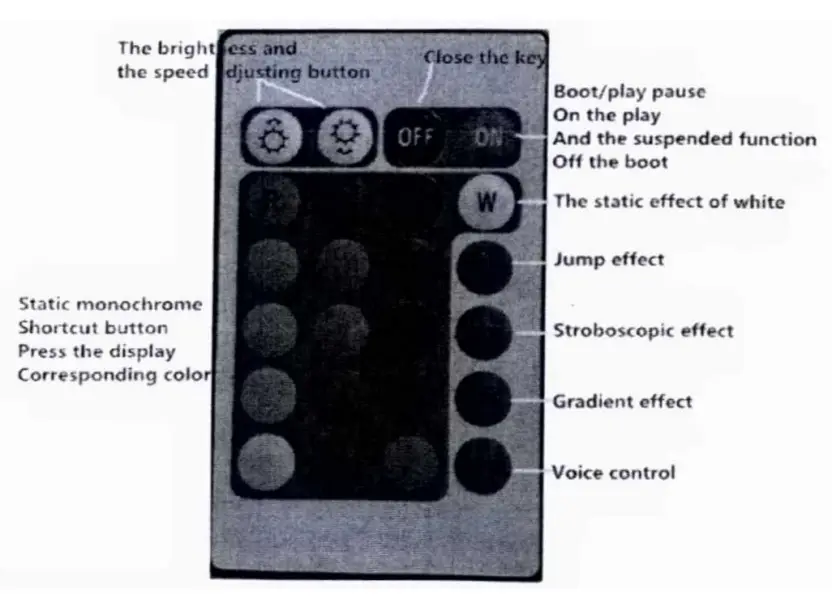

Infrared Function
matters needing attention:
- 1) in a place as long as the infrared function to open a lamp, first open the infrared function keys (IR, ON)
Other lights are set to (IR OFF); - 2) at the same time and can only choose a console IR (infrared control, operate in the host mode).
Display Control Instruction
Welcome to use our LED Par RGB 9*10W+l xJOW.The light uses an energy-saving LED.long Product huge. shockproof.dustproof, DMX receiver, and seif-running feature, which can produce a variety of vivid lighting effects. easy to opiate, suitable for all types of entertainment decoration.architectural lighting industry.

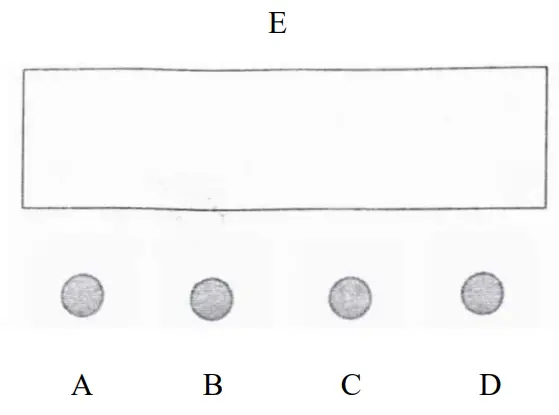

A: Function
B: Up
CrDovvu,
D: Enter
E: LED Display
Instructions Press the function key A cycled out the eight different function effects. digital tube first two digits on behalf of which the current function(see menu). The last two digits represent the functions in which the address code or speed parameters. Press the B or C key to modify the parameter values. Press the D key to confirm
Product Introduction
- * Power Supply: AC90–275V,50–60HZ
- * Power consumption: 120W
- * Fixing lamp.LED Par RGB 9* 10W+1 x30W
- * DMX-ControI-channels:7 DMX Channels
- * Shuttle: Flash rate: 0–10HZ
- * Dimmer:0-100% mechanic dimmer
- ♦Operational modes: DMX512, AutoRun. Sound action, Strobe, Stand Alone, and Master/Slave, With Rich Advanced Built-in Programs.
- * Beam Angle:25/35/40/45 degree
- * Long Lifespan LEDs(more than 60.000 hours)
- * Weight: 1.5 KG
- * Product size:20.5×20.5×8 cm
