User Manual
LDRF-RGB8-TC3B
Important: Read all instructions prior to installation.
RGB Controller with Touch Color Remote
Parts Included
1 – RGB Controller
1 – RF Touch Color Remote

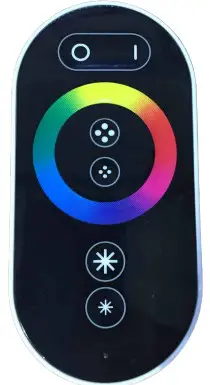

RF Remote
| Button | Functions |
 | Turn all LEDs on and off, retaining the last setting on power toggle. |
 | Pauses the current mode, press the same button again to resume. |
| COLOR WHEEL | Directly select a color on wheel from any mode or color selection by touching the color wheel. Rotate finger around to fine-tune desired color. |
BRIGHTNESS +/-  | Dim LEDs in any static color mode by pressing the ( ) symbol. Brighten LEDs by pressing the ( ) symbol. |
| SPEED +/- | Increase ( ) and decrease ( ) speed on dynamic modes. |
MODE +/- | Cycle up or down through 29 different dynamic modes, static white, and static color modes. |
General Description
LDRF-RGB8-TC3(Black or White remotes) three-channel RGB (Red, Green, Blue) LED controller with color touch wheel for directly selecting a wide range of colors.
Offers 29 dynamic modes, static white mode, and static single-color modes with adjustable brightness, speed and mode retention (controller resumes modes with the settings previously selected on power toggle).
Instructions
Pre-test & Configure
May be used with RGB strips, bars, modules, and other RGB LED products.
Connect LEDs to power supply and controller Turn on LEDs using the included remote controller to ensure proper operation of the LEDs, power supply, controller, and remote.
The red power light will illuminate when the controller is powered.
Green receiver light will illuminate when the controller is receiving a signal from the remote.
Choose a suitable dry location for the power supply and controller.
Static White Mode
Press “
” mode button until white. Brightness is adjustable using “ ” (dim) “ ” (bright) buttons.
Static Color Mode
To select a static color from any mode:
Press the color wheel to select your color. Brightness is adjustable using “ ” (dim) “ ” (bright) buttons.
Modes List
| Static Modes | ||
| Mode | Function | Dimmable |
| 1 | Static Red | Yes |
| 2 | Static Blue | Yes |
| 3 | Static Green | Yes |
| 4 | Static Cyan | Yes |
| 5 | Static Yellow | Yes |
| 6 | Static Purple | Yes |
| 7 | Static White | Yes |
| Dynamic Modes | ||
| Mode | Function | Speed Adjustable |
| 8 | RGB jump changing | Yes |
| 9 | 7 color jump changing | Yes |
| 10 | RGB static fade | Yes |
| 11 | 7 color general change | Yes |
| 12 | Red strobe flash | Yes |
| 13 | Green strobe flash | Yes |
| 14 | Blue strobe flash | Yes |
| 15 | Yellow strobe flash | Yes |
| 16 | Cyan strobe flash | Yes |
| 17 | Purple strobe flash | Yes |
| 18 | White strobe flash | Yes |
| 19 | Red/green strobe flash | Yes |
| 20 | Red/blue strobe flash | Yes |
| 21 | Blue/green strobe flash | Yes |
| 22 | All colors flash | Yes |
| 23 | Red flash | Yes |
| 24 | Green flash | Yes |
| 25 | Blue flash | Yes |
| 26 | Yellow flash | Yes |
| 27 | Cyan flash | Yes |
| 28 | Purple flash | Yes |
| 29 | White flash | Yes |

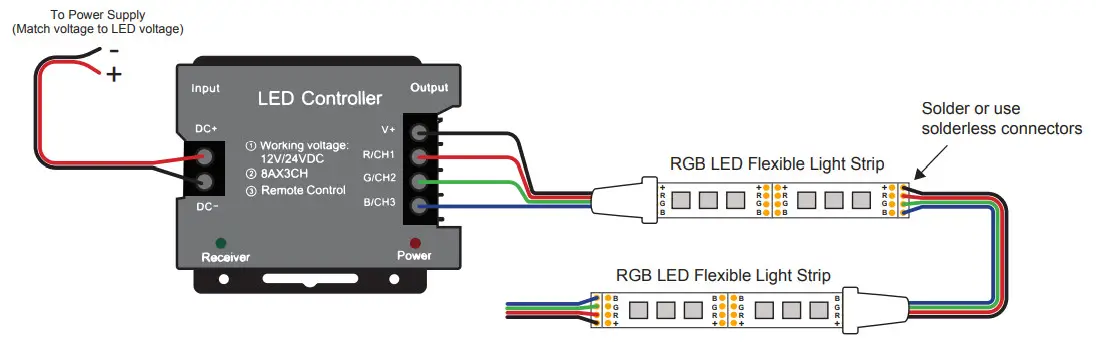

Wiring: Method 1
Specifications
| Type | 3 Channel |
| Input Voltage | 12/24 VDC |
| Output | 8 A per channel |
| Max Wattage | 288 W (12 VDC) / 576 W (24 VDC) |
| Operating Temp | -4°–140° F (-20°–60° C) |
| Frequency | 433 MHz |
| FCC ID | 2AFRVFC433RMT5 |
| Batteries | 3 x AAA (Not Included) |
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications in the construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Safety and Notes
- Do not connect directly to VAC power. This controller requires 12 VDC or 24 VDC power supply.
- Do not exceed max load of 8 A per channel. Overloading the controller may cause overheating, shorting, and possible failure of the controller.
- Ensure power supply is not connected during any wiring or installation procedures.
- Do not expose the controller or remote to direct or indirect moisture.
- Always observe proper polarity when connecting wiring.
Rev Date: V0.1 04/07/2020
4400 Earth City Expy, St. Louis, MO 63045
866-590-3533 superbrightleds.com
