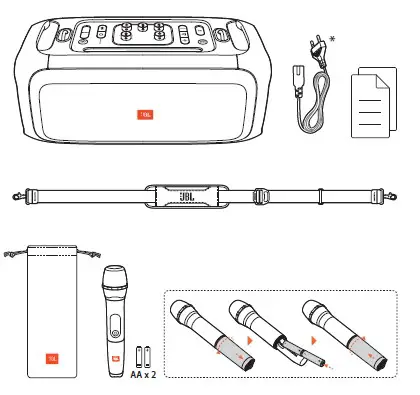

* Power cord quantity, plug type and microphone quantity vary by regions.

Fully charge the speaker before outdoor use

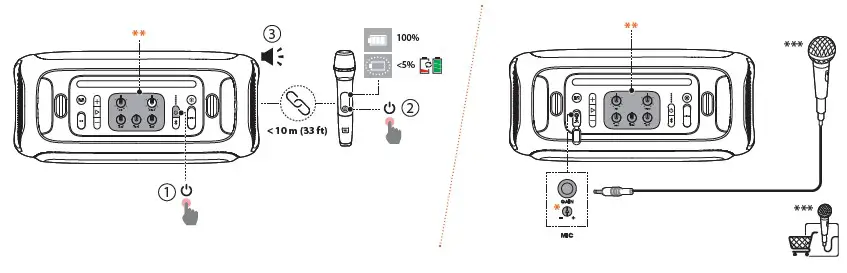

Rotate to adjust gain (for wired microphone only).
** Rotate to adjust the microphone volume, echo, treble, and bass respectively.

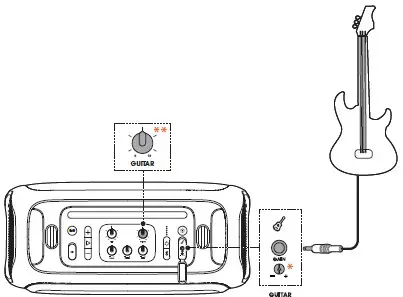

* Rotate to adjust the guitar gain.
* Rotate to adjust the guitar volume

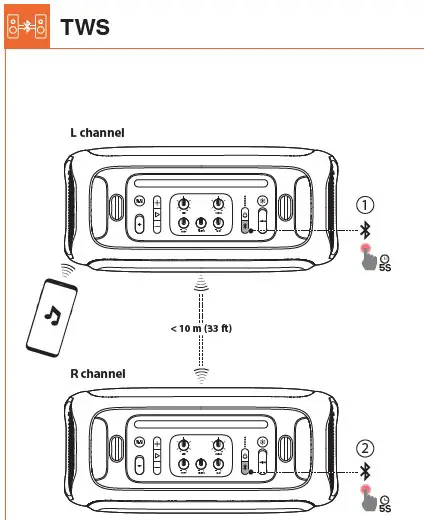

L channel / R channel

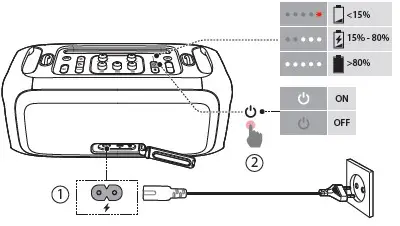

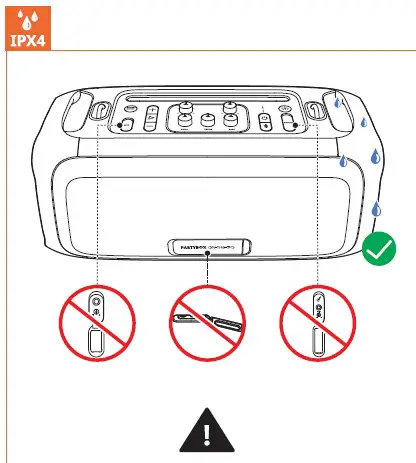

Always keep the charging port dry before connecting AC power.

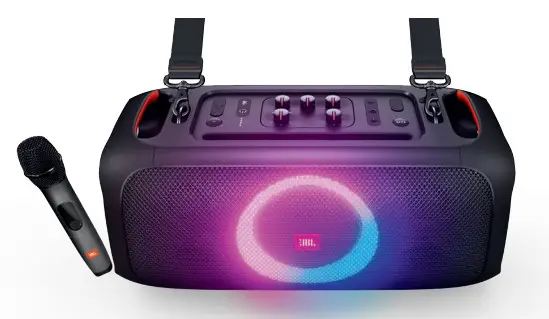

Product name: PARTYBOX ON-THE-GO
AC power input: 100 – 240 V ~ 50/60 Hz
Built-in Battery: 18 Wh
Power consumption: 60 W
Total output power: 100 W RMS
Standby power consumption: < 2 W with BT Connection; < 0.5 W without BT Connection

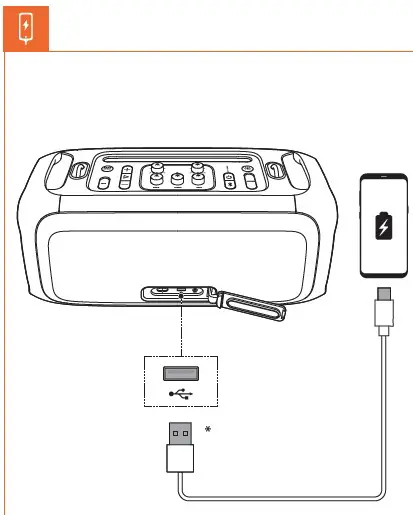

USB output: 5 V 2.1 A
Speaker drivers: 1 x 5.25 in (133 mm) woofers + 2 x 1.75 in (44 mm) tweeters
Signal-to-noise (S/N) ratio: > 80 dBA
Frequency response: 50 Hz – 20 kHz
Battery charge time: < 3.5 hrs
Battery play time: < 6 hrs
Bluetooth version: 4.2
Bluetooth profile: A2DP v1.3, AVRCP v1.6
Bluetooth transmitter frequency range: 2.4 – 2.48 GHz
Bluetooth maximum transmitter power: 10 dBm (EIRP)
Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK

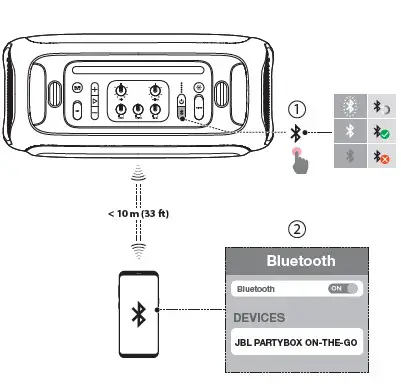

Bluetooth range: Approx. 10 m (33 ft)
USB format: FAT 16, FAT 32
USB file format: .mp3, .wma, .wav
Digital input: Bluetooth / USB -9 dBFS
Input sensitivity:
AUX in: 370 mV rms Microphone: 20 mV rms Guitar: 100 mV rms
Product Dimension (W x H x D): 490 x 245 x 228 mm / 19.3 x 9.6 x 9.0 in
Net weight: 6.5 kg / 14.3 lbs
6 hrs battery playtime is only a reference and may vary depending on music content and battery aging after numerous charging and discharging cycles. It’s achievable with a predefined music source, light show switched off, volume level at 13 and Bluetooth streaming source
