PRODUCT SPECIFICATIONS
Indoor Lighting Control, Wireless Remote, 1 Polarized Outlet
my smart

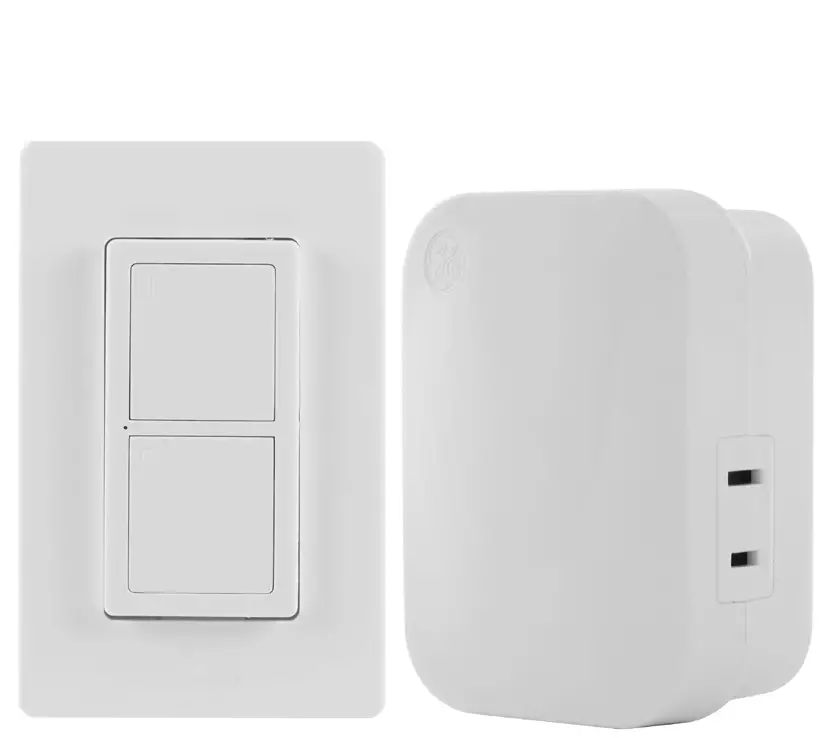

JASCO 36523 Indoor Lighting Control Wireless Remote

Specifications

Power:120VAC
Signal frequency:60Hz
Maximum load:360W tungsten, 12A general purpose, 1/2HP motor, 1440W (12A) resistive
Operating temperature:-13-131°F (-20-55°C)
Operating humidity:5-85%
Warranty:1-year limited warranty

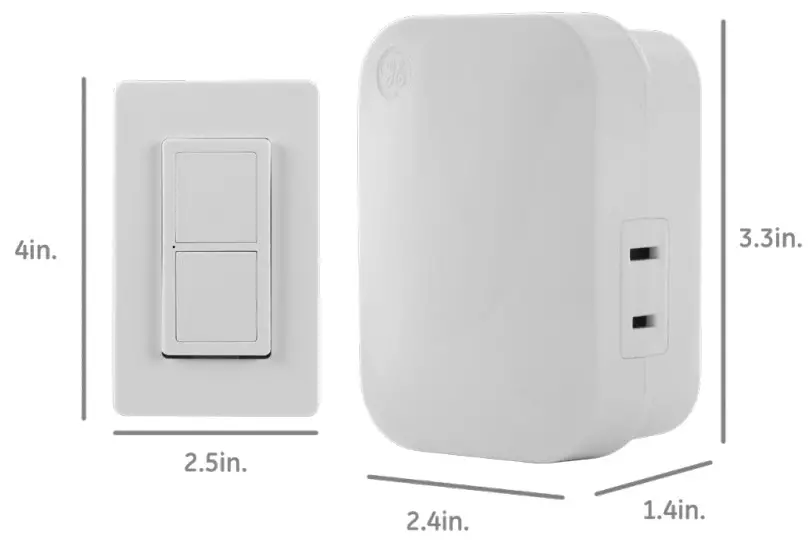

Design Features

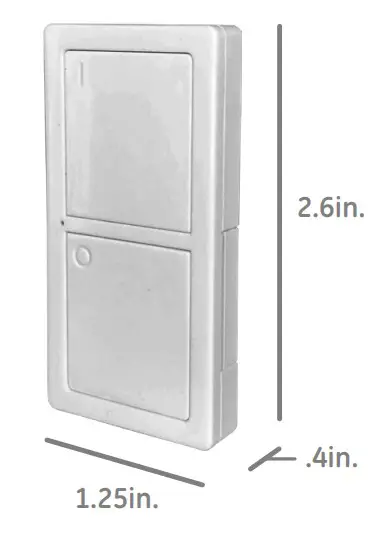

JASCO 36523 Indoor Lighting Control Wireless Remote - Design Features1
  • Lighting control ­ Conveniently control indoor lamps, lights, and seasonal decor with the wireless ON/OFF remote and plug-in receiver featuring 1 polarized outlet.
  • Wireless remote ­ The wireless remote provides ON/OFF operation up to 150ft. from the receiver. 1CR2032 battery is included to power the remote.
  • Lighting network ­ Pairs with multiple receivers and transmitters to extend the lighting network using available motion and door sensors, countdown or dimming remotes ­ no Wi-Fi or wiring needed.
  • Compatible with LED, CFL, and incandescent bulbs.
  • Wall mount ­ The remote doubles as a wall-mounted switch (hardware included) or fits existing multi-gang locations.
  • Wallplate included.

Additional Installation Information

  • Indoor use only
  • Bilingual instruction manual — English and Spanish

No wiring needed Scan to learn more!JASCO 36523 Indoor Lighting Control Wireless Remote - QRhttps://byjasco.com/HEP-ET/20000-99999/36523

Battery-Operated Remort Control

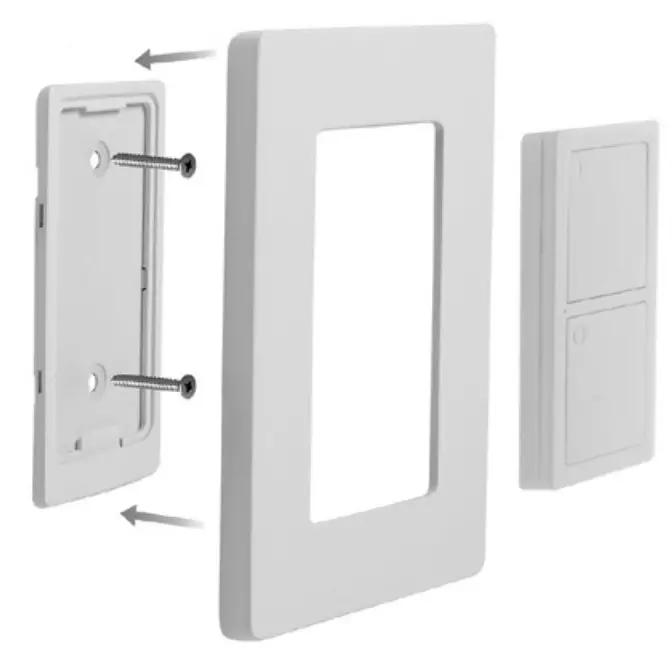

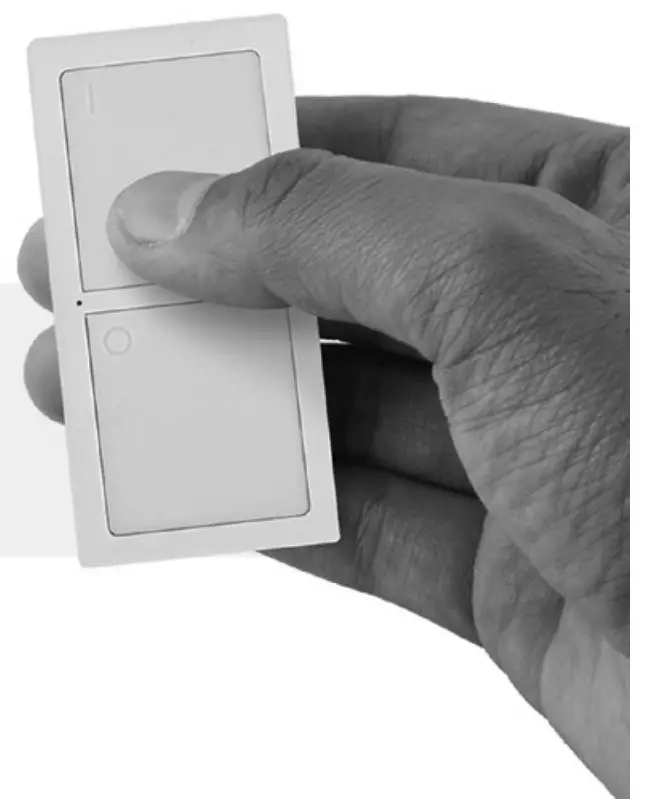

Use as handled remote(Remort battery included)JASCO 36523 Indoor Lighting Control Wireless Remote - remort control1Mount remort alone(Hardware included)JASCO 36523 Indoor Lighting Control Wireless Remote - remort control3

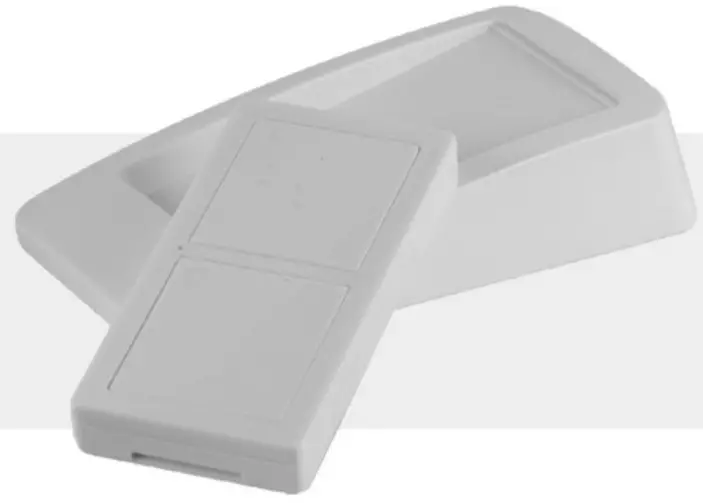

Place in the cradle(Cardle sold separately)JASCO 36523 Indoor Lighting Control Wireless Remote - remort control2

Related Products – mySelectSmart Lighting Controls

36240
Indoor Single Outlet Lighting ControlJASCO 36523 Indoor Lighting Control Wireless Remote - control1
37781
Indoor DimmingSingle Outlet Lighting ControlJASCO 36523 Indoor Lighting Control Wireless Remote - control2
39767

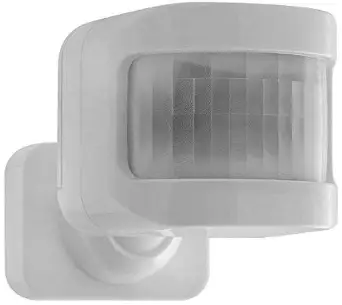

Indoor Motion Sensing LightingControlJASCO 36523 Indoor Lighting Control Wireless Remote - control3
39772
Wireless RF, On/Off Outlet ReceiverJASCO 36523 Indoor Lighting Control Wireless Remote - control4
36236

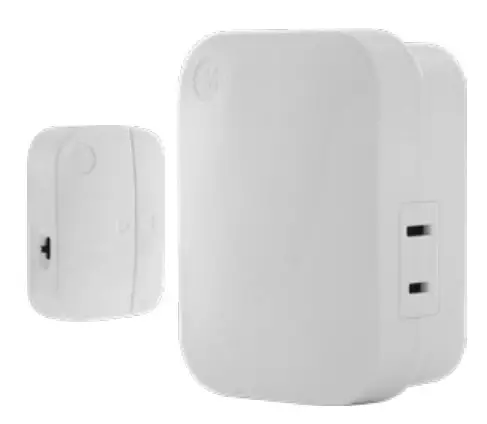

Indoor Door Entry Lighting ControlJASCO 36523 Indoor Lighting Control Wireless Remote - control6
58617
Indoor Door Entry Lighting Control, 3PKJASCO 36523 Indoor Lighting Control Wireless Remote - control6
36237

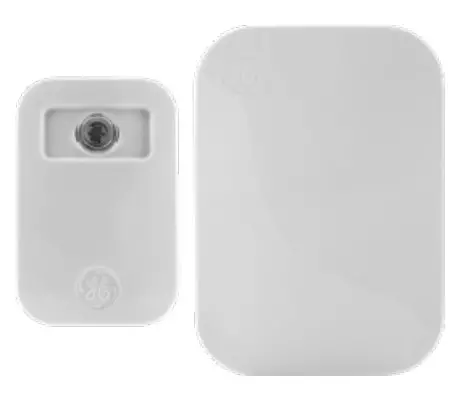

Indoor Dusk to Dawn Lighting ControlJASCO 36523 Indoor Lighting Control Wireless Remote - control7
36235

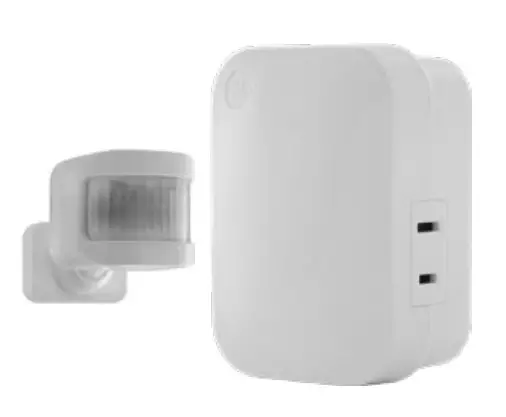

Indoor Motion-Activated Lighting ControlJASCO 36523 Indoor Lighting Control Wireless Remote - control8

Certifications & Compliances

Compliances, specifications, and availability are subject to change without notice.
Distributed by Jasco Products Company LLC
10 E. Memorial Rd., Oklahoma City, OK
Questions? Contact our U.S.-based Consumer Care at
1-800-654-8483 between 7 AM-8 PM, M-F, Central Time.

©Jasco 2021

jasco logowww.byjasco.com
