Ultimate Ears Wonderboom 3 Speaker User Guide

Ultimate Ears Wonderboom 3 Speaker User Guide

ULTIMATE-LOGO

ULTIMATE EARS WONDERBOOM 3 Speaker

ULTIMATE EARS WONDERBOOM 3 Speaker-FIG1

BIGGER. LONGER.
MORE SUSTAINABLE.
Meet the next generation of WONDERBOOM. It’s the ultraportable Bluetooth® speaker with surprisingly bigger 360o sound. Hear your music in all its crisp and bassy glory, always ready to go with a longer 14 hours of full-stereo boom. The IP67 rating means it’s waterproof, dustproof, and floats, so you can take amazing sound anywhere—the pool, beach, or even the shower. Now made with a minimum of certified 31% post-consumer plastic that gives new life to PET bottles, so you can party for the planet.

  1. Actual battery life will vary with use, settings, and environmental conditions.
  2. IP67-rated waterproof and dust proof (up to 30 minutes and a depth of 1 meter).
  3. Drop-tested from 5 ft / 1.5 m.

FEATURES

  • Bigger, bassy-er 360° sound
  • Longer 14-hour rechargeable battery life 1
  • Rated IP67 waterproof + dustproof 2, drop proof3, floats
  • Pair two to DOUBLE UP in true wireless stereo
  • Longer 40m (131 ft) Bluetooth® wireless range
  • Made with recycled materials

WHAT’S IN THE BOX

  • Ultimate Ears WONDERBOOM 3
  • Bungee (attached to speaker)
  • USB cable
  • Quick Start Guide

PACKAGE SPECIFICATIONS

PACKAGE SPECIFICATIONS


Part# Active Black

Single

984-001807

Case Pack

N/A

UPC Active Black09785517519910097855175196
Part# Joyous Brights984-001810N/A
UPC Joyous Brights09785517522910097855175226
Part# Performance Blue984-001808N/A
UPC Performance Blue09785517520510097855175202
Part# Hyper Pink984-001809N/A
UPC Hyper Pink09785517521210097855175219
Weight21.87oz94.53oz
Length5.20in.10.75in.
Width4.53in.9.57in.
Height4.65in.5.51in.
Case Pack CountN/A4single units
Pallet Count512units128case packs
  • SYSTEM REQUIREMENTS
    For audio playback: smartphones, tablets and other devices that support Bluetooth® and Bluetooth® Smart wireless audio profile [Advanced Audio Distribution Profile (A2DP)]
  • TECH SPECS WIRELESS CAPABILITIES:
    • Wirelessly play (stream) to two WONDERBOOM 3 speakers from one source
    • Wireless range: 40m (131 ft.)
  • AUDIO:
    • Maximum Sound Level: 86 dBC (normal) and 87dBC (outdoor)
    • Drivers: Two 40 mm active drivers and two 46.1 mm x 65.2 mm passive radiators
  • POWER:
    • Rechargeable Lithium-Ion Battery for up to 14 hours of battery life between micro-USB charges
    • Charge time: 2.6 hours
  • DIMENSIONS:
    95.3 mm dia x 104 mm height (4 x 3 ¾ ”);
    Weight: 427g (.94 lb.)
  • WATER + DUSTPROOF IP67:
    Can be immersed in water up to 1m for up to 30 min

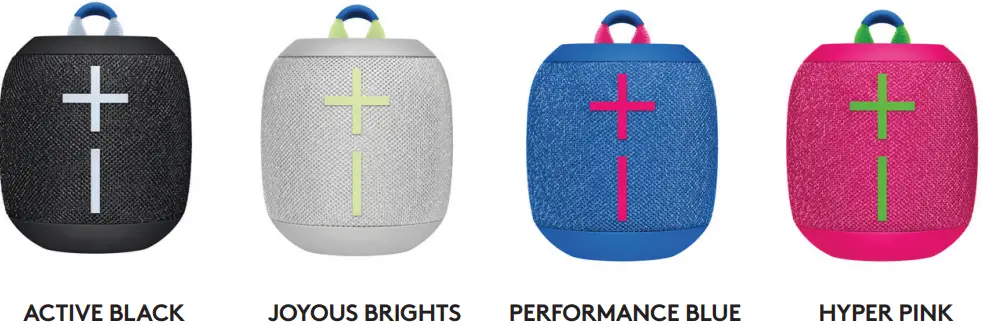

ULTIMATE EARS WONDERBOOM 3 Speaker-FIG2



© 2022 Logitech. Logitech, Ultimate Ears and the Logitech and Ultimate Ears logos are trademarks or registered trademarks of Logitech Europe S.A. and/or its affiliates in the U.S. and other countries. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Logitech is under license.
Logitech Inc., 7700 Gateway Blvd. Newark, CA 94560
