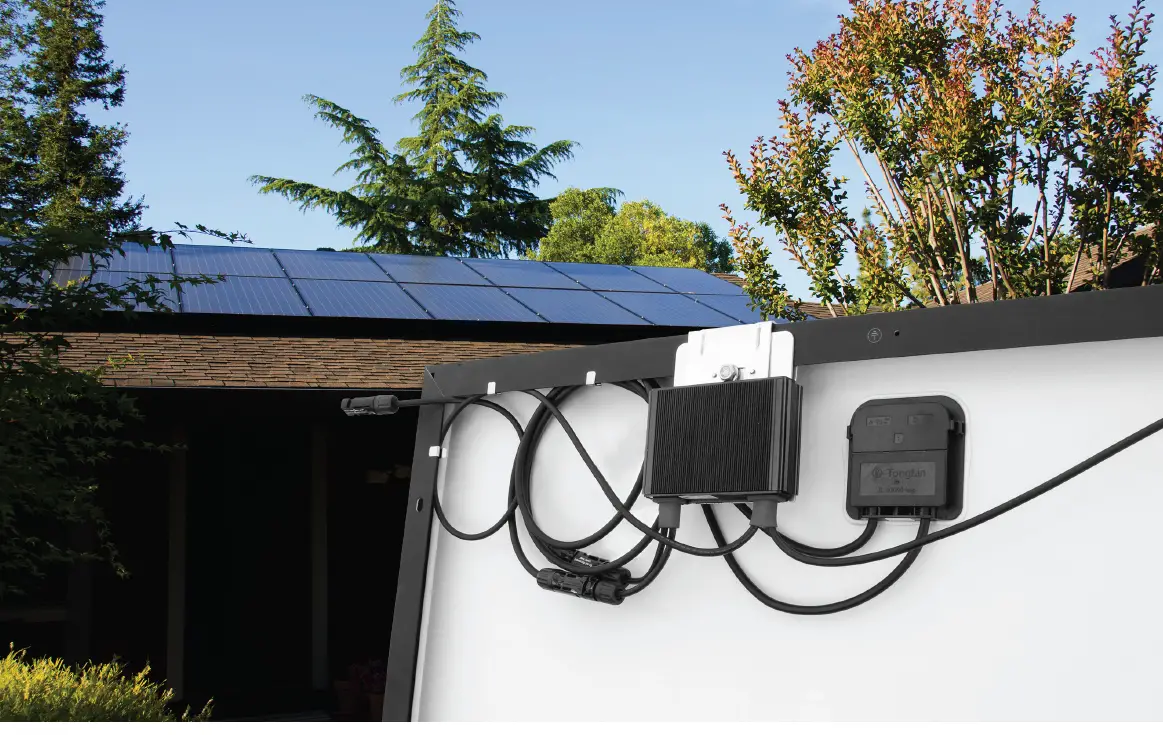

Quick Mount PV QMAFB-33A1 Accessory Frame Bracket
Installation Instructions
Installation Tools Required: PV wire clips, 1/2″ socket and torque wrench.

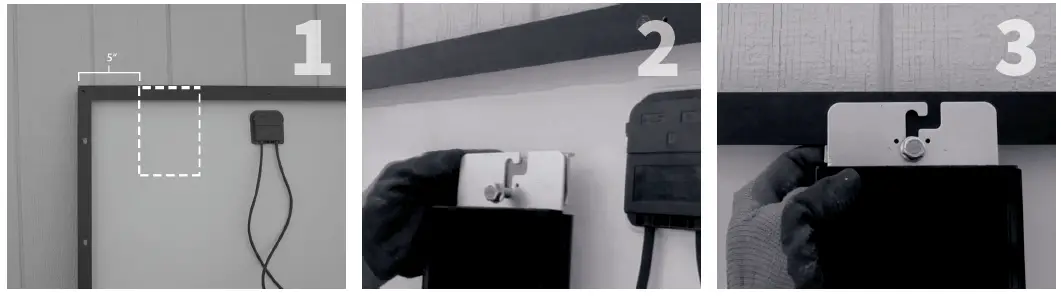

- In a standard landscape or portrait array, the Accessory Frame Bracket should be installed at least 5 inches from the edge of the module and at least 1 inch in from the edge of the module junction box.
- With the cap screw threaded into the bracket, slide the cap screw into the slot on the module level electronic mounting bracket with the bracket behind the module level electronic mounting bracket.
- Slide this assembly onto the module frame with the bracket behind the module frame, the module level electronic mounting bracket in front of the module frame.

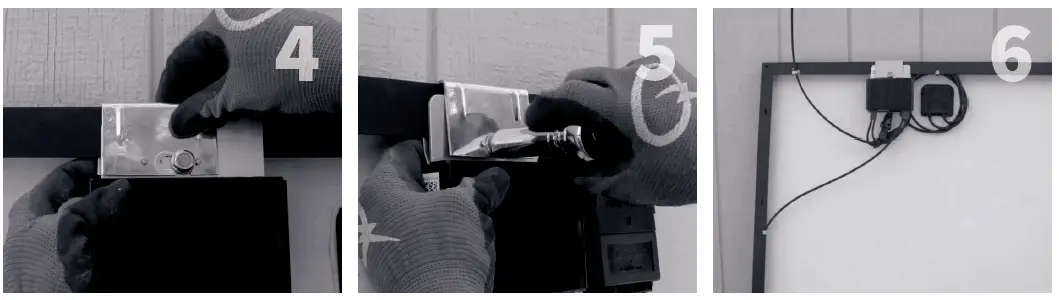

- Place the frame clamp over the edge of the module frame, and in front of the module level electronic mounting bracket. Slide the assembly up and to the left to engage cap screw into frame clamp slot.
- Tighten the cap screw with a half-inch socket and torque wrench to a torque of 15 foot-pounds.
- Neatly coil the wires and clip to module frame.
UL2703 Compliance Requirements
Tested and/or Evaluated PV Modules and Module Level Power Electronics (MLPE) for use with the Accessory Frame Bracket are included in subsequent pages.

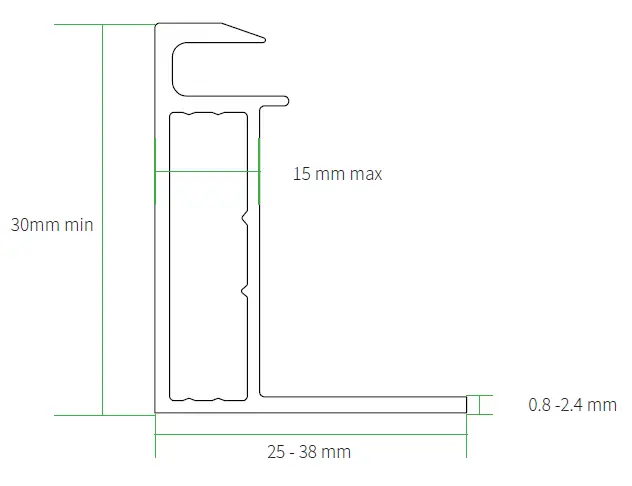

In addition, please verify that all listed modules have a minimum frame cross section
(long or short) that fits the following dimensional requirements:
List of UL Tested and/or Evaluated PV Modules
The Accessory Frame Bracket (AFB) is a UL 2703 Recognized product used to mount and electrically bond module level power electronics (MLPE) that have been tested and/or evaluated for use in combination with UL 1703 or UL 61730 Listed Modules and with the included instructions. Unless otherwise noted, “xxx” refers to the module power rating and both black and silver frames are included in the certification. Review module and 3rd party manufacturer’s documentation for compatibility and compliance with warranty terms and conditions
Manufacturer Model Number
| Adani | Adani modules with 35 and 40mm frames ASX-Y-ZZ-xxx Where “X” can be B, M or P, “Y” can be 6 or 7, and “ZZ” can be blank, PERC, B-PERC, or AB-PERC |
| Amerisolar | Amerisolar modules with 35, 40 and 50 mm frames AS-bYxxxZ Where ”b” can be 5 or 6; ”Y” can be M, P, M27, P27, M30, or P30; and ”Z” can be blank, W or WB |
| Aptos Solar | Aptos modules with 35 and 40 mm frames DNA-yy-zzaa-xxx Where “yy” can be 120 or 144; “zz” can be MF or BF; and “aa” can be 23 or 26 |
|
Astronergy Solar | Astronergy modules with 30, 35, 40, and 45 mm frames aaSMbbyyC/zz-xxx Where “aa” can be CH or A; ”bb” can be 60, 66, or 72; “yy” can be blank, 10 or 12; ”C” can M, P, M(BL), M-HC, M(BL)-HC, P-HC, M(DG), or M(DGT); and “zz” can be blank, HV, F-B, or F-BH |
| ASUN | ASUN modules with 35 and 40 mm frames ASUN-xxx-YYZZ-aa Where ”YY” can be 60 or 72; ”ZZ” can be M,or MH5; and ”aa” can be blank or BB |
| Auxin | Auxin modules with 40 mm frames AXN6y6zAxxx Where ”y” can be M or P; ”z” can be 08, 09, 10, 11, or 12; and ”A” can be F or T |
| Axitec | Axitec Modules with 35 and 40 mm frames AC-xxxY/aaZZb Where “Y” can be M, P or MH; “aa” can be blank, 125- or 156-; “ZZ” can be 54, 60, 72, 120, or 144; “b” can be S, X, V, VB, XV, or MX |
|
Boviet | Boviet modules with 35 and 40mm frames BVM66aaYY-xxxBcc Where “aa” can be 9, 10 or 12; “YY” is M or P; and “B” can be blank, L or S; and “cc” can be blank, H, H-BF, H-HC, HC-BF or H-HC-BF |
| BYD | BYD modules with 35 mm frames BYDxxxAY-ZZ Where ”A” can be M6, P6, MH or PH; ”Y” can be C or K; and ”ZZ” can be 30 or 36 |
| Canadian Solar | Canadian Solar modules with 30, 35 and 40 mm frames CSbY-xxxZ Where “b” can be 1, 3 or 6; “Y” can be H, K, L, N, P, U, V, W, X or Y; and “Z” can be M, P, MS, PX , M-SD, P-AG, P-SD, MB-AG, PB-AG, MS-AG, or MS-SD |
| CertainTeed | CertainTeed modules with 35 and 40mm frames CTxxxYZZ-AA Where “Y” can be M, P, or HC; “ZZ” can be 00, 01, 10, or 11; and “AA” can be 01, 02, 03, 04 or 06 |
|
CSUN | Csun modules with 35 and 40 mm frames YYxxx-zzAbb Where ”YY” is CSUN or SST; ”zz” is blank, 60, or 72; and ”A” is blank, P, M or MM; ”bb” is blank, BB, 5BB, BW or ROOF |
| Dehui | Dehui modules with 35 and 40mm frames DH-MYYYZ-xxx Where “YYY” can be 760, 772, 860, 872; and “Z” can be B or W |
|
Ecosolargy | Ecosolargy modules with 35, 40, and 50 mm frames ECOxxxYzzA-bbD Where ”Y” can be A, H, S, or T; ”zz” can be 125 or 156; ”A” can be M or P; ”bb” can be 60 or 72; and ”D” can be blank or B |
| ET Solar | ET Solar modules with 35, 40, and 50 mm frames ET-YZZZxxxAA Where “Y” can be P, L, or M; “ZZZ” can be 660, 660BH, 672, 672BH, 754BH or 766BH; and “AA” can be TB, TW, WB, WW, BB, WBG, WWG, WBAC, WBCO, WWCO, WWBCO or BBAC |
|
Flex | Flex modules with 35, 40, and 50 mm frames FXS-xxxYY-ZZ; Where ”YY” can be BB or BC; and ”ZZ” can be MAA1B, MAA1W, MAB1W, SAA1B, SAA1W, SAC1B, SAC1W, SAD1W, SBA1B, SBA1W, SBC1B, or SBC1W |
| GCL | GCL modules with 35 mm and 40 mm frames GCL-ab/YY xxx Where ”a” can be M or P; ”b” can be 3 or 6; and ”YY” can be 60, 72, 72H, or 72DH |
| GigaWatt Solar | Gigawatt modules with 40 mm frames GWxxxYY Where “YY” can be either PB or MB |
| Hansol | Hansol modules with 35 and 40 mm frames HSxxxYY-zz Where ”YY” can be PB, PD, PE, TB, TD, UB, UD, or UE; and ”zz” can be AH2, AN1, AN3, AN4, HH2, HV1, or JH2 |
| Hanwha Solar | Hanwha Solar modules with 40, 45, and 50 mm frames HSLaaP6-YY-1-xxxZ Where ”aa” can be either 60 or 72; ”YY” can be PA or PB; and ”Z” can be blank or B |
|
Hanwha Q CELLS | Hanwha Q CELLS Modules with 32, 35, 40, and 42mm frames aaYY-ZZ-xxx where “aa” can be Q. or B.; “YY” can be PLUS, PRO, PEAK, LINE PRO, LINE PLUS, PLUS DUO or PEAK DUO; and “ZZ” can be G3, G3.1, G4, G4.1, L-G2, L-G2.3, L-G3, L-G3.1, L-G3y, L-G4, L-G4.2, L-G4y, LG4.2/TAA, BFR-G3, BLK-G3, BFR-G3.1, BLK-G3.1, BFR-G4, BFR-G4.1, BFR G4.3, BLK-G4.1, G4/SC, G4.1/SC, G4.1/TAA, G4.1/MAX, BFR G4.1/TAA, BFR G4.1/MAX, BLK G4.1/TAA, BLK G4.1/SC, EC-G4.4, G5, G5/SC, G5/TS, BLK-G5, BLK-G5/SC, BLK-G5/TS, L-G5, L-G5.1, L-G5.2, L-G5.2/H, L-G5.3, G6, G6/SC, G6/TS, G6+, BLK-G6, L-G6, L-G6.1, L-G6.2, L-G6.3, G7, BLK-G6+, BLK-G6+/AC, BLK-G6+/HL, BLK-G6+/SC, BLK-G6/TS, G6+/TS, BLK- G6+/TS, BLK-G7, G7.2, G8, BLK-G8, G8+, BLK-G8+ L-G7, L-G7.1, L-G7.2, L-G7.3, L-G8, L-G8.1, L-G8.2, L-G8.3, L-G8.3/BFF, ML-G9, BLK ML-G9, ML-G9+, BLK ML-G9+,ML-G10, BLK ML-G10, ML-G10+, BLK ML-G10+, ML-G10.a, BLK ML-G10.a, ML-G10.a+, BLK ML-G10.a+, XL-G9, XL- G9.2, XL-G9.3, XL-G10.2, XL-G10.3, XL-G10.c or XL-G10.d |
|
Heliene | Heliene modules with 40 mm frames YYZZxxxA Where ”YY” can be 36, 60, 72, 96, 120 or 144; ”ZZ” can be HC, M, P, or MBLK; and ”A” can be blank, HomePV, or Bifacial |
| HT-SAAE | HT-SAAE modules with 35 and 40 mm frames HTyy-aaaZ-xxx Where “yy” can be 60, 66 or 72; “aaa” can be 18, 156 or 166; and “Z” can be M, P, M-C, P-C, M(S), M(VS), M(V), P(V), M(V)-C, P(V)-C, or X |
| Hyundai | Hyundai modules with 33, 35, 40 and 50 mm frames HiY-SxxxZZ Where “Y” can be A, D or S; “S” can be M or S; and “ZZ” can be HG, HI, KI, MI, MF, MG, PI, RI, RG, RG(BF), RG(BK), SG, TI or TG |
| Itek | Itek Modules with 40 and 50 mm frames IT-xxx-YY Where ”YY” can be blank, HE, or SE, or SE72 |
|
JA Solar | JA Solar modules with 30, 35, 40 and 45 mm frames JAyyzz-bbww-xxx/aa Where “yy” can be M, P, M6 or P6; “zz” can be blank, (K), (L), (R), (V), (BK), (FA), (TG), (FA)(R), (L)(BK), (L)(TG), (R)(BK), (R)(TG), (V)(BK), (BK)(TG), or (L)(BK)(TG); “bb” can be 48, 60, 66, 72 or 78; “ww” can be D09, S01, S02, S03, S06, S09, S10, S12, S20 or S30; and “aa” can be BP, MR, SI, SC, PR, 3BB, 4BB, 4BB/RE, 5BB |
|
Jinko | Jinko modules with 35 and 40 mm frames JKMYxxxZZ-aa Where “Y” can either be blank or S; “ZZ” can be M, P, or PP; and “aa” can be blank, 60, 60B, 60H, 60L, 60BL, 60HL, 60HB, 60HBL, 6HBL-EP, 60-J4, 60B-J4, 60B-EP, 60(Plus), 60-V, 60-MX, 6RL3, 6RL3-B, 6TL3-B, 7RL3-V, 7RL3-TV, 72, 72B, 72-J4, 72B-J4, 72(Plus), 72-V, 72H- V, 72L-V, 72HL-V, 72-MX, 72H-BDVP, 72HL-TV, or 72HL-V-MX3 |
|
Kyocera | Kyocera Modules with 46mm frames KYxxxZZ-AA Where ”Y” can be D or U; ”ZZ” can be blank, GX, or SX; and ”AA” can be LPU, LFU, UPU, LPS, LPB, LFB, LFBS, LFB2, LPB2, 3AC, 3BC, 3FC, 4AC, 4BC, 4FC, 4UC, 5AC, 5BC, 5FC, 5UC, 6BC, 6FC, 8BC, 6MCA, or 6MPA |
| LG | LG modules with 35, 40, and 46 mm frames LGxxxYaZ-bb Where “Y” can be A, E, M, N, Q, S; “a” can be A, 1, 2 or 3; “Z” can be C, K, T, or W; and “bb” can be A3, A5, A6, B3, B6, E6, G3, G4, J5, K4, L5, N5, V5 or V6 |
|
Longi | Longi modules with 30, 35 and 40 mm frames LRa-YYZZ-xxxM Where ”a” can be 4 or 6; ”YY” can be blank, 60 or 72; and ”ZZ” can be blank, BK, BP, HV, PB, PE, PH, HBD, HIB, HIH, HPB, HPH, or HIBD |
| Mission Solar | Mission Solar modules with 33 and 40 mm frames MSEbbxxxZZaa Where “bb” can be blank or 60A; “ZZ” can be blank, MM, SE, SO, SQ , SR, SX or TS; and “aa” can be blank, 1J, 4J, 4S, 5K, 5R, 5T, 60, 6J, 6S, 6W, 6Z, 8K, 8T, or 9S |
| Mitsubishi | Mitsubishi modules with 46 mm frames PV-MYYxxxZZ Where ”YY” can be LE or JE; and ”ZZ” can be either HD, HD2, or FB |
| Motech | IM and XS series modules with 40, 45, and 50 mm frames |
| Next Energy Alliance | Next Energy Alliance modules with 35 and 40mm frames yyNEA-xxxZZ where ”yy” can be blank or US; ”ZZ” can be M, MB or M-60 |
|
Neo Solar Power | Neo Solar Power modules with 35 mm frames D6YxxxZZaa Where ”Y” can be M or P; ”ZZ” can be B3A, B4A, E3A, E4A, H3A, H4A; and ”aa” can be blank, (TF), ME or ME (TF) |
|
Panasonic (HIT) | Panasonic modules with 35 and 40 mm frames VBHNxxxYYzzA Where ”YY” can be either KA, RA, SA or ZA; ”zz” can be either 01, 02, 03, 04, 06, 06B, 11, 11B, 15, 15B, 16, 16B, 17, or 18; and ”A” can be blank E, G or N |
| Panasonic (EverVolt) | Panasonic modules with 30 mm frames EVPVxxxA Where “A” can be blank or K |
| Peimar | Peimar modules with 40 mm frames SbxxxYzz Where ”b” can be G, M or P; “Y” can be M or P; and “zz” can be blank, (BF), or (FB) |
| Philadelphia Solar | Philadelphia modules with 35 and 40 mm frames PS-YzzAA-xxx Where ”Y” can be M or P; ”zz” can be 60 or 72; and ”AA” can be blank or (BF) |
|
Phono Solar | Phono Solar modules with 35, 40, and 45 mm frames PSxxxY-ZZ/A Where ”Y” can be M, M1, MH, M1H, M4, M4H or P; ”ZZ” can be 20 or 24; and ”A” can be F, T, U, UH, or TH |
| Recom | Recom modules with 35 and 40 mm frames RCM-xxx-6yy Where ”yy” can be MA, MB, ME or MF |
| REC Solar | REC modules with 30, 38 and 45 mm frames RECxxxYYZZ Where “YY” can be AA, M, NP, NP2, PE, PE72, TP, TP2, TP2M, TP2SM, TP2S, TP3M or TP4; and “ZZ” can be blank, Black, BLK, BLK2, SLV, 72 or Pure |
|
Renesola | ReneSola modules with 35, 40 and 50 mm frames AAxxxY-ZZ Where ”AA” can be SPM(SLP) or JC; ”Y” can be blank, F, M or S; and ”ZZ” can be blank, Ab, Ab-b, Abh, Abh-b, Abv, Abv-b, Bb, Bb-b, Bbh, Bbh-b, Bbv, Bbv-b, Db, Db-b, or 24/Bb |
| Renogy | Renogy Modules with 40 and 50 mm frames RNG-xxxY Where ”xxx” is the module power rating; and ”Y” can be D or P |
| Risen | Risen Modules with 35 and 40 mm frames RSMyy-6-xxxZZ Where ”yy” can be 60, 72, 120, 132 or 144; and ”ZZ” can be M, P |
|
S-Energy | S-Energy modules with 35 and 40mm frames SABB-CCYYY-xxxZ Where “A” can be C, L or N; “BB” can be blank, 20, 40 or 45; “CC” can be blank, 60 or 72; “YYY” can be blank, MAE, MAI, MBE, MBI, MCE or MCI; and “Z” can be V, M-10, P-10 or P-15 |
|
Seraphim Energy Group | Seraphim modules with 35 and 40 mm frames SEG-aYY-xxxZZ Where ”a” can be blank, 6 or B; ”YY” can be blank, MA, MB, PA, or PB; and ”ZZ” can be blank, BB, BG, BW, HV, WB, WW, BMB, BMA-HV, BMB-HV |
| Seraphim USA | Seraphim modules with 35, 40 and 50 mm frames SRP-xxx-YYY-ZZ Where “xxx” is the module power rating; and “YYY” can be 6MA, 6MB, 6PA, 6PB, BMD, 6QA-XX-XX, and 6QB-XX-XX; ZZ is blank, BB or HV |
| Sharp | Sharp modules with 35 and 40 mm frames NUYYxxx Where “YY” can be SA or SC |
| Silfab | Silfab Modules with 35 and 38 mm frames SYY-Z-xxxAb Where “YY” can be IL, SA, LA, SG or LG; “Z” can be blank, M, P, or X; “A” can be blank, B, H, M, N; and “b” can be A, C, L, G, K, T, U or X |
| Solaria | Solaria modules with 40 mm frames PowerXT xxxY-ZZ Where ”Y” can be R or C; and ”ZZ” can be AC, BD, BX, BY, PD, PM, PM-AC, PX, PZ, WX or WZ |
| Solarcity (Tesla) | Solarcity modules with 40 mm frames SCxxxYY Where ”YY” can be blank, B1 or B2 |
| SolarTech | SolarTech modules with 40 and 42 mm frames AAA-xxxYY Where “AAA” can be PERCB-B, PERCB-W, HJTB-B, HJTB-W or STU; “YY” can be blank, PERC or HJT |
| SolarWorld AG | SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or clear; modules with 31, 33 or 46 mm frames SW-xxx |
| SolarWorld Americas | SolarWorld Sunmodule Plus, Protect, Bisun, XL, Bisun XL, may be followed by mono, poly, duo, black, bk, or clear; modules with 33 mm frames SWA-xxx |
| Sonali | Sonali Modules with 40 mm frames SSxxx |
| Stion | Stion Thin film modules with 35 mm frames STO-xxx or STO-xxxA |
|
SunEdison | SunEdison Modules with 35, 40 & 50 mm frames SE-YxxxZABCDE Where ”Y” can be B, F, H, P, R, or Z; ”Z” can be 0 or 4; ”A” can be B,C,D,E,H,I,J,K,L,M, or N ; ”B” can be B or W; ”C” can be A or C; ”D” can be 3, 7, 8, or 9; and ”E” can be 0, 1 or 2 |
|
Suniva | Suniva modules with 35, 38, 40, 46, and 50 mm frames OPTxxx-AA-B-YYY-Z MVXxxx-AA-B-YYY-Z Where ”AA” is either 60 or 72; ”B” is either 4 or 5; ”YYY” is either 100,101,700,1B0, or 1B1; and ”Z” is blank or B |
| Sunpower | Sunpower standard (G3 or G4) or InvisiMount (G5) 40 and 46 mm frames SPR-Zb-xxx-YY Where ”Z” is either A, E, P or X; “b” can be blank, 17, 18, 19, 20, 21, or 22; and “YY” can be blank, BLK, COM, C-AC, D-AC, E-AC, BLK-E-AC, G-AC, BLK-C-AC, or BLK-D-AC |
|
Sunspark | Sunspark modules with 40 mm frames SYY-xxxZ-A Where “YY” can be MX or ST; and “Z” can be M, MB, M3, M3B, P or W; and “A” can be 60 or 72 |
|
Suntech | Suntech Modules with 35, 40 and 50mm frames STPxxxy-zz/aa Where “y” is blank or S; and “zz” can be 20, 24, A60 or A72U; and “aa” can be Vd, Vem, Vfw, Vfh, Wdb, Wde, Wd, or Wfhb |
|
Talesun | Talesun modules with 35 and 40mm frames TP6yZZaaxxx-b Where “y” can be blank, F, H, or L; “ZZ” can be 60 or 72; “aa” can be M, M(H), or P; and “b” can be blank, B, T, or (H) |
| Tesla | Tesla modules with 40 mm frames TxxxY Where “Y” can be H or S |
|
Trina | Trina Modules with 30, 35, 40 and 46mm frames TSM-xxxYYZZ Where “YY” can be DD05, DD06, DD14, DE14, DE06X, DE15, DE15V, DEG15, PA05, PC05, PD05, PD06, PA14, PC14, PD14, PE14, or PE15 ; and “ZZ” can be blank, (II), .05, .05(II), .08, .10, .18, .08D, .18D, 0.82, .002, .00S, 05S, 08S, A, A.05, A.08, A.10, A.18, A(II), A.05(II), A.08(II), A.082(II), A.10(II), A.18(II), H, H(II), H.05(II), H.08(II), HC.20(II), HC.20(II), M, M(II), M.05(II), MC.20(II) |
| URE | URE modules with 35 mm frames DyZxxxaa Where “D” can be D or F, “y” can be A, 6 or 7; “Z” can be K or M; and “aa” can be H3A, H4A, H8A, E7G-BB, E8G or E8G-BB |
|
Vikram | Vikram solar modules with 40 mm frames VSyy.ZZ.AAA.bb Where ”yy” can be M, P, MBB, MH, MS, MHBB, or PBB; ”ZZ” can be 60 or 72; ”AAA” is the module power rating; and ”bb” can be 03, 04 or 05 |
| Waaree | Waaree modules with 40mm frames WSyy-xxx where ”yy” can be blank, or M |
| Winaico | Winaico modules with 35 and 40 mm frames Wsy-xxxZa Where ”y” can be either P or T; ”Z” can be either M, P, or MX; and ”a” can be blank or 6 |
| Yingli | Yingli modules with 35 and 40 mm frames YLxxxZ-yy Where “Z” can be D or P; “yy” can be 29b, 30b, 34d, 35b, 36b or 40d |
| ZN Shine | ZN Shine modules with 35mm frames ZXMY-AAA-xxx/M Where “Y” can be 6 or 7, “AAA” can be 72, NH120 or NH144 |
Tested and/or Evaluated Module Level Power Electronics for use with the Accessory Frame Bracket
Approved Module Level Power Electronics
| Enphase |
| M250-72, 250-60, M215-60, C250-72, S230, S280, IQ 6, IQ 6+, IQ IQ7, IQ 7A, IQ 7+, IQ 7X, IQ PD , Q Aggregator |
| SolarEdge |
| M1600, P300, P320, P340, P370, P400, P401, P405, P485, P505, P600, P700, P730, P800p, P800s, P801, P850, P860, P950, P960, P1100 |
Bonding Information
The Accessory Frame Bracket (AFB) is a UL 2703 Recognized product used to mount and electrically bond module-level power electronics (MLPE) that have been evaluated for use in combination with UL 1703 Listed Modules, as listed in the above sections and installed per the provided instructions.
The Accessory Frame Bracket and bonding pins are rated for multiple use and are location-independent.
Bonding Method: The AFB electrically bonds the MLPE to the module frame with bonding pins that pierce both module frame and MLPE bracket coatings when the serrated bracket attachment bolts are torqued to 15 ft-lbs. The system is to be installed in accordance with the latest National Electrical Code, ANSI/NFPA 70. Any local electrical codes must adhere in addition to the national electrical codes. System maximum series fuse rating shall not exceed 25 Amps.
Miscellaneous Information
Fire Rating:
Use of the Accessory Frame Bracket will not affect the Fire Rating of the racking system.
Periodic Re-inspections:
If re-inspections yield loose components, loose fasteners, or any corrosion between components, components that are found to be affected are to be replaced immediately.
Fuse Rating:
Maximum Series Fuse Rating = 40A

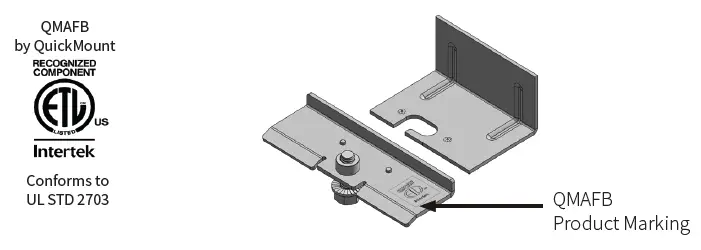

Product Marking
