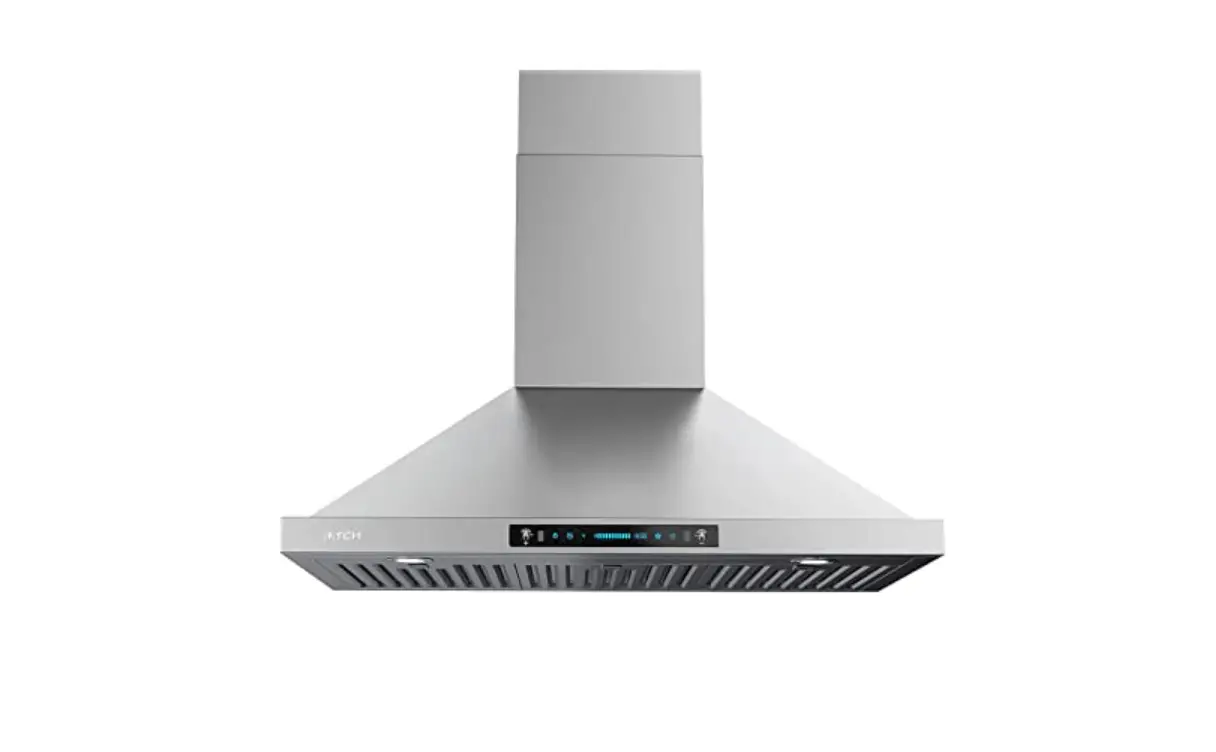

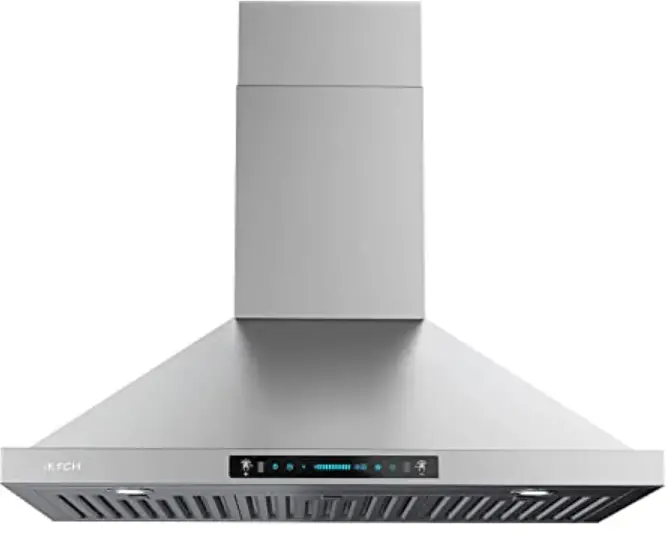

UNBRANDED KX818-7 30 inch Wall Mounted Range Hood 700CFM in Silver
INSTALLATION INSTRUCTIONS
Prepare for installation:

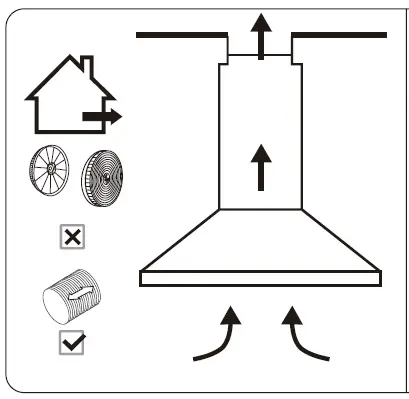

DUCTED OPTION
RECIRCULATION OPTION
a. lf you have an outlet to the outside, your cooker hood can be connected as above picture by means of a pipe (with an interior diameter of 150mm). you do 1 have an outlet to the outside, you can go with recirculation mode by using a carbon filter:

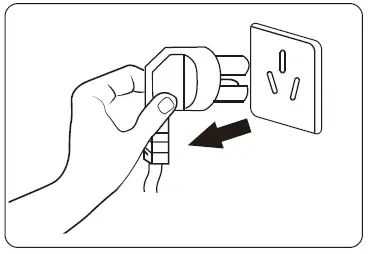

b. Before installation, turn the unit off and unplug it from the outlet.

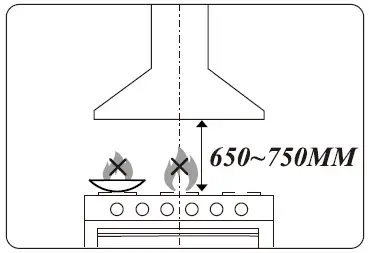

C. The cooker hood should be placed at a distance of 650~750 mm above the cooktop for the best effect.
Note open flames directly approach to the range hood.
