Choosing the right size door is a breeze
Andersen® storm doors conveniently attach to the exterior trim of an existing entry door. Find the door size you need by following these easy steps.

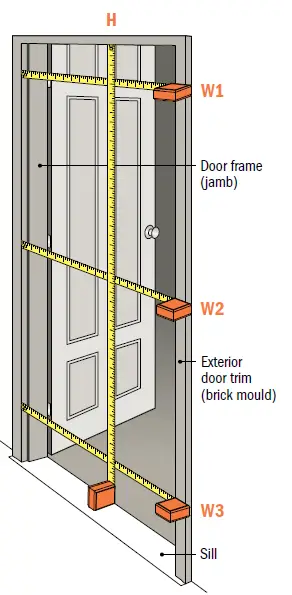

- Height
Measure for height (H) from the sill to the underside of the exterior trim at the top of the door.
H _________
Record your door height. - Width
Measure the width at the top (w1), center (W2) and bottom (W3) of the door
opening. Use the shortest measurement when ordering if they vary.
W1 _____ W2 _____ W3 _____
Record your door width.
For double doors, order 2 doors and a double door kit. - Select Door Size
Use the sizing charts below to select a door size. Be sure to verify space requirements for the door you select.
Record the door size you need.
Storm Door Size Charts

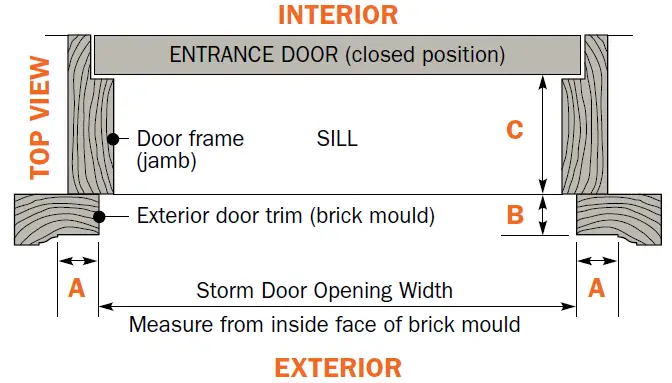

Verify Rough Opening Requirements
Select a storm door and then verify the minimum space requirements on your existing door frame to make sure that your new storm door will fit.
Dimension A
- Minimum of ¾”
(1.91cm) for all storm doors; except the 75 Series, Forever® Series and the 4000 Series Fullview with Laminated Safety Glass Storm Door which require 1″ (2.54cm).
DIMENSION B - Minimum of 1″
(2.54cm) required - For openings with exterior door trim measurement (B) less than 1” but greater than 3/4”, order optional narrow mount kit for proper installation.
DIMENSION C - Minimum of 2 ½” (6.35cm) required
Andersen® and EMCO® Doors
DOor SIZE rough opening width range rough opening range
| 30″ | 29 | 7/8” to 30 | 3/8“ | |
| 32″ | 31 | 7/8” to 32 | 3/8“ | |
| 33″ | 32 | 7/8” to 33 | 3/8“ | 80″ to 80 7/8“ for all door sizes* |
| 34″ | 33 | 7/8” to 34 | 3/8“ | |
| 36″ | 35 | 7/8” to 36 | 3/8“ |
For opening widths outside these r s, custom doors provide the best fit and installation. Alternatively, for openings up to 1″ wider than those listed in the size chart above, an optional z-bar extender kit is available for purchase. 84″ and 96″ heights available on the Andersen 3000 Series Fullview with s door, 36″ White; 96″ also available in Almond.
EMCO® Forever® Storm Door
DOor SIZE rough opening width range rough opening range
| 30″ | 30″ to 30 3/8“ | |
| 32″ | 32″ to 32 3/8“ | 80″ to 80 7/8“ for all door sizes** |
| 36″ | 36″ to 36 3/8“ |
Need a custom size?
DOor SIZE rough opening width range rough opening range
| Andersen | 27 | 3/4” to 38 3/8“ | 72″ to 84 7/8“ |
| Andersen XL | 27 | 3/4“ to 42″ | 72″ to 96″ |
| EMCO | 27 | 3/4” to 38 3/8“ | 75″ to 84 7/8“ |
| EMCO XL | 38 | 1/2“ to 42″ | 79″ to 91″ |
To qualify for Andersen Custom XL sizing, only one of the following conditions must be met:
- Width of the opening must exceed 38 3/8″ or
- The height of opening must exceed 84 7/8″
Andersen Custom XL must be specified RH or LH. Ask an associate for details. For openings up to 1″ wider than those listed, order optional Z-Bar Extender kit. Kits are also available for double-door installation for all models and colors.
For more information visit AndersenStormDoorsAtHomeDepot.com
Andersen” is a registered trademark of Andersen Corporation. EMCO Enterprises, Inc. is a wholly-owned subsidiary of Andersen Corporation. EMCO manufactures the storm doors in this brochure and supports the limited warranties. All other marks where denoted are trademarks of Andersen Corpor on. “The Home Depot” and The Home Depot logos are trademarks of Homer TLC, Inc.
