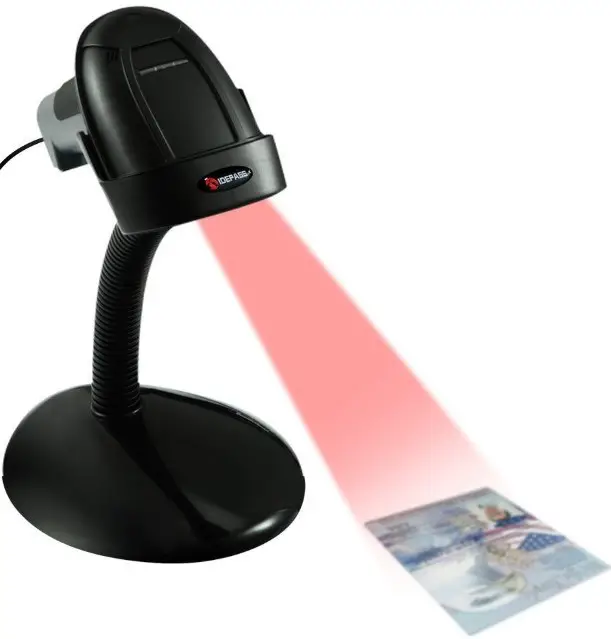

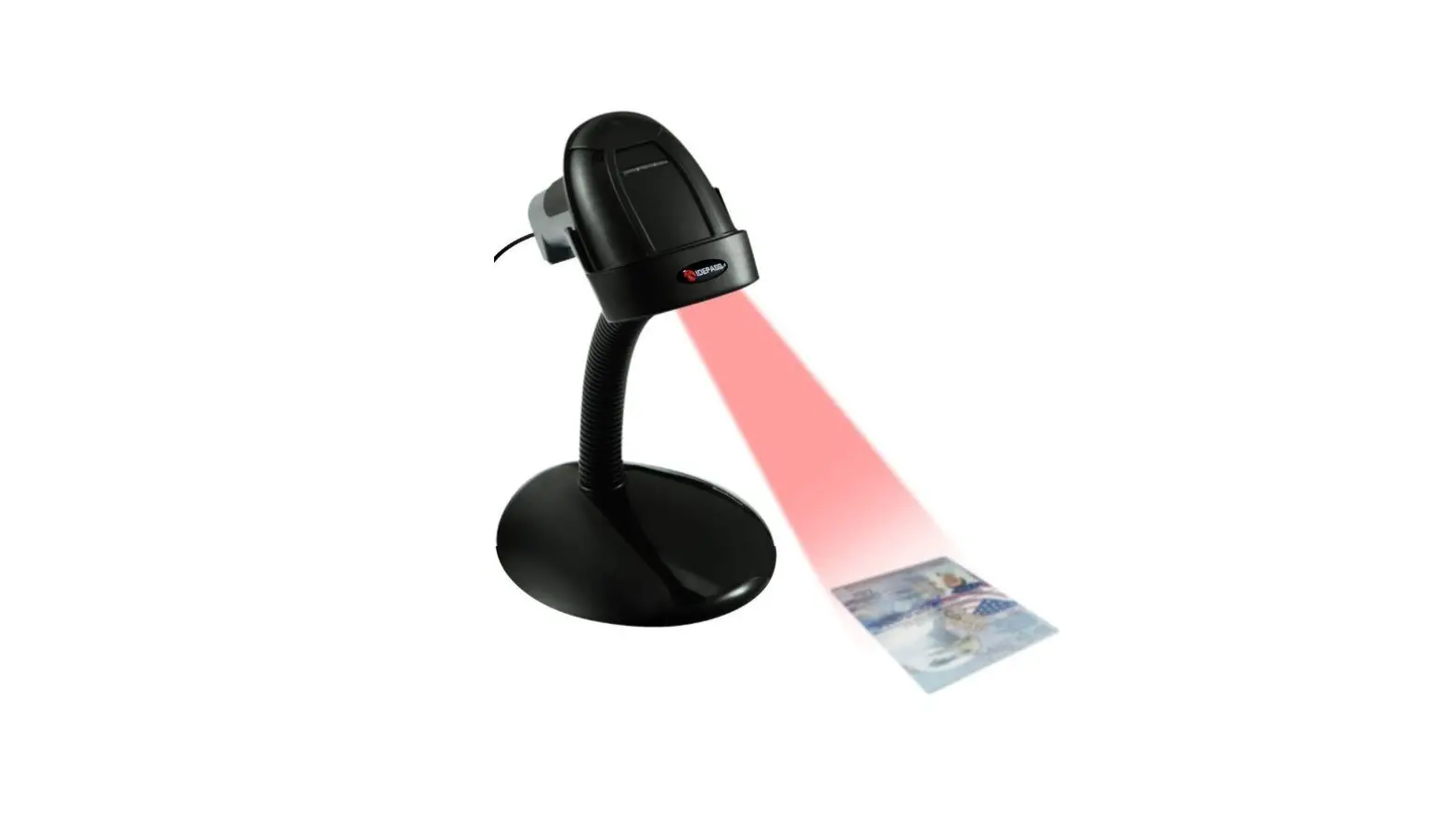

IDEPASS IDE302 Handheld OCR Barcode Reader Instruction Manual
The IDE302 is a hand-held passport and ID cards MRZ reader and bar code reader, it can read OCR-B MRZ ( Machine Readable Zone) from ID card, driver’s license, passport; or read 1d and 2d big size PDF417 and QR codes from ID card or driver’s license.

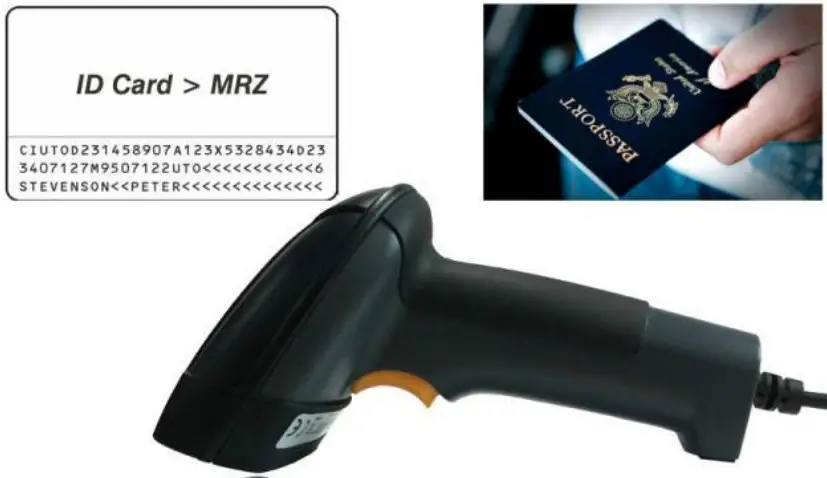

ReadOCR-B/MRZFromPassport, IDCard
Equipped with Megapixel 1280*800high-resolution CMOS image sensor, thisenablesthe IDE302 with great performance(quickand accurate) to read thelongMRZ( machine readable zone) inpassportand3lines MRZ in ID card, driver’slicense

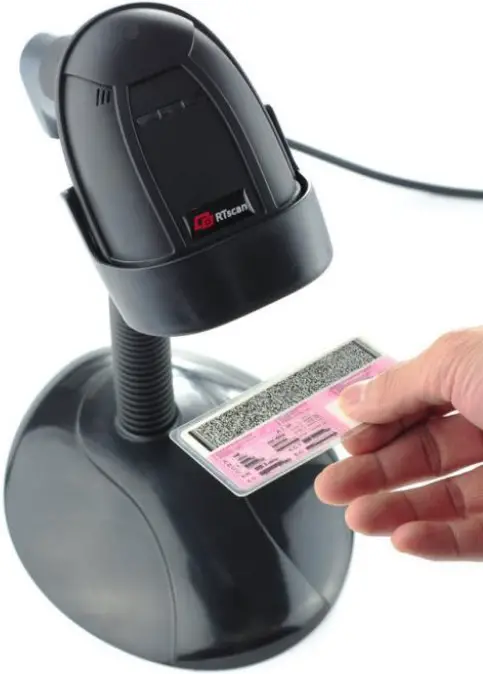

Read Big Size PDF417 From ID Card
Thanks to its 1280*800 high resolution sensor, the IDE302 is readable those big size and high-density PDF417 code from ID card / driver’ license, e.g: IDs of El Salvador, Costa Rica, Colombia, Paraguay, Vietnam, Nicaragua, Panamá, Egypt, South Africa…
Specification
| Performance | Image Sensor | 1280 * 800 CMOS | |
| Illumination Aiming | White LED650nm Laser diode | ||
| Symbologies | OCR-B/ MRZ | Machine readable passports (MRP) : 2 lines of 44 characters (Readable distance: 15cm-30cm)Travel documents: 3 lines of 30 characters (Readable distance: 14cm-30cm) The best read distance is around 20cm. | |
| 2D QR PDF417 | PDF417in ID documents (Readable distance: 10cm-20cm), QR Code, Data Matrix, AZTEC, CSC, Maxicode, Micro QR, Micro PDF417,GM ,Code One, etc. | ||
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, Code128, Code 39, Codabar, UCC/EAN128, RSS, ITF, ITF-14, ITF6, Standard25, Matrix 25, COOP 25, Industrial 25, Plessey, MSI Plessey, Code 11,Code 93, Code 49, Code 16K, etc. | ||
| Resolution | ≥3mil (differ from different type bar codes) | ||
| Typical Depth of Field | EAN-13 | 70-499mm (13mil) | |
| Code 39 | 90-264mm (5mil) | ||
| PDF417 | 70-225mm (6.7mil) | ||
| Data Matrix | 65-214mm (10mil) | ||
| QR Code | 40-294mm (15mil) | ||
| Scan Mode | Sense mode, Trigger mode | ||
| Scan Angle | Roll: 360°, Pitch: ±61°, Skew:±61° | ||
| Field of View | Horizontal 43°, Vertical 29° | ||
| Min. Symbol Contrast | 25% | ||
| Mechanical/ Electric | Interface | RS-232, USB | |
| Dimensions | 180mm×80mm×90mm | ||
| Weight | 194g | ||
| Notification | Beep, LED indicator | ||
| Operating Power | 5VDC±5%, 280mA, it must reach 900mA to active the scanner, so please make sure y our system provide 900mA above current. | ||
| Environmental | Operating Temperature | -20℃ to 60℃ (-4°F to 140°F) | |
| Storage Temperature | -40℃ to 70℃ (-40°F to 158°F) | ||
| Humidity | 5% to 95% (non-condensing) | ||
| Accessories | Cable | USB | USB virtual Com, not support USB-HID |
| RS-232 | Standard DB9 RS232 interface | ||
| Power Adapter | DC5V adapter to power the IDE302 for RS-232 interface. | ||
SUPPORT
Tel:+86 755-23762089
Website: www.rtscan.net
Email:[email protected]
410, Building 10, Cloud valley Phase II, Pingshan 1st Rd, 518055, Xi’Li, Nanshan District, Shenzhen, China
Copyright RTscan Technology Limited all rights reserved. IDEPASS and RTscan are registered trademark of RTscan Technology Limited. All other trademarks are the property of their respective owners. In a continuing ef ort to improve our products, RTscan Technology Limited reserves the right to change specifications and features without prior notice.
