quick start guide

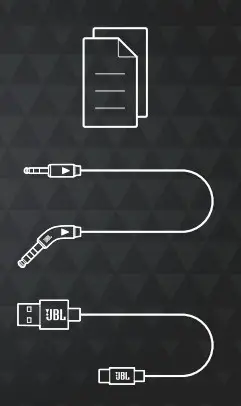

WHAT’S IN THE BOX
 |  |

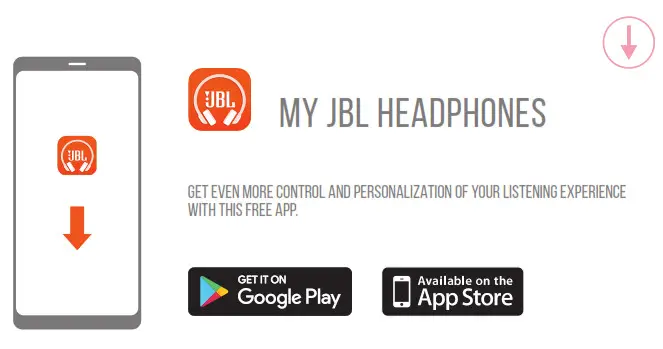

APP

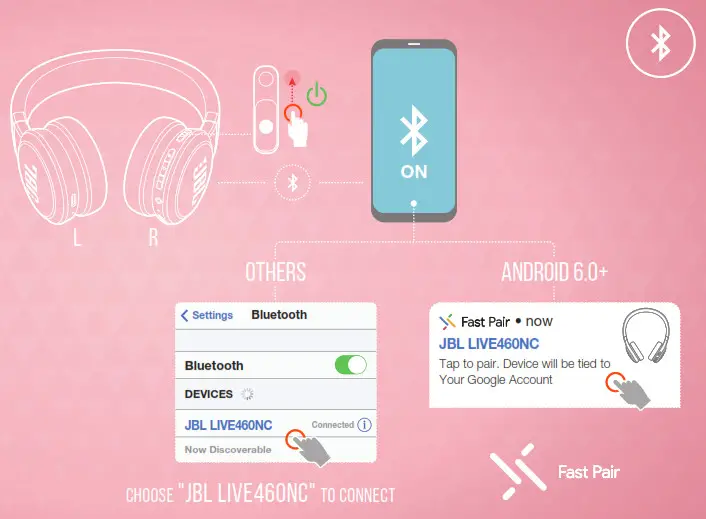

Power on & CONNECT

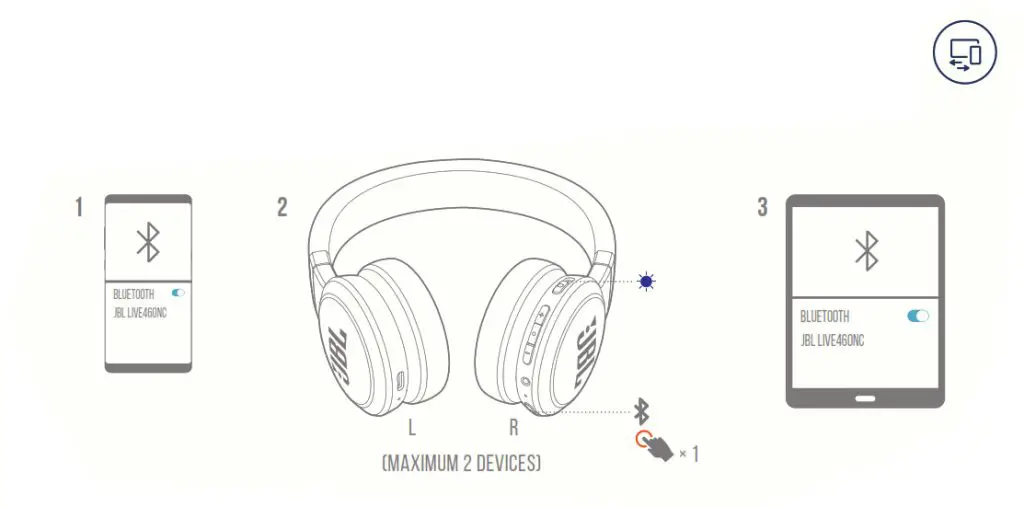

Multi-point connection
* Enable advance controls by connecting your JBL LIVE460NC to My JBL Headphones App.

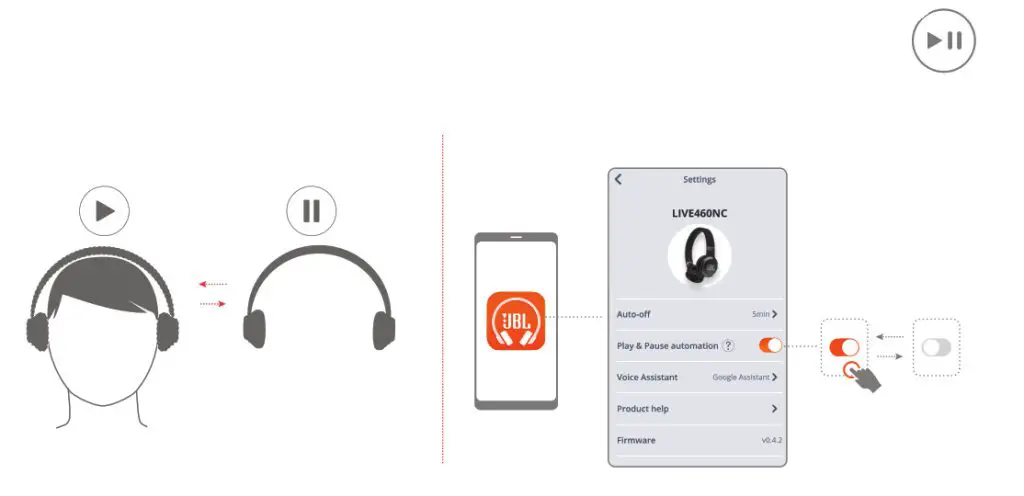

Auto-Play/Pause.

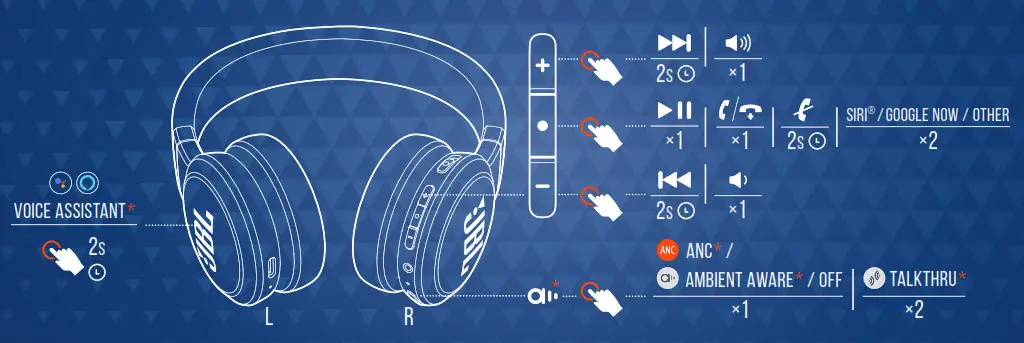

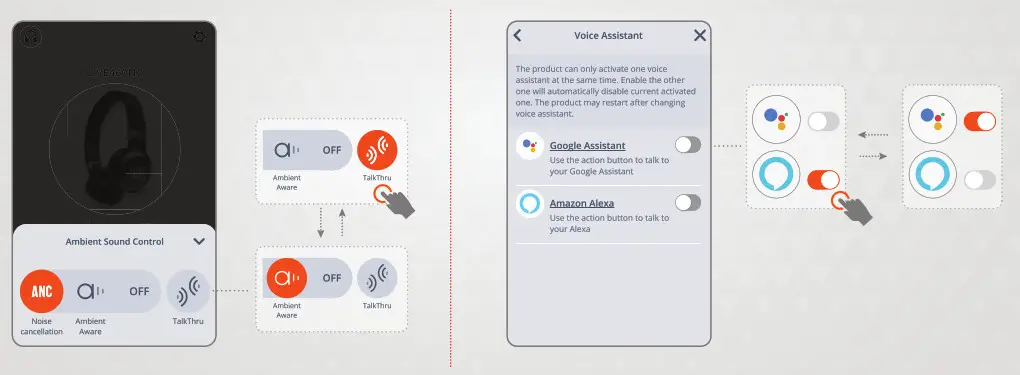

DO MORE WITH THE APP

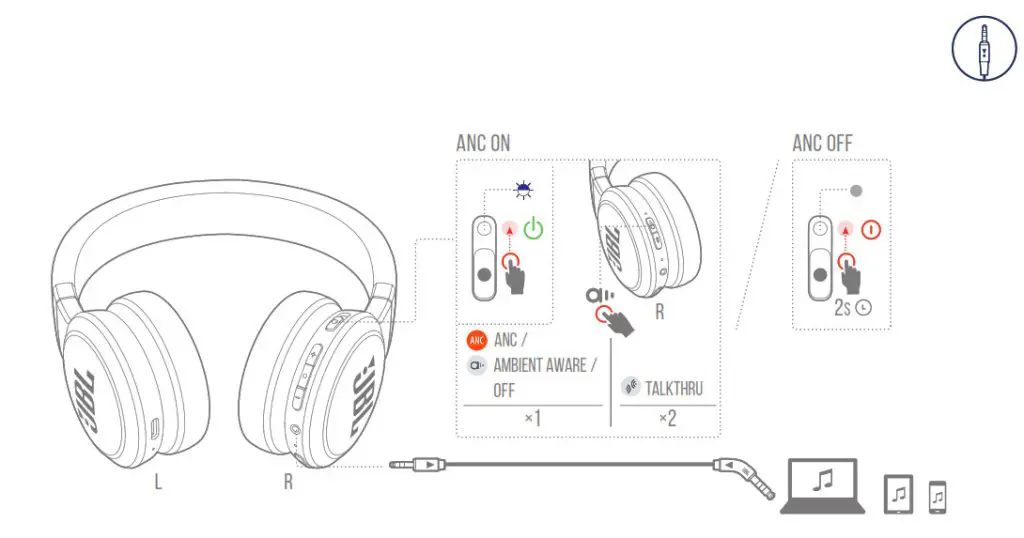

Wired listening mode

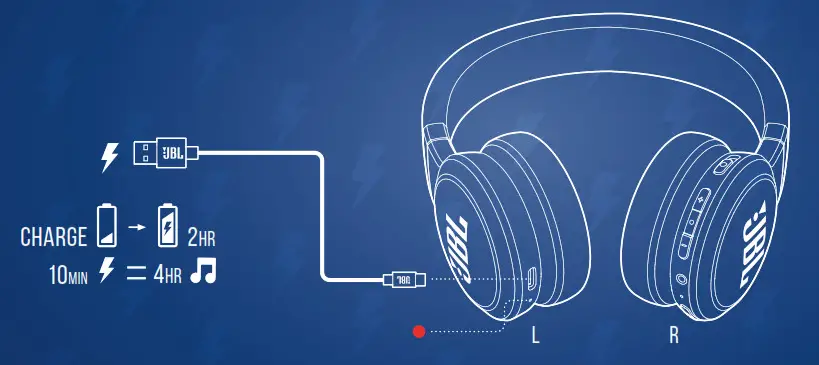

Charging

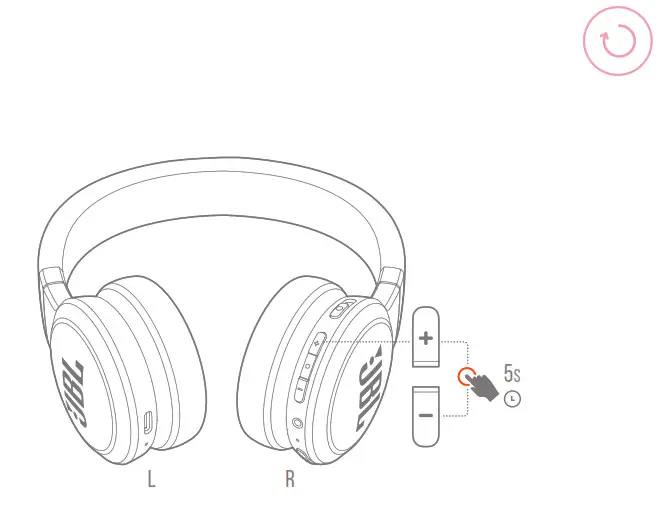

FACTORY RESET

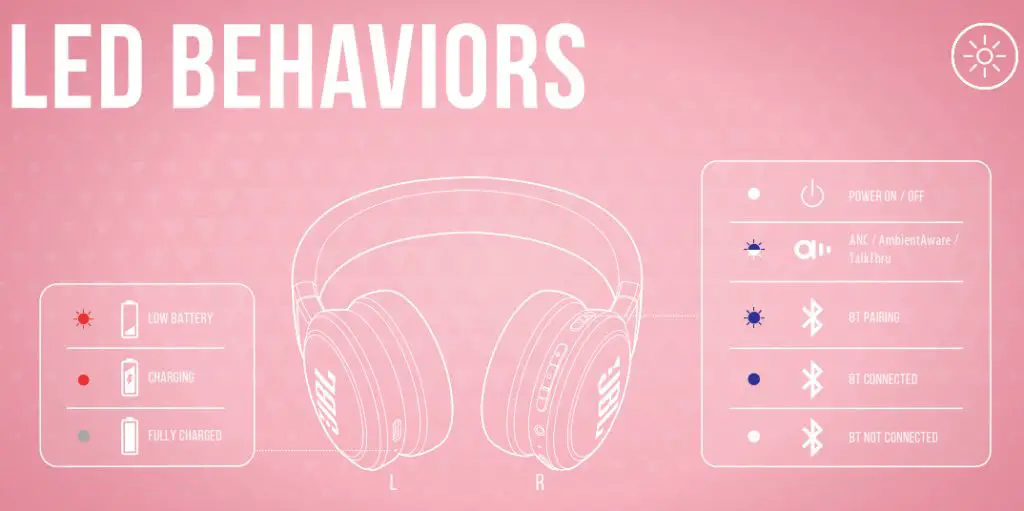

led behaviors
TECH SPEC
| Model: | LIVE460NC |
| Driver Size: | 40 mm / 1.57″ Dynamic Driver |
| Power supply: | 5 V, 1 A |
| Weight: | 210 g / 0.46 lbs |
| Battery type: | Lithium-ion Polymer (750 mAh / 3.7 V) |
| Charging time: | < 2hrs from empty |
| Music play time with BT on and ANC off: | 50 hrs |
| Music play time with BT on and ANC on: | Up to 40 hrs |
| Frequency Response: | 20 Hz – 20 kHz |
| Impedance: | 32 ohm |
| Sensitivity: | 96 dB SPL@1 kHz/1 mW |
| Maximum SPL: | 92 dB |
| Microphone sensitivity: | -30 dBV@1 kHz/Pa |
| Bluetooth version: | V5.0 |
| Bluetooth profile version: | HFP V1.7, A2DP V1.3, AVRCP V1.6 |
| Bluetooth transmitter frequency range: | 2.402 GHz – 2.48 GHz |
| Bluetooth transmitter power: | < 13 dBm |
| Bluetooth transmitter modulation: | GFSK, π/4 DQPSK, 8DPSK |
| Maximum operation temperature: | 45 °C |
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTINGS.
WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by HARMAN International Industries, Incorporated is under license. Other trademarks and trade names are those of their respective owners.
Google, Android, and Google Play are trademarks of Google LLC.
Amazon, Alexa, Amazon Music, and all related logos are trademarks of Amazon, Inc. or its affiliates.
Alexa is not available in all languages and countries, Alexa features and functionality may vary by location. See www.amazon.com/alexa-availability for details.
amazon.com/alexa-availability
Anatel — Agência Nacional de Telecomunicações
