JBL- LOGO

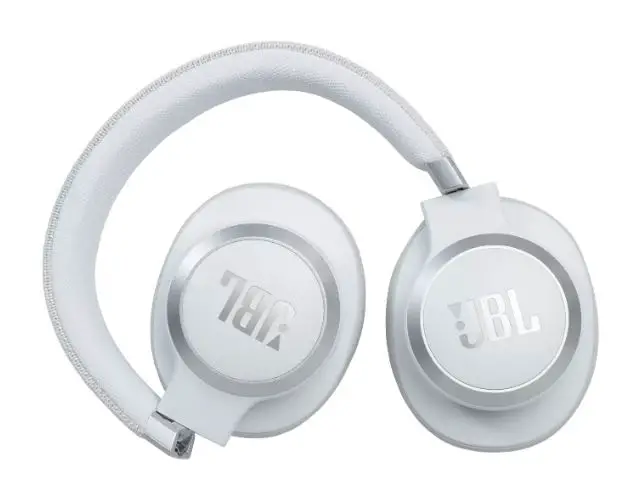

JBL Live 660 NC Wireless Over-Ear NC Headphones UserJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 1

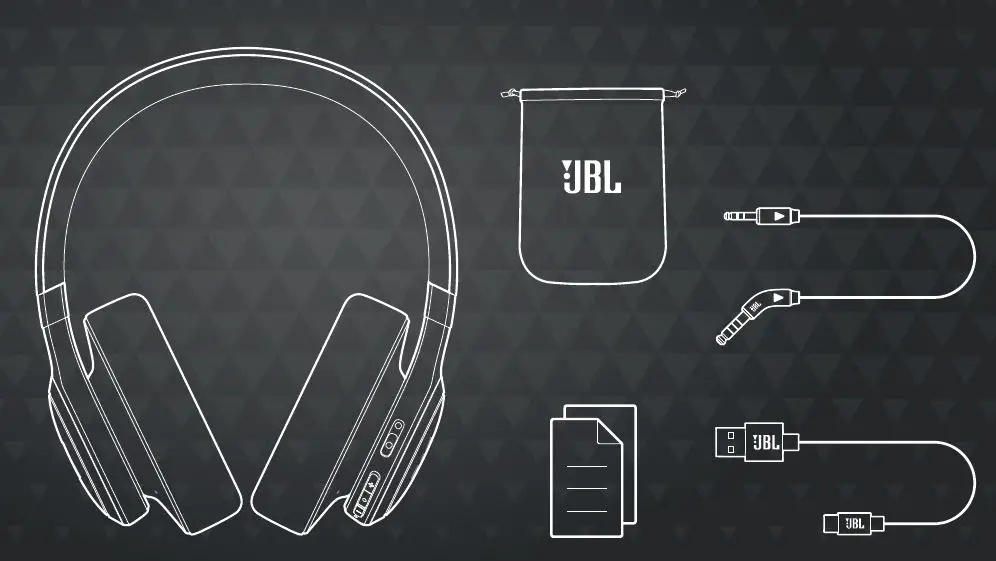

WHAT’S IN THE BOXJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 2

APPJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 3]

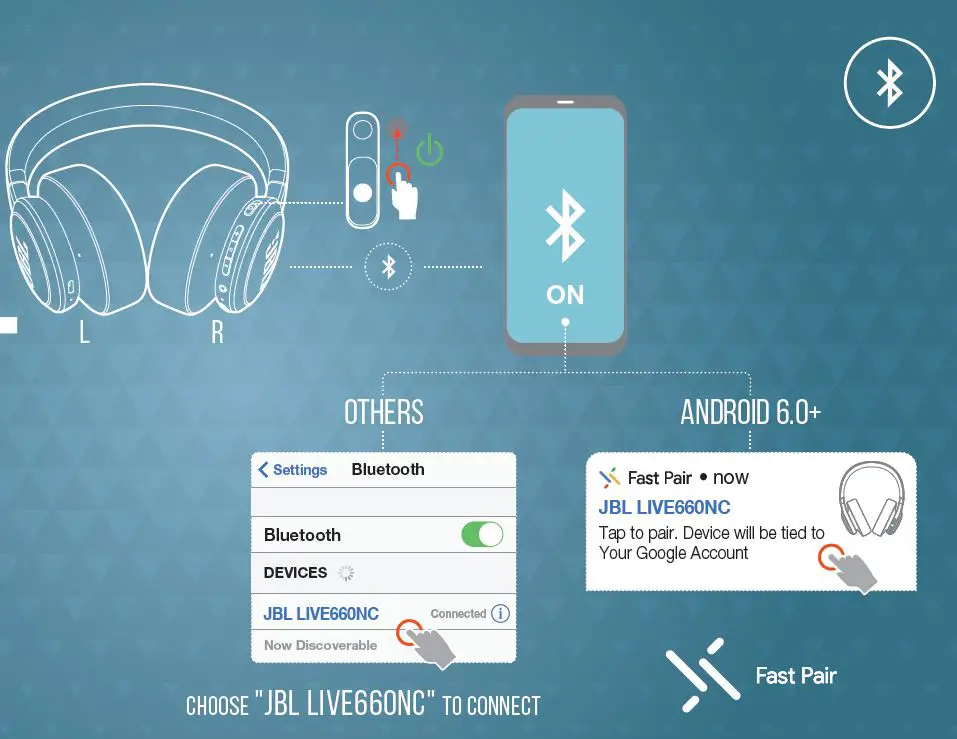

power on & CONNECTJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 4

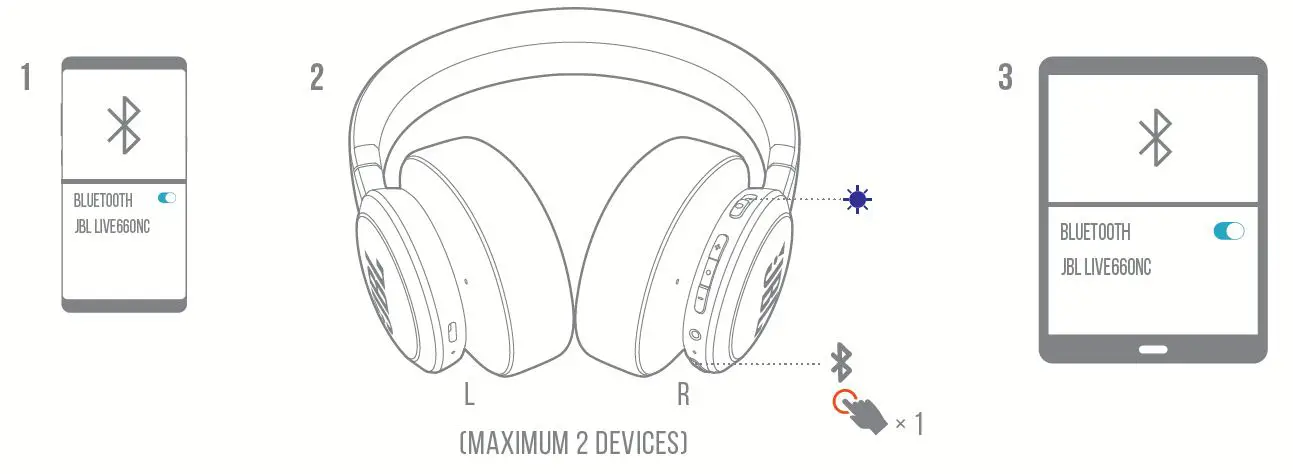

Multi-point connectionJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 5

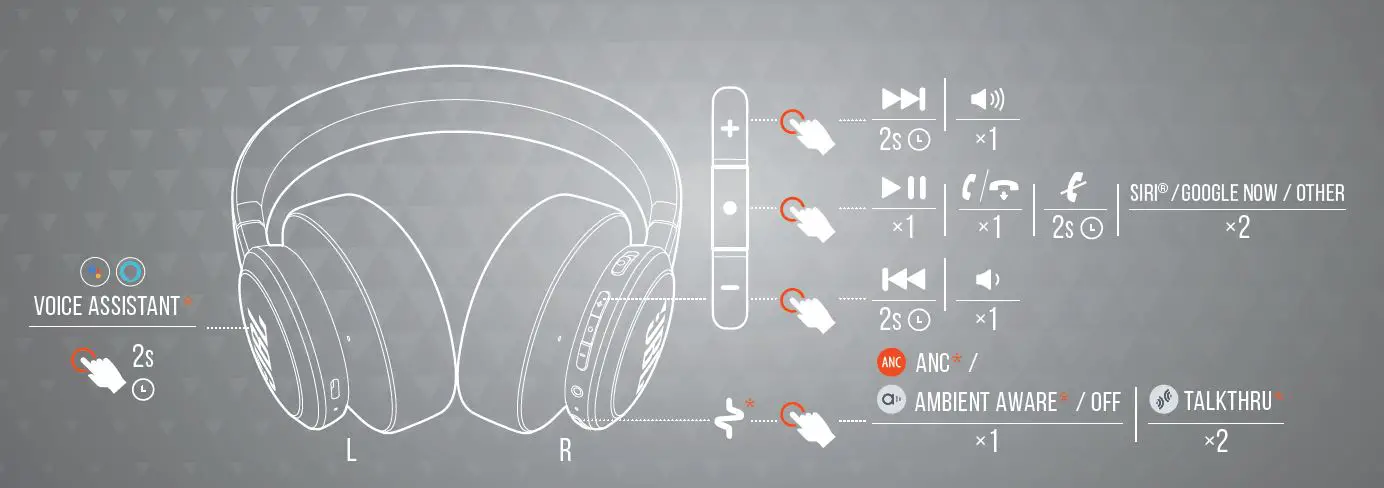

BUTTON COMMAND

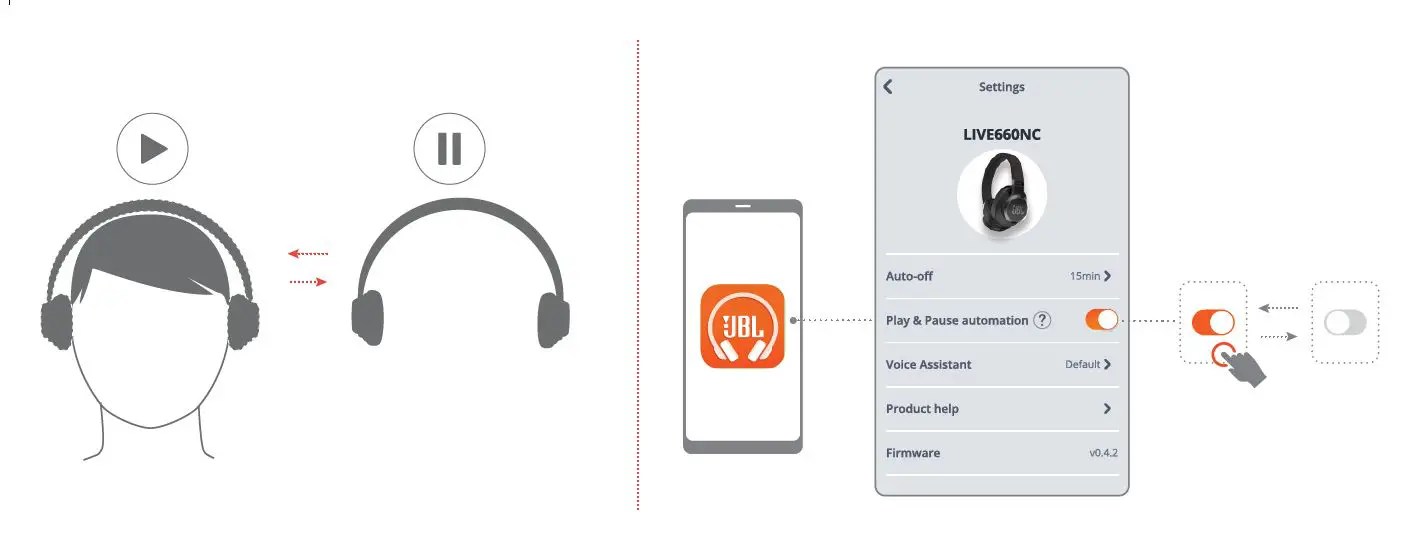

auto-play/pauseJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 6

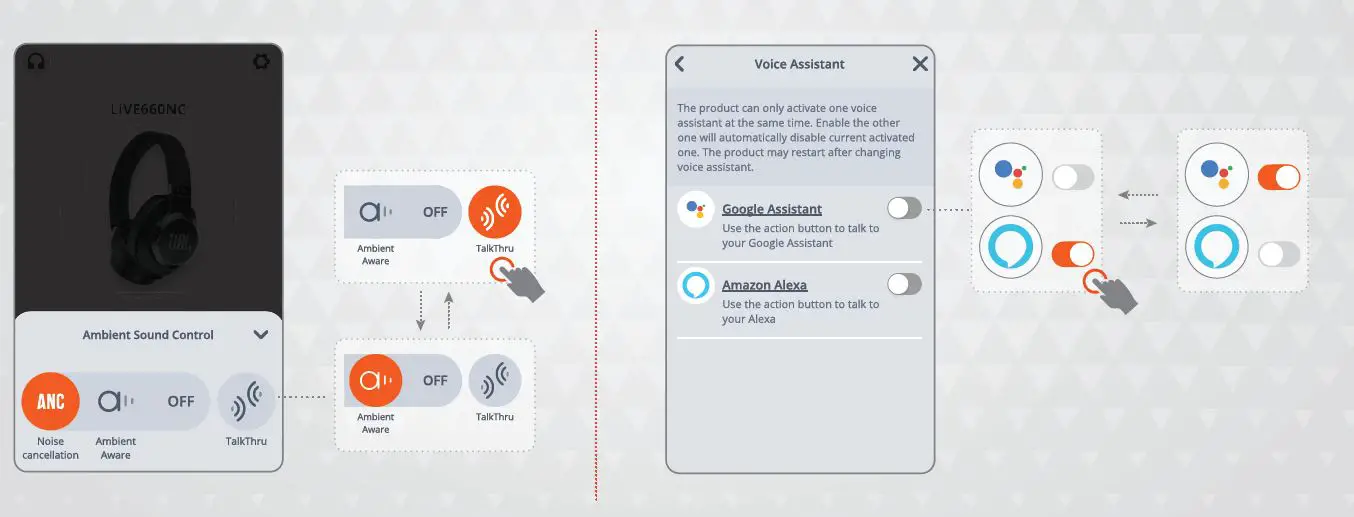

DO MORE WITH THE APP
JBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 7

Wired listening mode
JBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 8

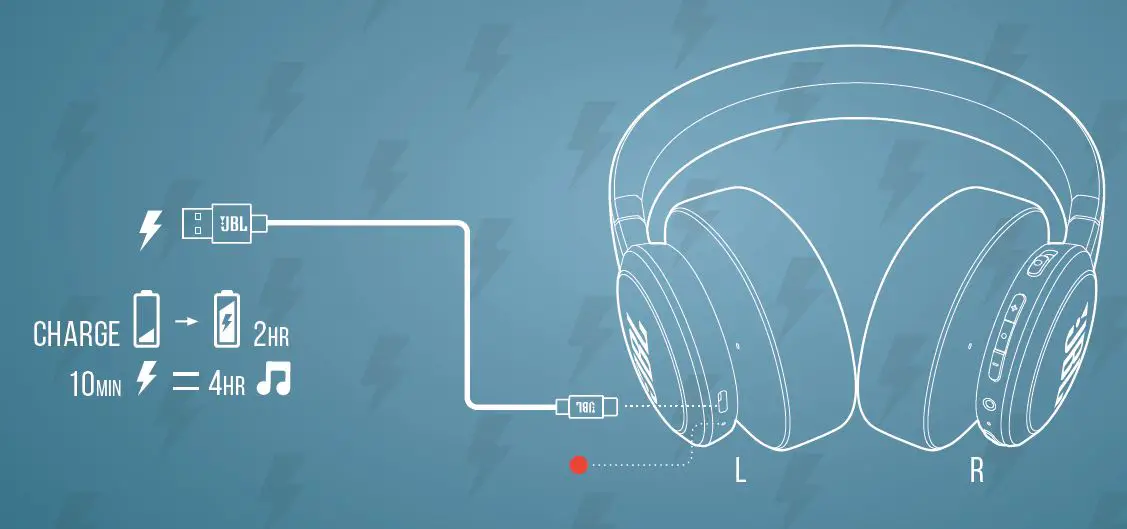

ChargingJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 10

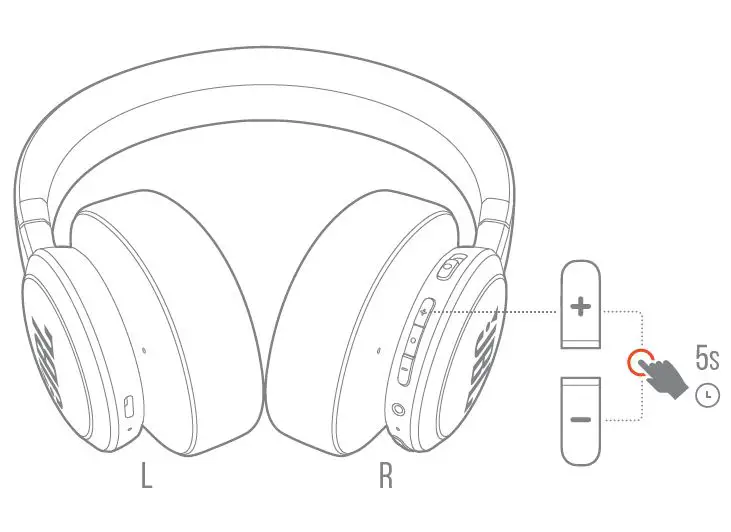

FACTORY RESETJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 11

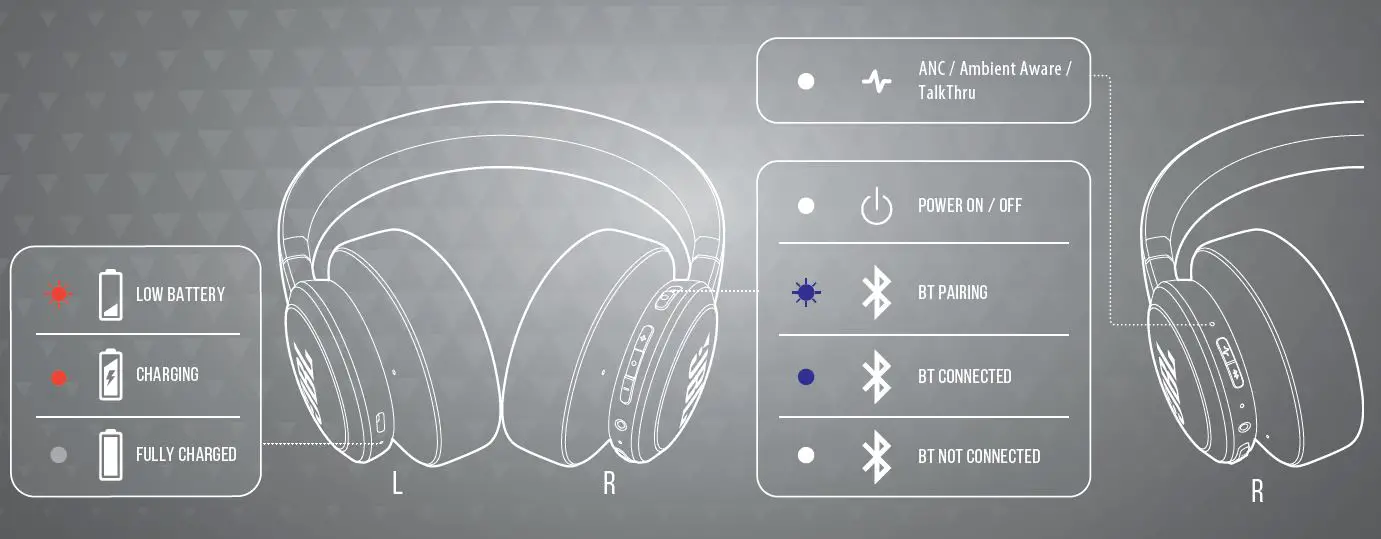

led behaviorsJBL- Live- 660 NC- Wireless -Over- Ear NC- Headphones-FIG 12

TECH SPECIFICATION

  • Model:
    LIVE660NC
  • Driver Size:
    40 mm/1.6” Dynamic Driver
  • Power supply:
    5 V, 1 A
  • Weight:
    265 g/0.6 lbs
  • Battery type:
    Lithium-ion Polymer (750 mA/3.7 V)
  • Charging time:
    < 2 hrs from empty
  • Music playtime with BT on and ANC off:
    Up to 50 hrs
  • Music playtime with BT on and ANC on:
    Up to 40 hrs
  • Frequency Response:
    16 Hz – 20 kHz
  • Impedance:
    32 ohm
  • Sensitivity:
    100 dB SPL@1 kHz/1 mW
  • Maximum SPL:
    95 dB SPL
  • JBL Live 660 NC Wireless Over Ear NC Headphones User Guide
    -19 dBV@1 kHz/Pa
  • Bluetooth version:
    V5.0
  • Bluetooth profile version:
    HFP V1.7, A2DP V1.3, AVRCP V1.6
  • Bluetooth transmitter frequency range:
    2.4 GHz – 2.4835 GHz
  • Bluetooth transmitter power:
    < 10 dBm
  • Bluetooth transmitter modulation:
    GFSK, π/4 DQPSK, 8DPSK
  • Maximum operation temperature:
    45°C

WARNING
DO NOT ATTEMPT TO OPEN, SERVICE, OR DISASSEMBLE THE BATTERY | DO NOT SHORT CIRCUIT | MAY EXPLODE IF DISPOSED OF IN FIRE | RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE | DISPOSE OR RECYCLE USED BATTERIES ACCORDING TO THE INSTRUCTIONS
